Description

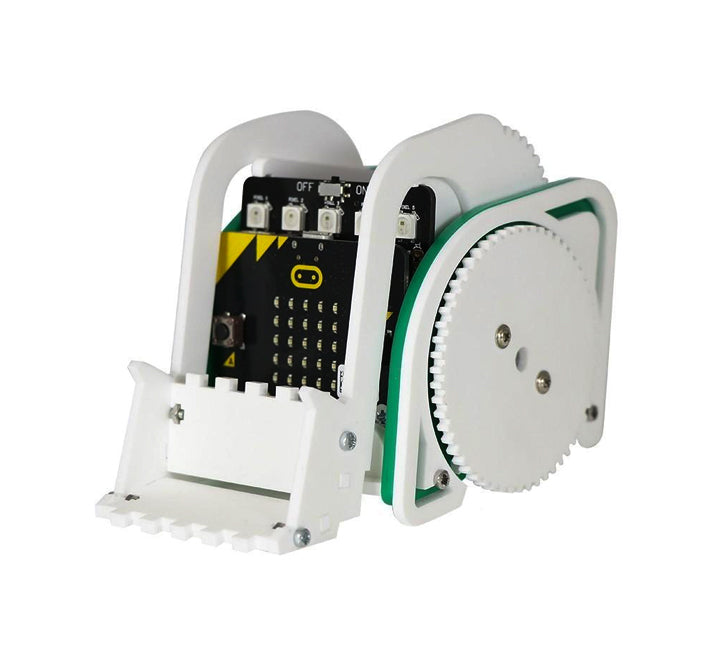

Bulldozer Add-On For The :MOVE MINI

Get more from :MOVE mini for the BBC micro:bit with the servo driven Bulldozer add-on. Code it via the MakeCode Editor and use your buggy as a construction robot

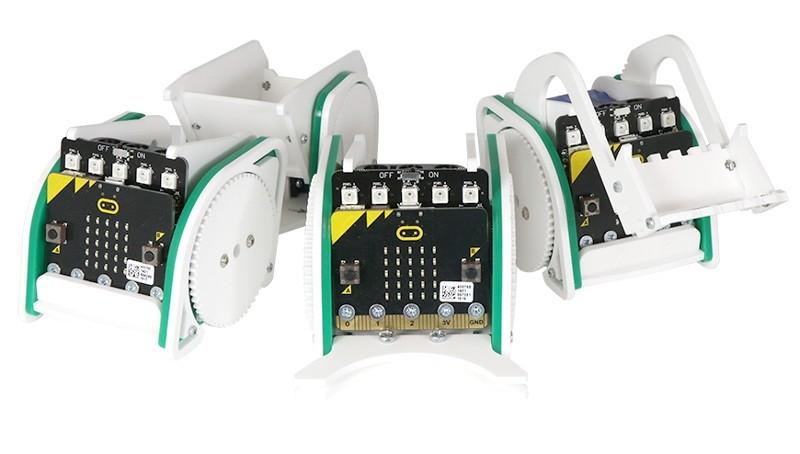

With this Bulldozer add-on for :MOVE mini for the BBC micro:bit, everyone's favourite little programmable robot buggy just got much better. Robots often do more than just :MOVE from A to B, and with this add-on so can :MOVE mini.

This self assembly bulldozer add-on kit is made from the same materials as :MOVE mini, designed in keeping with the :MOVE mini aesthetic, and also comes with the servo required to move the bulldozer add-on up and down.

There is a very simple Servo:Lite board hack that enables the control of the third servo, you can find out how here. Once the kit is fully assembled, the bulldozer arm can be coded with the Microsoft MakeCode Editor.

Features
  • When attached to :MOVE mini this kit offers a fun introduction to the world of DIY robotics.
  • Code it with the Microsoft MakeCode Editor.
  • Use in conjunction with an App and control it over Bluetooth.
  • Use the radio function and a second micro:bit as a controller
Specifications

Dimensions:

  • Length: 110mm.
  • Width: 50mm.
  • Height: 75mm.

Requirement:

  • 1 x :MOVE mini for the BBC micro:bit kit.
  • 1 x BBC micro:bit.
  • Screwdriver

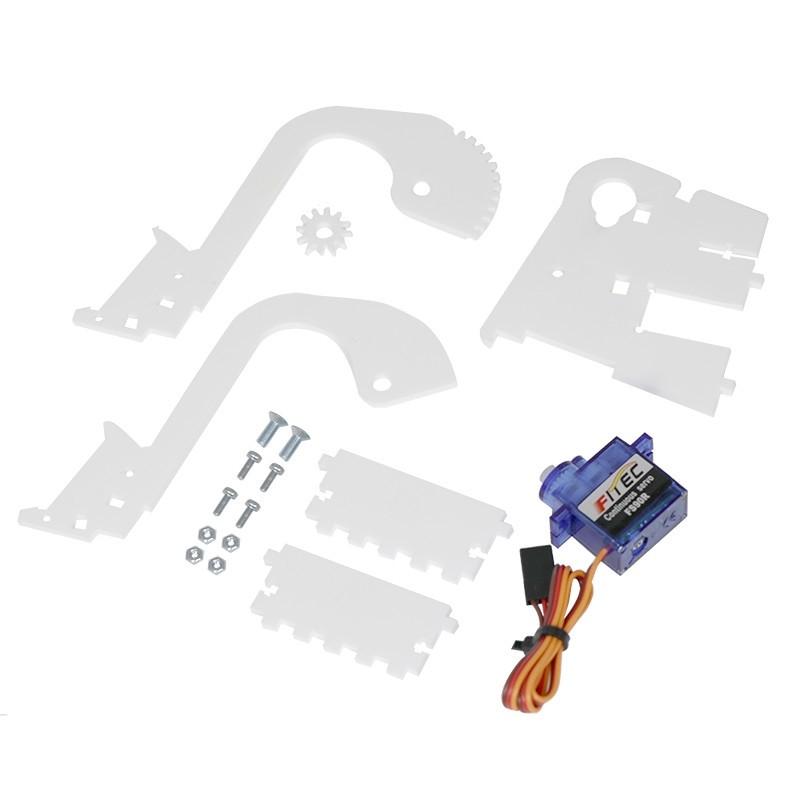

Box Contents
  • 1 x Set of Buldozer parts.
  • 1 x Continous rotation servo.
  • 4 x M2 6mm Pan head steel screw.
  • 4 x M2 Hex Full width nut.
  • 2 x Counter sunk M3 screw.
