RP2040 FlexiBoard – Flexible Microcontroller

Experience the Ultimate Flexible Microcontroller with RP2040 FlexiBoard

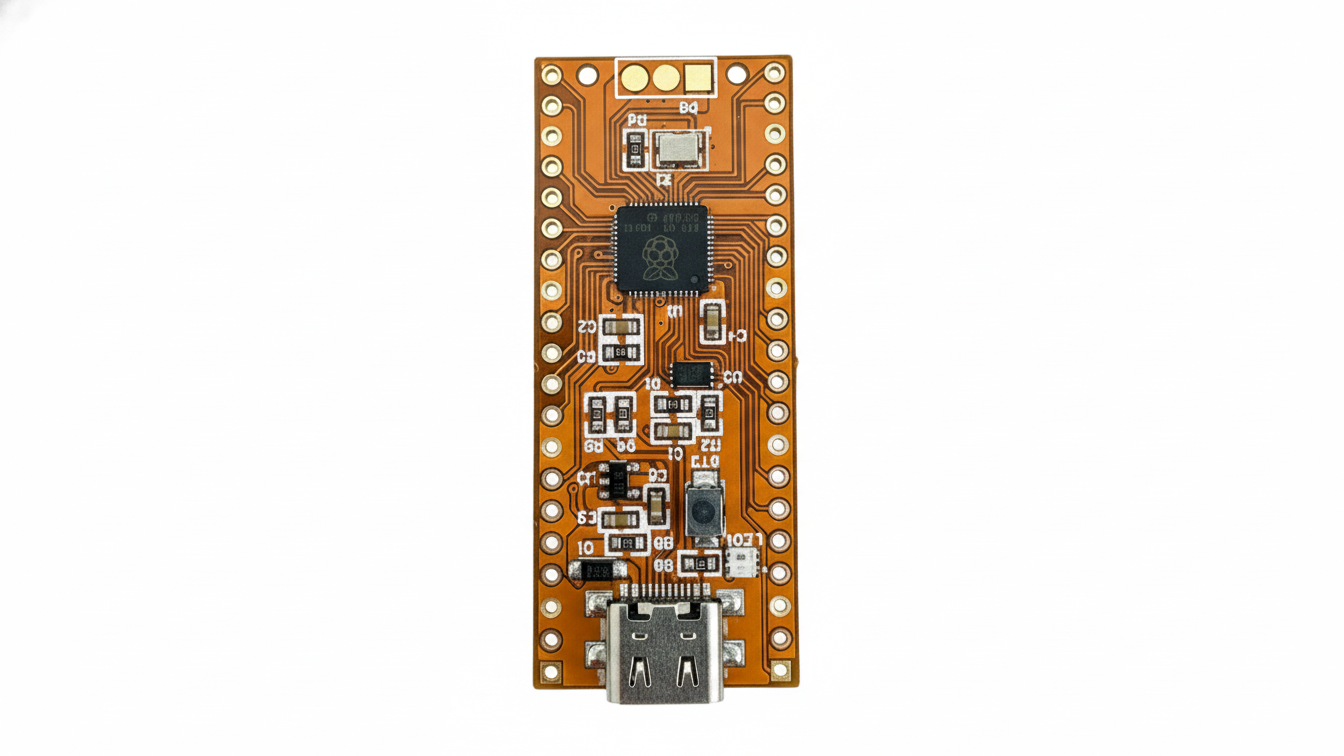

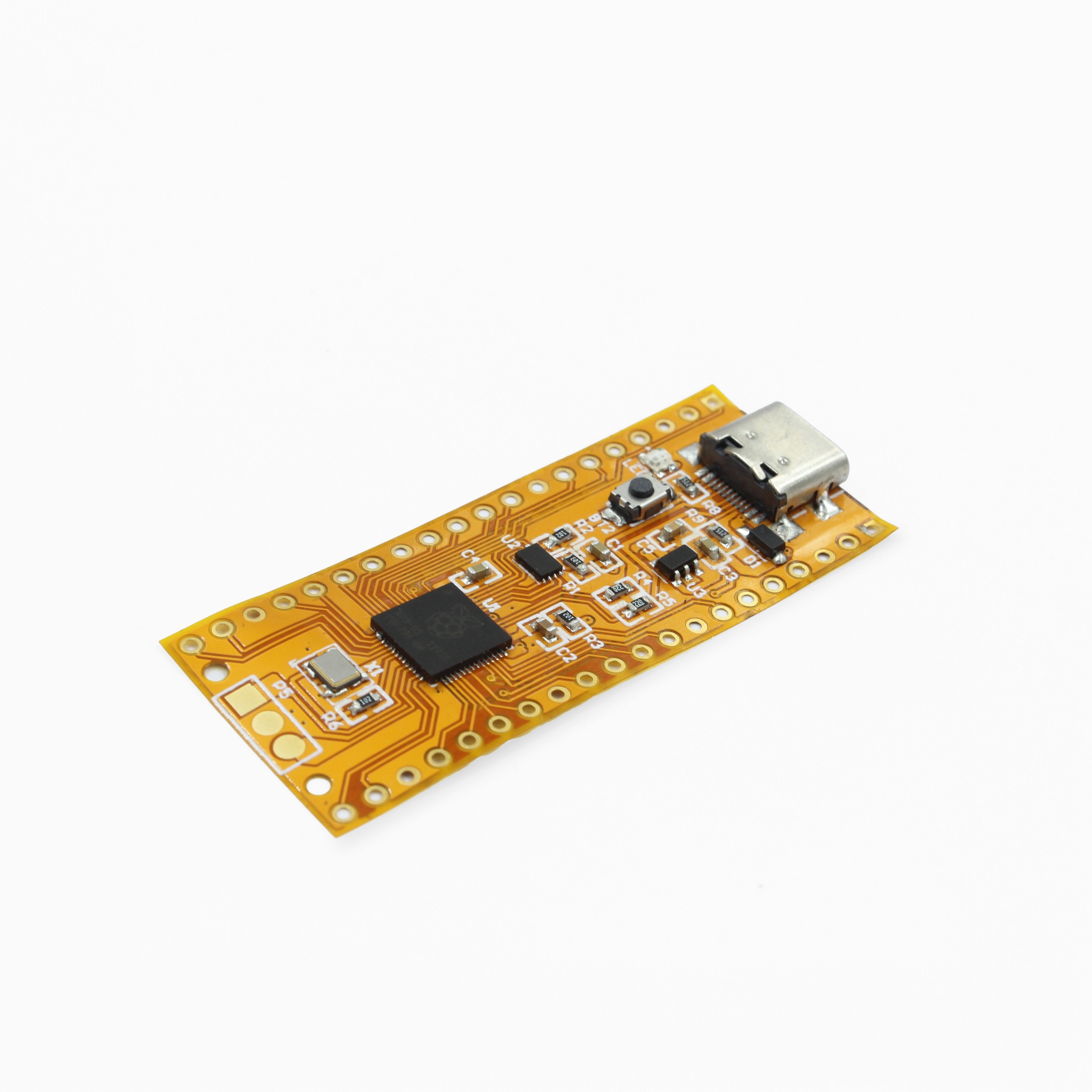

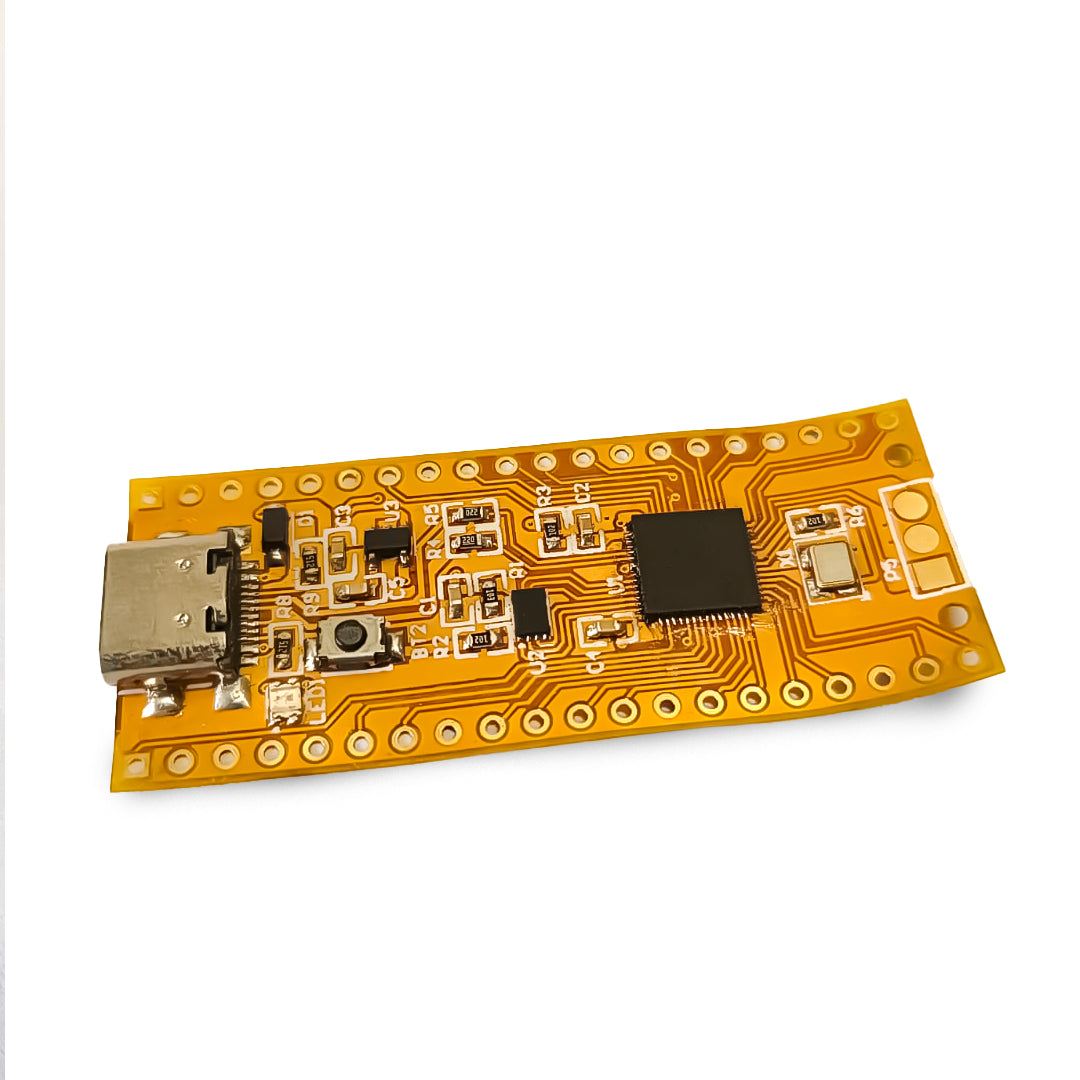

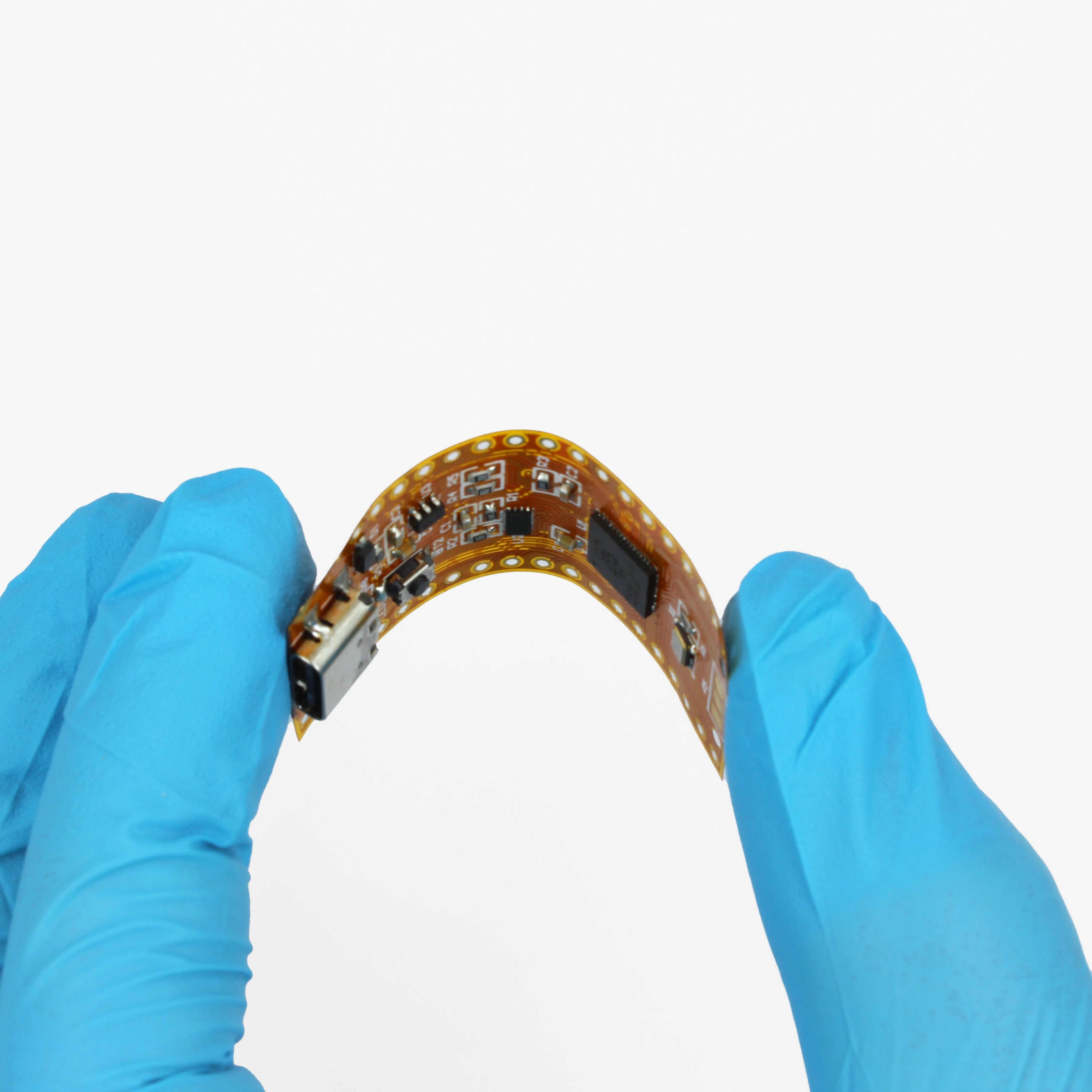

Discover the first ever fully flexible microcontroller board designed for dynamic 360-degree bendability, equipped with a USB Type C port and powered by the cutting-edge RP2040 chip from Raspberry Pi.

The RP2040 FlexiBoard offers a unique blend of high performance and adaptability within a compact form factor. Ideal for flexible microcontroller projects, it caters to developers, makers, and tech enthusiasts seeking next-level versatility.

Whether you're an expert creating complex embedded solutions or a hobbyist experimenting with microcontroller flexibility, the RP2040 FlexiBoard is engineered for all your versatility and performance needs.

This flexible microcontroller supports multiple programming platforms including C/C++, MicroPython, CircuitPython, and Arduino IDE, making it perfect for everything from simple innovations to advanced embedded applications.

Why Choose RP2040 FlexiBoard Flexible Microcontroller?

At its core lies the dual-core Arm Cortex-M0+ processor, running up to 133 MHz, delivering robust speed and power efficiency. With 2MB onboard Flash memory and 264kB SRAM, it ensures seamless performance for memory-intensive tasks. The inclusion of Programmable I/O (PIO) allows support for custom peripherals and innovative uses.

Key Features of the RP2040 FlexiBoard:

• Compact & Powerful: Measuring just 21mm x 51mm, this flexible microcontroller board is perfect for space-sensitive projects.
• RGB LED: Equipped with a WS2812 RGB LED to add creative lighting effects.
• Enhanced Memory: Supports memory-heavy applications with 264kB SRAM and 2MB QSPI Flash.
• Flexible GPIO & I/O: Features 26 GPIO pins, 3 analog inputs, and 8 Programmable I/O state machines for custom solutions.
• USB 1.1 Host & Device Support: Connect and control a variety of peripherals with built-in USB functionality.
• Power-Efficient Design: Operates between 1.8V to 5.5V with low-power sleep modes for extended battery life.
• Easy for Beginners: Drag-and-drop UF2 bootloader and support for MicroPython/CircuitPython make it accessible to all skill levels.
• Compatible Form Factor: Matches the official Raspberry Pi Pico board size for seamless integration.

Detailed RP2040 FlexiBoard Specifications:

• Microcontroller: RP2040 by Raspberry Pi
• Processor: Dual-core Arm Cortex-M0+, up to 133 MHz clock speed
• Memory: 264kB SRAM, 2MB QSPI Flash

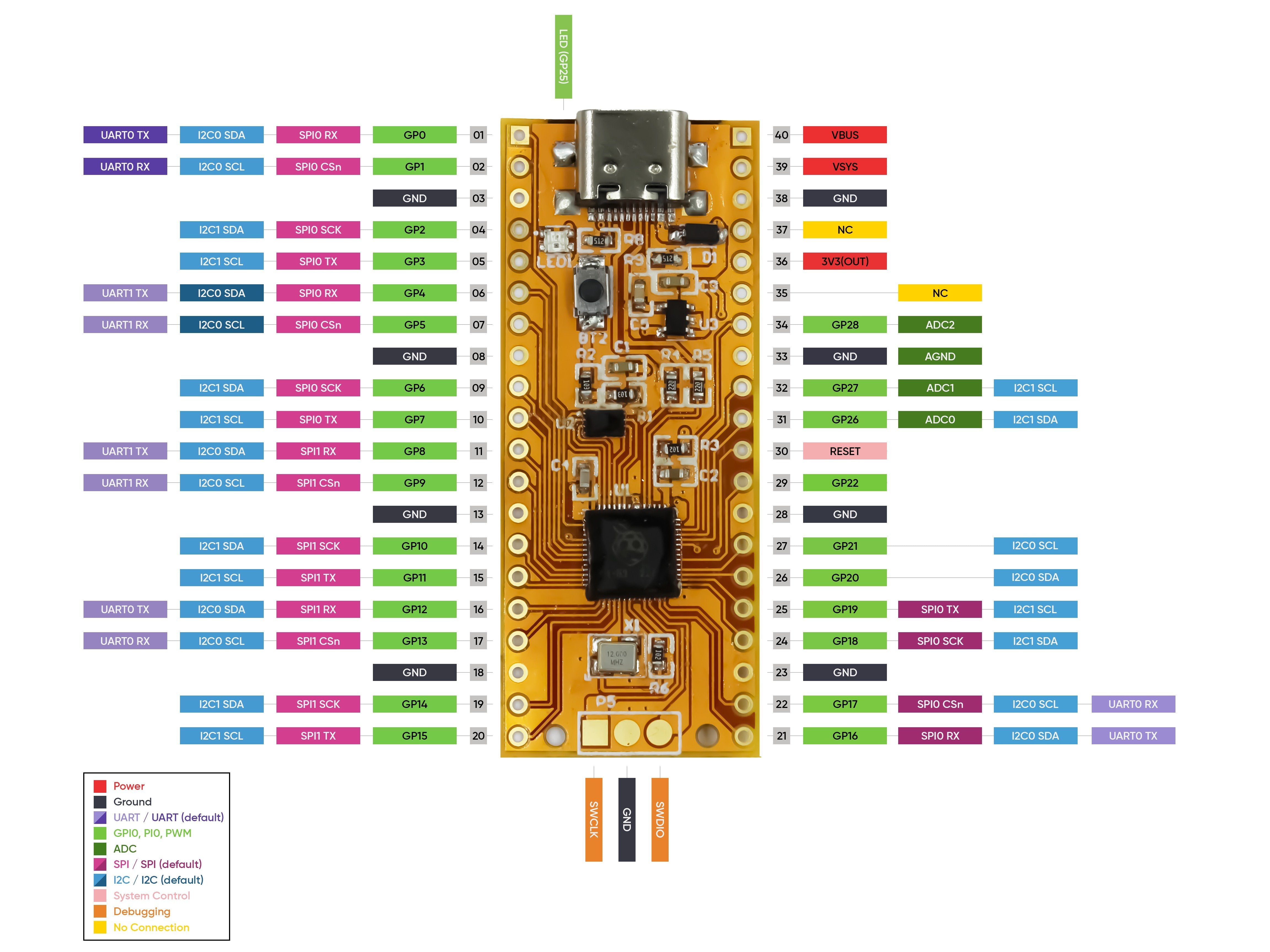

• GPIO: 40 multifunctional pins including 3 analog inputs
• Connectivity: 2 × UART, 2 × SPI, 2 × I2C, 16 × PWM channels, 8 × Programmable I/O state machines
• USB Support: USB 1.1 host and device
• Power Input: 1.8–5.5V DC
• Operating Temperature: -20°C to +85°C
• Additional Features: On-chip clock, temperature sensor, low-power modes, floating-point libraries

The RP2040 FlexiBoard is the perfect choice for anyone seeking a flexible microcontroller board that combines power, efficiency, and versatility in a highly compact and durable design. Elevate your embedded systems projects with this innovative flexible microcontroller today.
