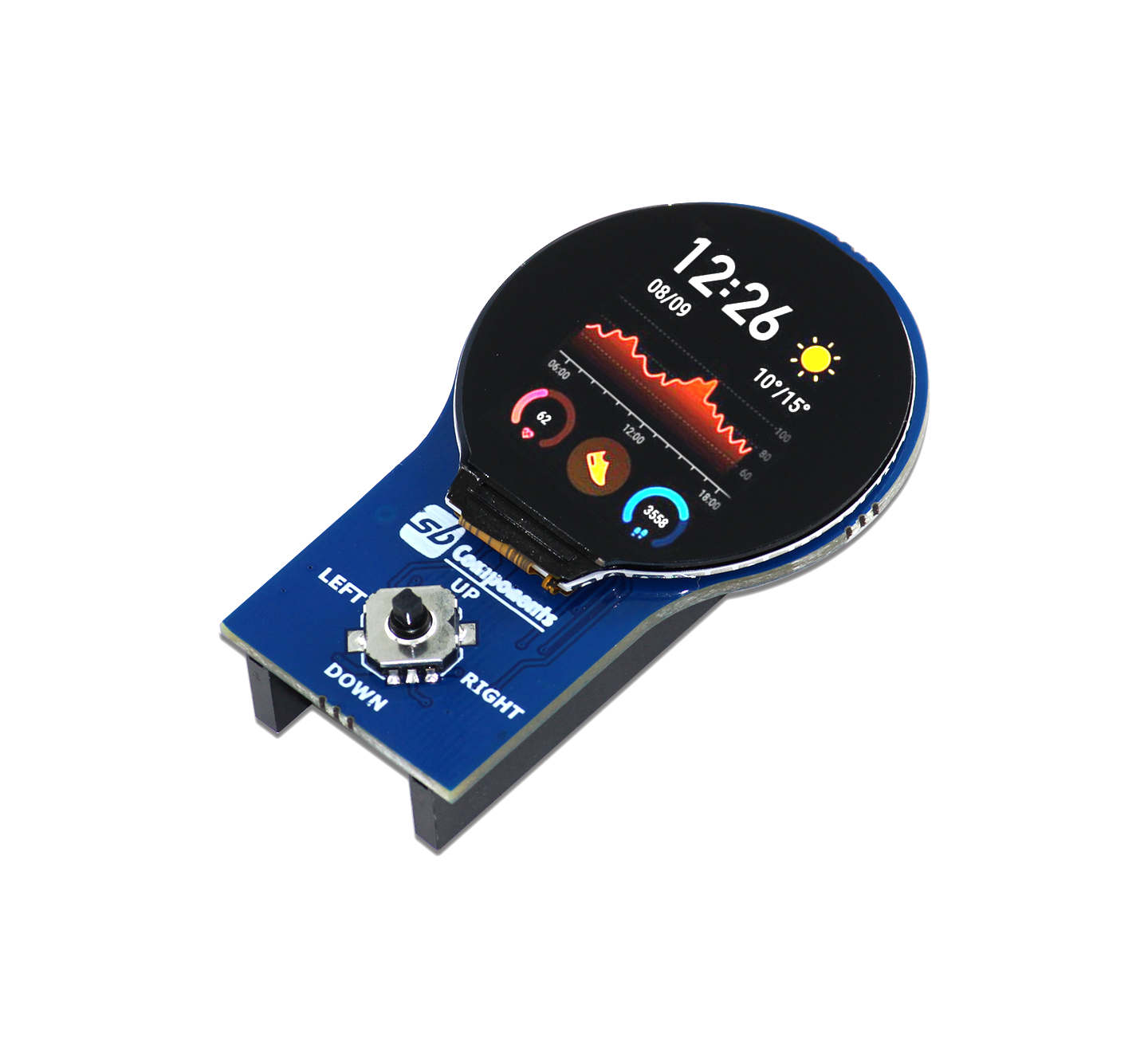

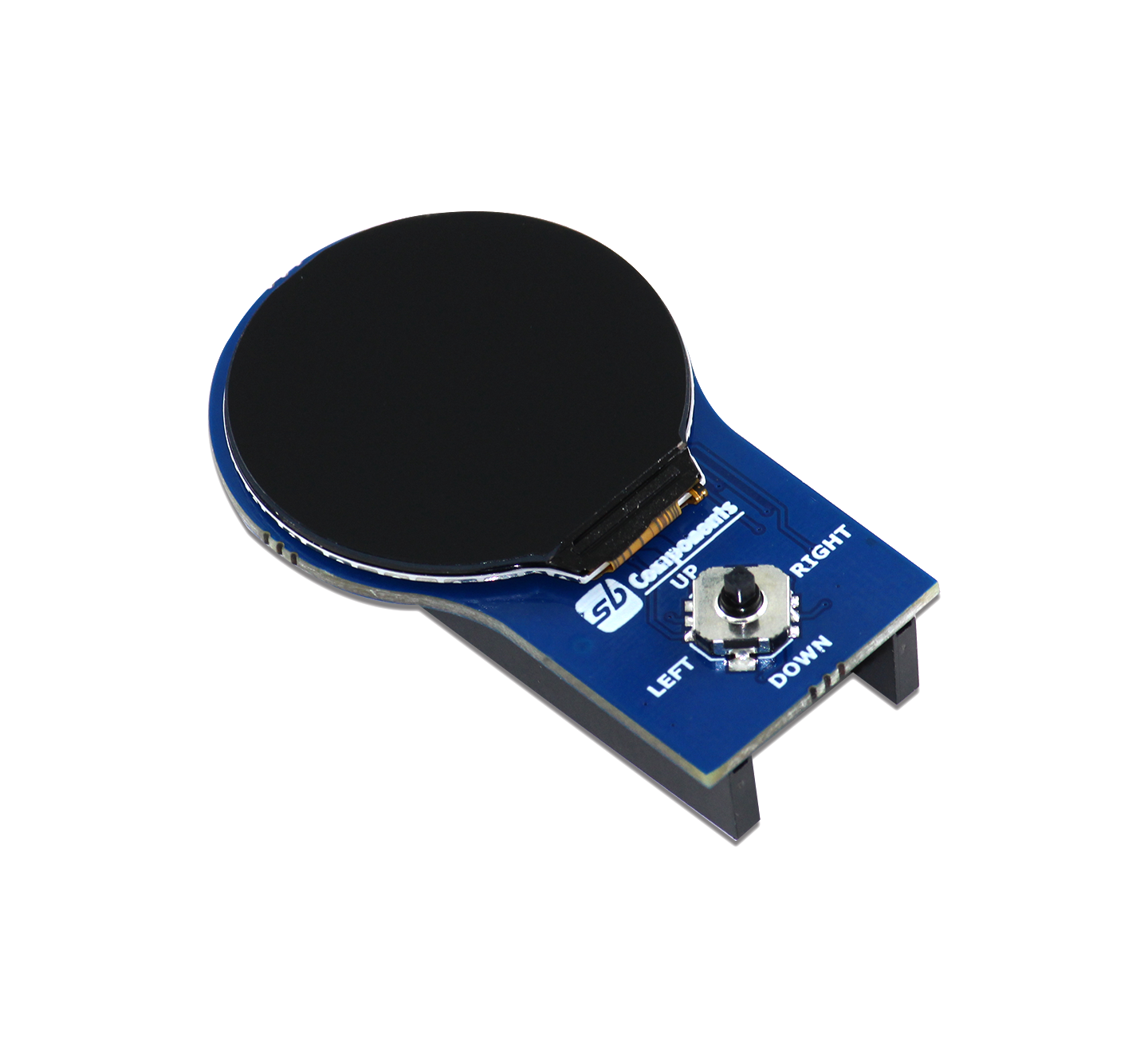

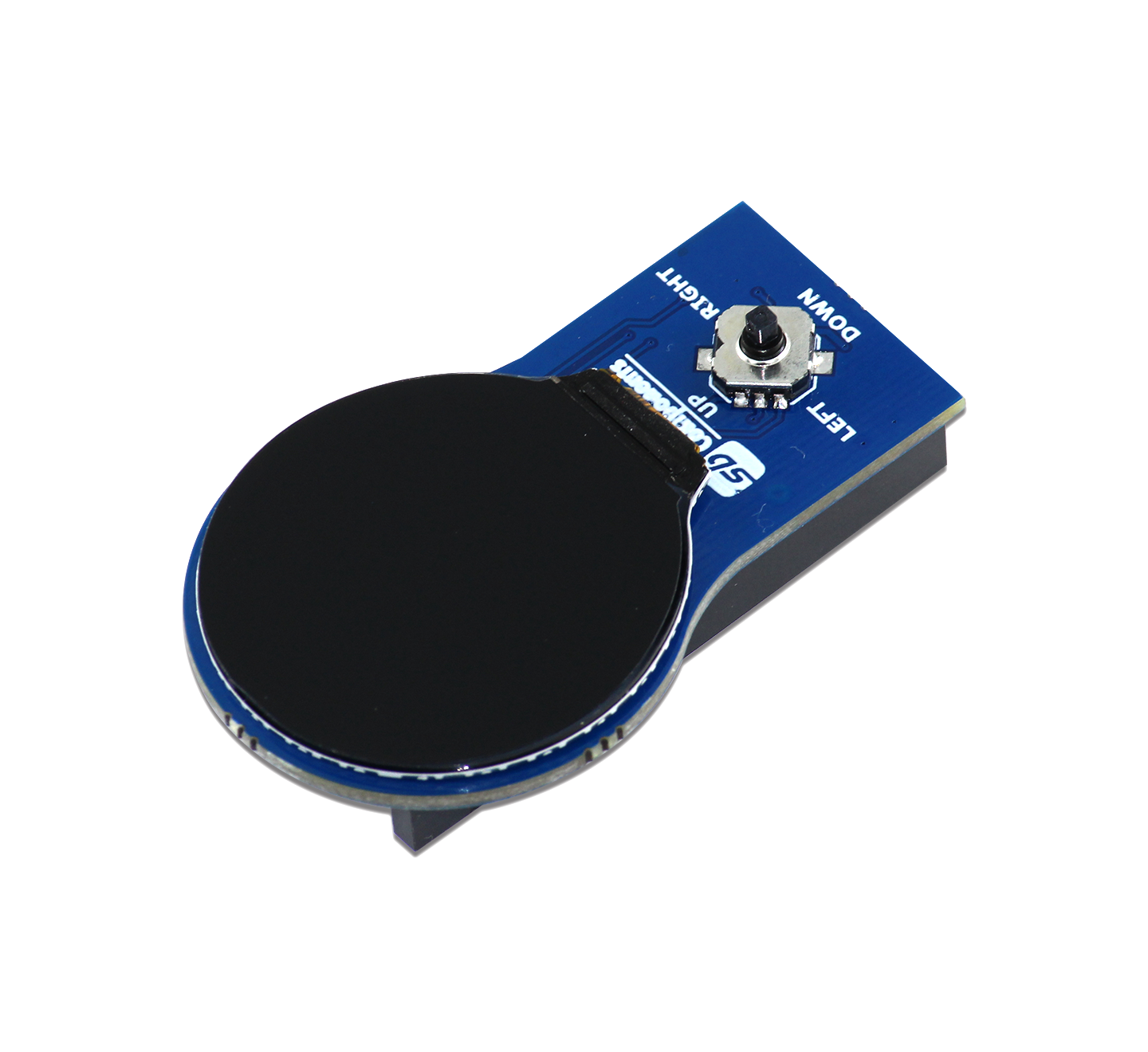

1.28” Round LCD HAT for Pico
Pico 1.28” Round LCD HAT is a 1.28-inch display HAT with 240 x 240 resolution, 65K RGB colors, clear and colorful displaying effect, and a joystick, designed for the Raspberry Pi Pico...

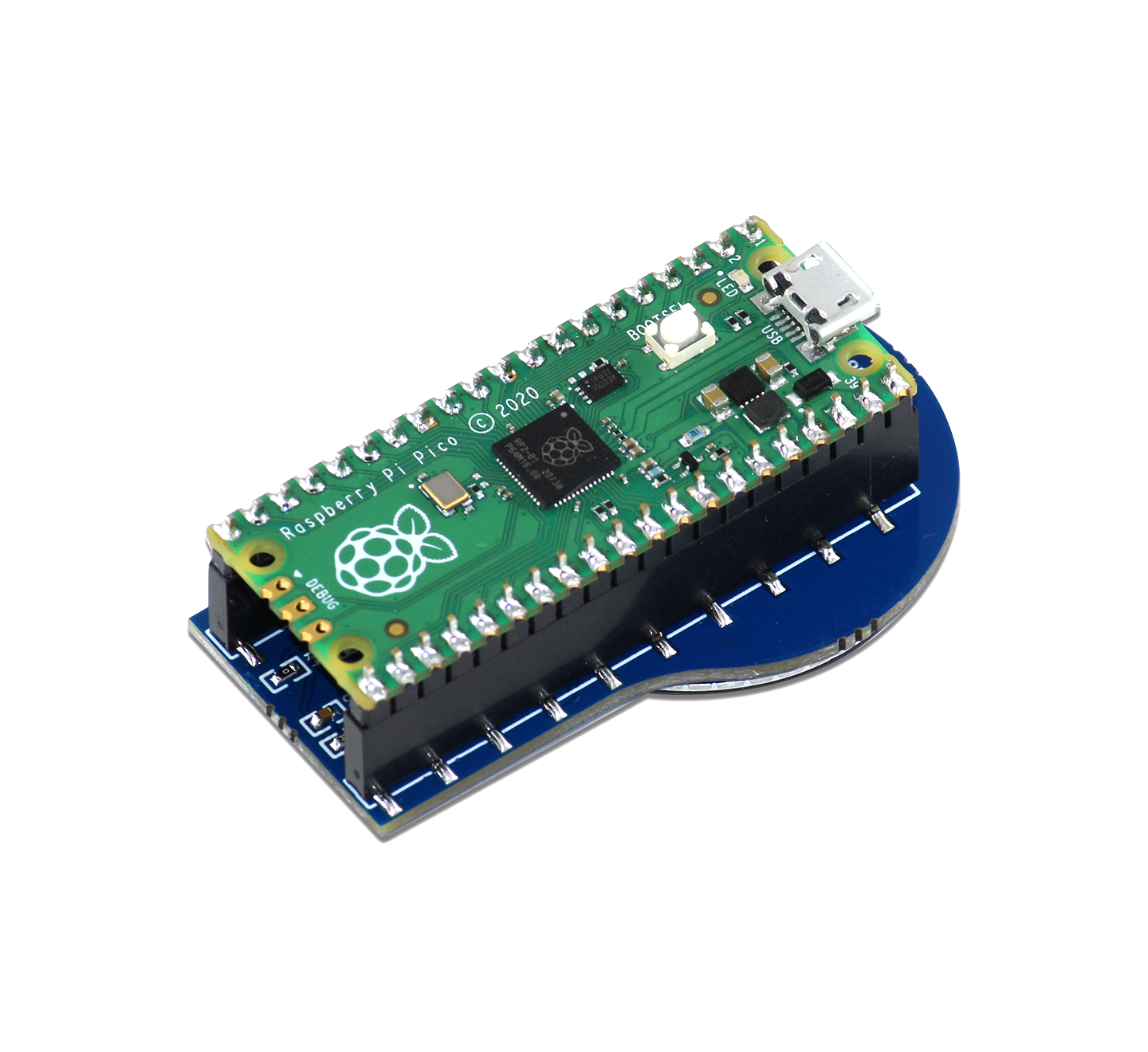

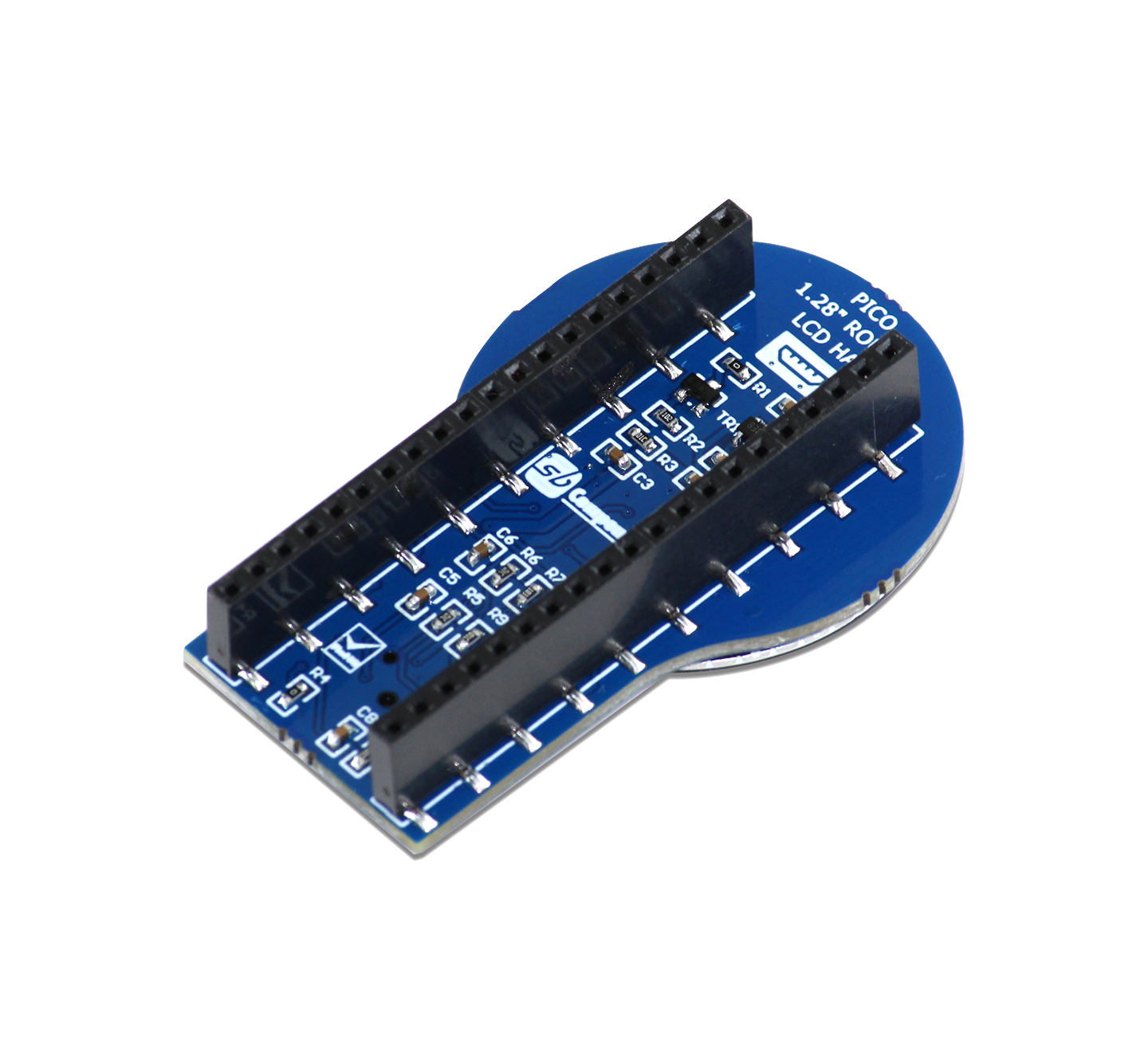

Pico 1.28” Round LCD HAT is a 1.28-inch display HAT with 240 x 240 resolution, 65K RGB colors, clear and colorful displaying effect, and a joystick, designed for the Raspberry Pi Pico to expand its engagement via SPI communication by providing a standard 40 pin Pico GPIO interface. The Pico 1.28" Round LCD HAT includes an incorporated GC9A01 display driver and SPI interface, reducing the number of IO pins required. It features a 5-input joystick that is connected to the Pico 1.28” Round LCD HAT through a stackable GPIO connector header on the inside.
Kit Content
- 1 x Round LCD HAT only
Resources
Note: No Pico Board Included, Buy Pico Board
| Communication | 4 Wire SPI |
| Operating Voltage | 3.3V |
| Display | 1.28" LCD Display |
| Pixels | 240 x 240 |
| Display Color | 65K RGB |
| Compatibility | Standard Raspberry Pi Pico 40 Pins GPIO |
| Display Driver | GC9A01 |
| Joystick | 4 Direction + Central Press button |
