8 Bit Level Shifter

SKU: SKU21772
filler

Price:
£5.99 GBP

Description

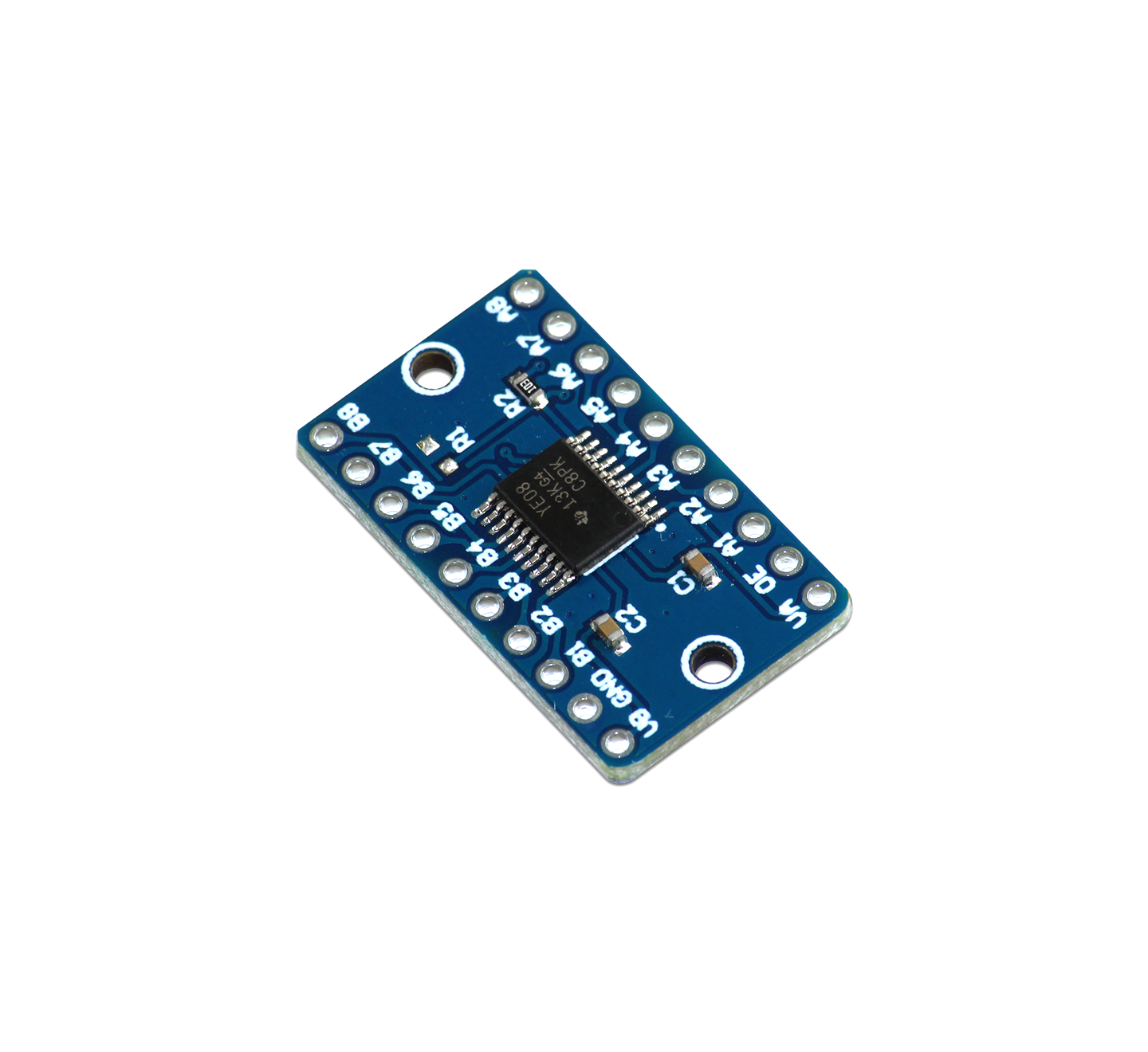

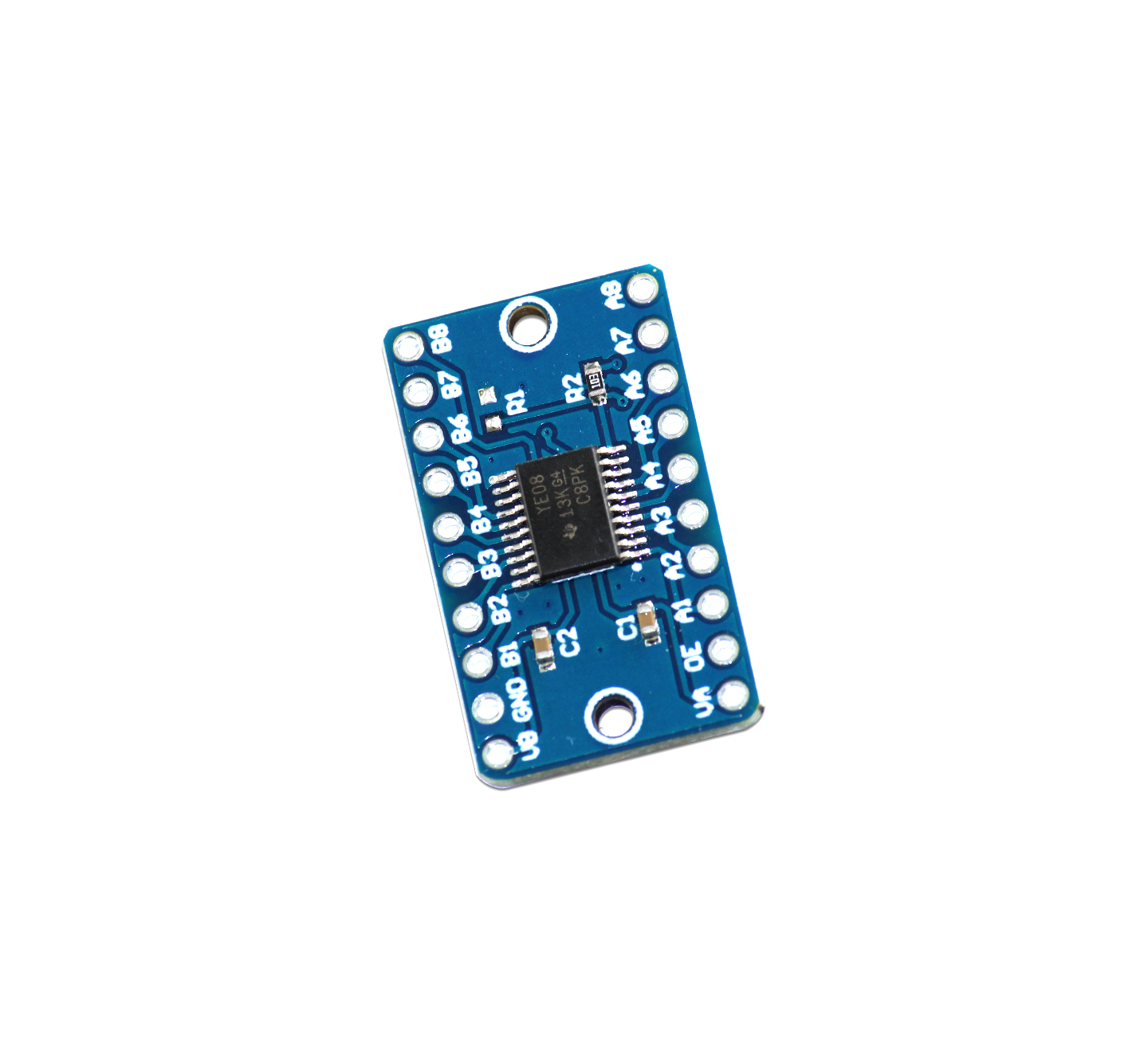

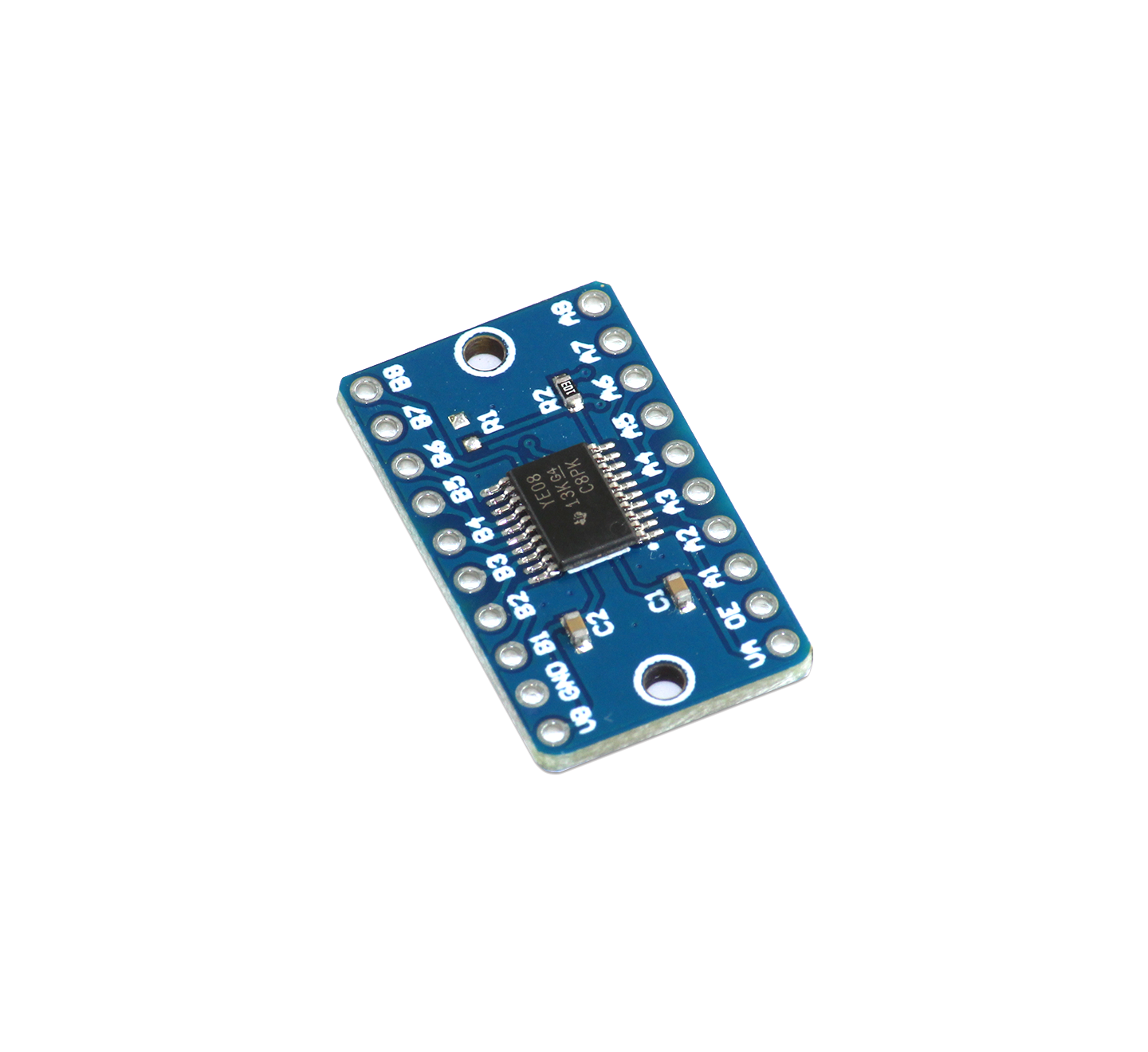

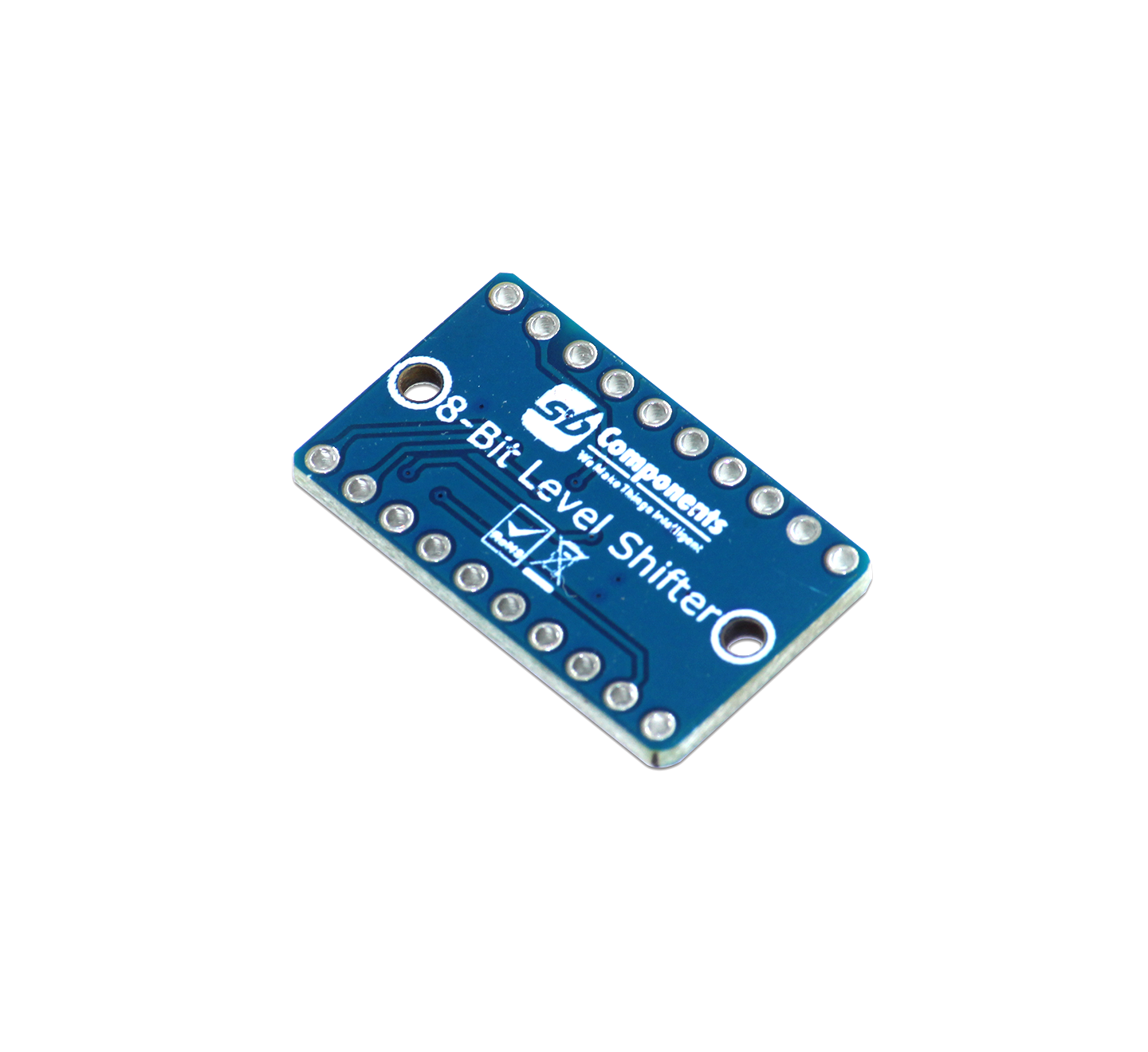

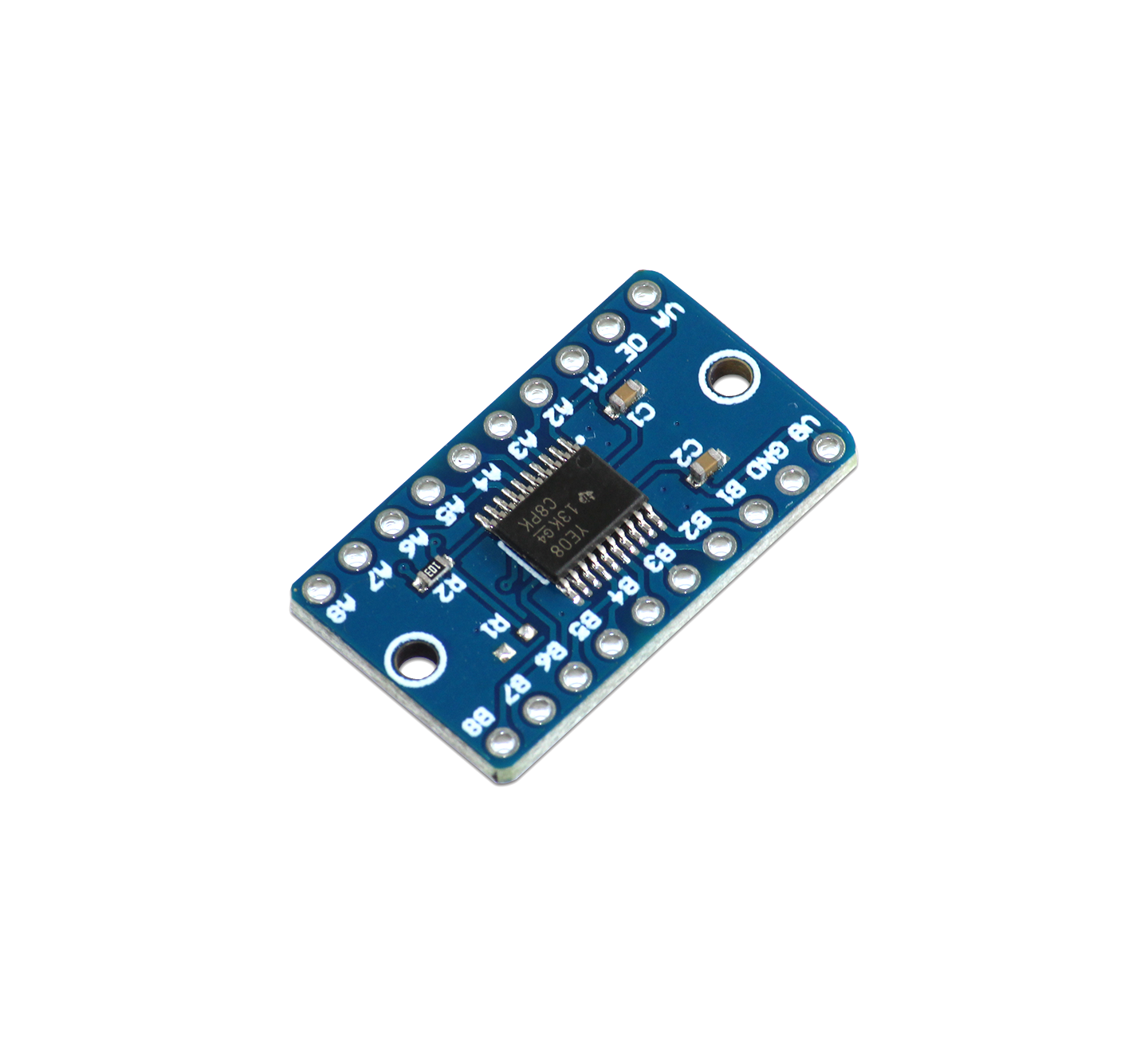

The 8-bit level shifter is an 8-bit non-inverting shifter breakout board with the powerful and compact IC TXB0108 and VCCA Voltage Range: 1.2V-3.6V and VCCB Voltage Range: 1.65V-5.5V that acts as a bridge between applications with differing source voltage and input-output voltage levels. The efficiency of your work can be improved by using an 8-bit level shifter, which has a low propagation latency and a wide supply voltage range.

Ports A and B are designed to track VCCA and VCCB, respectively, with VCCA accepting any supply voltage between 1.2V and 3.6V and VCCB accepting any supply voltage between 1.65V and 5.5V with the condition that VCCA does not exceed VCCB. The 8-bit level shifter can therefore be used for universal low-voltage bidirectional translation between any of the voltage nodes 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V.8 Bit Level Shifter banner8 Bit Level Shifter Features8 Bit Level Shifter Features8 Bit Level Shifter Specifications8 Bit Level Shifter specification8 Bit Level Shifter Application8 Bit Level Shifter Application8 Bit Level Shifter Dimensions8 Bit Level Shifter Dimensions8 Bit Level Shifter compatibility8 Bit Level Shifter compatibility8 Bit Level Shifter Kit Content

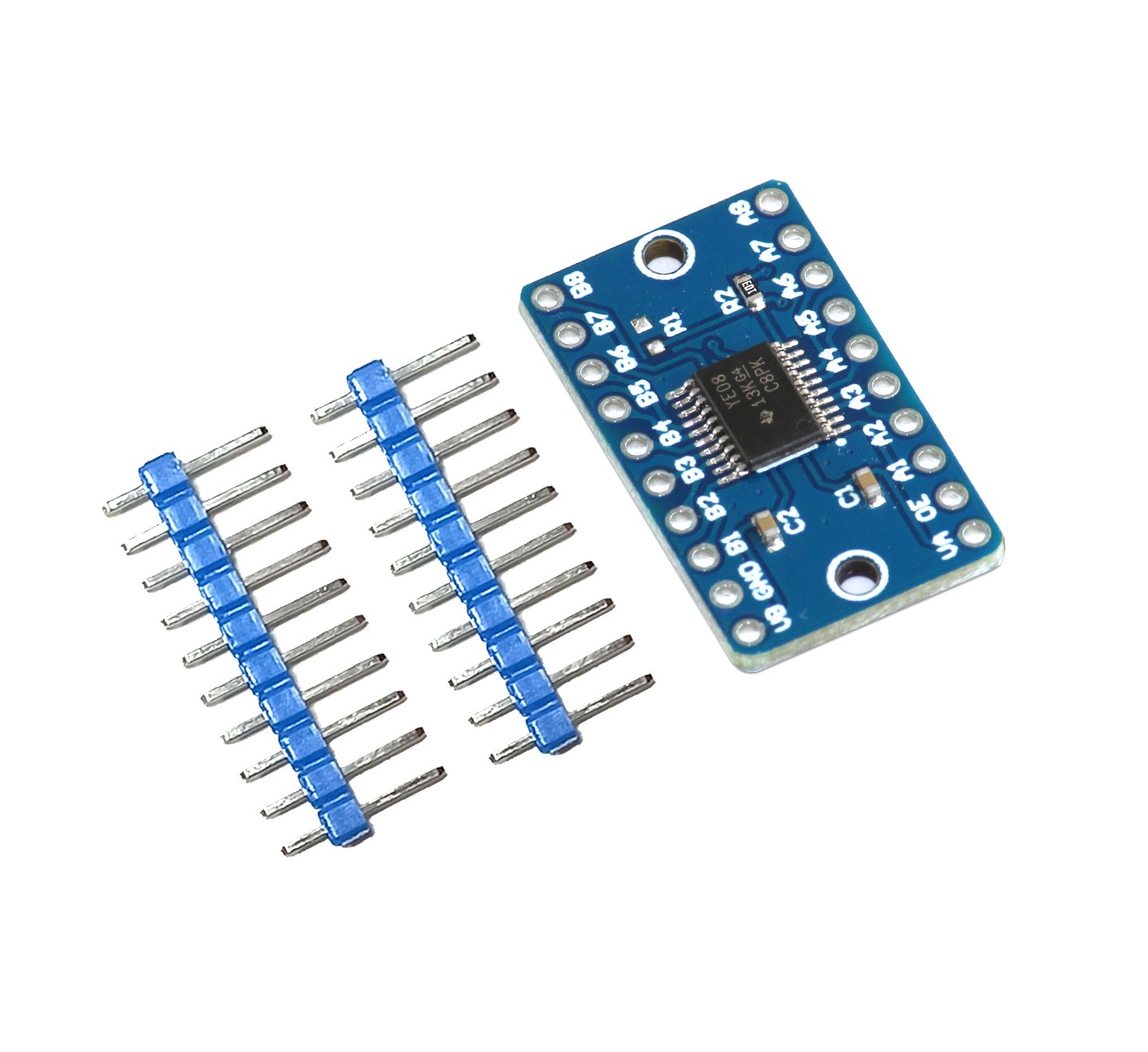

  • 1 x Level shifter unit only
  • 2 x 10 Pins Berg Strip
