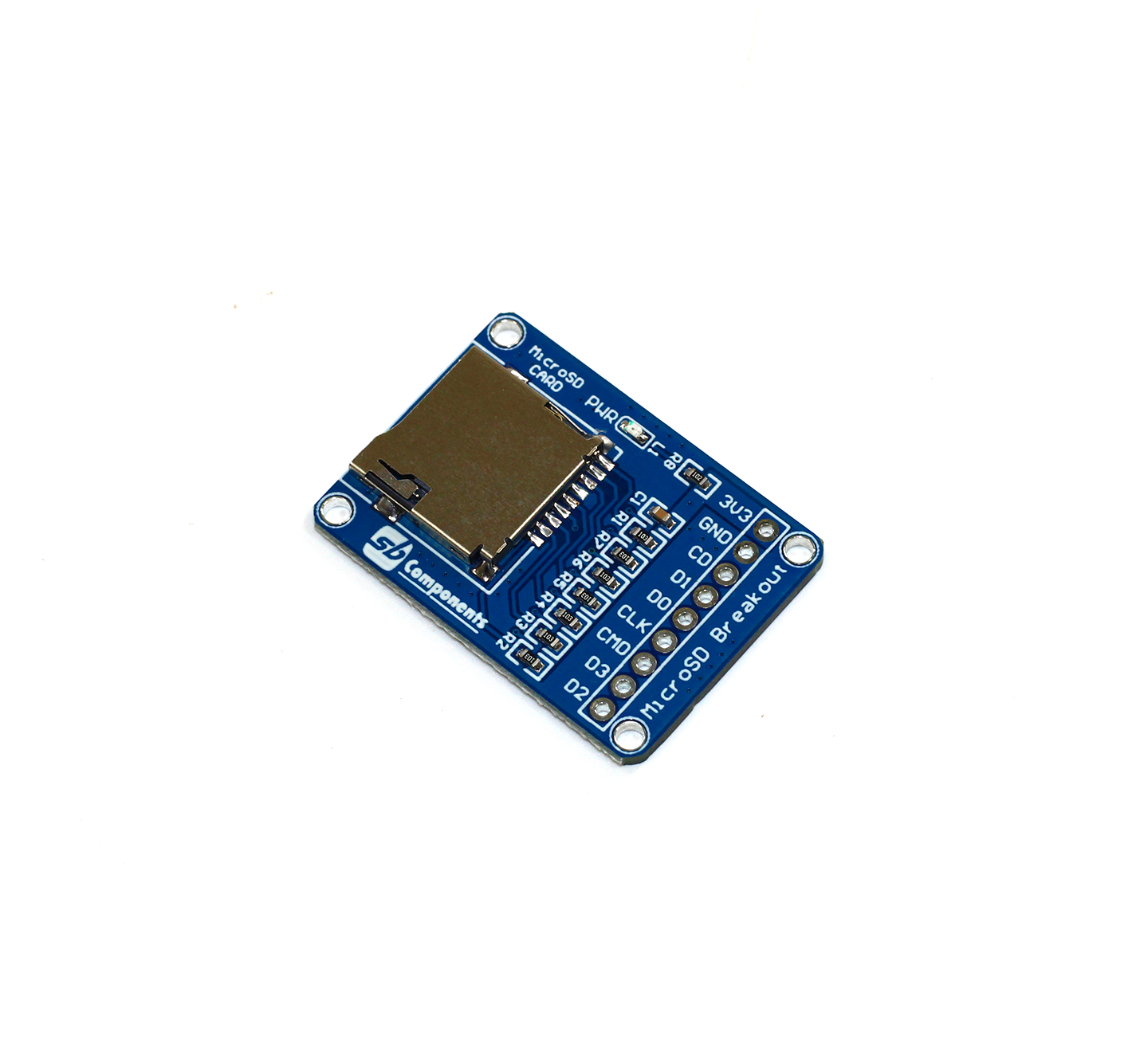

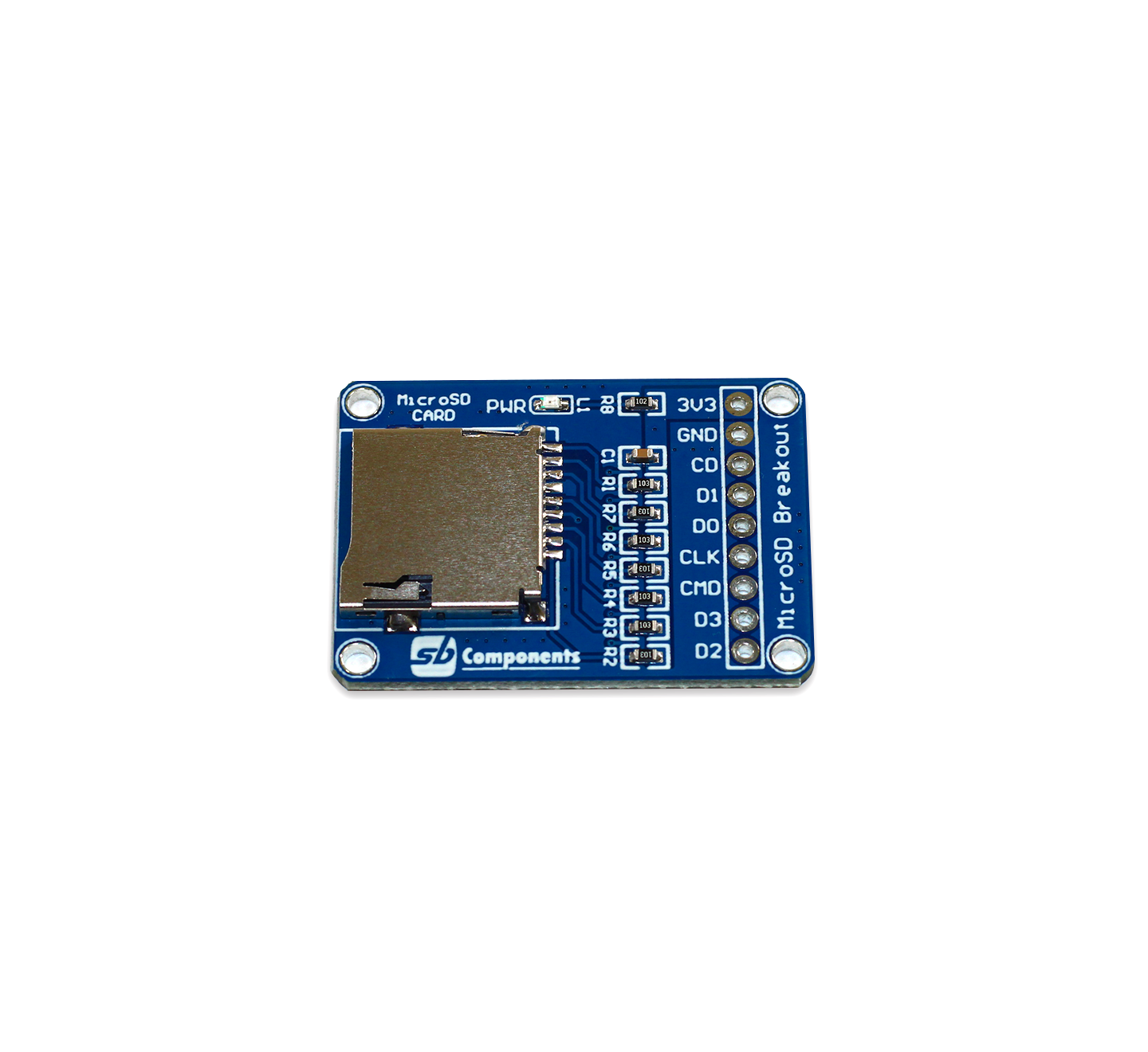

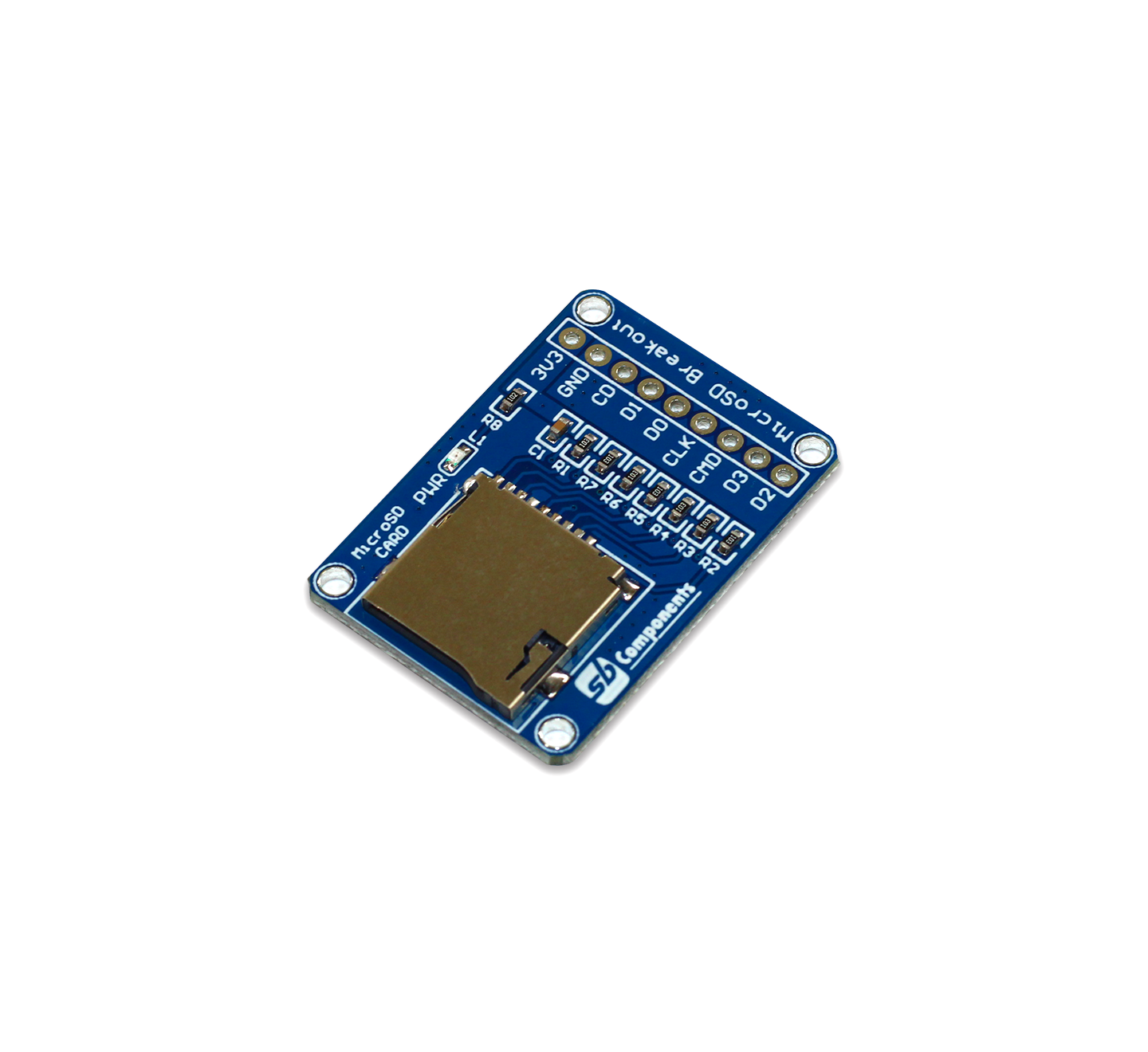

MicroSD Card Breakout

£4.99 GBP £2.40 GBP SAVE 52%

MicroSD Card Breakout is a compact and efficient way to add desired memory into your project to store data, media, codes, etc. It works on SPI interface communication which makes it compatible...

Description

MicroSD Card Breakout is a compact and efficient way to add desired memory into your project to store data, media, codes, etc. It works on SPI interface communication which makes it compatible to run it easily with SPI-based microcontrollers.

MicroSD Card Breakout is compatible with any SD card and runs on an operating voltage of 3.3V. It has various applications that help user to store the data of their projects.

MicroSD Card Breakout

  • Microprocessor Support

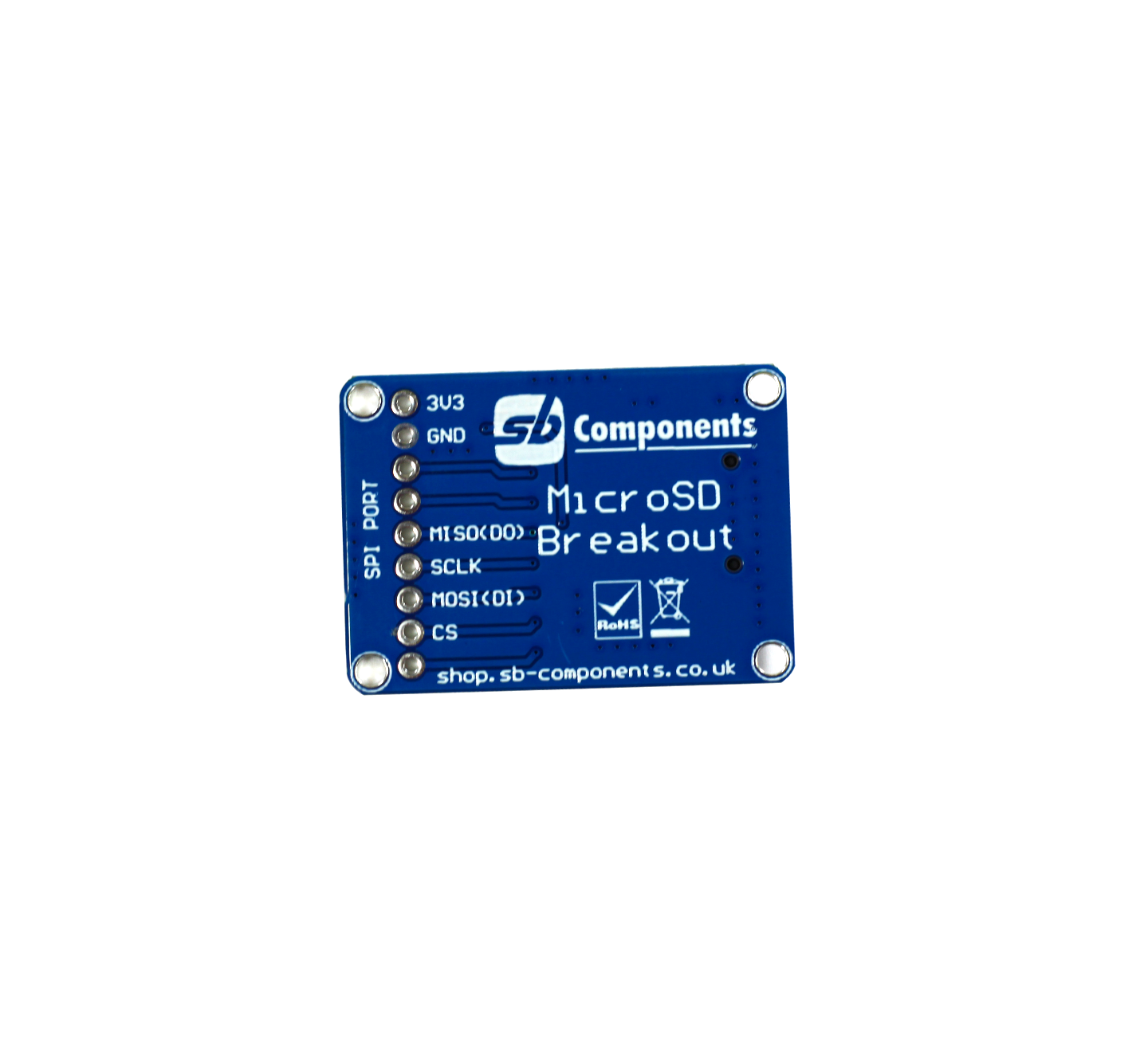

  • Control Interface - GND, VCC, MISO, MOSI, SCK, CS
  • FAT file system SD carrier support
  • 3.3V operating voltage
  • SPI communication interface
  • Dimension - 35mm x 25mm

Resources

Box Content

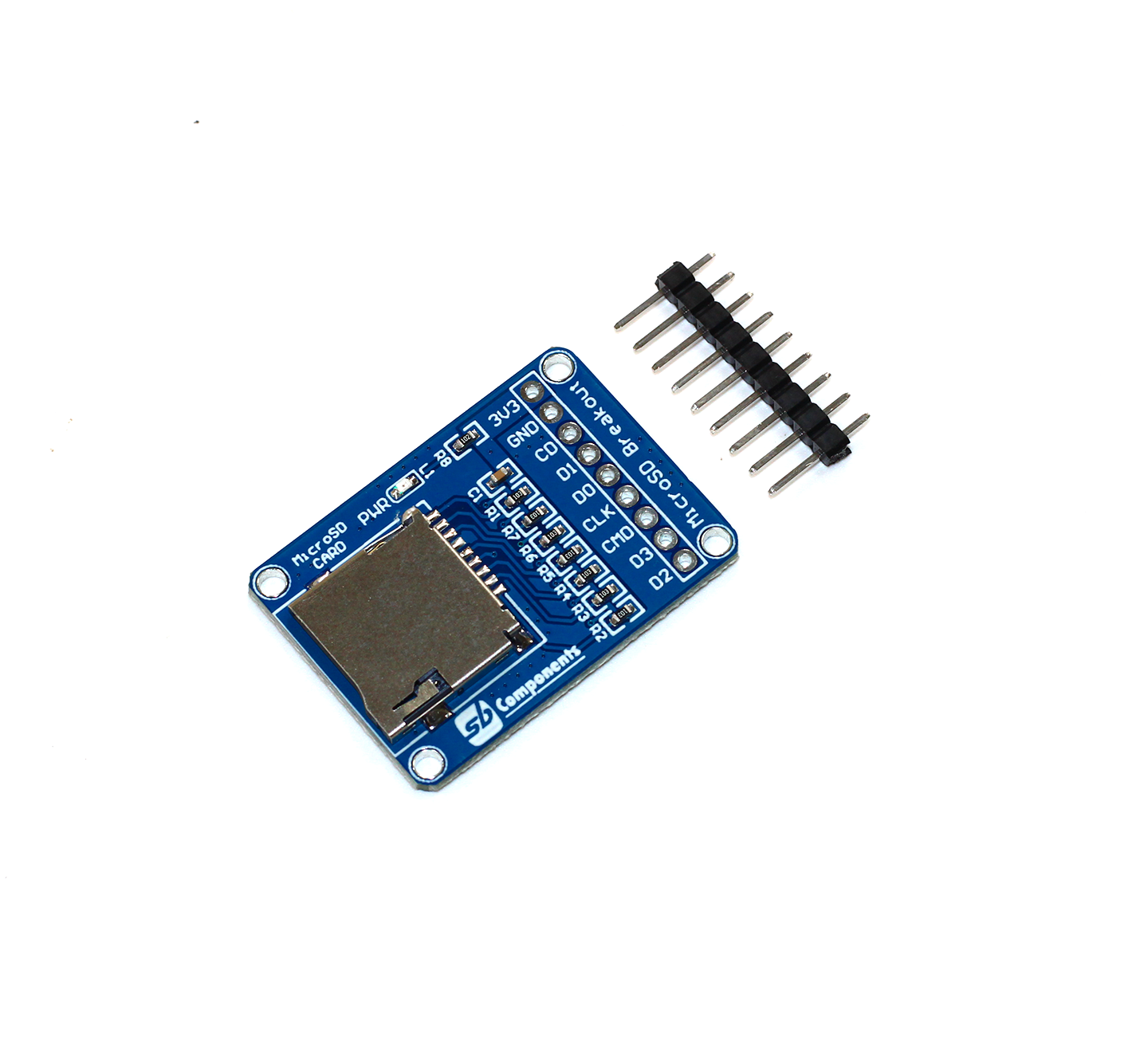

  • 1 x Micro SD Card breakout board only
