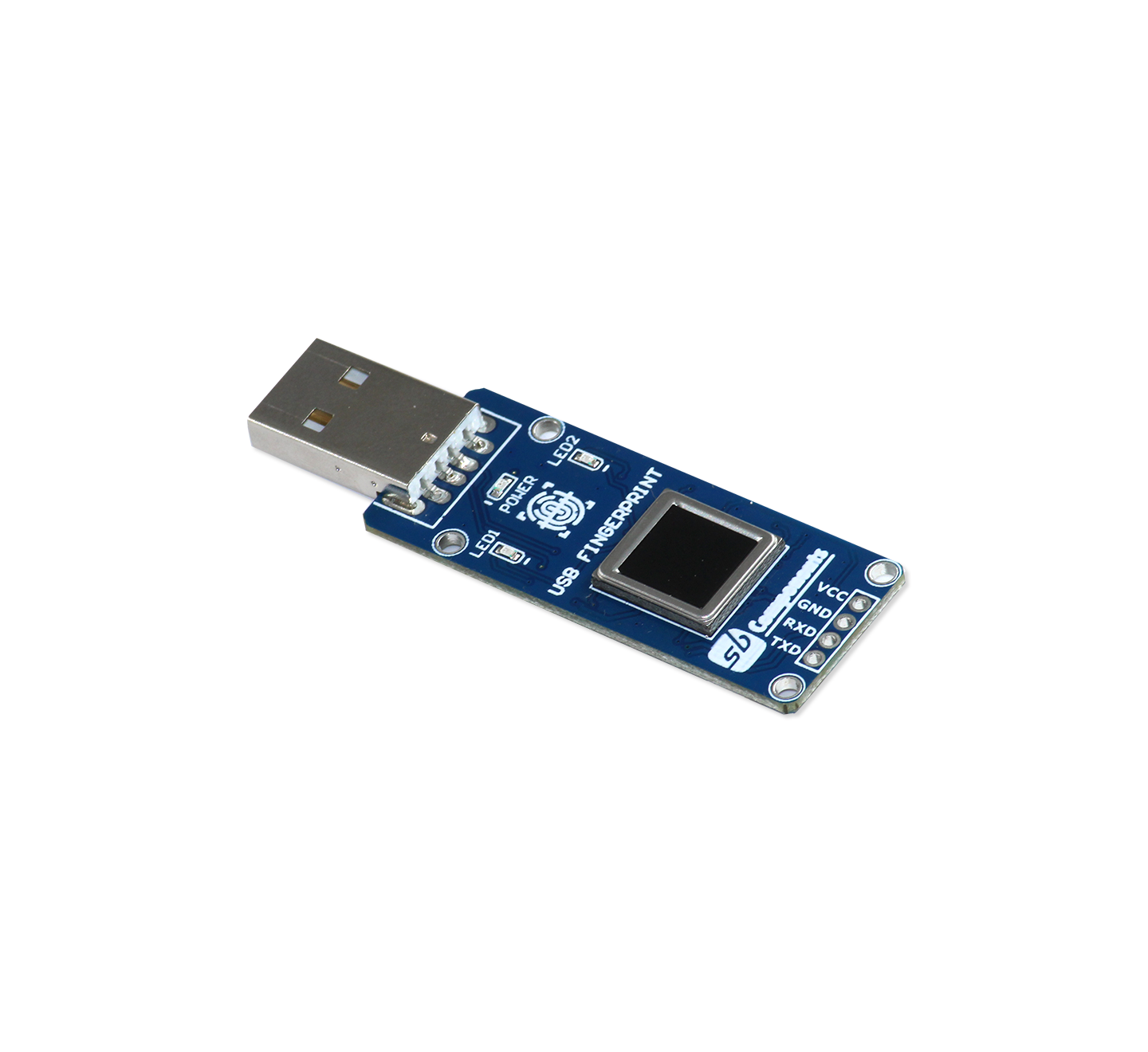

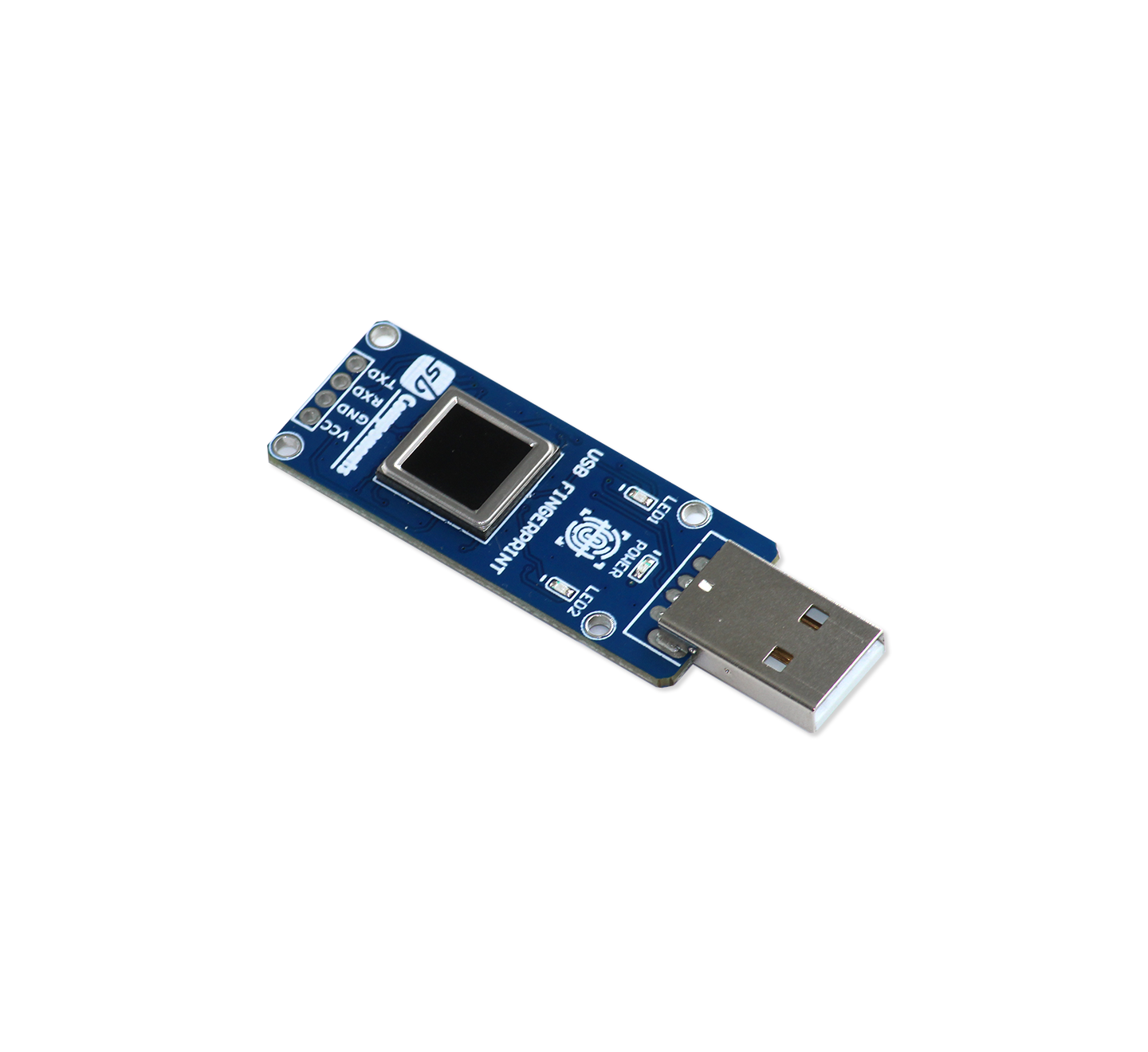

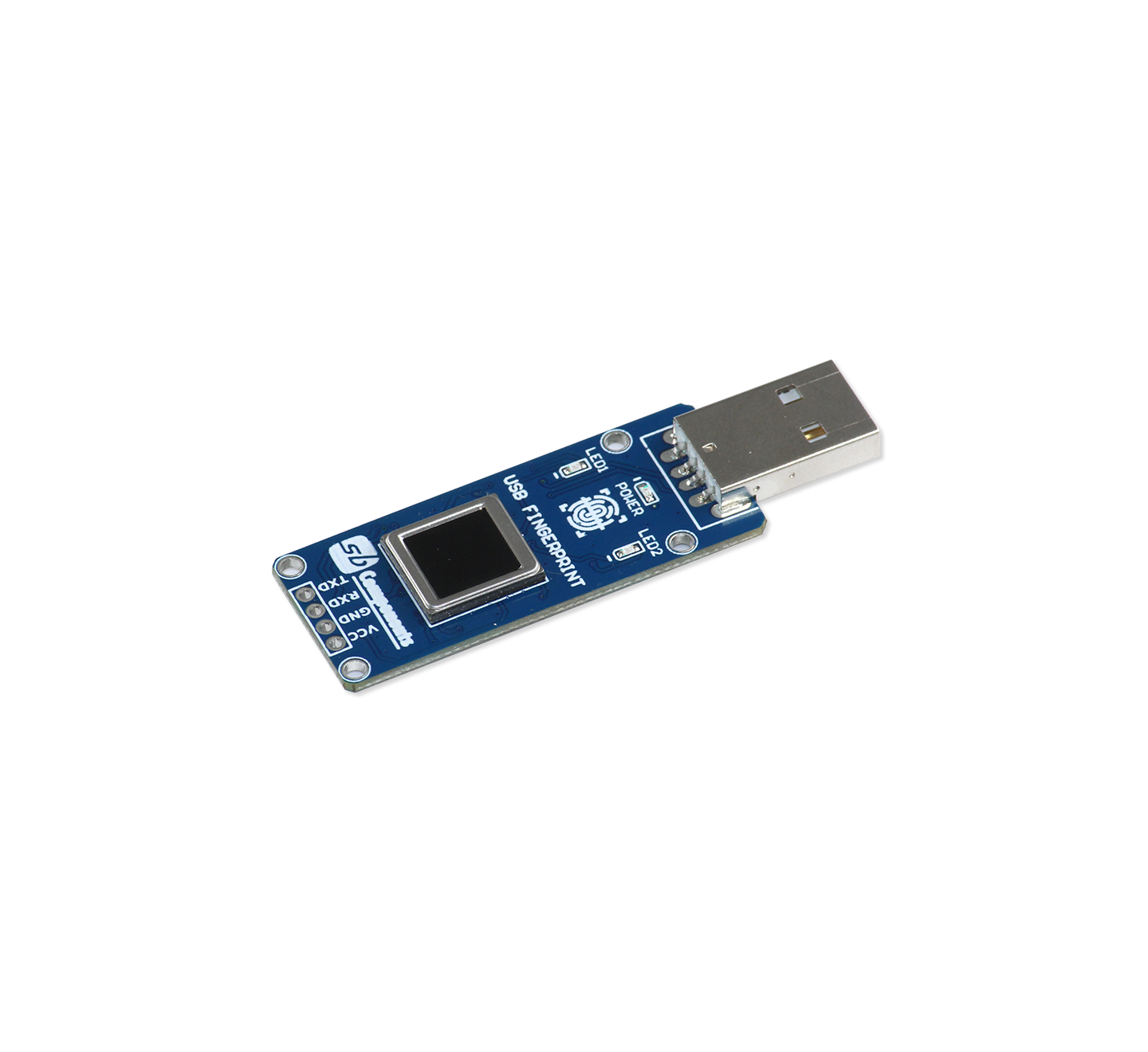

USB Fingerprint

£35.00 GBP

USB Fingerprint comprised of an onboard Nuvoton MCU with an on-chip crypto-accelerator, Cortex-M23 TrustZone, and XOM facilities in a USB form-factor. A user can use the USB Fingerprint board with a PC or...

Description

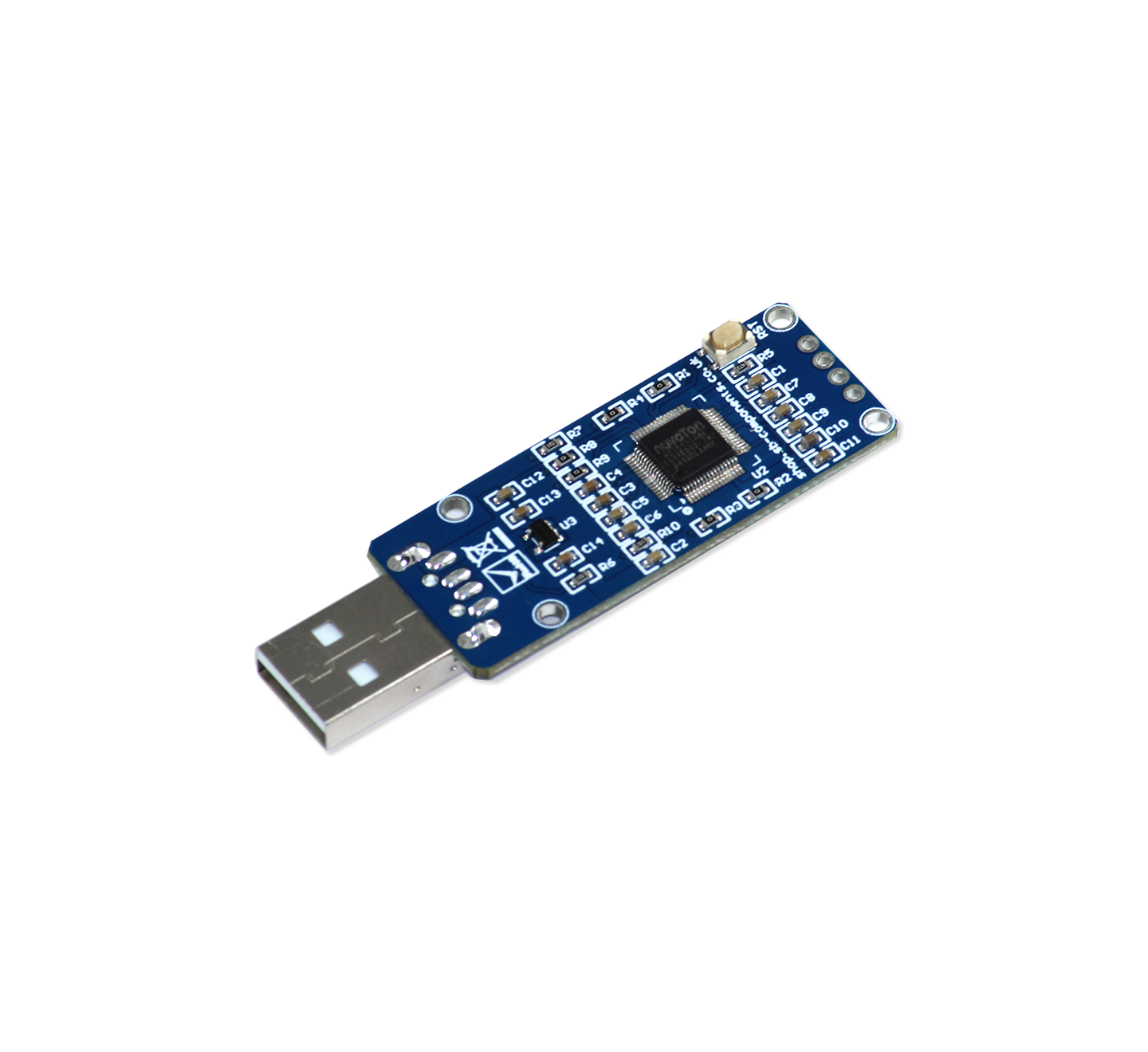

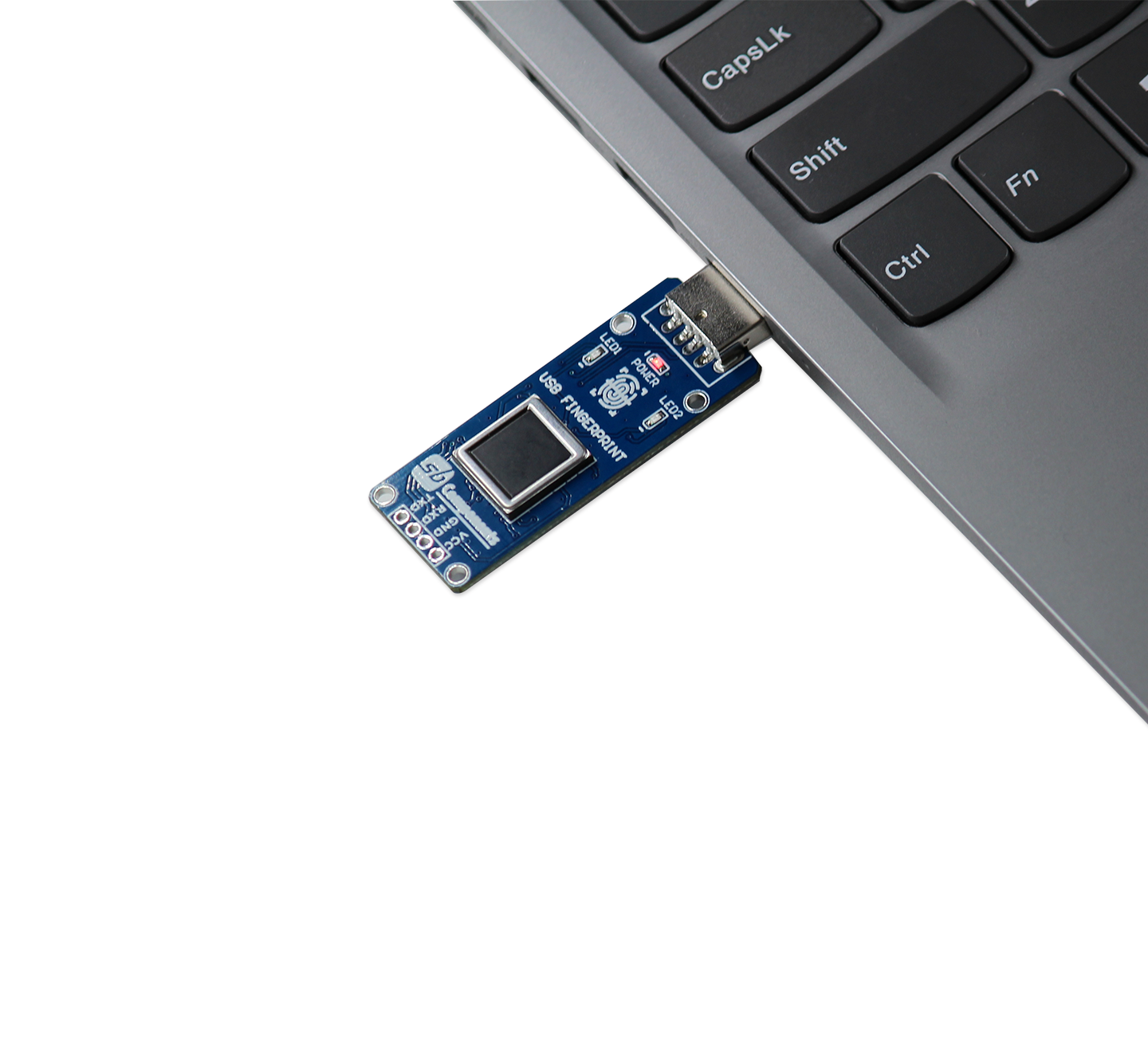

USB Fingerprint comprised of an onboard Nuvoton MCU with an on-chip crypto-accelerator, Cortex-M23 TrustZone, and XOM facilities in a USB form-factor. A user can use the USB Fingerprint board with a PC or micro-controller with the Baud rate of 9600 bps or USB 2.0 full speed over the serial UART interface.

USB Fingerprint

Specification

<

Sensor

Capactive Chip Sensor

Active Sensing Area

8.8 x 8.8 mm

Scanning Speed

25 Frame / Second

Image Resolution

508dpi

Grey Level

8 bit/pixel, max 256 greyscales

Image Ratio to Width
1:1
Operating Temperature
0~60 °C
Matching Mode
1:1; 1:N
Sensor Coating Surface Color
Black Matte
