Pico 3V Relay HAT

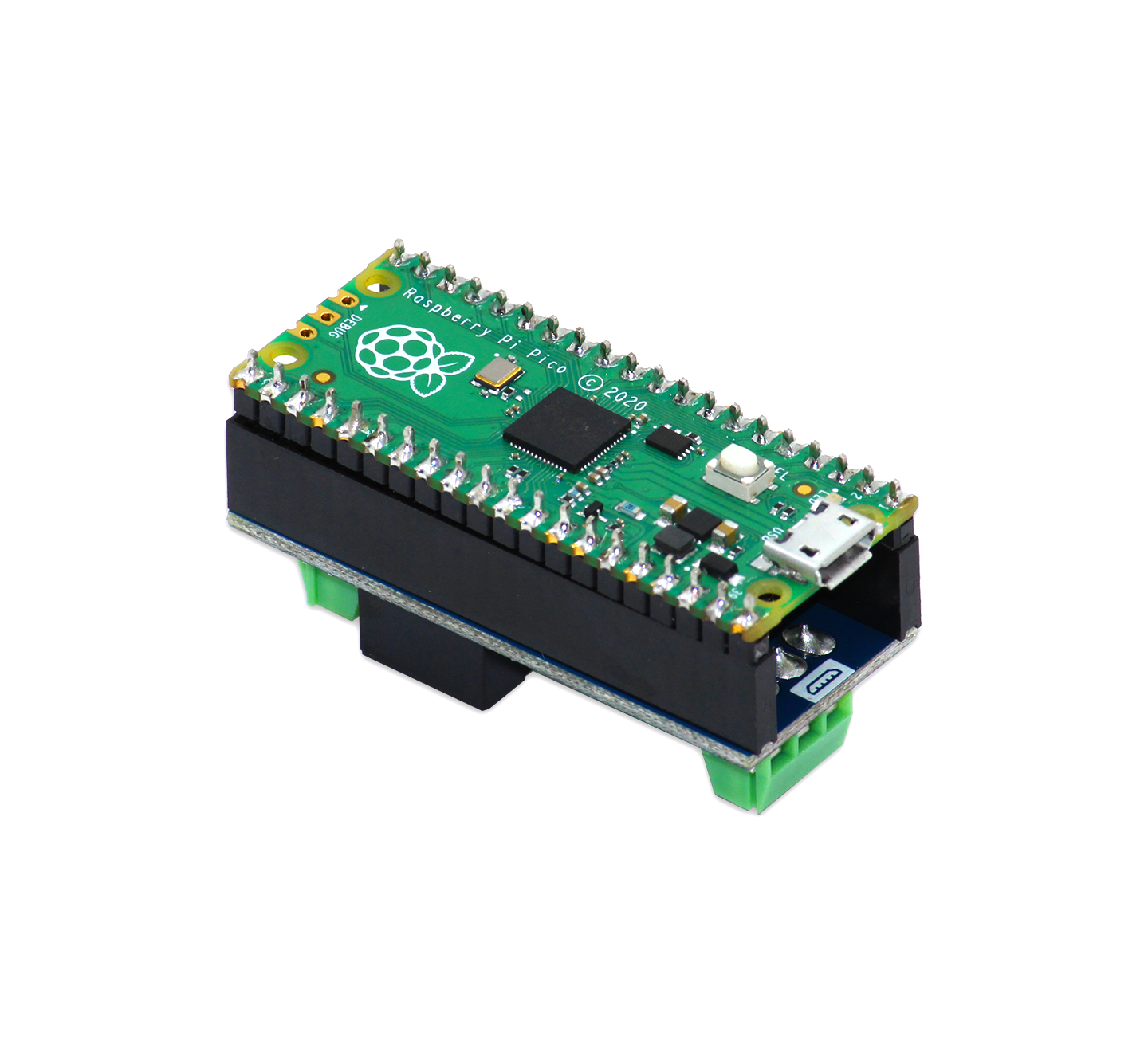

Pico 3V Relay HAT is a Two-Channel high-quality relay with the Switching Voltage(VAC) up to 2A/ 120V(Max), Switching Voltage(VDC) up to 2A/ 24V(Max), and an operating voltage of 3.3V. It comes with a Female Pin Header, to easily connect with Raspberry Pi Pico via effortless stacking. It is designed to be compatible with Raspberry Pi Pico which enhances the utilization of Raspberry Pi Pico with the combination of the relay. High-quality components make the Pico 3V Relay HAT more reliable and efficient to use in the project.

The design and look of the Pico 3V Relay HAT are compact with clear pin labeling and additional functional information that make the utilization of the product quite easy for the users.

Features:

• Two-Channel Relay: Equipped with two independent relays, each capable of handling loads up to 2A at 120V AC or 2A at 24V DC, providing flexibility in controlling multiple devices.
• Compact Design: The HAT's compact form factor with clear pin labeling ensures easy stacking with the Raspberry Pi Pico, facilitating straightforward integration into projects.
• High-Quality Components: Built with durable components to ensure longevity and reliable performance in various applications.

Specifications:

• Operating Voltage: 3.3V
• Relay Channels: 2
• Switching Capacity per Channel:
  • 2A at 120V AC

  • 2A at 24V DC

• Control Pins:

  • Relay 1: GPIO Pin GP6

  • Relay 2: GPIO Pin GP7

Kit Content

• 1 x Pico 3v Relay HAT

Resources

• GitHub
• Pico 3V Relay HAT Manual
