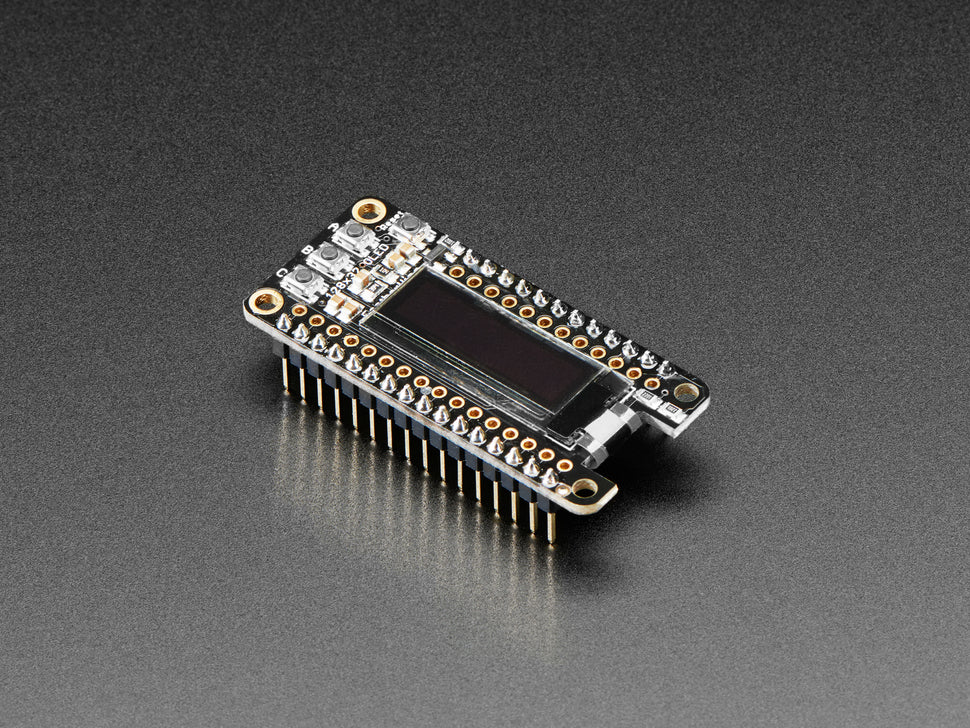

Assembled Adafruit FeatherWing OLED - 128x32 OLED Add-on For Feather

The Assembled FeatherWing OLED is a compact and versatile display module that adds a 128x32 monochrome OLED and 3 user buttons to any Feather main board, making it ideal for small projects with a user interface. This FeatherWing comes fully assembled, meaning no soldering is required – just connect it to your Feather board, and you're ready to go!

Key Features:

• 128x32 OLED Display: High-contrast, white OLED pixels that do not require a backlight, reducing power consumption while maintaining crisp, readable output.
• 3 User Buttons: Includes three tactile buttons (A, B, and C) for user input, allowing for basic navigation or interaction in your projects.
• Compact and Lightweight: The OLED display measures around 1" diagonal, making it perfect for projects with limited space.
• Low Power: Since the OLED generates its own light, no backlight is needed, which helps preserve power.
• Easy Integration: Works with Feather boards such as the 32u4, M0, and ESP8266, connecting via the two I2C pins, and can be stacked with other FeatherWings that use I2C.

Technical Details:

• Display Area: ~25.8mm (~1.0")
• PCB Dimensions: 22.9mm x 50.9mm / 0.9" x 2"
• Weight: 4.8g
• Button Pinout:
  • Feather 32u4 or M0: A (pin 9), B (pin 6), C (pin 5)
  • Huzzah ESP8266: A (pin 0), B (pin 16), C (pin 2)

Important Note: OLED displays can dim if the pixels are kept on for extended periods. To maintain the display's brightness, turn it off when not in use.

The FeatherWing OLED is an excellent choice for adding a small, efficient display and basic controls to your Feather-based projects.
