Magnetic contact switch (door sensor)

Regular price £9.99 GBP
Regular price Sale price £9.99 GBP
Tax included.
Availability: Out of stock
SKU: 375
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Description

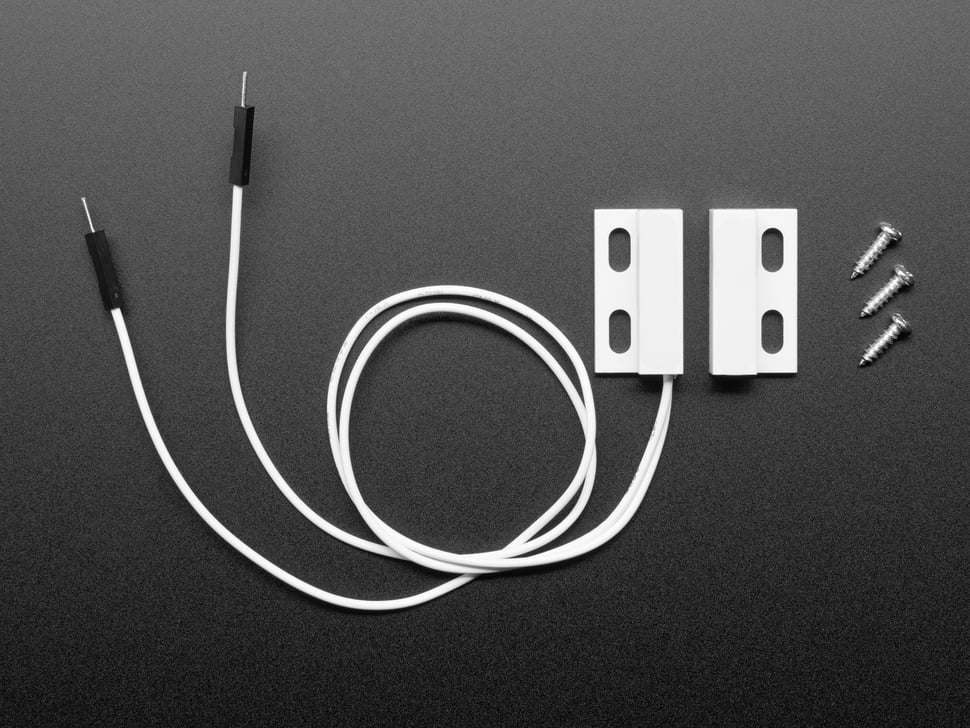

This sensor is essentially a reed switch, encased in an ABS plastic shell. Normally the reed is 'open' (no connection between the two wires). The other half is a magnet. When the magnet is less than 13mm (0.5") away, the reed switch closes. They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws. You can also pick up some double-sided foam tape from a hardware store to mount these, that works well without needing screws.


Technical Details

Revision History: As of June 2, 2021, we now have these with premium wire ends for easy breadboarding.

  • Normally open reed switch
  • ABS enclosure
  • Rated current: 100 mA max
  • Rated voltage: 200 VDC max
  • Distance: 15mm max

Dimensions:

  • Box size (each side): 29mm x 15.2mm x 9mm
  • Cable Length: ~29cm / ~11.4"
