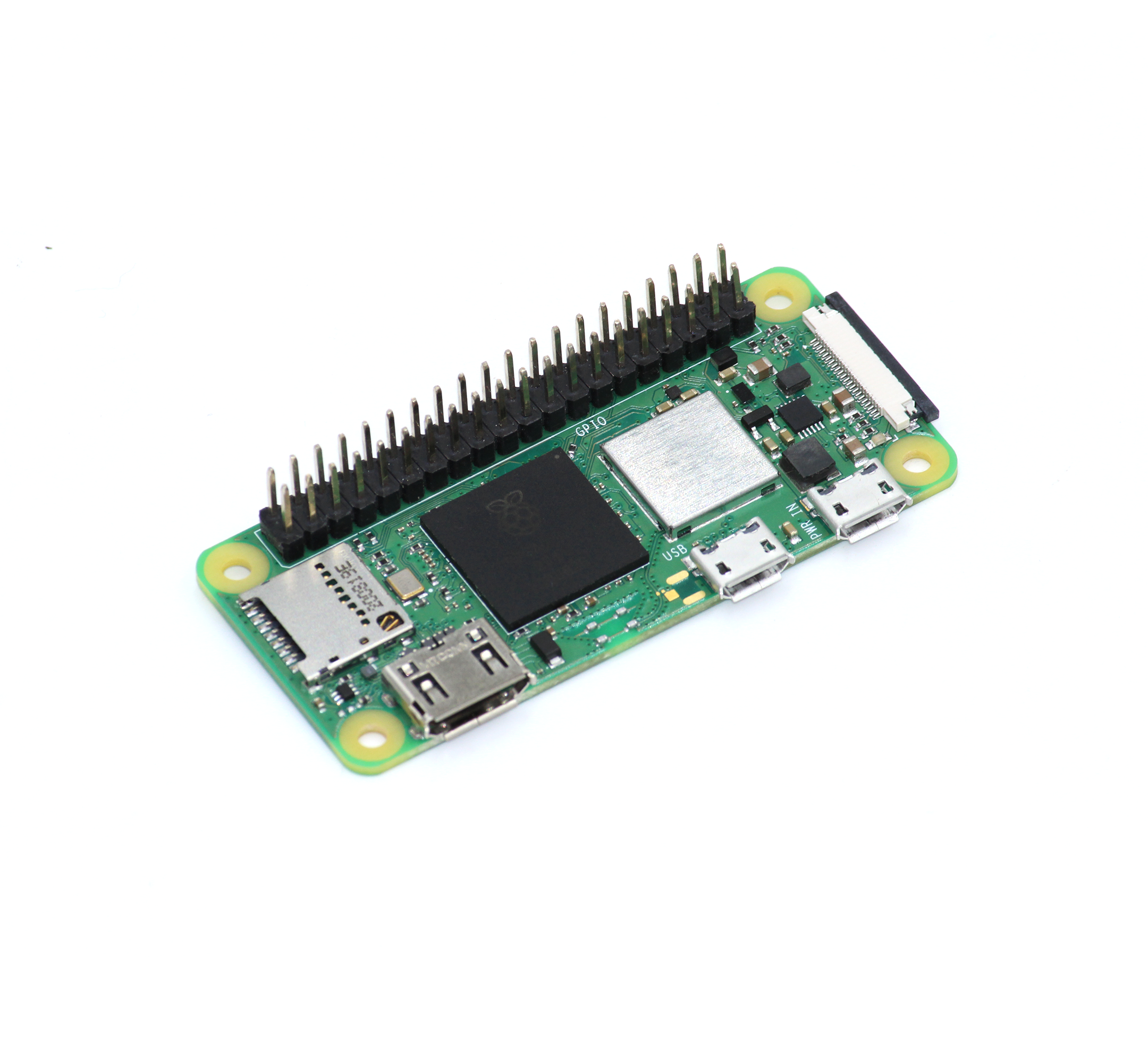

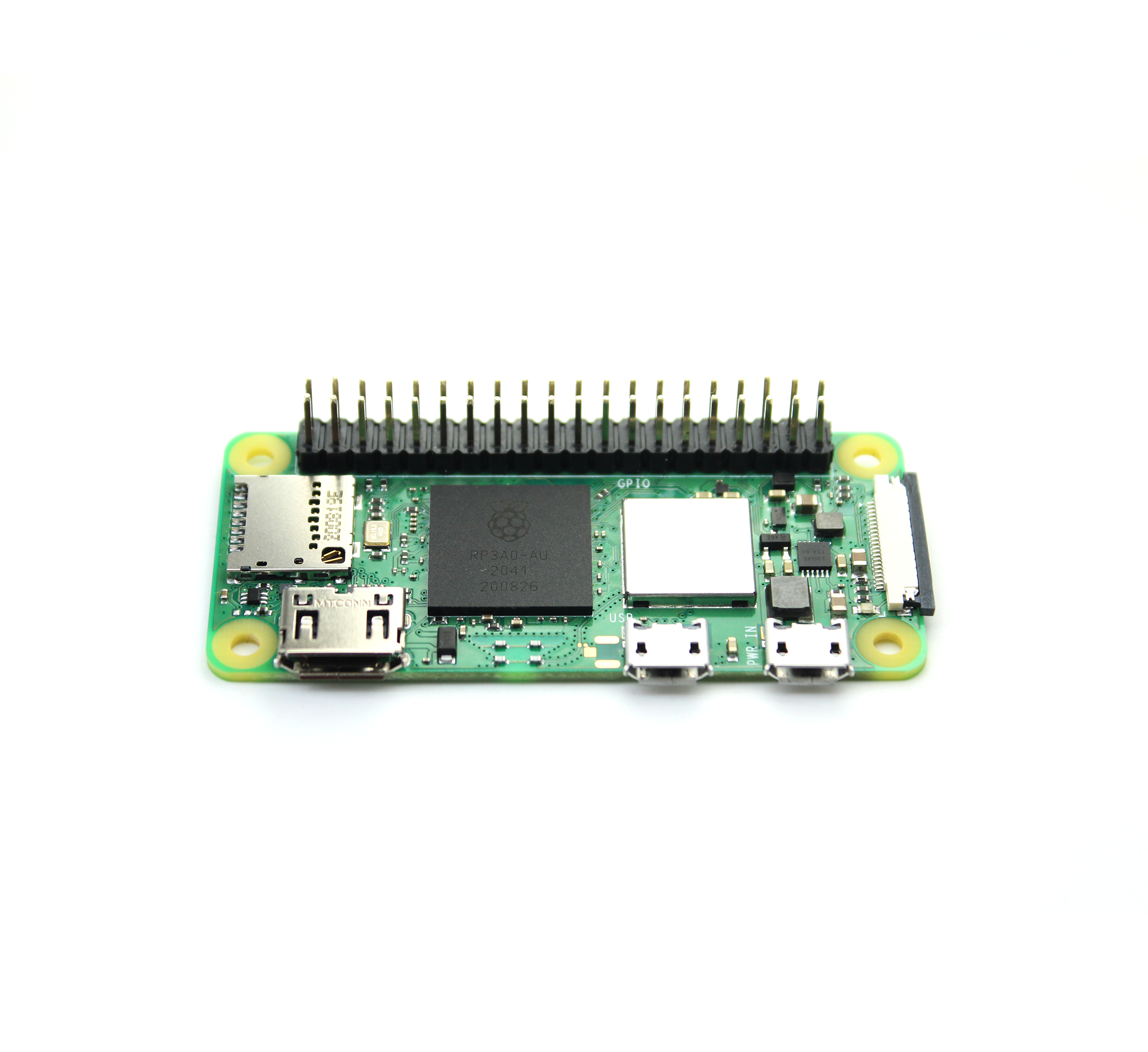

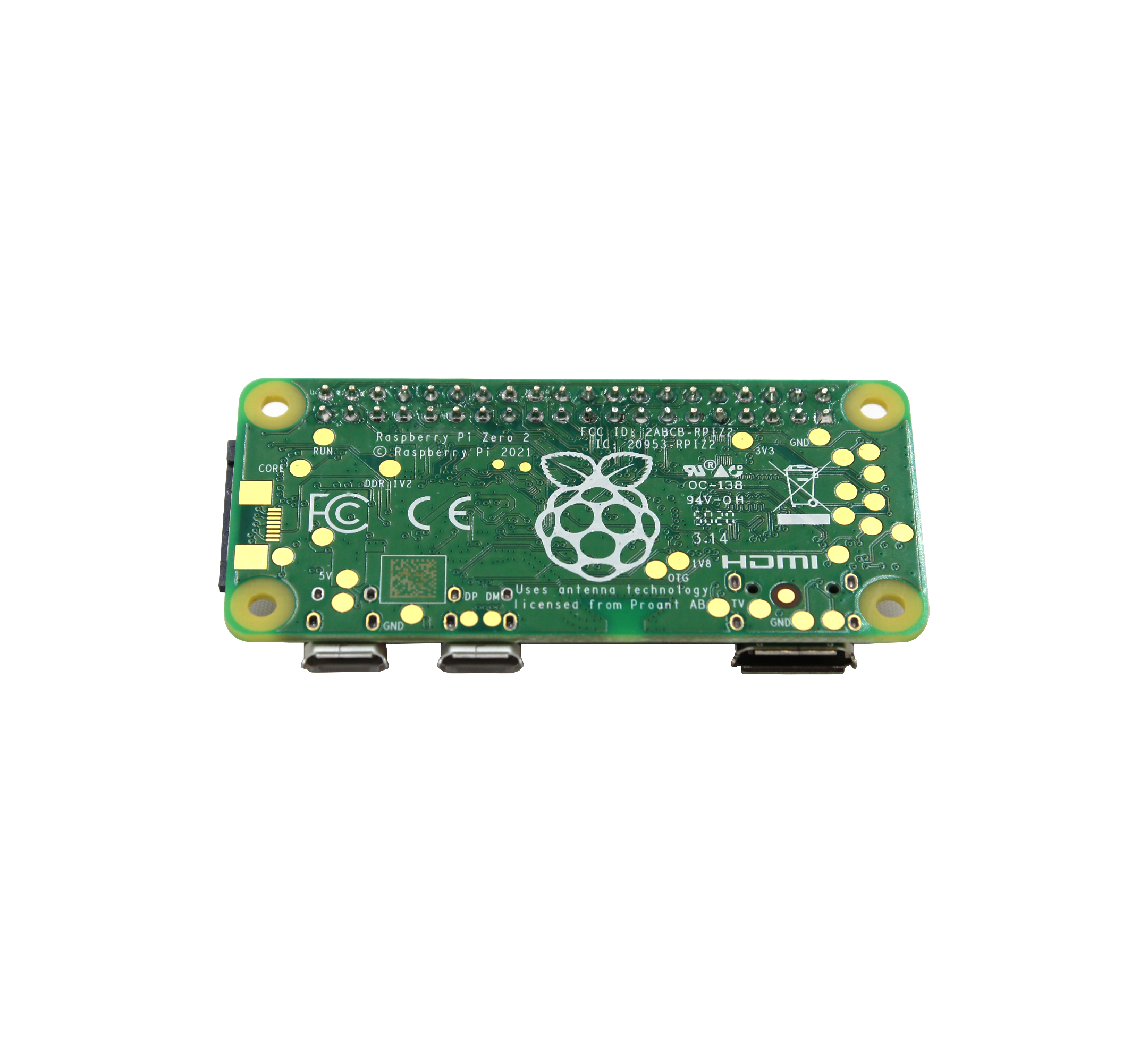

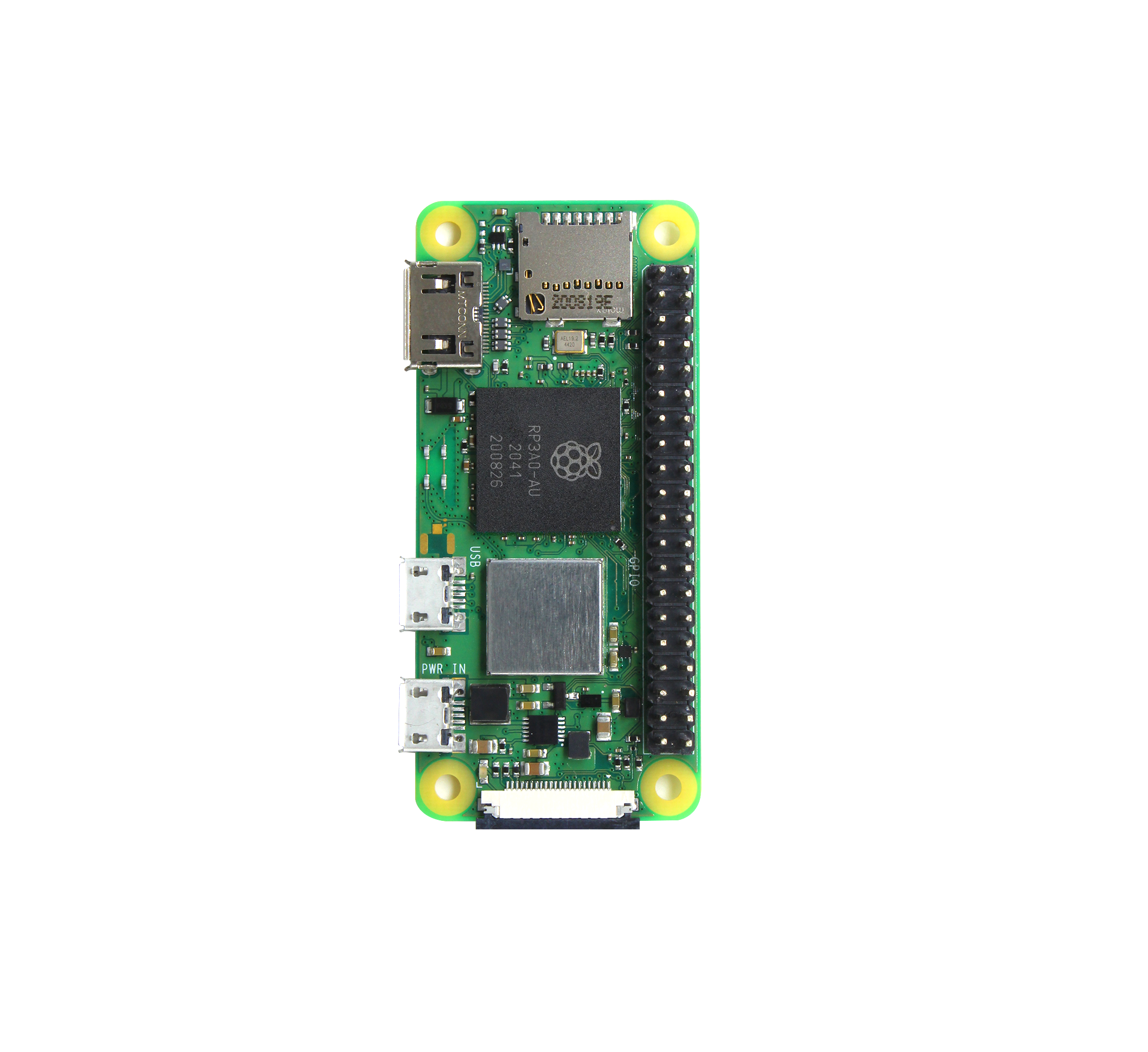

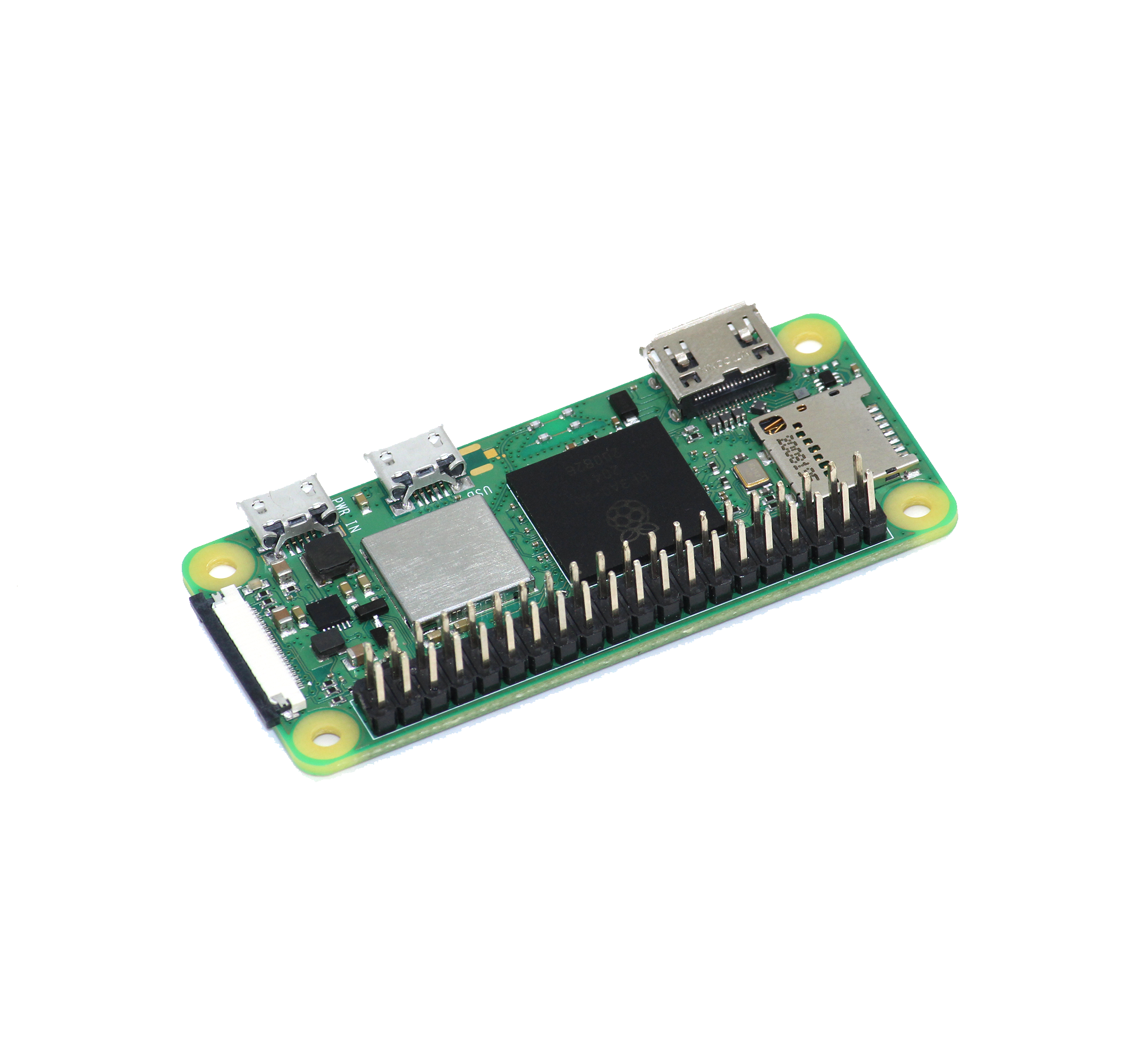

Raspberry Pi Zero 2 W with Soldered Header

£16.95 GBP
£16.95 GBP
Tax included.
Brand: SB Components
Availability: Low stock
SKU: SKU22199
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

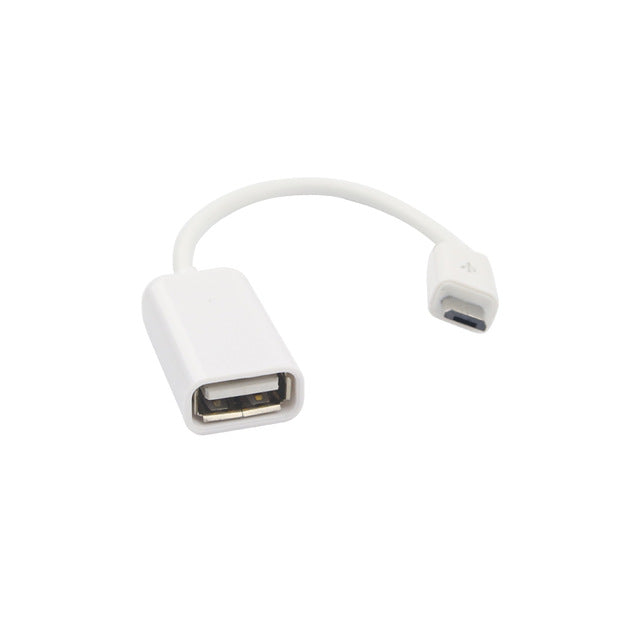

SB ComponentsMicro-USB (M) to Type-A (F) OTG adaptor
Micro-USB (M) to Type-A (F) OTG adaptor
Raspberry Pi Zero 2 W Starter Kit with Black case
SB ComponentsRaspberry Pi Zero 2 W Starter Kit with Black case

Raspberry Pi Zero 2 W is the latest feature-rich product in the most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board. The latest board incorporates great new headline features like quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz, an incredible improvement on previous boards. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a BroadcomBCM2710A1 die with 512MB of LPDDR2 SDRAM.

The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification. The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed. Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.Pi Zero 2 W Banner ImagePi Zero 2 W FeaturesPi Zero 2 W FeaturesPi Zero 2 w SpecificationPi Zero 2 W SpecificationsPi Zero 2 W ApplicationPi Zero 2 w ApplicationsPi Zero 2 W Kit Content

    Customer Reviews

    Based on 4 reviews
    75%
    (3)
    25%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    Daniel Ramos
    Device is as described but the package is not well protected

    I count myself lucky that arrived intact. For a device that is rapidly becoming rare to find (Raspberry Pi's generally), this was not shipped with the best care. The pins were not protected with a foam pad to make sure they stayed straight and didn't get destroyed in the shipment. The envelope it was mailed in is a standard manila style with thin bubble insides. I'm not sure that was the best for a Raspberry Pi Zero 2 W but this one was lucky. That aside, it's as described and a wonderfully tiny little device with a lot of power for my projects.

    G
    Graeme Winter
    Massive upgrade over π0w

    Was a plug-in replacement as promised and the performance improvement was conspicuous - very much an upgrade

    M
    Morris Guy

    Perfect transaction - thanks.

    J
    Jack Sammons
    Works great with the MiSTer MT-32 Pi

    Did exactly what I needed it to do with my MiSTer!
