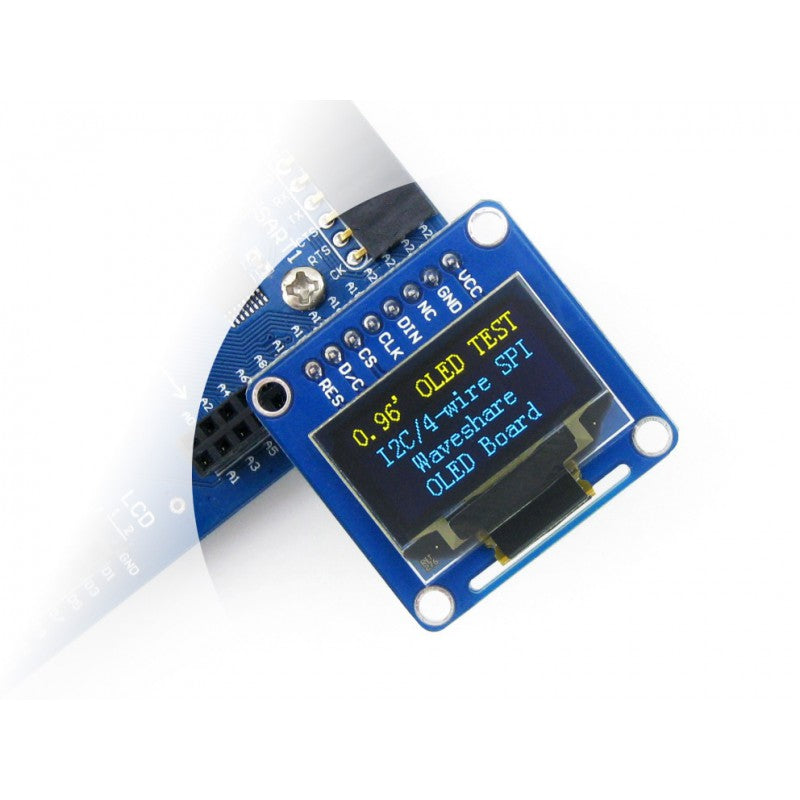

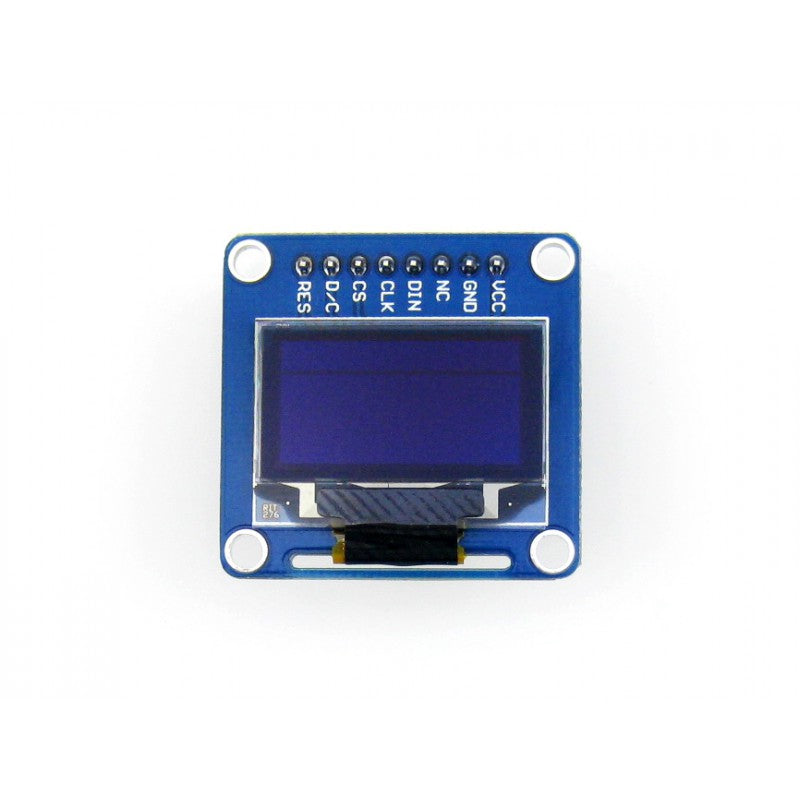

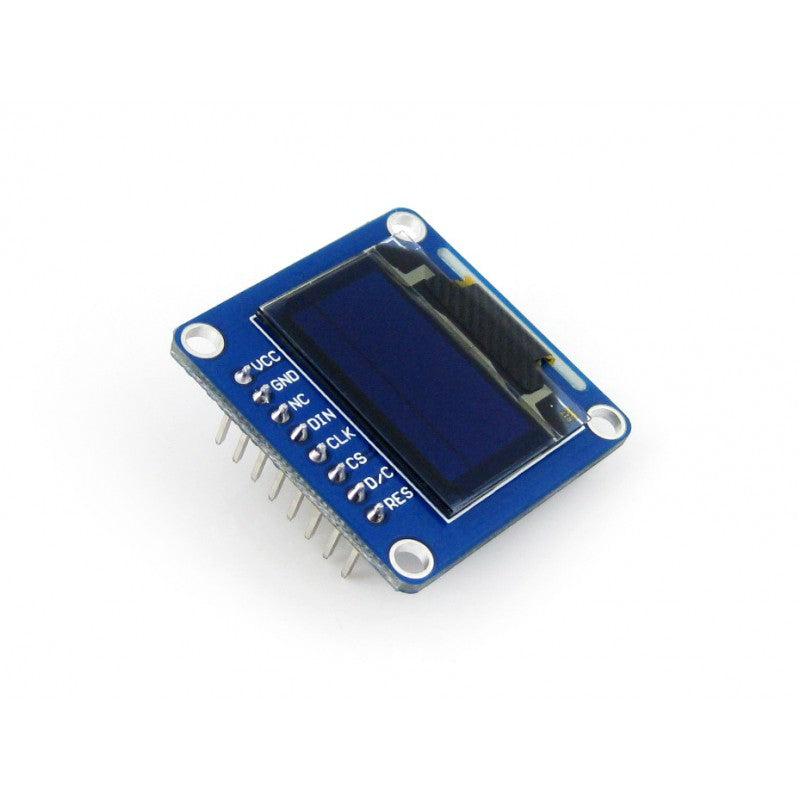

0.96" RGB OLED (B)

Description

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays

0.96 inch OLED Display Module is a precise small, White OLED module which can be interfaced with any microcontroller using SPI protocol. It is having a resolution of 128x64. And it is fully compatible with multiple controlling chips including Arduino and more.

Features

• Work perfectly well without the need of backlight.
• 128*64 high resolution, ultra wide viewing angle.
• Super low power consumption–only 0.08W when the whole screen lights up and 0.06W when displaying characters.
• Fully compatible with multiple controlling chips including Arduino and more.
• Support a wide range of voltage input.

Specifications

Key Parameters

• Driver Chip: SSD1306
• Interface: 3-wire SPI, 4-wire SPI, I2C
• Resolution: 128×64
• Display Size: 0.96inch
• Colours: 1/4 yellow section, 3/4 blue section
• Visible Angle: >160°
• Operating Temp. (℃): -20~70
• Storage Temp. (℃): -30~80
• Operating Voltage: 3.3V / 5V

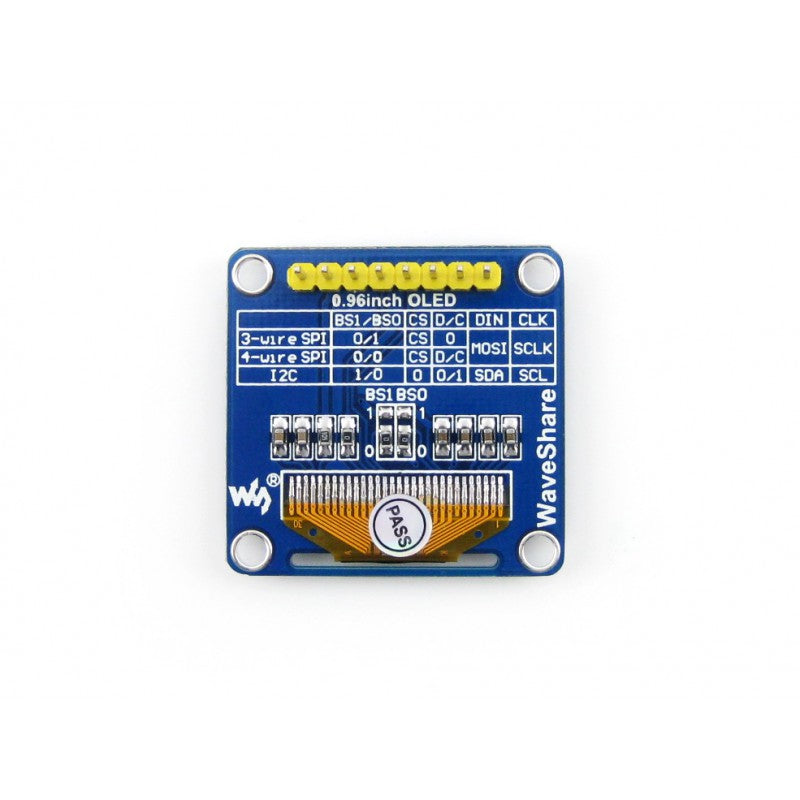

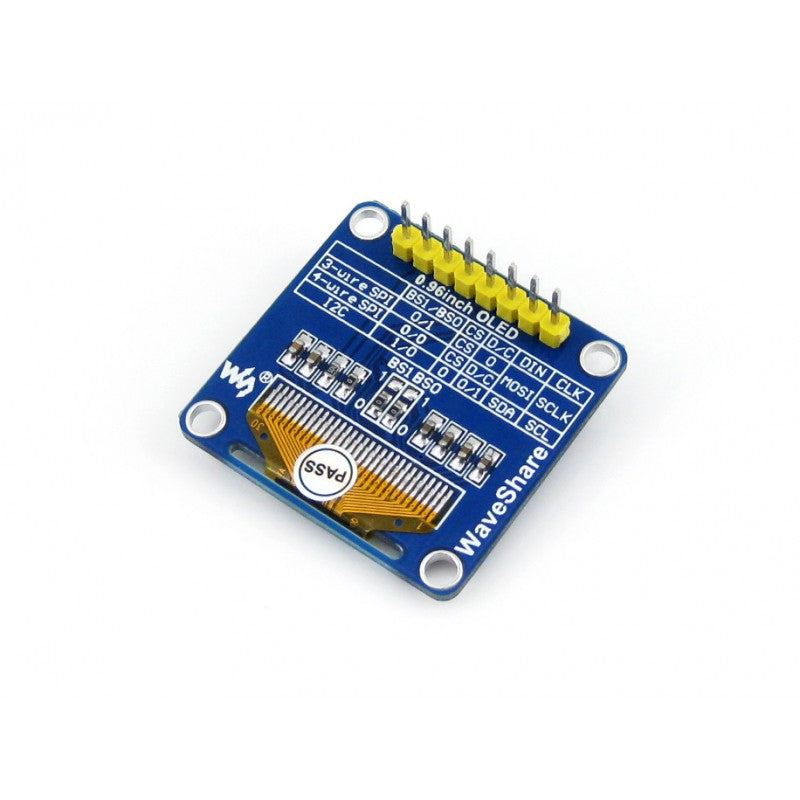

Interface

Kit Content

• 1 x 0.96 inch RGB OLED (B)
