Description

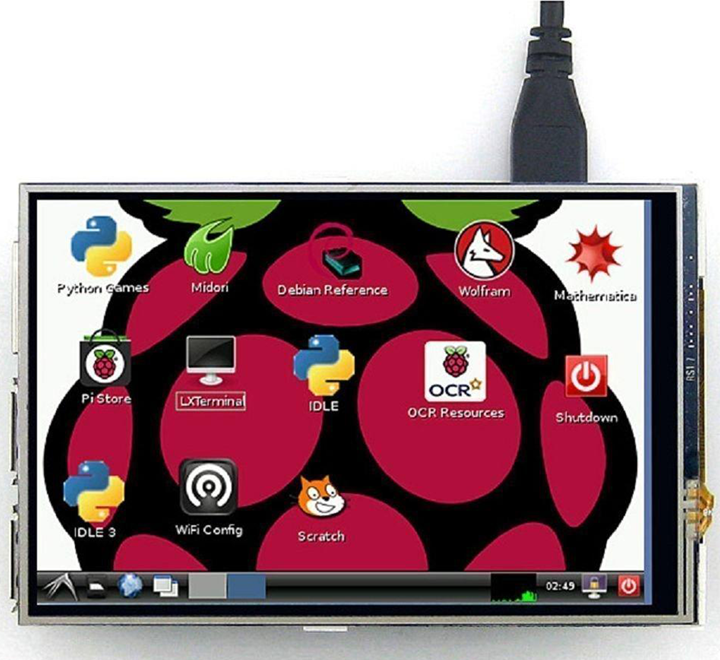

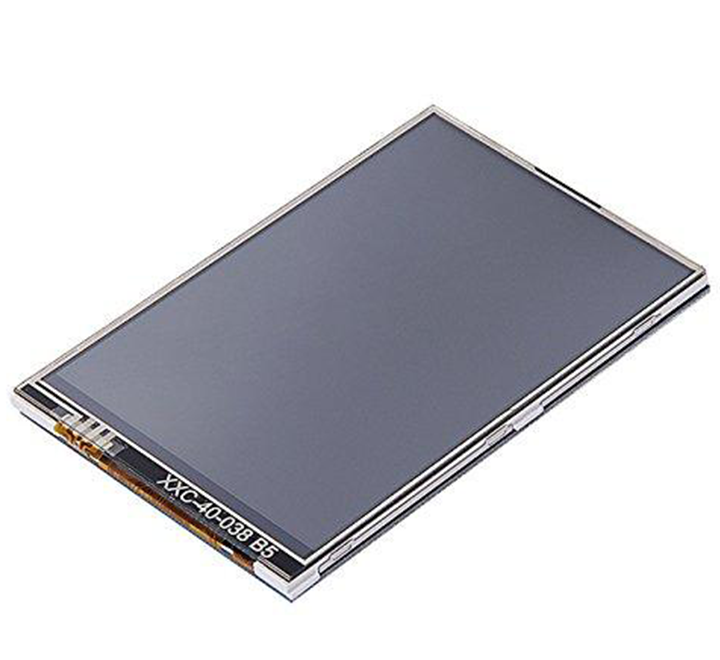

320x480, 4inch Touch Screen IPS TFT LCD Designed for Raspberry Pi.
Features
  • Designed for Raspberry Pi
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • 320×480 resolution
  • Convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime
  • Supports Raspbian system, enables your system to:
    • Take photos by touching (up to 17 camera modes)
    • Support software keyboard (system interaction without keyboard/mouse)
Specifications

Key Parameters:

  • LCD Type: TFT
  • LCD Interface: SPI
  • Touch Screen Type:  Resistive
  • Touch Screen Controller:  XPT2046
  • Colors: 65536
  • Backlight: LED
  • Resolution: 320*480 (Pixel)
  • Aspect Ratio:  8:5

Interface:

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active
Kit Content

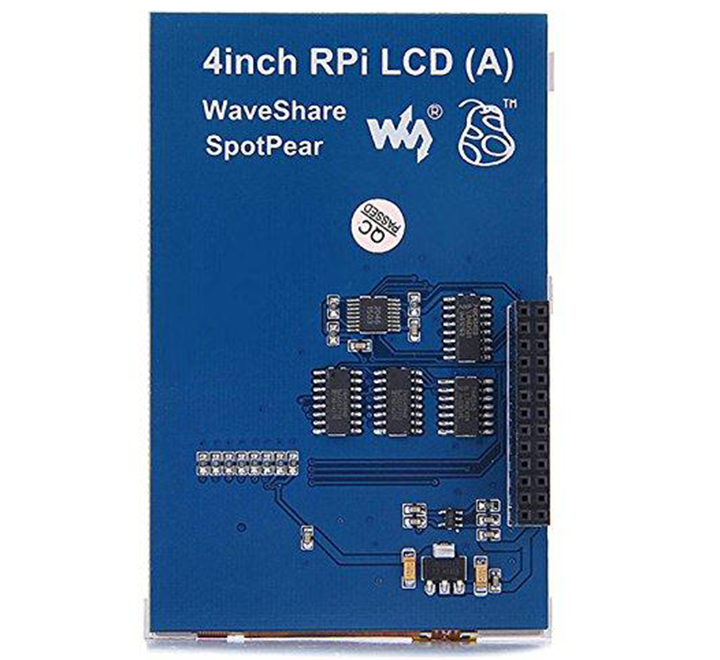

  • 1 x 4inch RPi LCD (A)
  • 1 x Touch Pen
  • 1 x RPi screws pack (2pcs)
  • 1 x Quick start sheet
