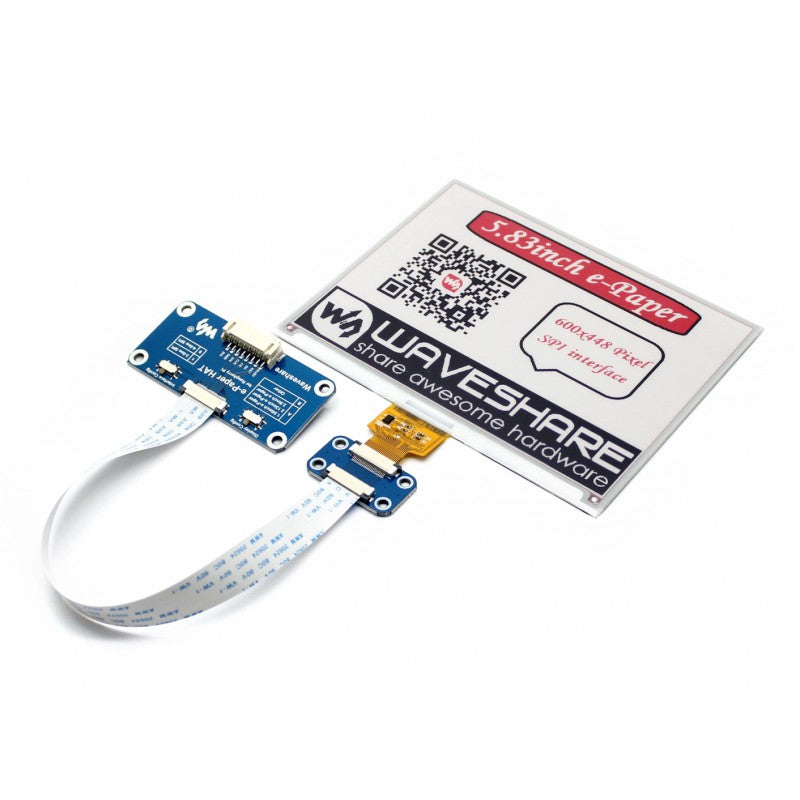

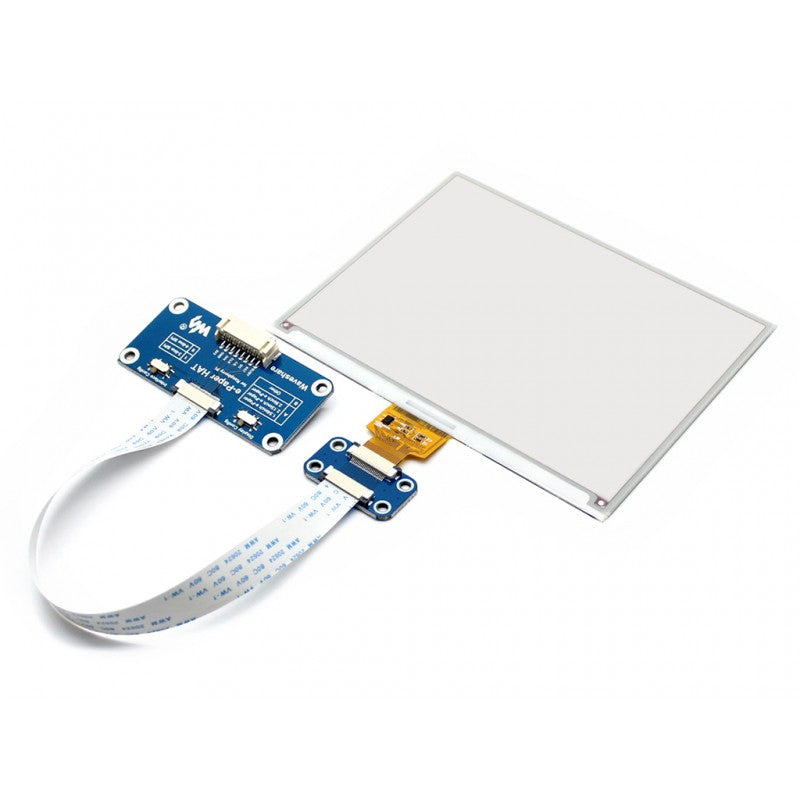

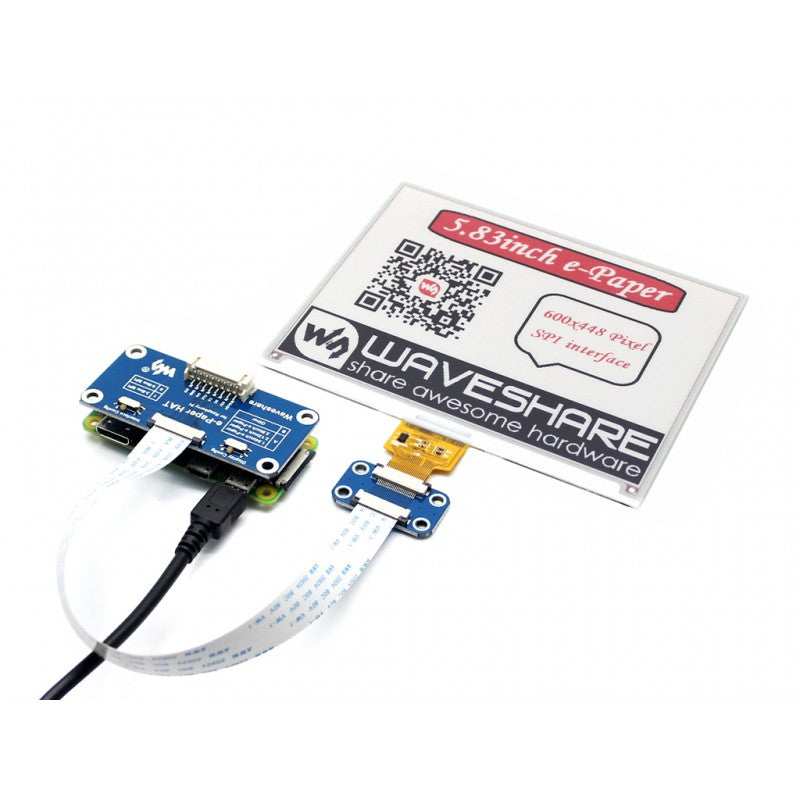

5.83inch 600x448 Resolution E-Ink Display HAT for Raspberry Pi

This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with an embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

• Operating voltage: 3.3V~5V
• Interface: SPI
• Outline dimension: 125.40mm × 99.50mm
• Display size: 118.80mm × 88.26mm
• Dot pitch: 0.198 × 0.197
• Resolution: 600 × 448
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 14s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Kit Content

• 1 x 5.83inch e-Paper (B)
• 1 x e-Paper Driver HAT
• 1 x RPi screws pack (2pcs)
• 1 x PH2.0 20cm 8Pin
