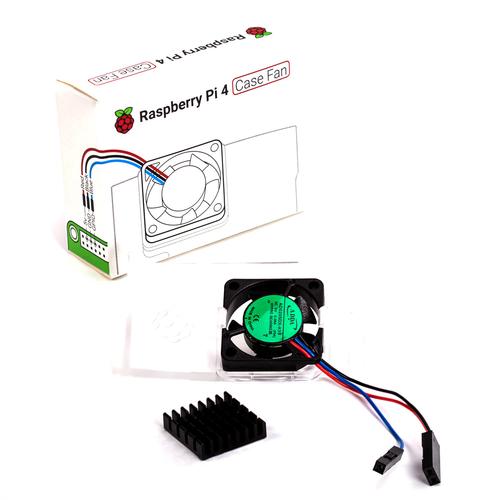

Raspberry Pi 4 Case Fan Back to Raspberry Pi New ReleaseRaspberry Pi Compute Module 4 IO Board With PoE Feature, for all Variants of CM4
Raspberry Pi Compute Module 4 – Wireless / 4GB RAM / Lite
Raspberry Pi Compute Module 4
Raspberry Pi Compute Module 4 – Wireless
Raspberry Pi Compute Module 4 – Wireless / 4GB RAM / 32 GB

Compute Module 4 - Raspberry Pi

£29.49 GBP

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide...

Edition: Non Wireless

Non Wireless

RAM: 2GB

2GB

Storage: Lite

Lite
8GB
Ask a Question
Need Customization
Volume Pricing
Item Code: SKU20249
Description

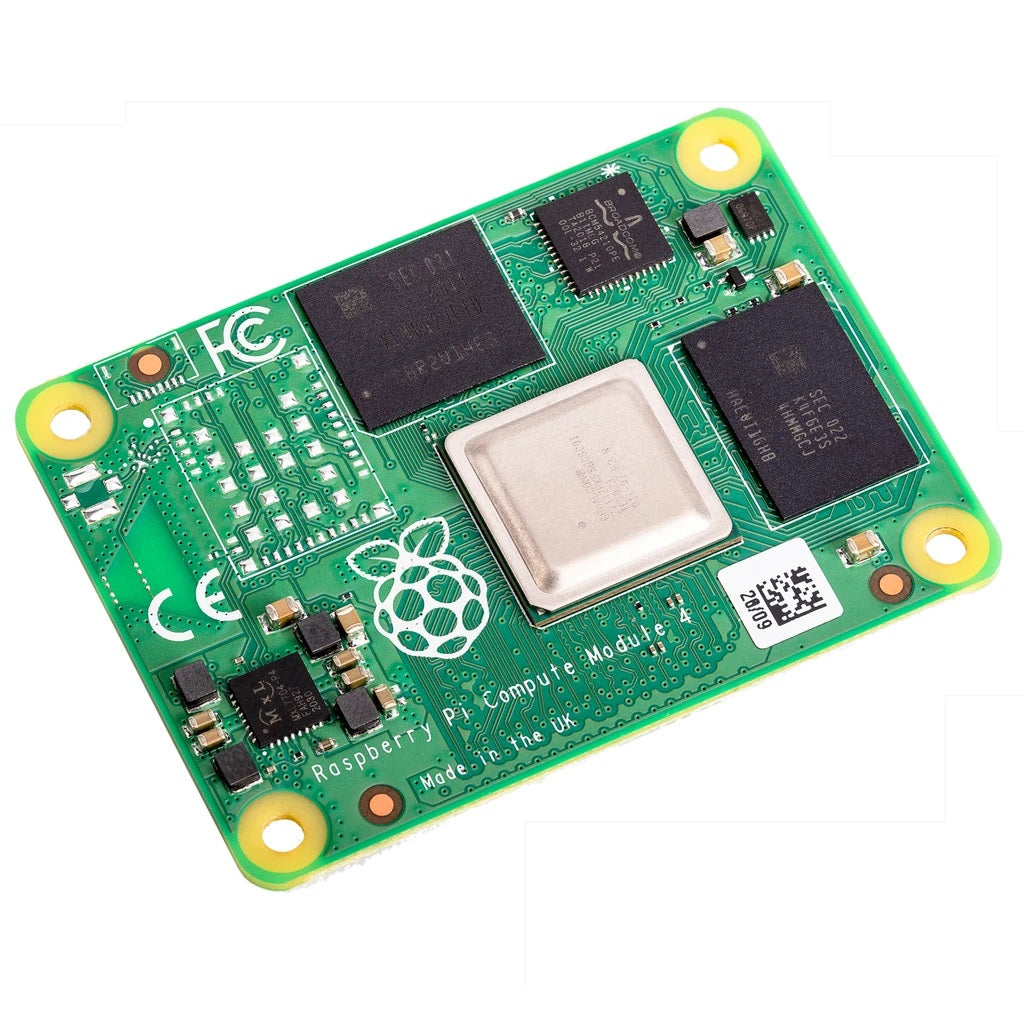

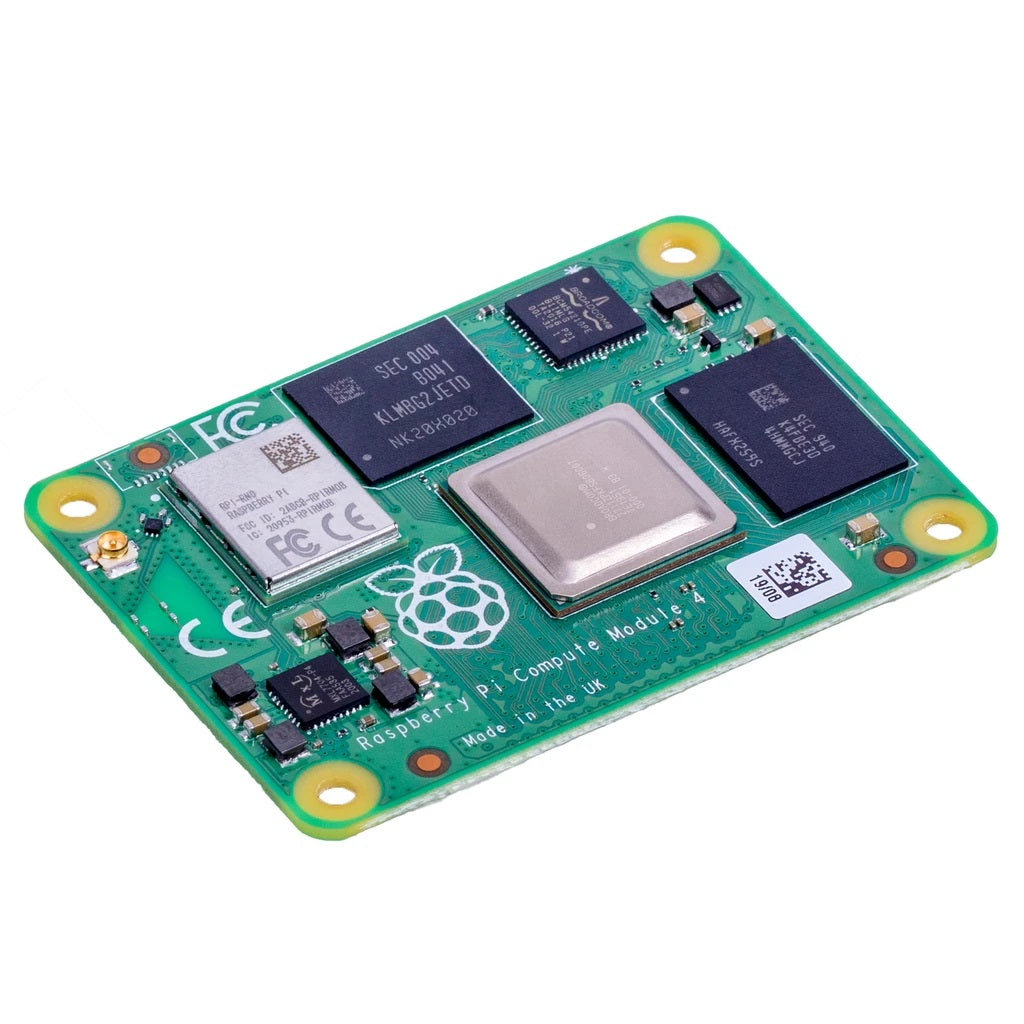

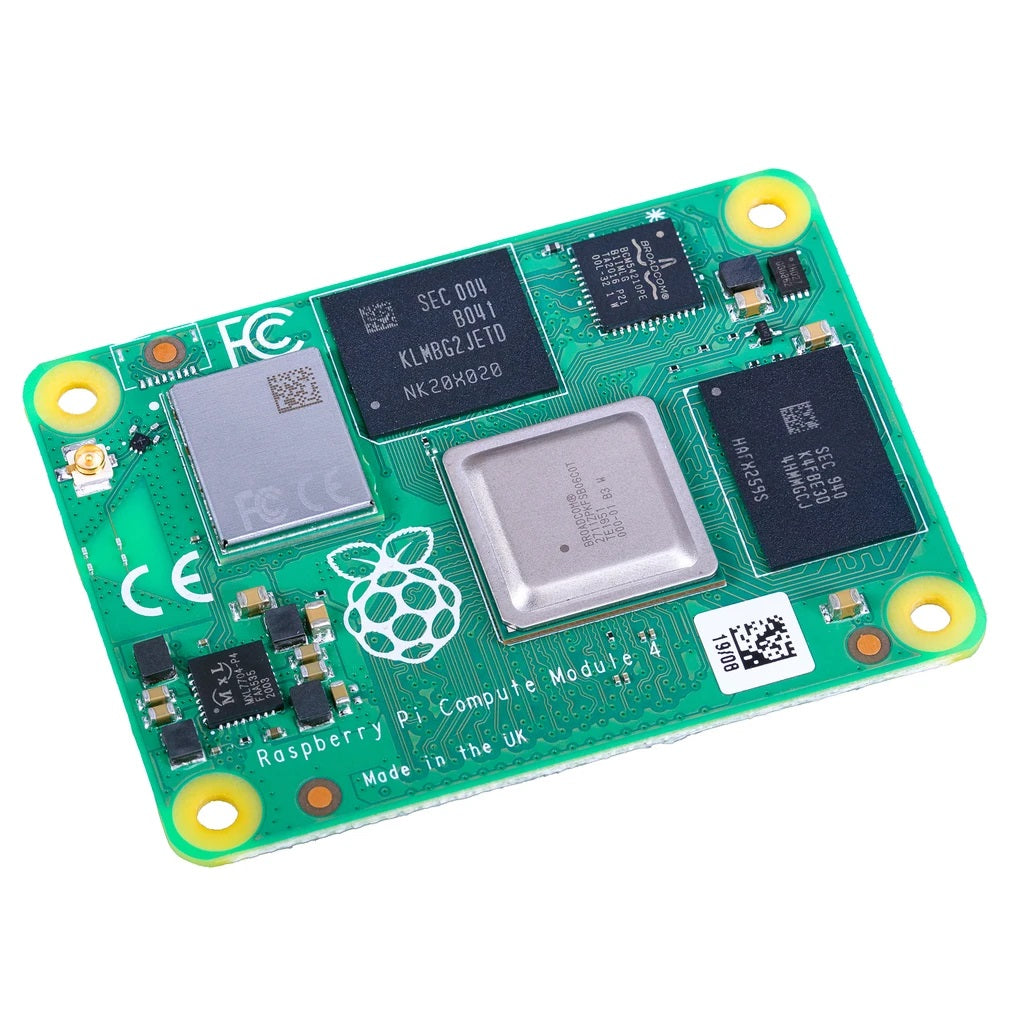

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.
Compute Module 4

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
  • Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
  • Option for fully certified radio module:
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
  • Bluetooth 5.0, BLE;
  • On-board electronic switch to select either external or PCB trace antenna

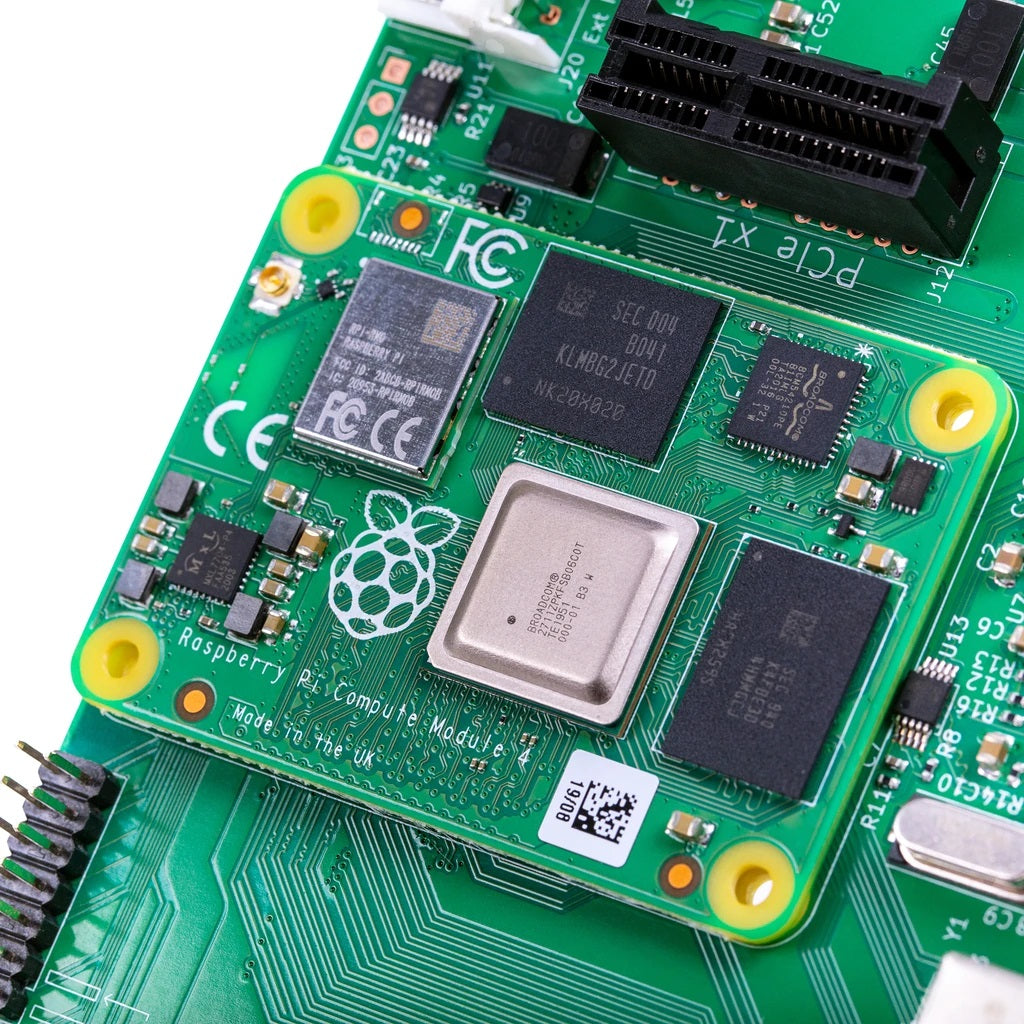

Raspberry Pi Compute Module 4 IO Board

Documents

Specification

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
  • Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
  • Option for fully certified radio module:
  • 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
  • Bluetooth 5.0, BLE;
  • On-board electronic switch to select either external or PCB trace antenna
