SB Raspberry Pi Pico Breadboard Kit
Couldn't load pickup availability
Raspberry Pi Pico
Raspberry Pi Pico is the first product built on silicon designed in-house here at Raspberry Pi (“Raspberry Silicon”). At its heart is RP2040, a Raspberry Pi-designed chip, which features Dual Core ARM Cortex-M0+ clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. Raspberry Pi Pico is paired with 2MB of onboard QSPI Flash memory for code and data storage.
Whether you choose to use Raspberry Pi’s C/C++ Software Development Kit or the official Micro Python port, everything you need to get started is here. You’ll also find links to the technical documentation for both the Raspberry Pi Pico microcontroller board and our RP2040 microcontroller chip.”

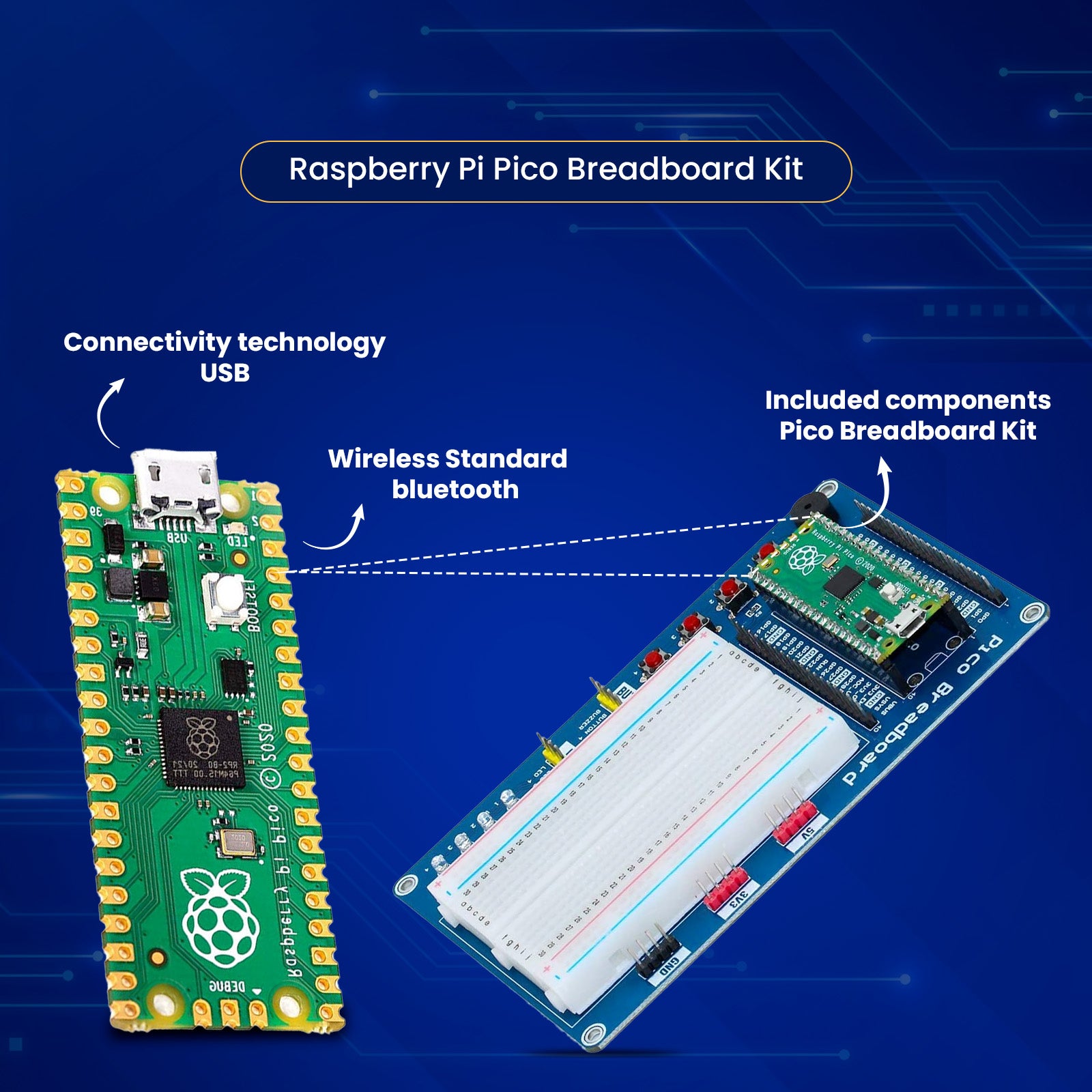

Raspberry Pi Pico Breadboard Kit

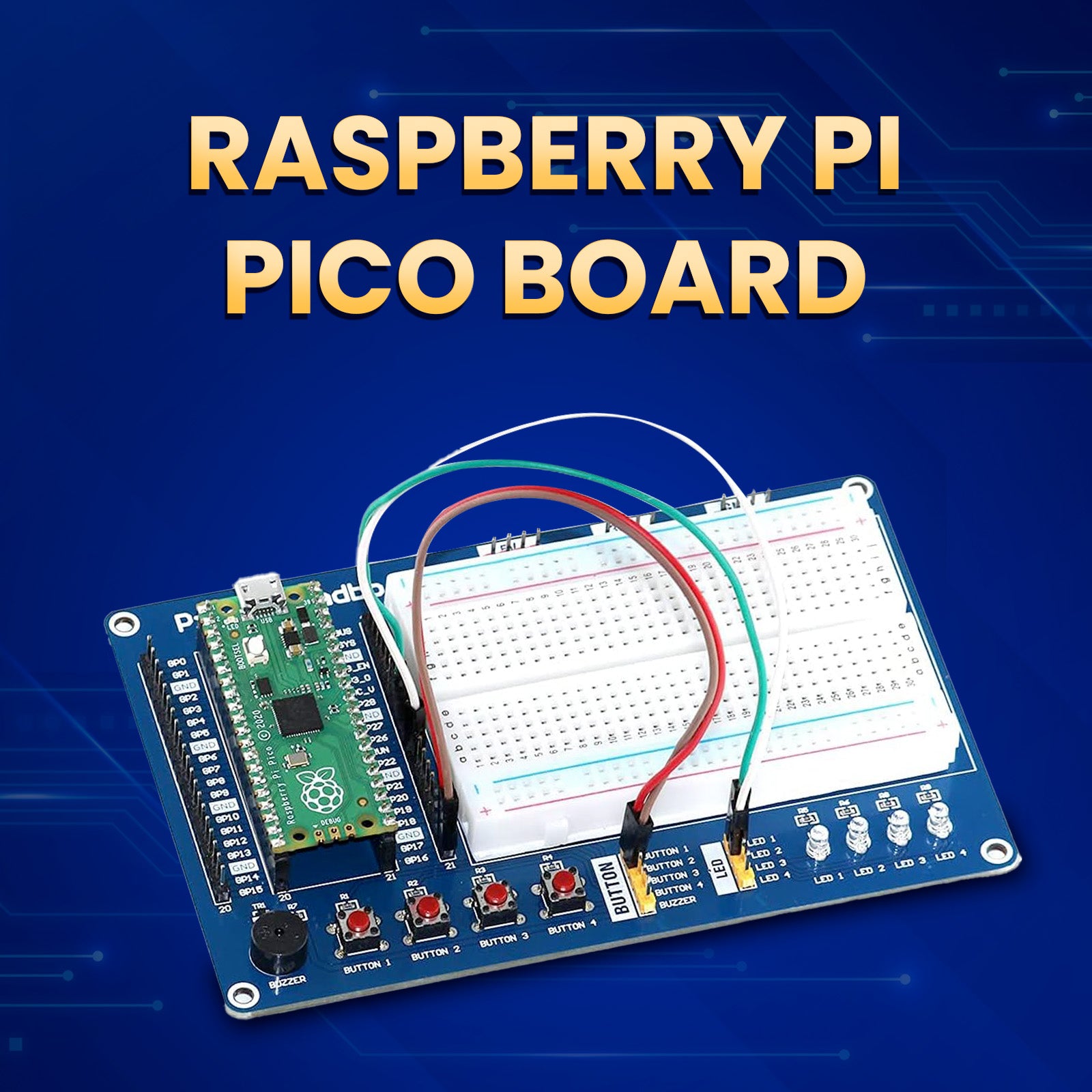

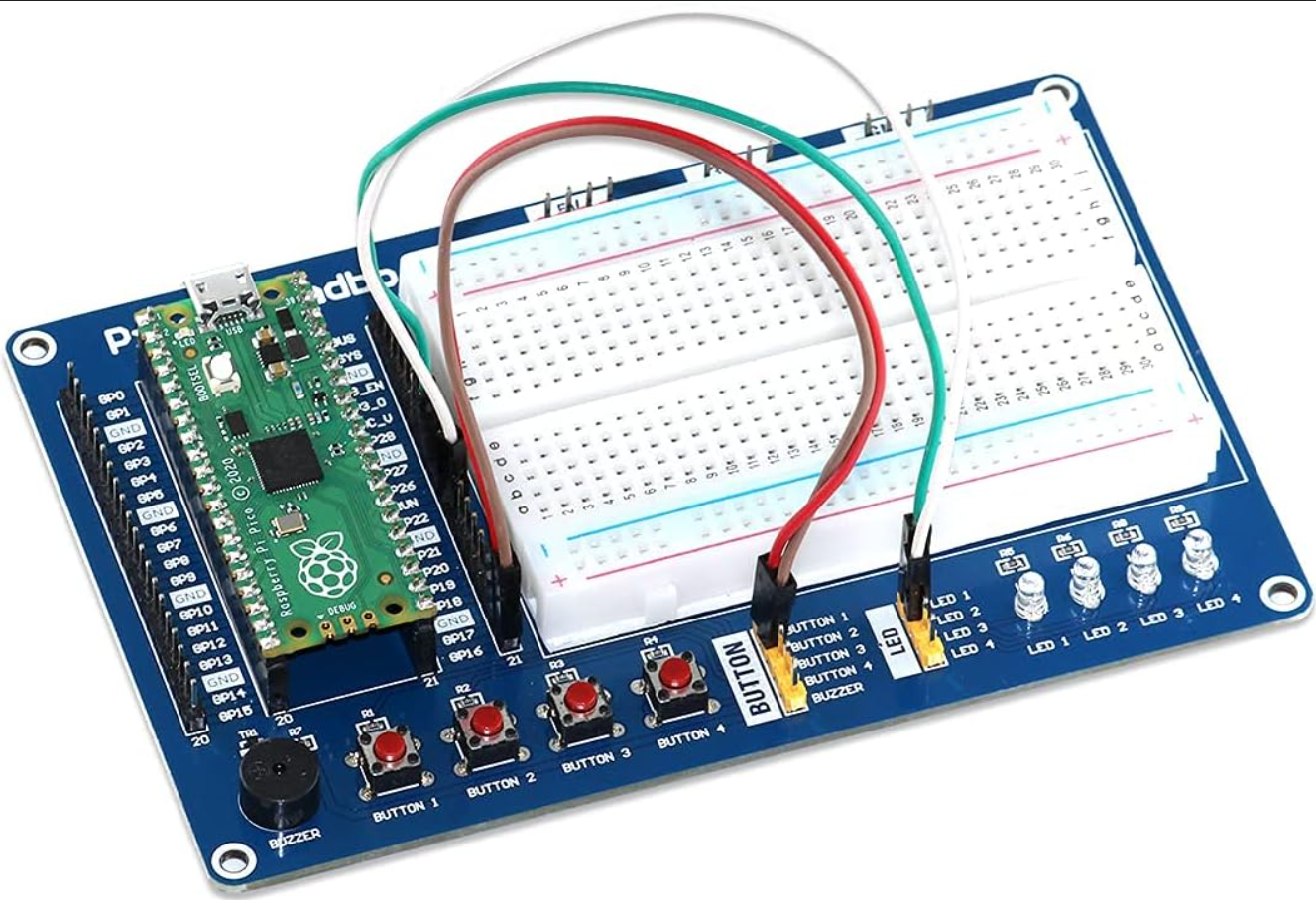

Raspberry Pi Pico Breadboard Kit is a multi-purpose Kit that consists of a “400 points half-size breadboard” on top, a Programmable Buzzer, 4 Programmable LEDs, 4 Pushbuttons, and dedicated 5V, 3v3, and GND pins at a single place. SB Components developed Raspberry Pi Pico Breadboard Kit with advanced features like independently controllable LEDs, Switches, a 400 points half-size breadboard that helps the user to prototype their projects with Raspberry Pi Pico in an efficient way.
Raspberry Pi Pico Breadboard Kit can be interfaced with Raspberry Pi Pico from which a user can run electronics experiments, prototypes, mini robots, games, interact with Linux-ready Raspberry Pi, Exploration of circuits, etc. One can also connect external components with the breadboard provided on the top of the Raspberry Pi Pico Breadboard Kit.

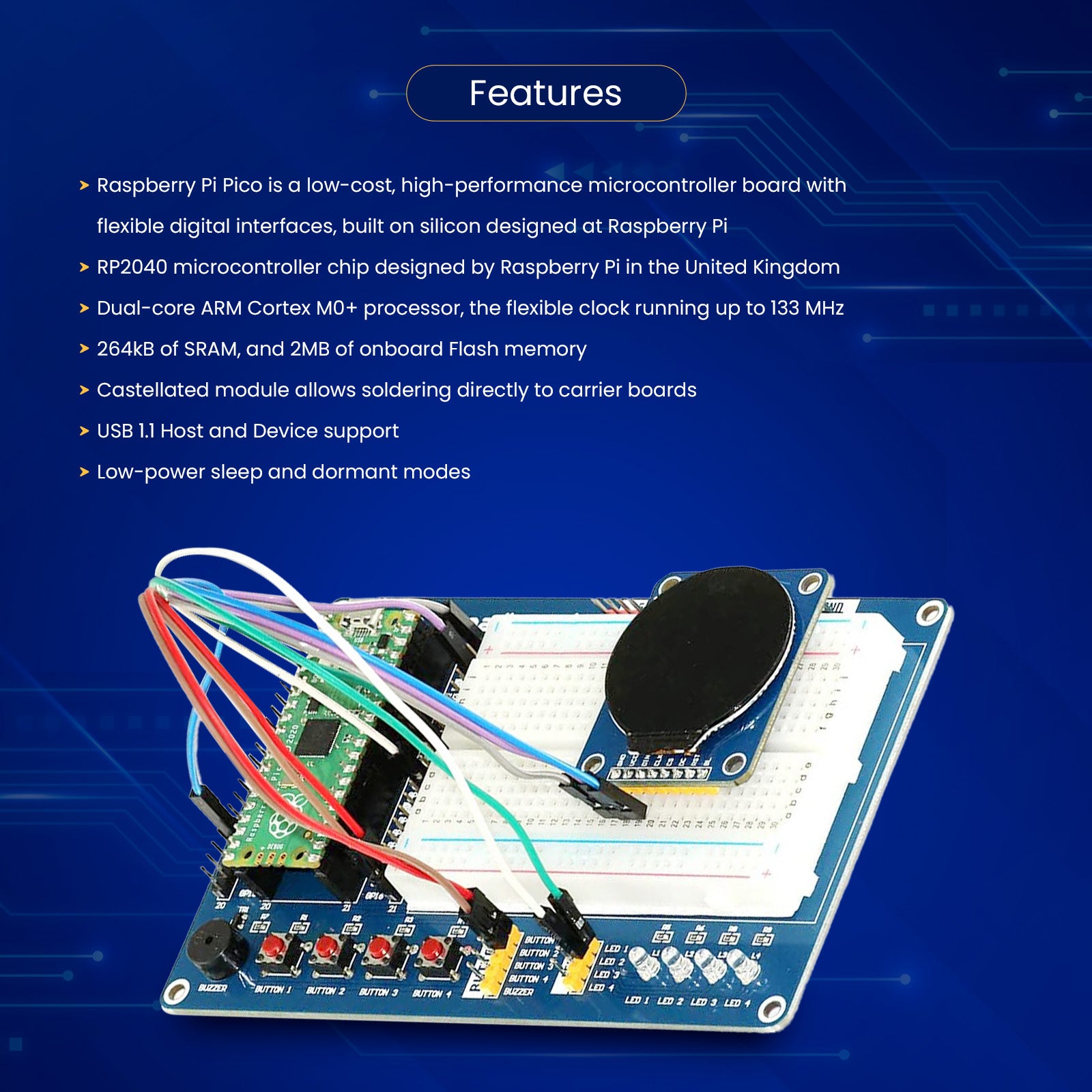

Features
Raspberry Pi Pico
- Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces, built on silicon designed at Raspberry Pi
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of onboard Flash memory
- Castellated module allows soldering directly to carrier boards
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
Raspberry Pi Pico
| Microcontroller | RP2040 microcontroller with 2MByte Flash |
| Operating Voltage | 5V DC via USB connector |
| I/O Pins | 26 GPIO (3.3v rated), 23 are digital-only and 3 are ADC capable |
| Digital peripherals | 2x UART, 2x I2C, 2x SPI, up to 16 PWM channels |
| Analog | 12-bit 500ksps Analogue to Digital Converter (ADC) |
| Flash Memory | 2MByte QSPI Flash memory |
| SRAM | 264K multi-bank high-performance SRAM |
| Clock Speed | Dual-core cortex M0+ at up to 133MHz |
| LED_BUILTIN | GP25 |
| Inbuilt temperature Sensor | Yes |
| Debug | 3-pin ARM Serial Wire Debug (SWD) port |
| Timer and Counter | 1x Timer with 4 alarms, 1x Real Time Counter |
| Programmable IO (PIO) | 8×Programmable IO (PIO) state machines for custom peripheral support |
| Module Type | The castellated module allows soldering directly to carrier boards. |
