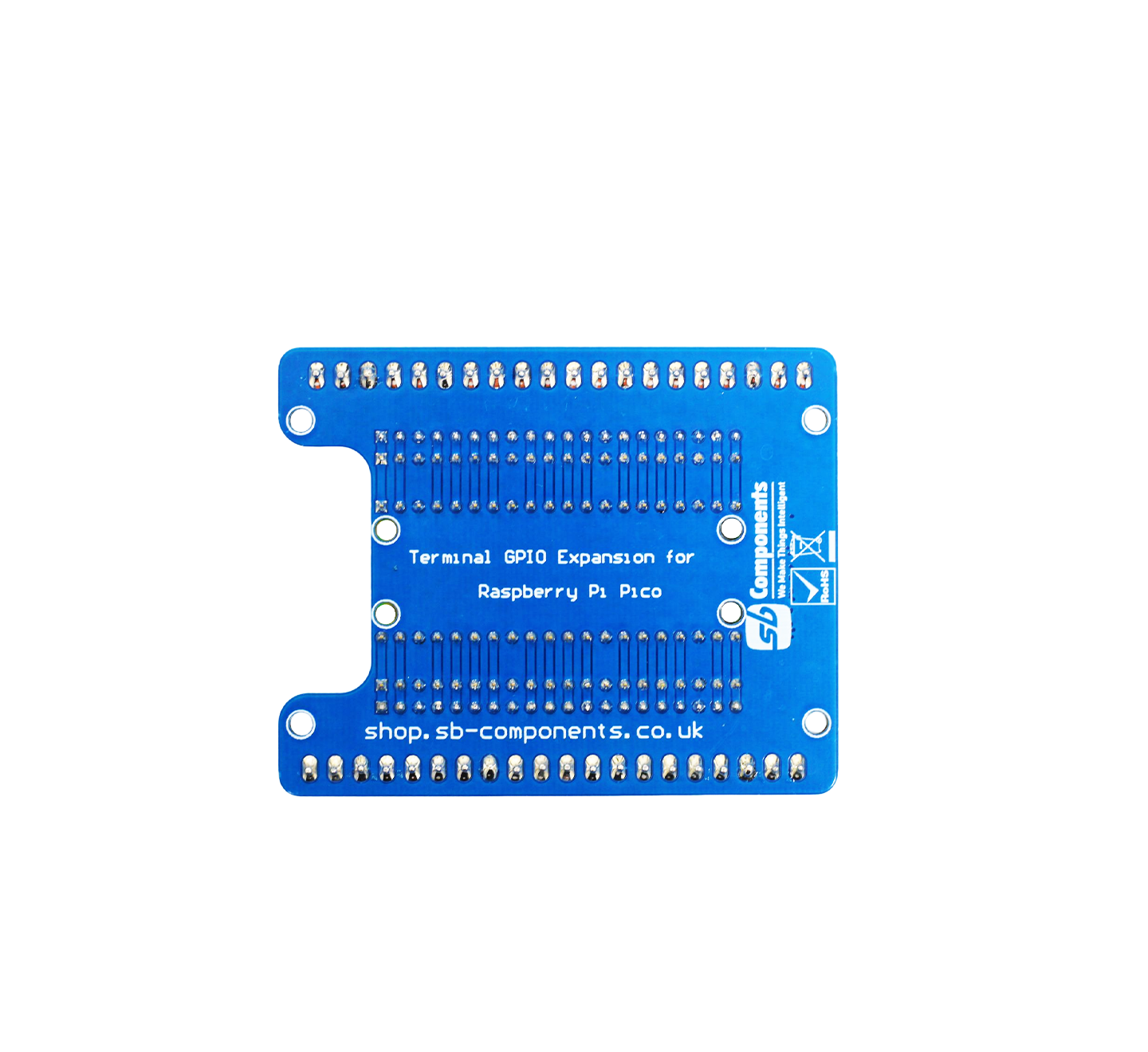

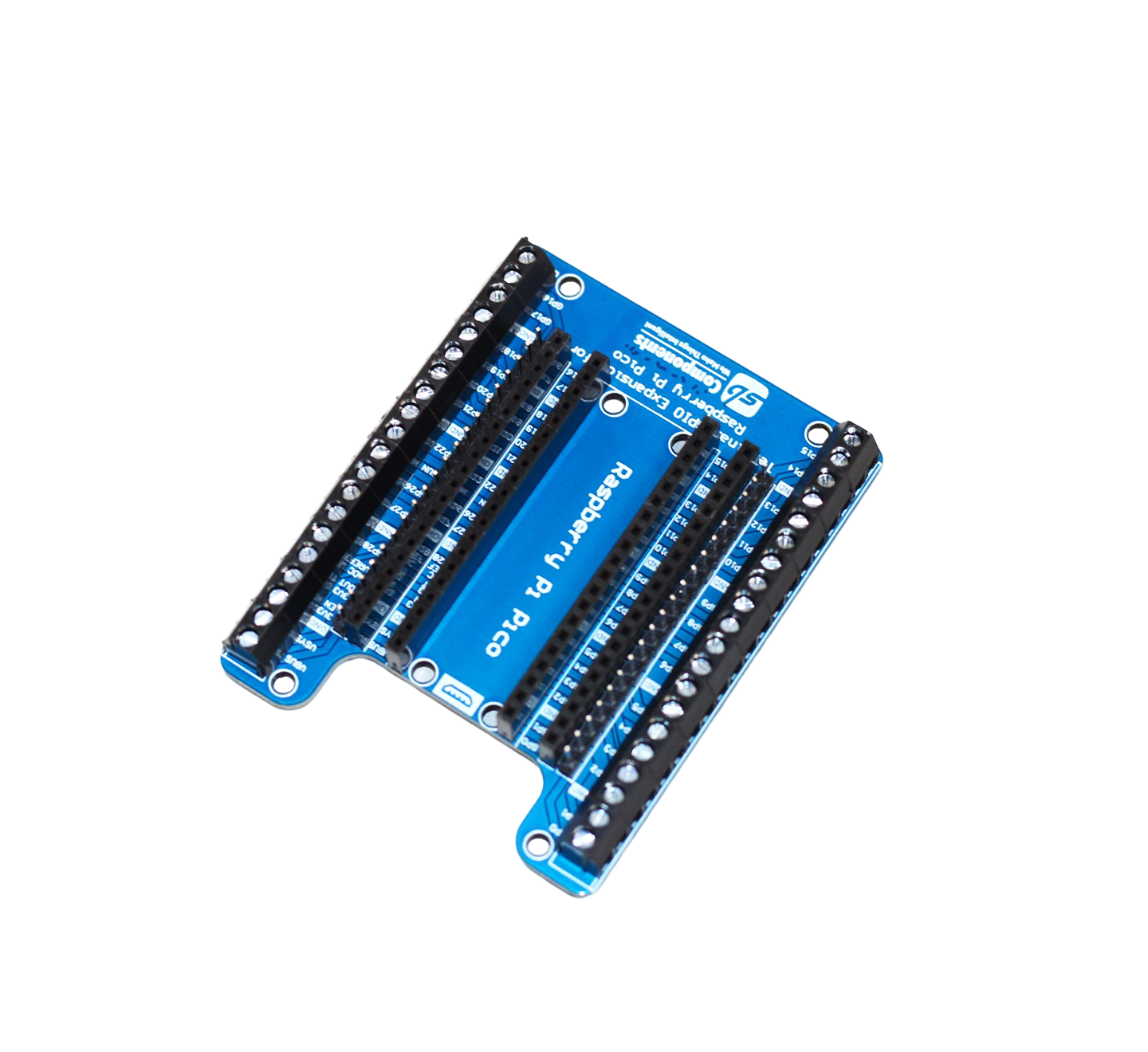

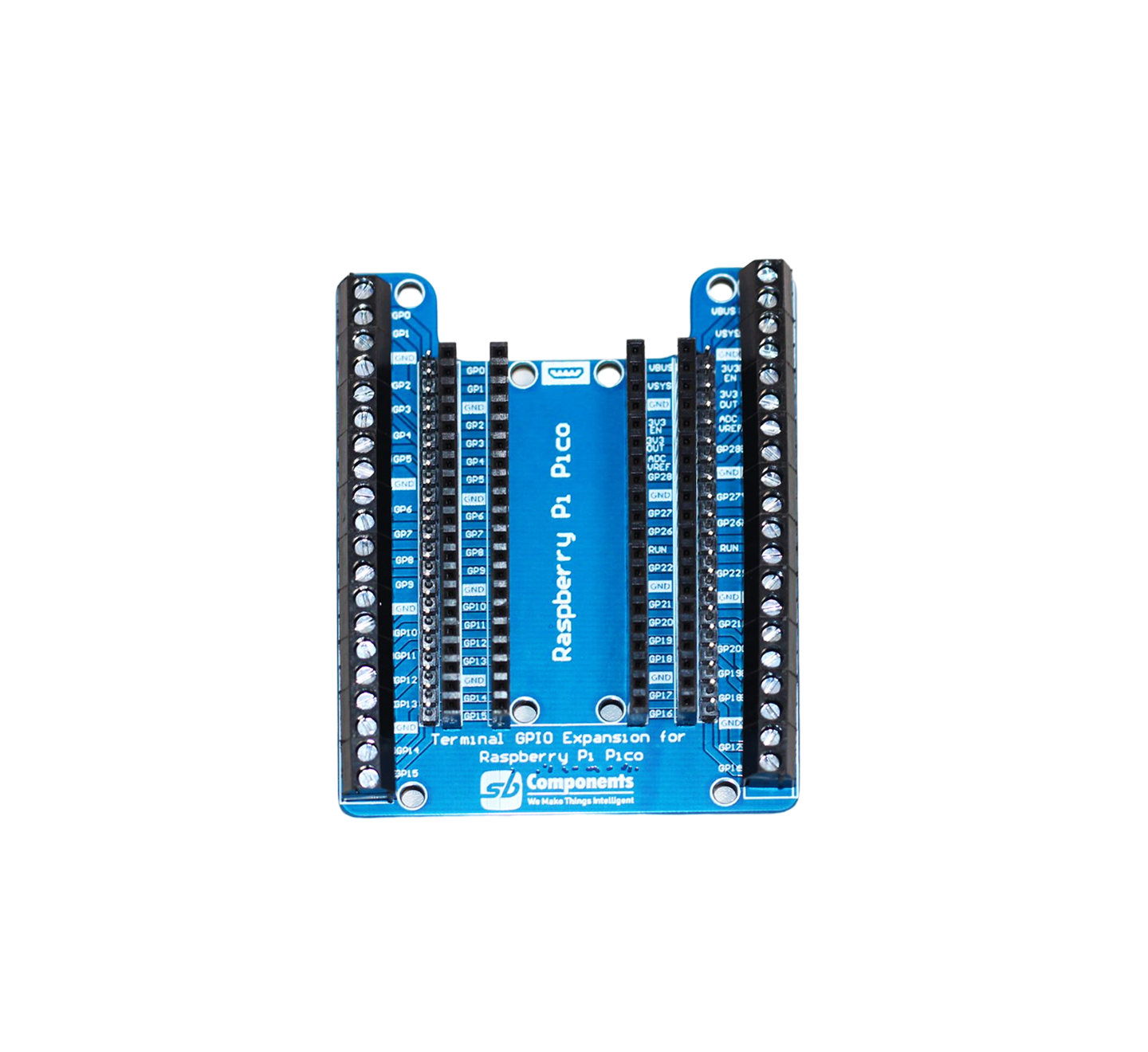

Terminal GPIO Expansion for Pico

Regular price £8.99 GBP
Regular price Sale price £8.99 GBP
Tax included.
Brand: SB Components
Availability: In stock
SKU: SKU25688
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

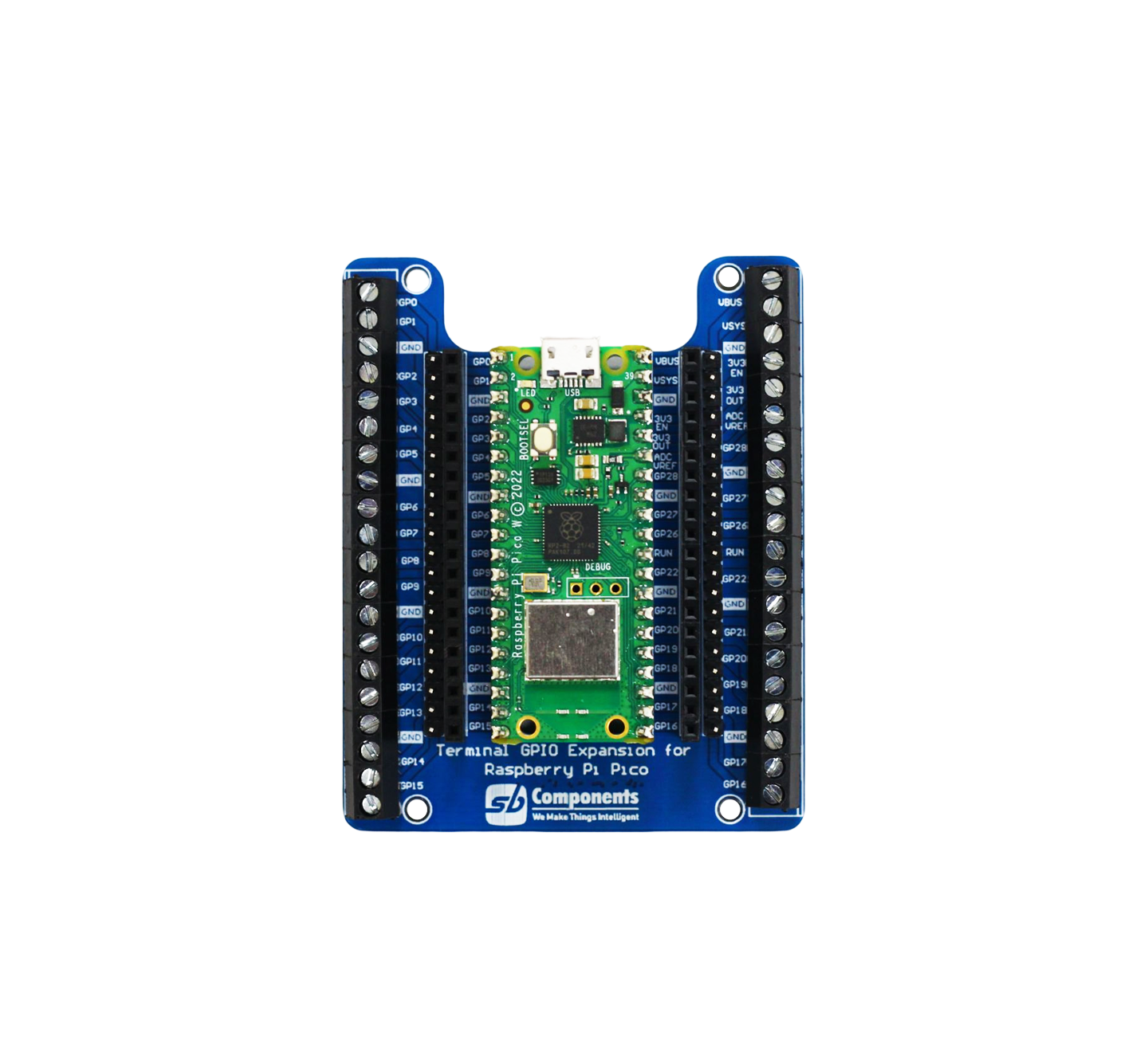

This one is for all the makers and designers who want to use terminal blocks and GPIO. The Terminal GPIO Expansion allows you to use both terminal blocks and GPIO with male & female header options. With this breakout board, you can quickly expand the Raspberry Pi Pico to industrial control, home automation, and other uses. For industrial or robotics applications with several cables, the Terminal GPIO Expansion Board is ideal. Your Raspberry Pi Pico is connected to this breakout. To enable you to connect and power your sensors, displays, microcontrollers, and other devices, all cables have been segmented into terminal blocks and GPIOs.

Terminal GPIO Expansion for Pico


Features:

  • Easy GPIO Access: Access all Raspberry Pi Pico GPIO pins through clearly labeled screw terminals.
  • Secure Connections: Screw terminals ensure stable and reliable connections for wires and components.
  • Compatible Design: Specifically tailored for Raspberry Pi Pico, offering a seamless fit.
  • High-Quality PCB: Durable and robust PCB design to support multiple connections.
  • Compact and Lightweight: Designed for compact setups, saving space in your project.
  • Perfect for Prototyping: Simplifies the process of connecting multiple components during development.

Specifications:

  • Compatibility: Raspberry Pi Pico
  • Pin Access: 40 GPIO pins with labeled screw terminals
  • Material: High-quality FR4 PCB
  • Dimensions: Compact size to match Raspberry Pi Pico footprint
  • Mounting: Can be mounted on a Raspberry Pi Pico using header pins
  • Weight: Lightweight design, ideal for portable applications

Resources:

Hardware: Github Repository.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Baker
Flexible interface

Gives secure contact access to all pins, either by socket or screw terminal. With a little thought power buses can be taken for peripheral devices and signals from them are easily and securely connected. A development stage between breadboard and hardwired, robust enough for field trials.
