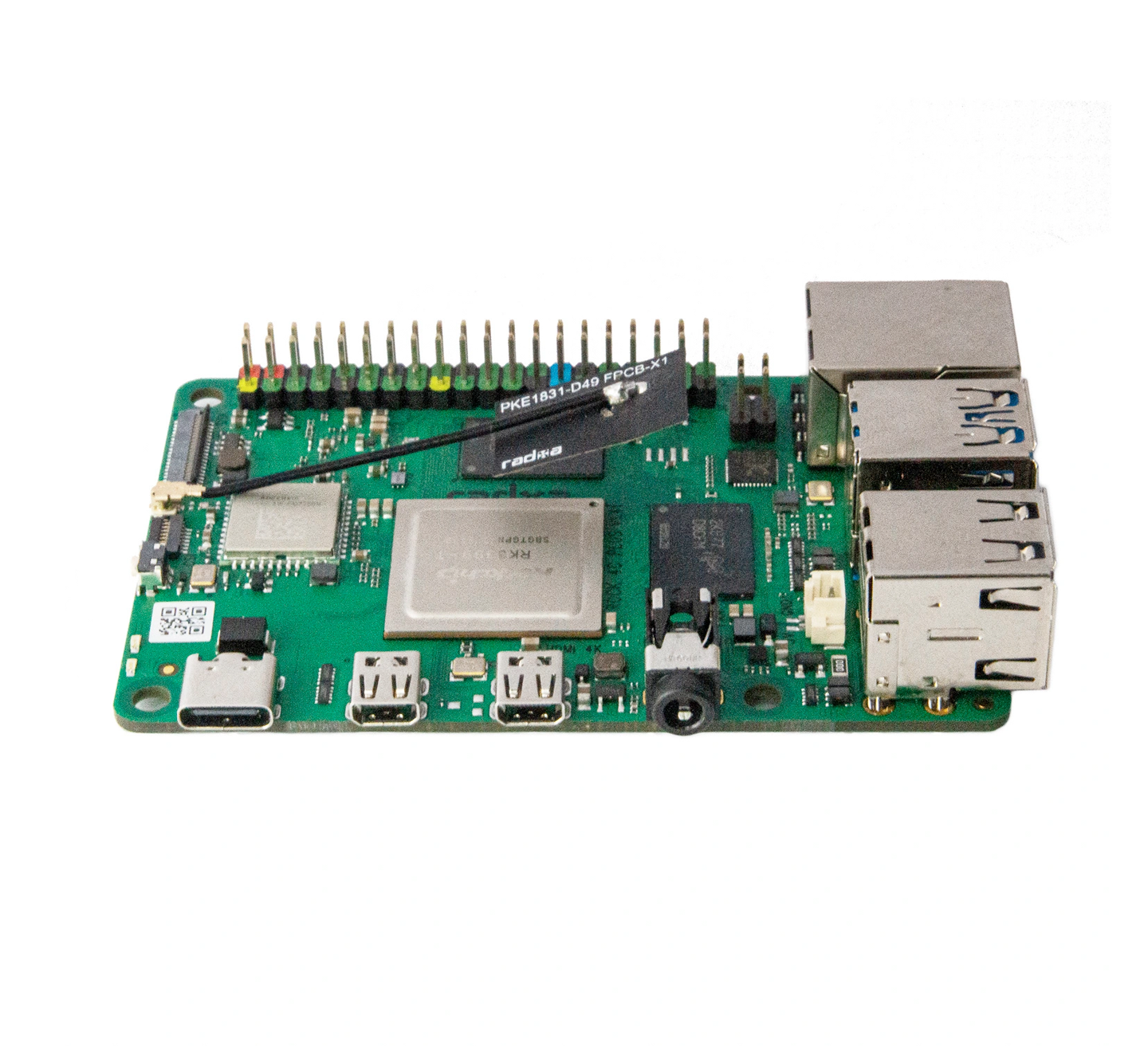

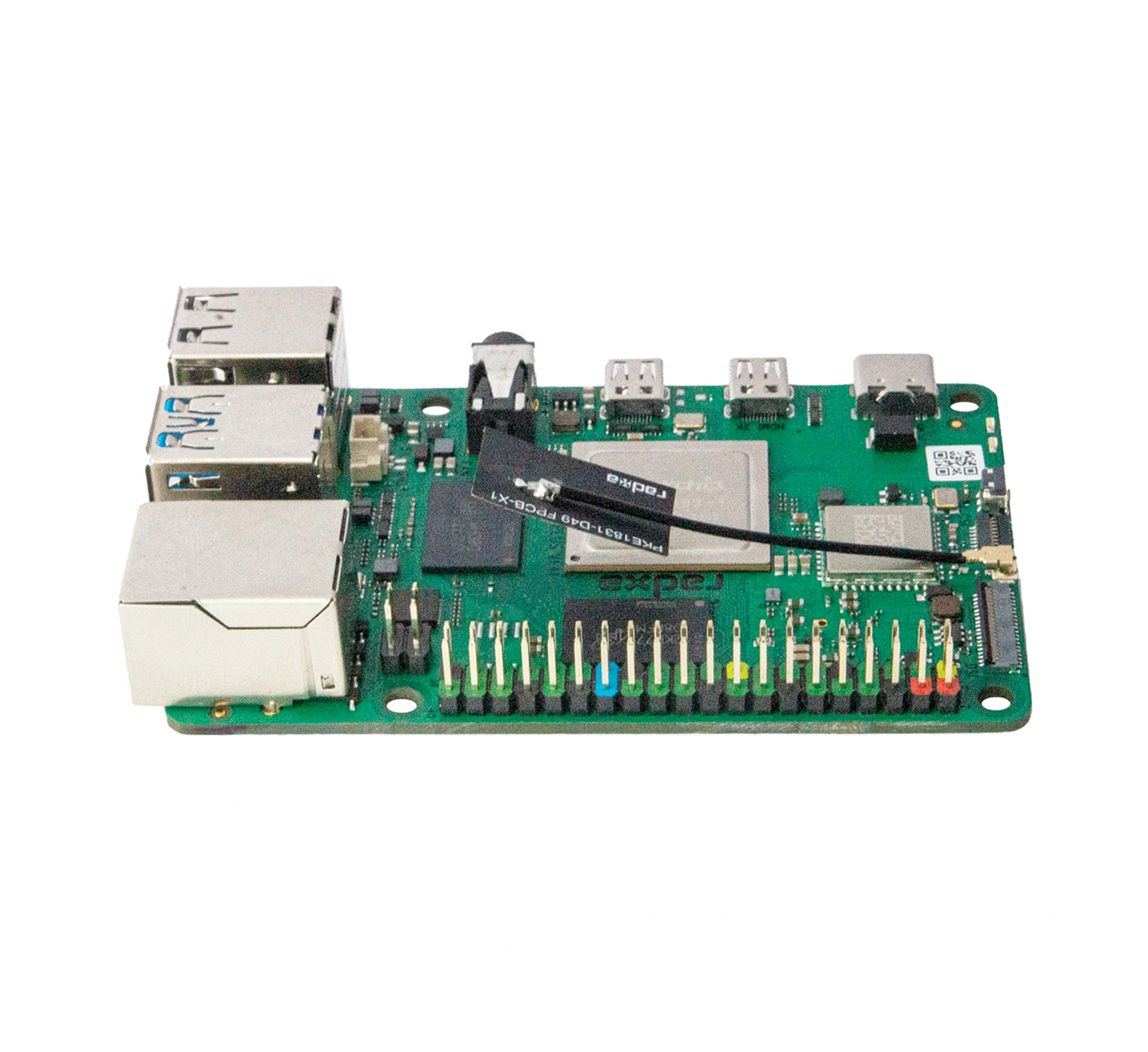

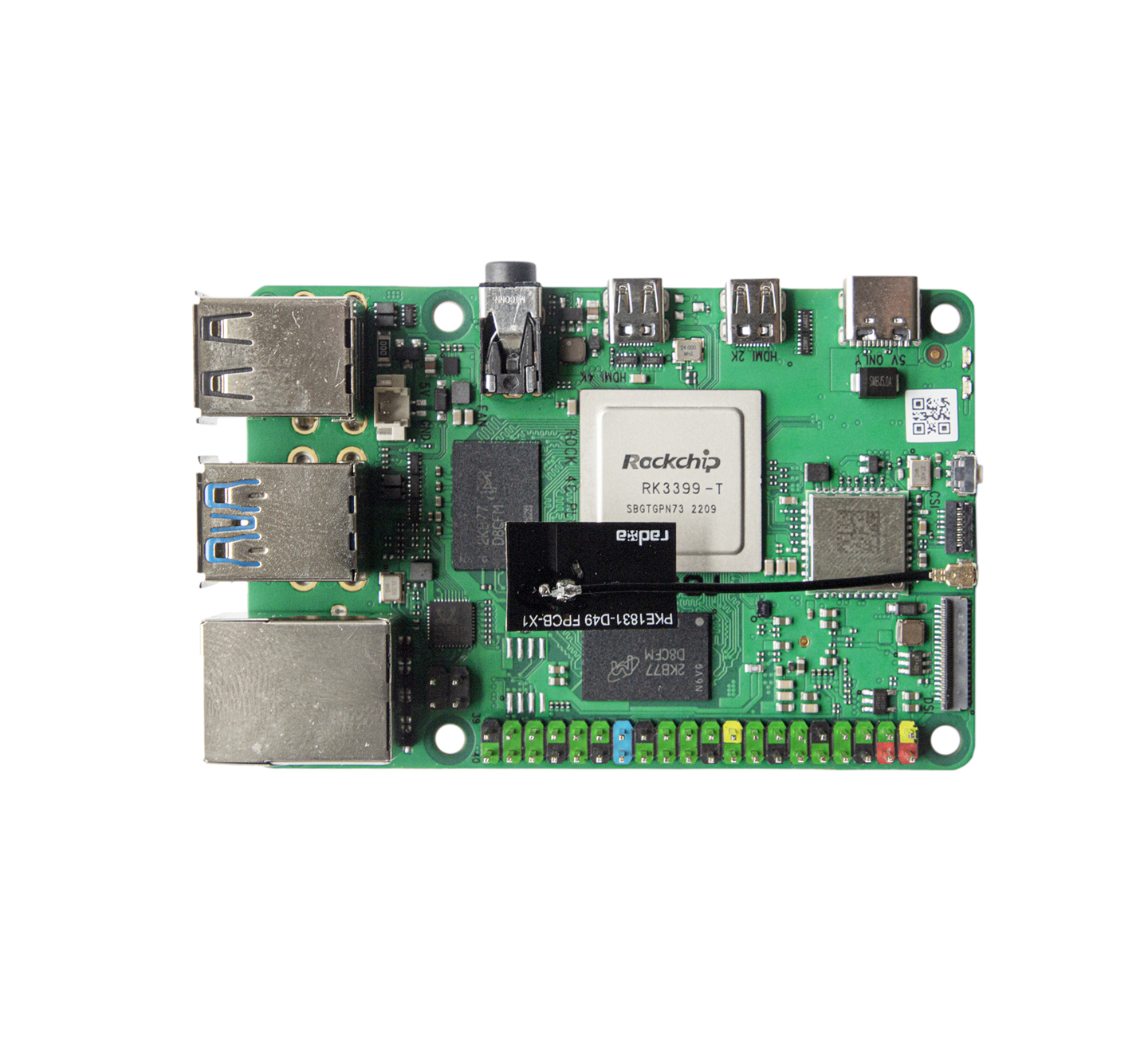

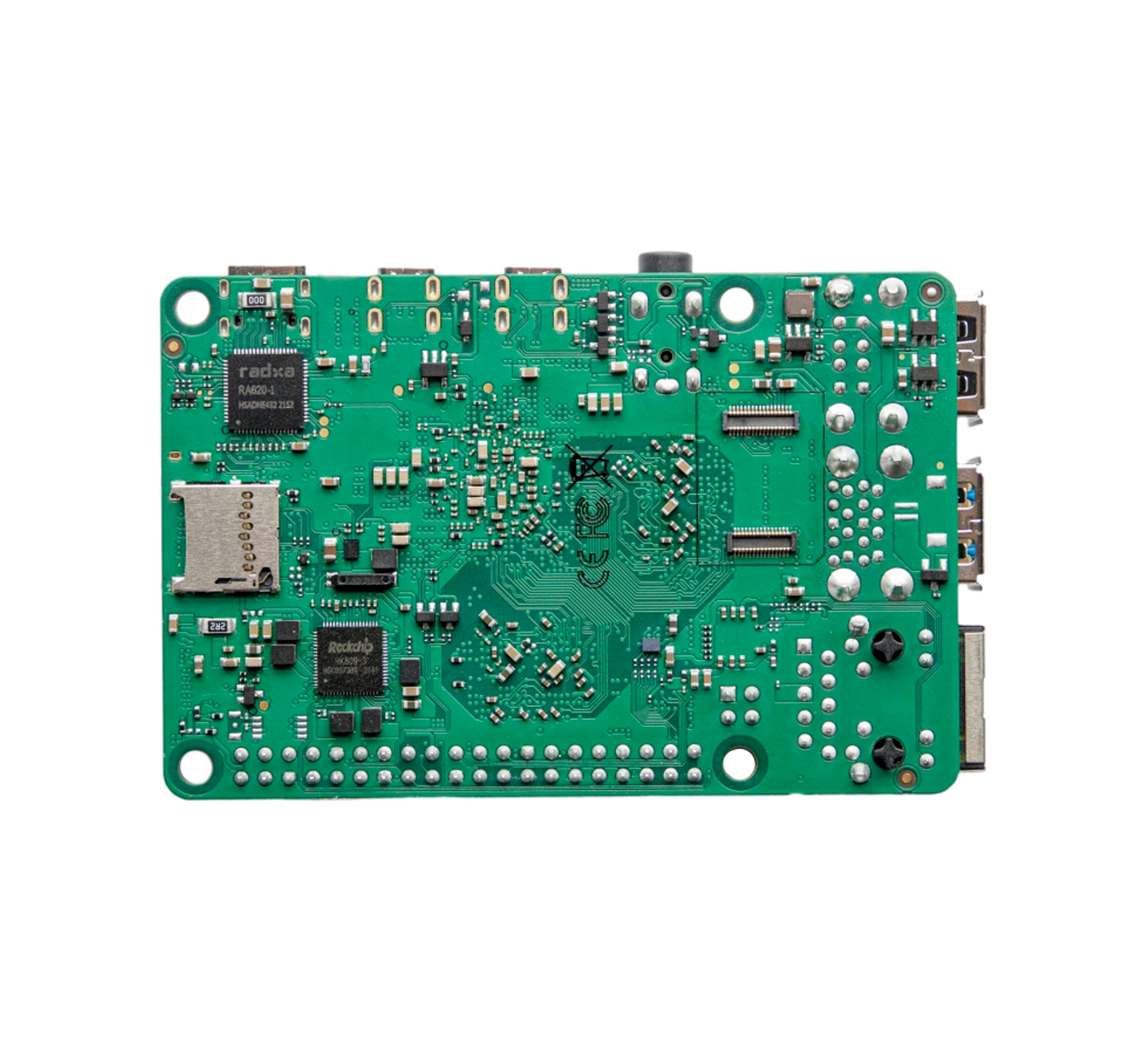

Rock 4 Model C+ 4GB

£59.99 GBP
£59.99 GBP
Tax included.
Brand: SB Components
Availability: Low stock
SKU: SKU26128
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

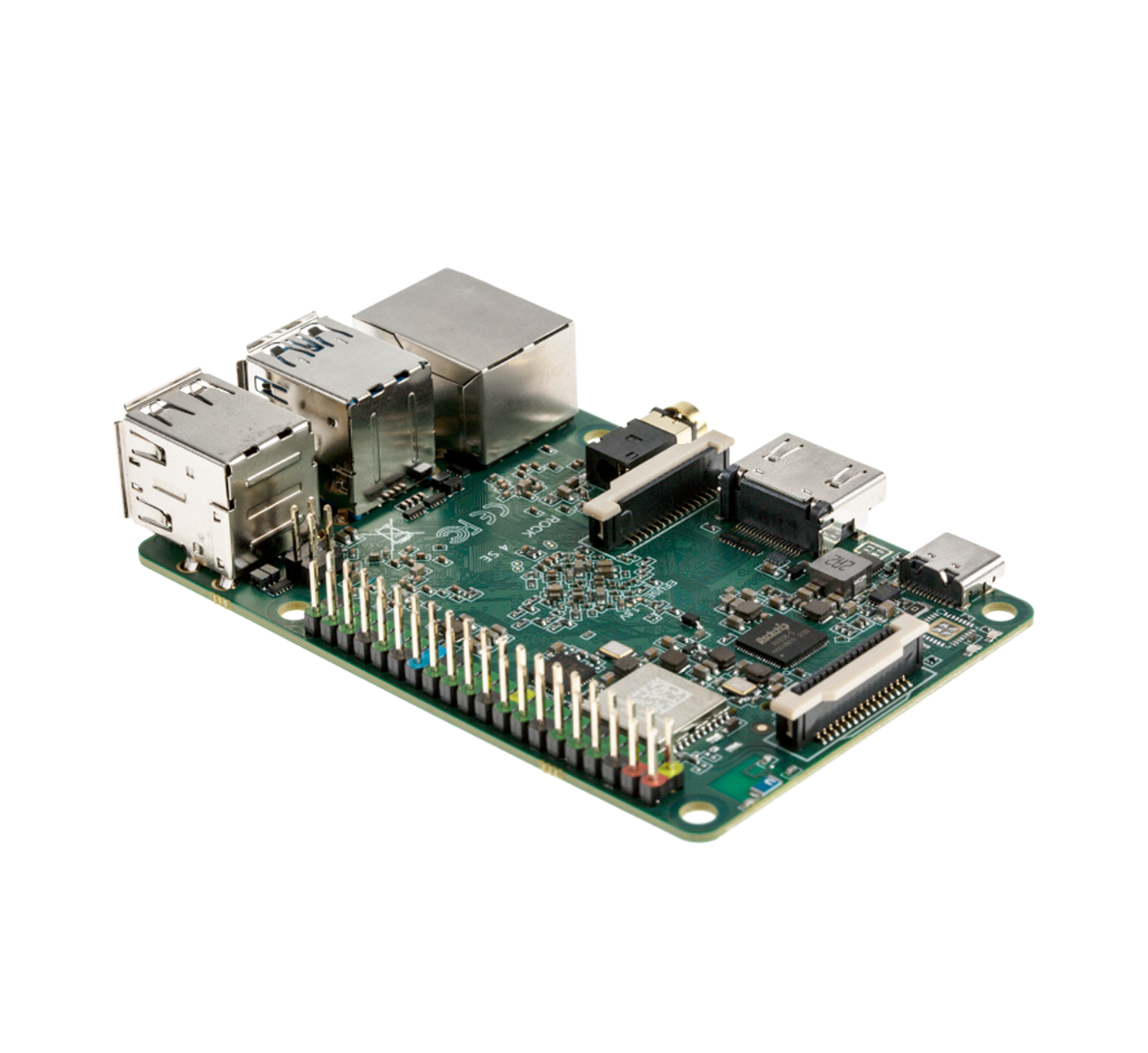

Rock 4 SE 4GB
SB ComponentsRock 4 SE 4GB

A dependable Rockchip RK3399T SoC, Dual Cortex® A72 CPU, and Arm MaliTM T860MP4 GPU make up the ROCK 4C+, a multipurpose, high-performing single-board computer. The board, created by OKdo Technology in partnership with Radxa, includes best-in-class functionality appropriate for a variety of multimedia and industrial applications, assuring exceptional dependability.


The single-board computer ROCK 4C+ is energy-efficient and comes with an inbuilt On/Off power switch. It also has several storage options, including an eMMC socket and 4GB of 64-bit RAM, as well as an inbuilt fan controller, an external antenna, an audio connection, support for twin displays, and two micro-HDMI ports that can handle screens with a resolution of up to 4Kp60.

  • ROCK 4 SE - a robust, versatile special edition single-board computer 
  • High-performing Hexa-core Rockchip RK3399-T processor big.LITTLE™ Arm® Dual Cortex-A72® CPU, Quad-core Cortex-A53 and Arm Mali™ - T860MP4 GPU
  • Available in a 4GB 64bit LPDDR4 RAM option
  • Expandable with eMMC module
  • Onboard RTC, WiFi, Bluetooth, Antenna, Audio jack (headphone and headset), 4K HDMI port
Technical Features:
  • Rockchip RK3399T SoC
  • Arm® big.LITTLE™ technology (Dual Cortex®-A72 frequency 1.5GHz and a Quad Cortex-A53 frequency 1.0GHz)
  • Arm Mali™ T860MP4 GPU, supporting OpenGL® ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan® 1.0, Open CL® 1.1 1.2, DirectX® 11.1
  • Dual Arm Cortex – M0
  • Dual channel 4GB 64bit LPDDR4
  • eMMC connectors
  • Display supporting mirror and extended modes
  • Dual micro-HDMI
  • MIPI DSI
  • H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
  • H.264 hardware decode (up to 1080p60)
  • USB TypeC™ power input
  • Interfaces:
  • 802.11 b/g/n/ac (WiFi 5) Wireless LAN
  • Bluetooth 5.0 with BLE
  • 1 x micro-SD card slot
  • 2 x HDMI ports supporting displays up to 4Kp60 resolution and 2Kp60
  • 2 x USB2 HOST ports
  • 1 x USB3 OTG/HOST port, 1x USB3 HOST port
  • 1 x Gigabit Ethernet port (supports PoE with addon PoE HAT)
  • 1 x camera port (2lane MIPI CSI)
  • 1 x display port (4lane MIPI DSI)
  • 40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pin

Resources:

Common How-to

Linux

Android

Others

Bootloader
