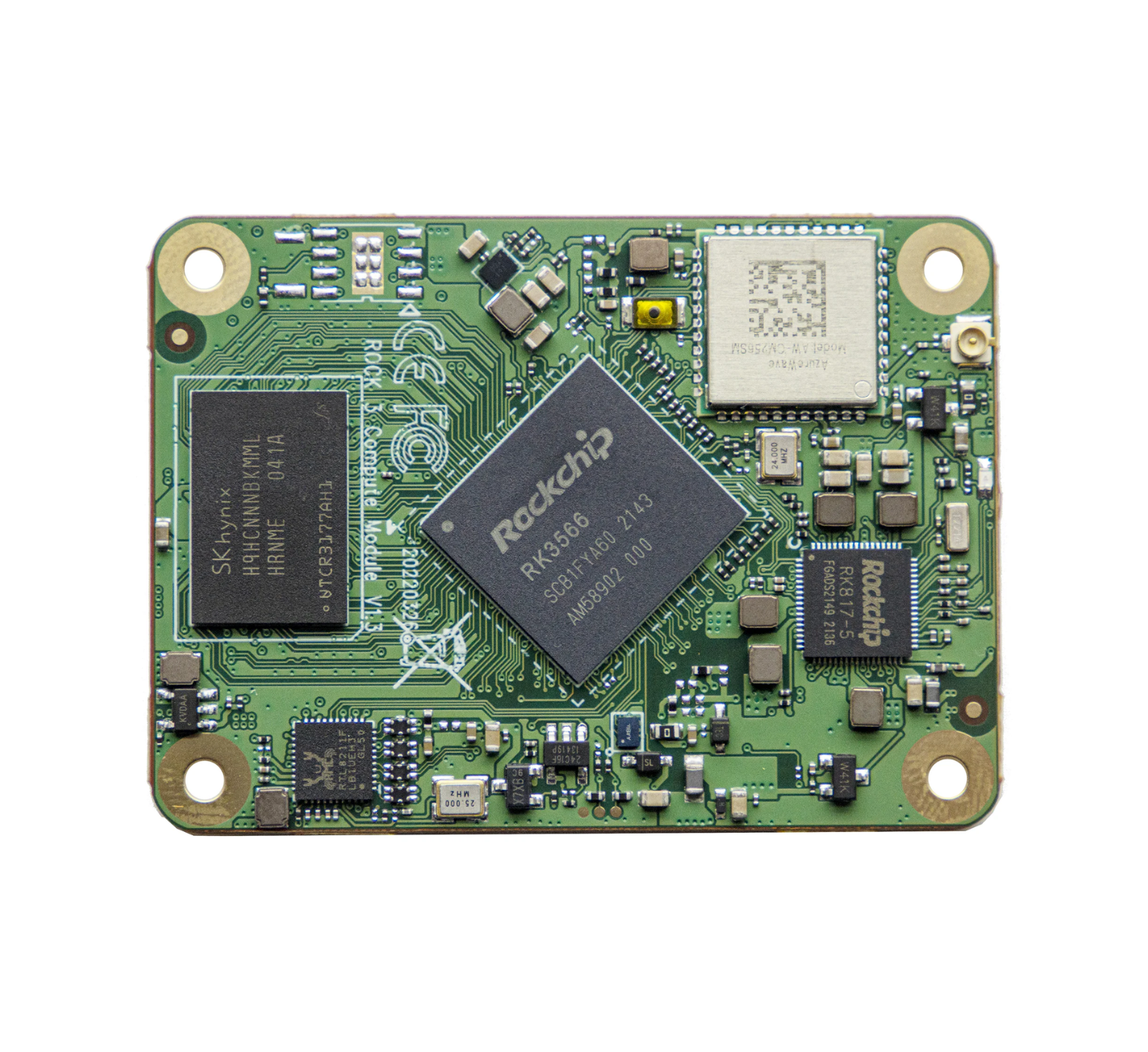

Rock 3 Compute Model 2GB/16GB WiFi/BT

£53.92 GBP
£53.92 GBP
Tax included.
Brand: SB Components
Availability: Low stock
SKU: SKU26104
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
SB ComponentsRock 5B 8GB
Rock 5B 8GB
ROCK 5 Model A Single Board Computer
SB ComponentsROCK 5 Model A Single Board Computer

A robust Rockchip RK3566 System on Chip (SoC), a quad-core Arm Cortex-A55 CPU, and an Arm MaliTM-G52-2EE GPU make up the ROCK 3 Compute Module (CM3). Your design programs will perform and function better thanks to this CM3. The ROCK 3 Compute Module measures just 55mm x 40mm. It has 2GB LPDDR4 RAM, 16GB eMMC flash storage, wireless connectivity, including WiFi 5 and Bluetooth® 5.0, and many other class-leading capabilities that may be readily integrated into various industrial and multimedia projects. OKdo Technology and Radxa have worked together to produce CM3, which offers a ready-to-use, affordable solution that enhances the functionality of numerous embedded applications.

  • Accelerate your design with the ROCK 3 Compute Module (CM3)
  • Powerful Rockchip RK3566 System on Chip (SoC)
  • Quad-core Arm® Cortex®-A55 CPU & Arm Mali™-G52-2EE GPU
  • 2GB LPDDR4 RAM, 16GB eMMC flash storage
  • Wireless connectivity, including WiFi® 5 and Bluetooth® 5.0
  • Compact board, easily integrated into embedded applications

    Technical Specifications

    SoC Rockchip RK3566 SoC with 64-bit Quad Core low power cores up to 2.0GHz
    RAM 2GB LPDDR4
    CPU Quad-core Arm Cortex-A55 (ARMv8) 64-bit @ 2.0GHz
    GPU Arm Mali-G52-2EE, OpenGL® ES1.1/2.0/3.0/3.1/3.2, Vulkan® 1.1, OpenCL™ 2.1
    NPU 1 TOPs@INT8, support INT8, INT16, FP16, BFP16, support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN, etc.
    Memory 32bit DDR4/3/3L/LPDDR4/4X/3 and support eMMC 5.1 and SFC
    Display Single display engine, HDMI2.0, eDP 1.3, Dual MIPI-DSI, combo with single LVDS, 24bit RGB/BT1120 and EBC interface
    Multimedia 4K H.265/H.264/VP9 video decoder and 1080p@60fps H.264/H.265 video encoder
    Video input 8M Pixel ISP and 1 x 4 lanes or 2 x 2 lanes MIPI CSI-2 and DVP interface
    Audio interface I2S0/I2S1 with 8 channels, IS2/I2S3 with 2 channels, SPDIF0, PDM0 with 8 channels, TDM) with 8 channels, and Voice Activity Detection (VAD)
    High-Speed Interface One USB 3.0 host, two SATA 3.0, one PCIE2.1, two SerDes (serializer/deserializer) lanes, dual USB 2.0 host and one USB 2.0 OTG, and a single RGMII interface
    Security Arm TrustZone® security extension, Secure Video Path, Secure JTAG to debug, Secure boot, OTP, and Crypto (AES/TDES/SM4/SM3/SHA256/SHA512/RSA)
    Power Requirements The power input into the SoM is 5VDC at 5A
    Supported Software Debian/Ubuntu Linux support



    Android 11 support
    Operating temperature 0°C to 80°C
    Connectivity WiFi 5, Bluetooth 5.0 with BLE, Gigabit Ethernet
