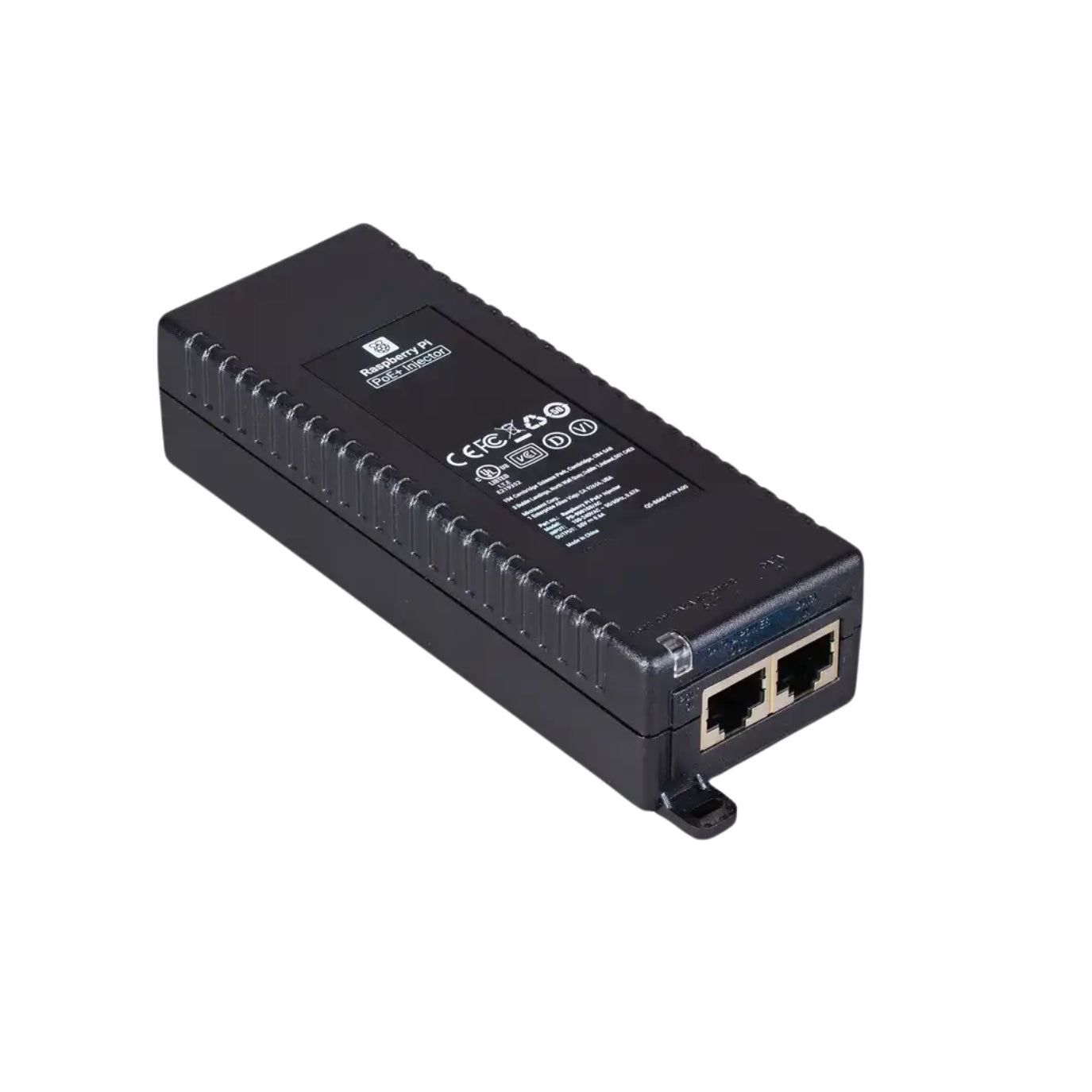

Raspberry Pi PoE+ Injector

Raspberry Pi PoE+ Injector – 30W Gigabit Power Over Ethernet Adapter

Power your Raspberry Pi projects efficiently with the Raspberry Pi PoE+ Injector, a single-port, high-performance PoE adapter that delivers up to 30W of power to PoE and PoE+ compatible devices. Compliant with IEEE 802.3at and 802.3af standards, this injector is the ideal companion for powering Raspberry Pi boards equipped with official or third-party PoE HATs.

Offering Gigabit pass-through speeds (10/100/1000 Mbps), it maintains high-speed network performance while supplying power through the same Ethernet cable—perfect for remote Raspberry Pi installations, digital signage, IoT devices, and industrial applications.

Note: A PoE HAT is required to use this injector with Raspberry Pi 3B+, 4, or 5. Raspberry Pi does not currently offer an official PoE HAT for Pi 5, but compatible third-party options are available.

Key Features:

• Supports PoE/PoE+ Devices: Powers Raspberry Pi PoE HATs (IEEE 802.3af/at compliant)

• 30W Output: Delivers consistent power for demanding setups

• Gigabit Data Pass-Through: Supports 10/100/1000 Mbps network speeds

• Smart Detection: Automatically adjusts output based on device power needs

• Safe Operation: Includes protection for non-standard Ethernet devices

• Compact and Durable: Ideal for desktop or embedded environments

Technical Specifications:

• Data Rate: 10/100/1000 Mbps

• Input Voltage: 100–240V AC

• Output Power: 30W (55V DC nominal)

• Power Pins: 4/5 (+), 7/8 (–)

• Connectors: Shielded RJ-45 (EIA 568A/568B), IEC C13 power input

• Dimensions: 159 × 51.8 × 33.5 mm

• Operating Temp: –10°C to +50°C

• Storage Temp: –20°C to +70°C

• MTBF: 200,000 hrs @ 25°C

• Altitude Range: –300 m to 3000 m

Package Contents:

• 1× Raspberry Pi PoE+ Injector
  (IEC C13 power cable not included)

Note: Raspberry Pi, PoE HAT, and Ethernet cables are not included.
