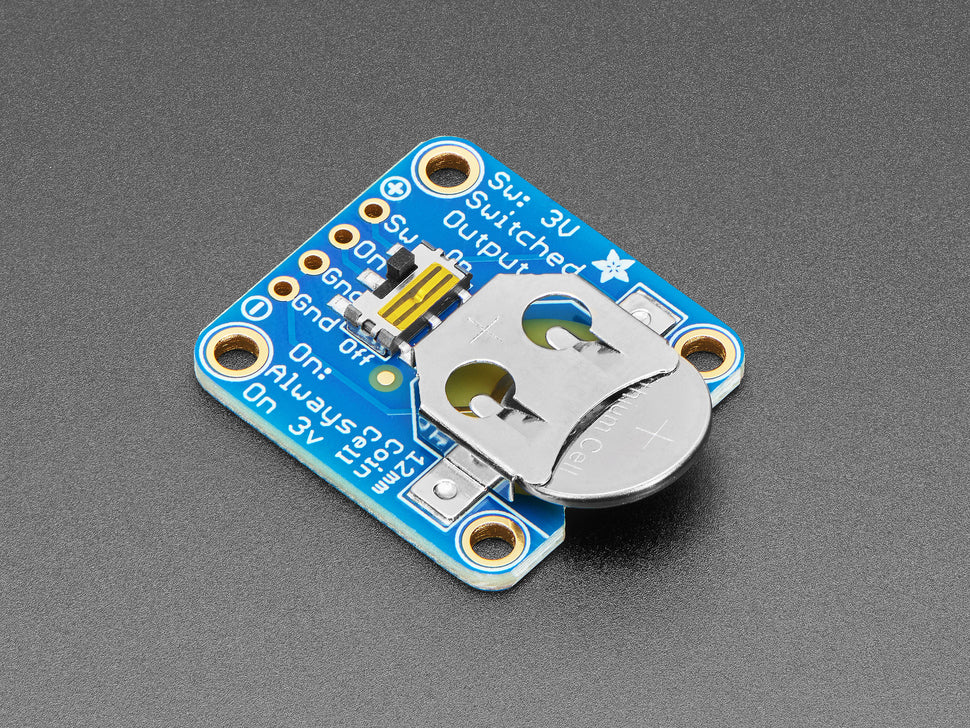

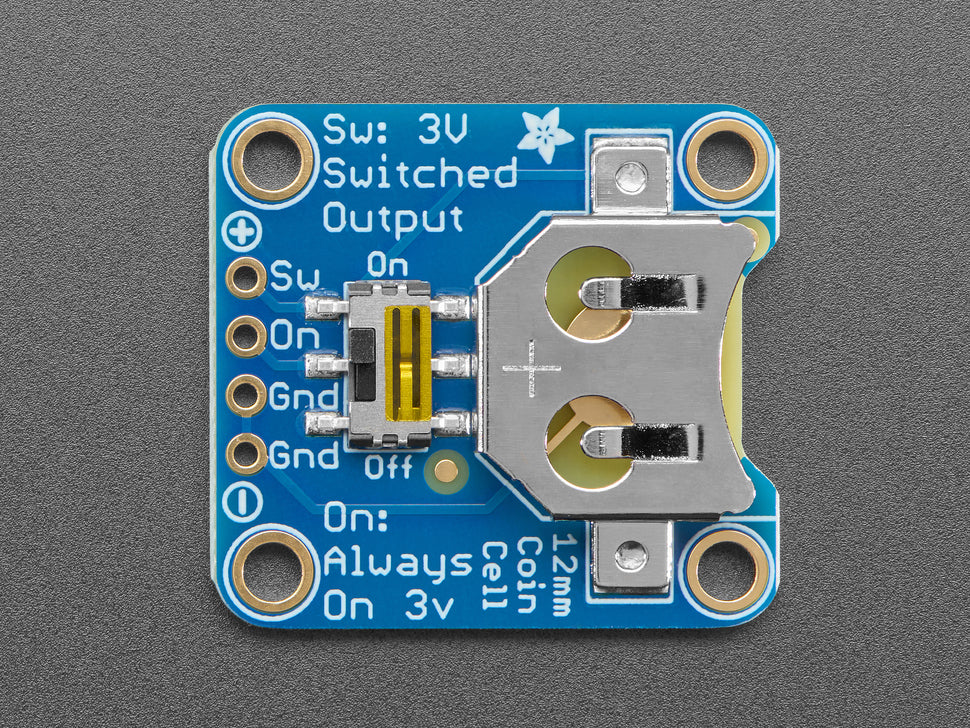

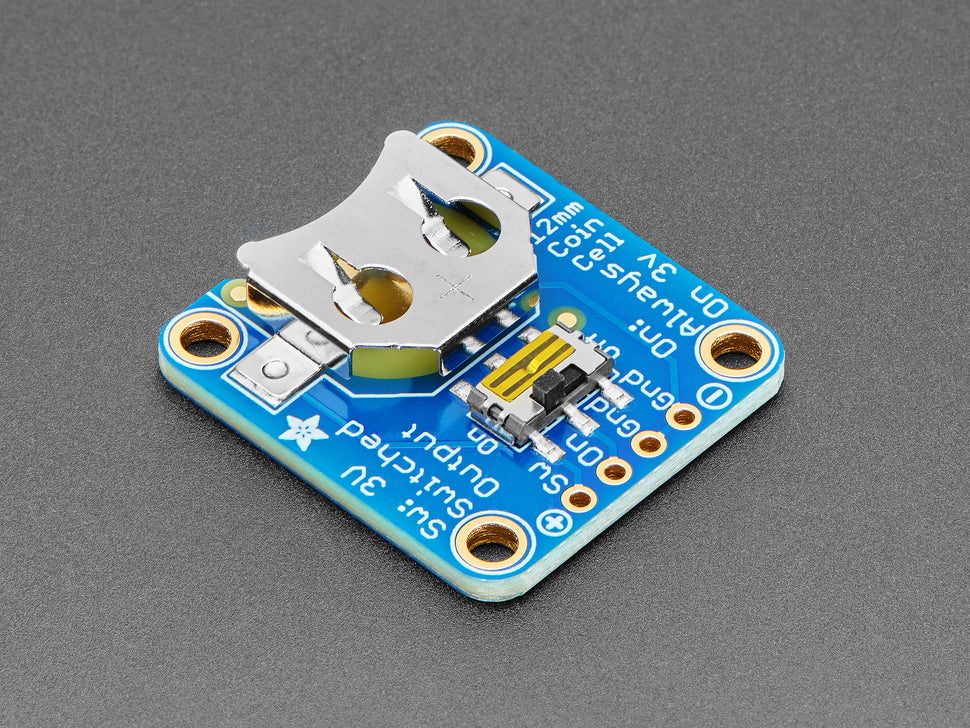

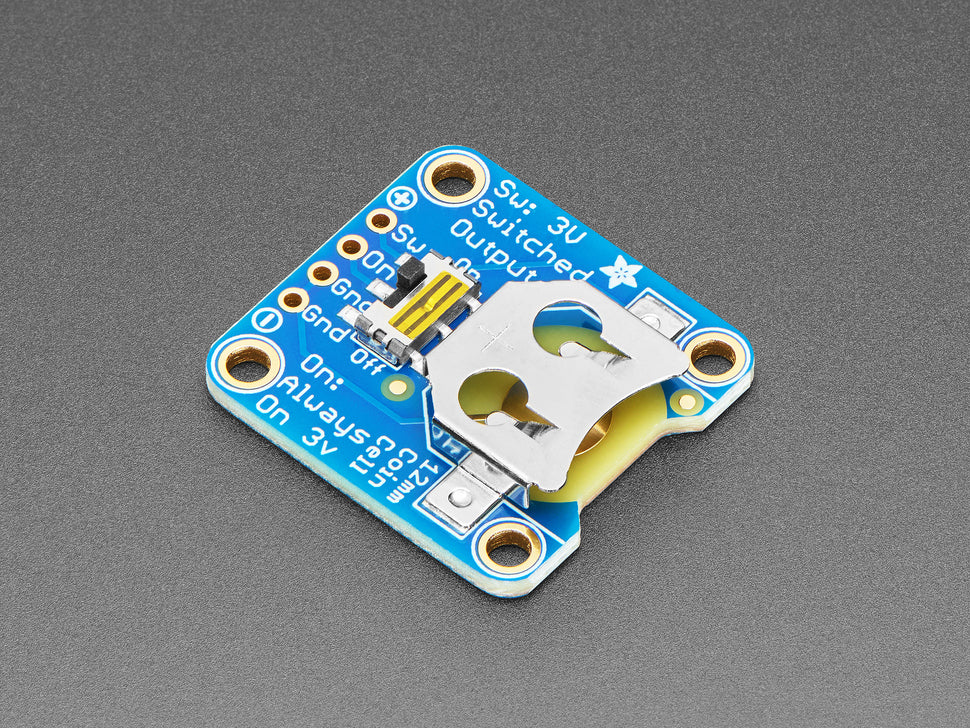

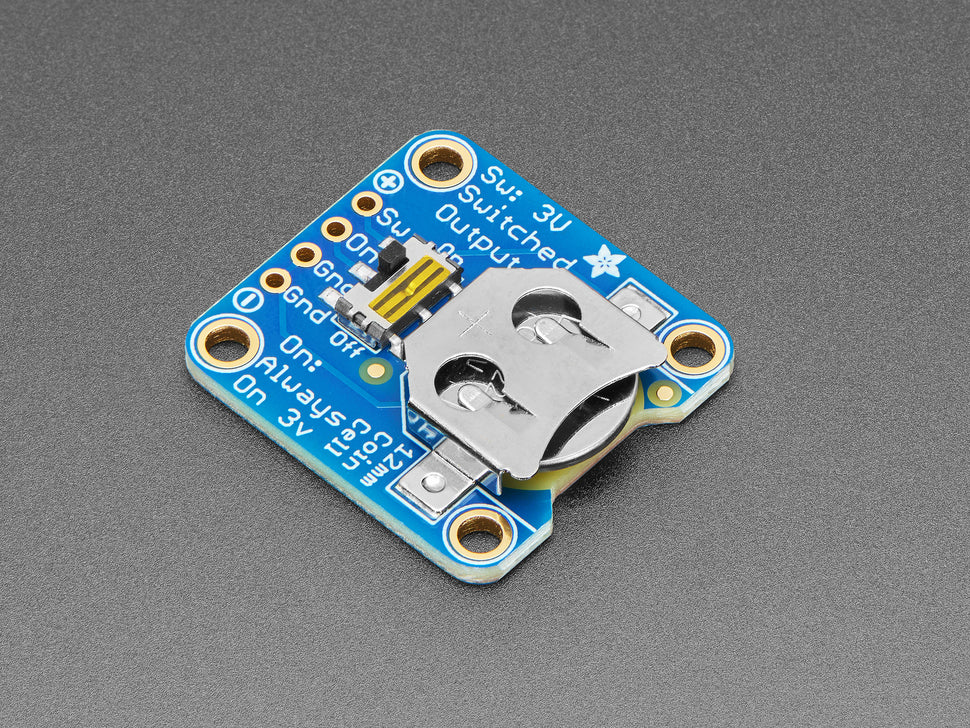

12mm Coin Cell Breakout with On-Off Switch

Simple but effective, this breakout board features a CR1220 coin cell battery holder soldered on, an on/off switch, and 0.1" pitch breakout pins for easy connecting. It is ideal for powering very low-current projects or adding a battery backup circuit to a real-time clock or similar devices.

• Two ground pins
• One 'switched' power pin
• One always-on pin

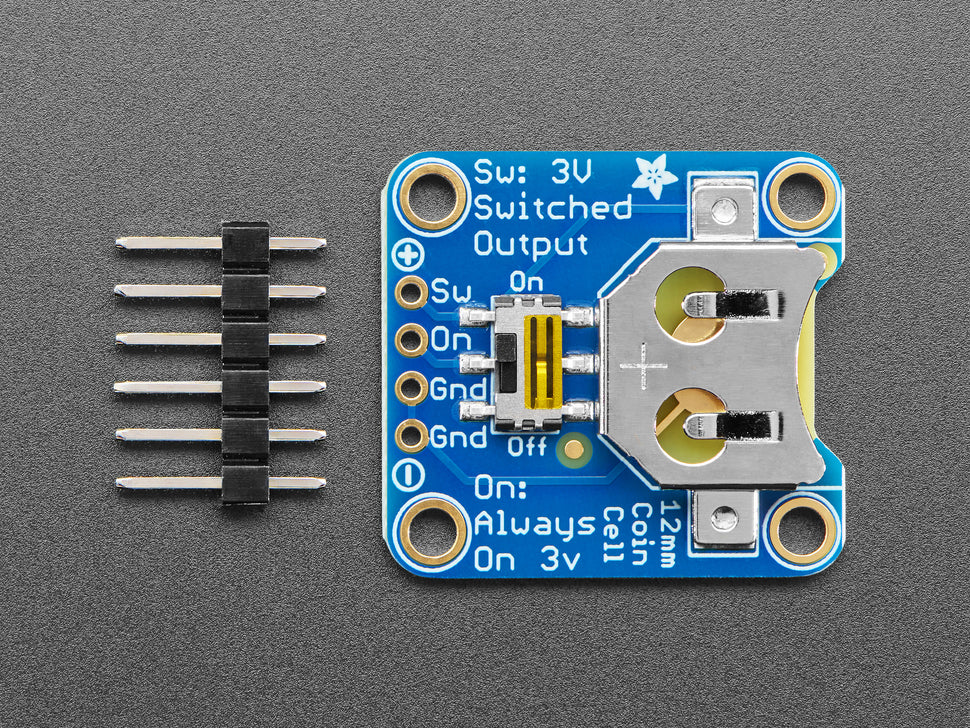

• Includes a small stick of 0.1" header for easy breadboard connection

This product comes fully assembled and tested.

Dimensions: 25mm x 23mm x 5mm (1" x 0.9" x 0.19")

Mounting hole distance: 18mm x 19.8mm (0.7" x 0.78")

Weight: 2 grams
