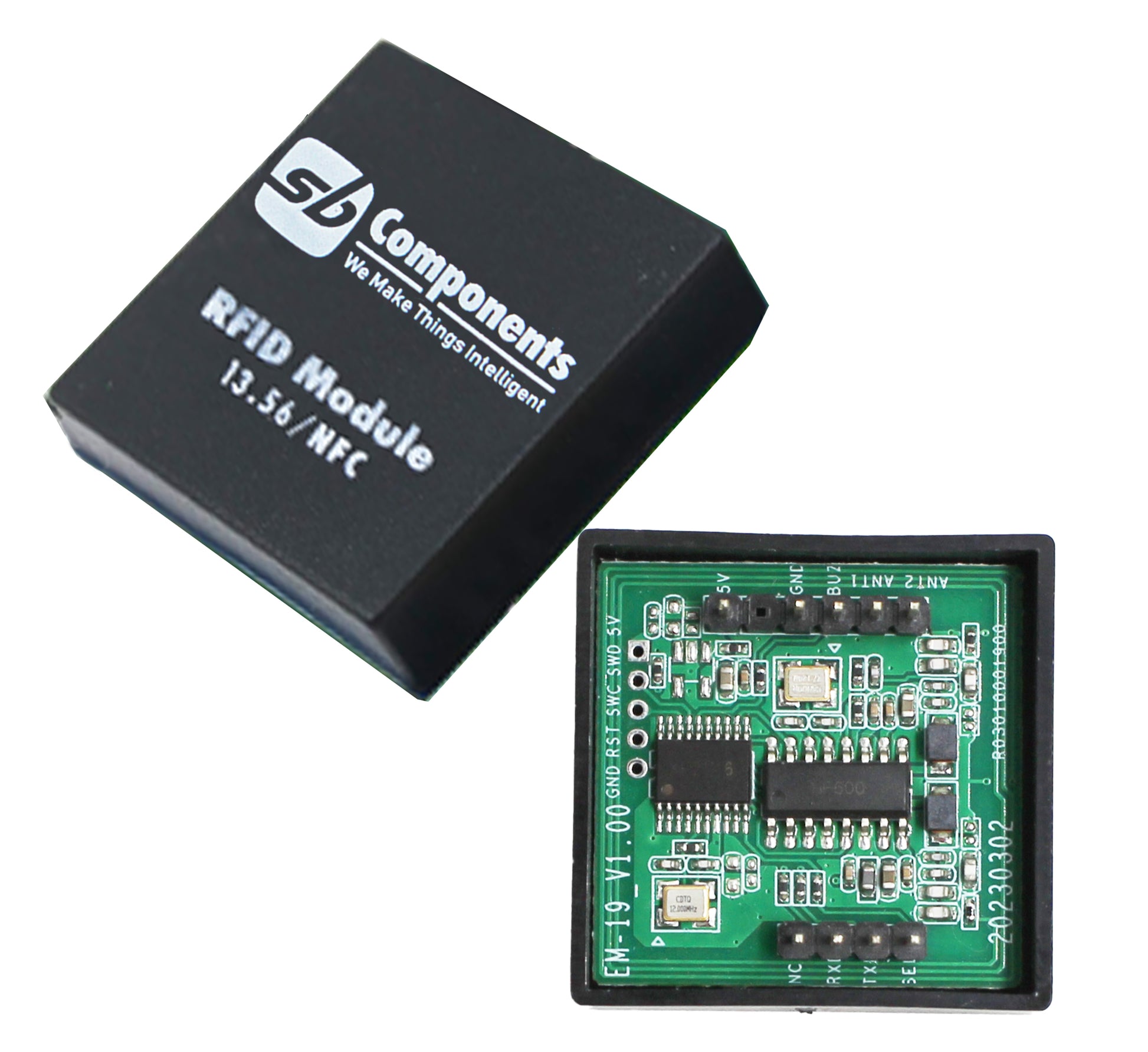

13.56MHz NFC RFID Module

The NFC module is an excellent solution for enthusiasts, makers, and developers who want to harness the power of NFC technology, Whether it's for prototyping or building advanced applications, the NFC module delivers the functionality, reliability, and flexibility needed for a wide range of projects.

The term "NFC" refers to a short-range, high-frequency wireless communication technology that is mostly used in mobile or portable devices. It enables radio connection to be established by just touching two phones together or keeping them a few millimeters apart. Holding two devices together and using a wireless communication link for the final few centimeters makes choosing a target straightforward. Induction-coupling, which uses magnetic induction between two loop antennas operating at a frequency of 13.56MHZ with data rates ranging from 106 kbit/s to 424 kbit/s, is the primary communication method used in NFC.

Features:

• Adopt a special base station RF chip, stable performance, good compatibility
• Both Read/Write operations are possible
• Integrated Antenna
• Communication Interface: TTL
• Support Protocols like ISO14443B, ISO18092
• Contactless card supports like NTAG213, Mifare one S50, Mifare one S70, ultralight, FM11RF08

Specifications:

• NFC Module Frequency: 13.56MHz
• Reading distance: ＞50mm(The effective distance is related to the IC card and the use environment)
• Reading time: ＜200ms
• Output Format: TTL
• Size: 28.9*28.9mm
• Supply: 5V DC
• Operating current: 50mA
• Operating temperature: -15℃~+55℃
• Storage temperature: -20℃~+70℃

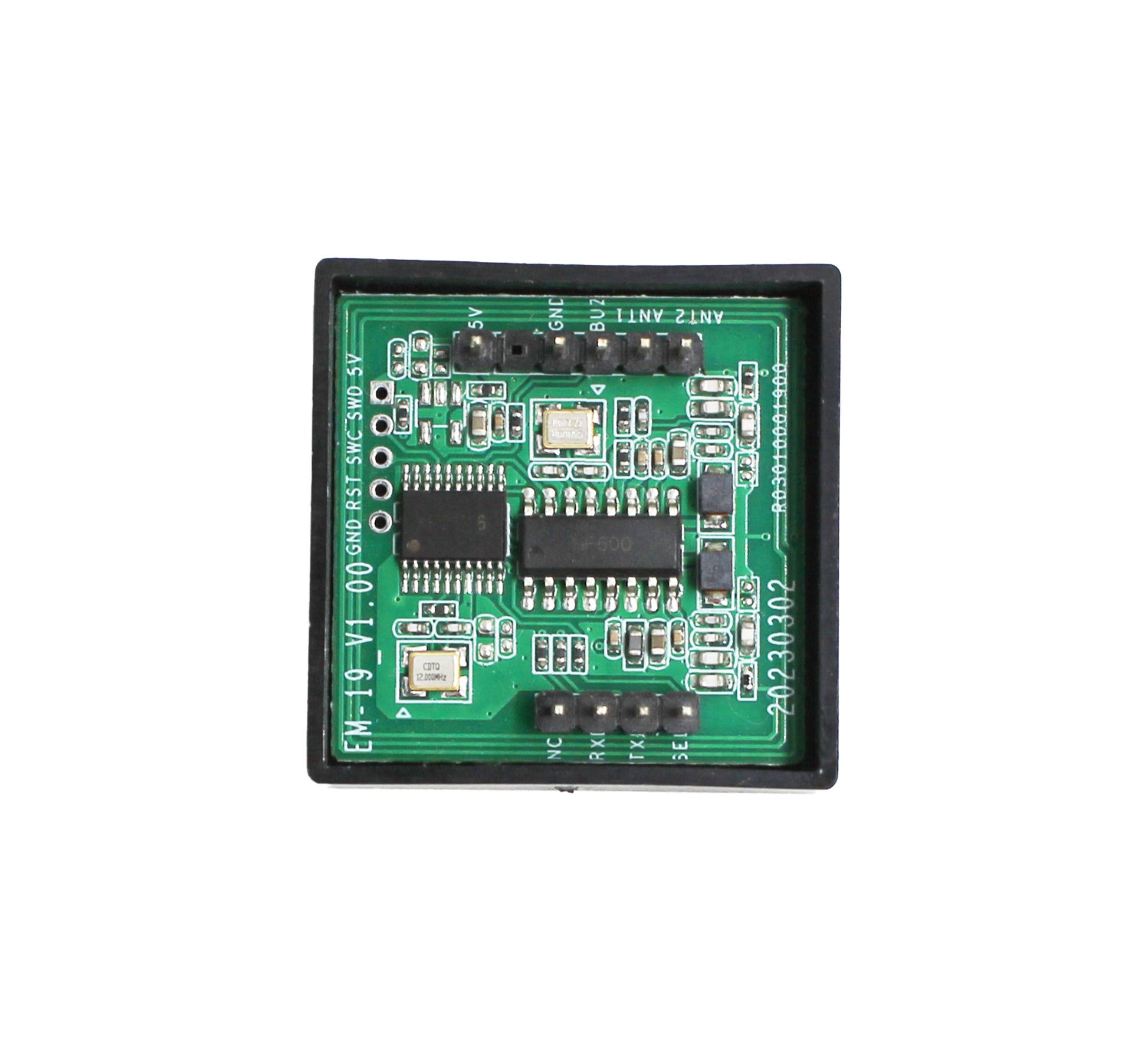

Pinouts:

1). 5V
2). GND
3). RXD
4). TXD

Dimension:

Applications:

• Secure Access Control Systems
• Smart Home Automation and IoT Projects
• Secure Access to Medical records
• Contactless Payment Systems
• Inventory Management and Tracking
• Interactive Exhibits and Kiosks
• Smart Locks and Authentication Systems

Resources:

• Getting Started Guide:
• Software Instruction Manual:

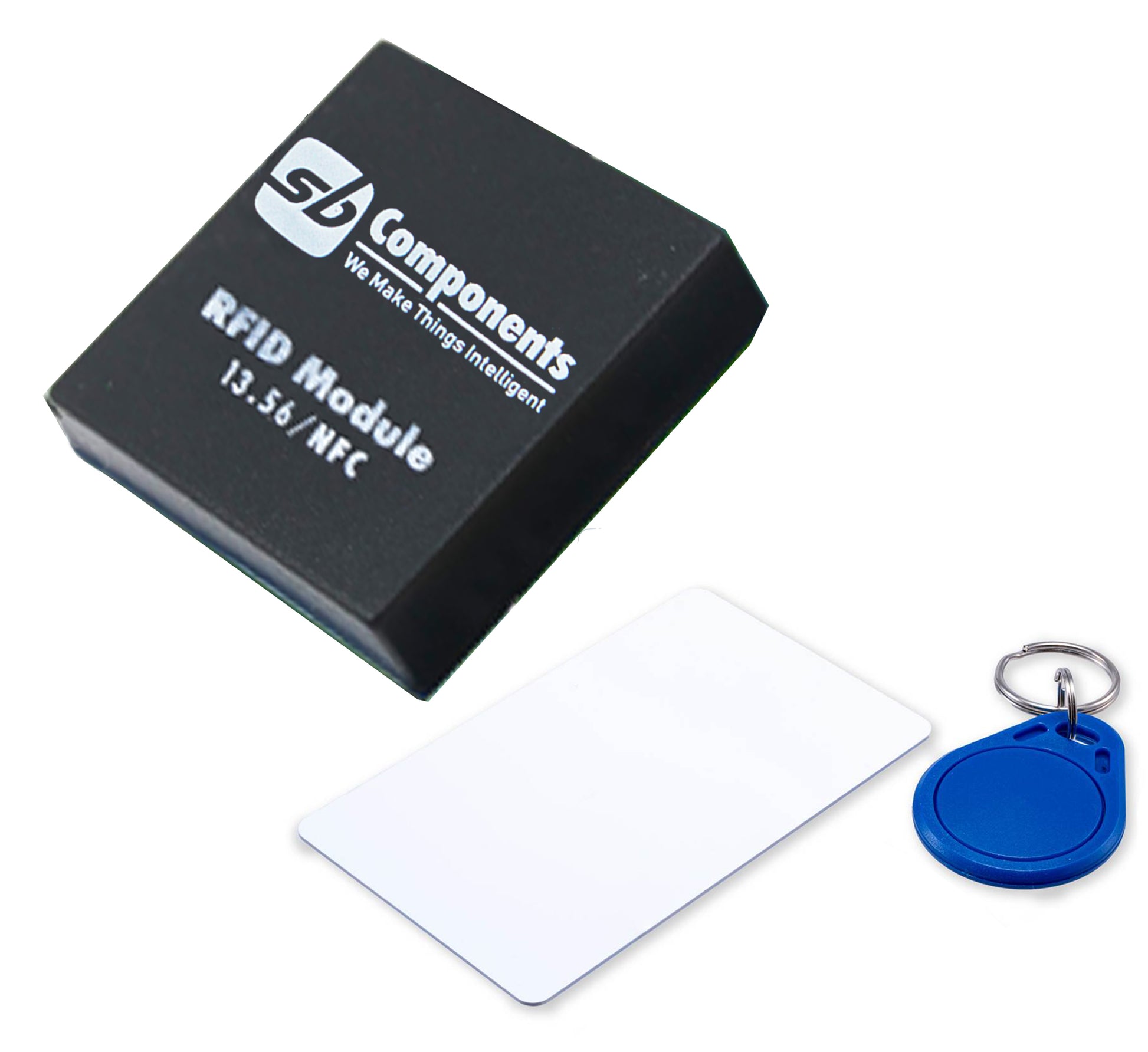

• 1 x NFC Module
• 1 x NFC Tag Card
• 1 x NFC Keyfob
