16 MHz Ceramic Resonator / Oscillator

Keep your microcontroller ticking with this 16 MHz Ceramic Resonator / Oscillator, perfect for everyday electronics and microcontroller projects. This breadboard-friendly device features 0.1" pin spacing and integrates the stability capacitors internally, providing approximately 0.5% accuracy—ideal for UART and baud-rate generation.

This resonator is a great match for Arduino-compatible boards, matching the clock speed of the Arduino Uno. It connects easily by connecting the two outer pins to XTAL-in and XTAL-out and the middle pin to ground. Note that the ceramic oscillator may come in either blue or brown, both performing identically.

Features:

• 16 MHz frequency
• Three-pin ceramic resonator with integral capacitors
• Breadboard-friendly 0.1" pin spacing
• 0.5% frequency accuracy
• Compact size: 15mm x 6mm x 3mm
• Pin length: 7.3mm
• Suitable for Arduino Uno clock speed

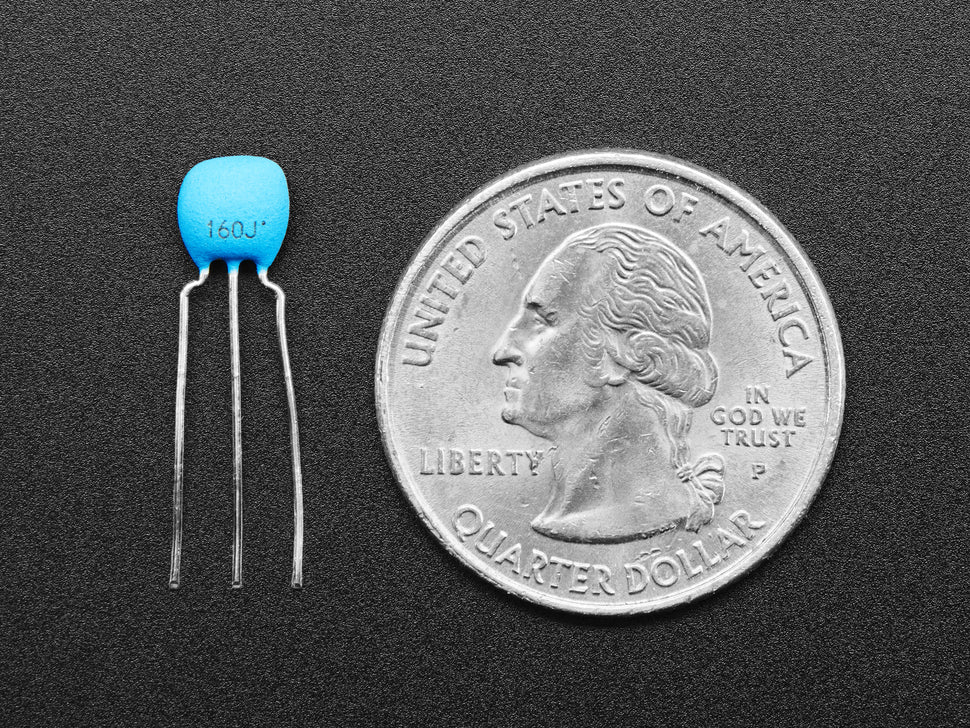

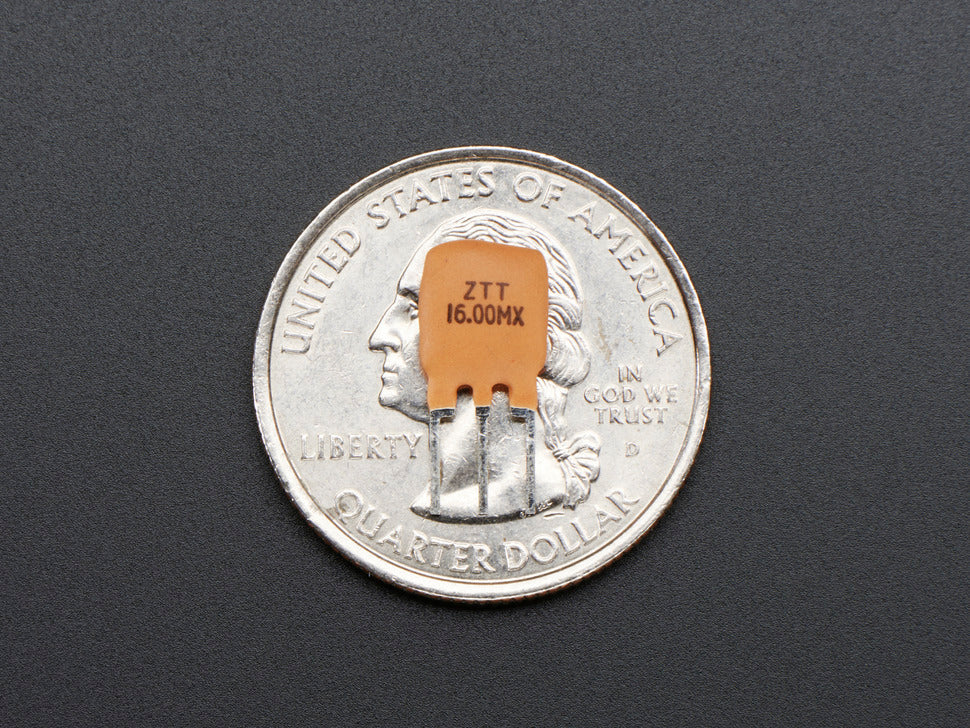

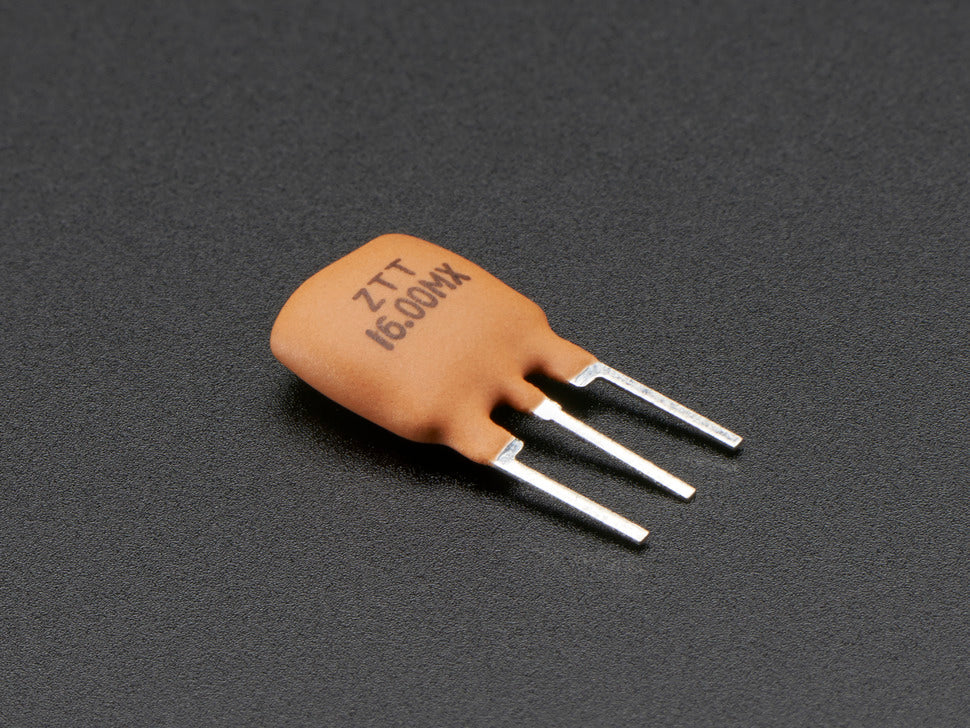

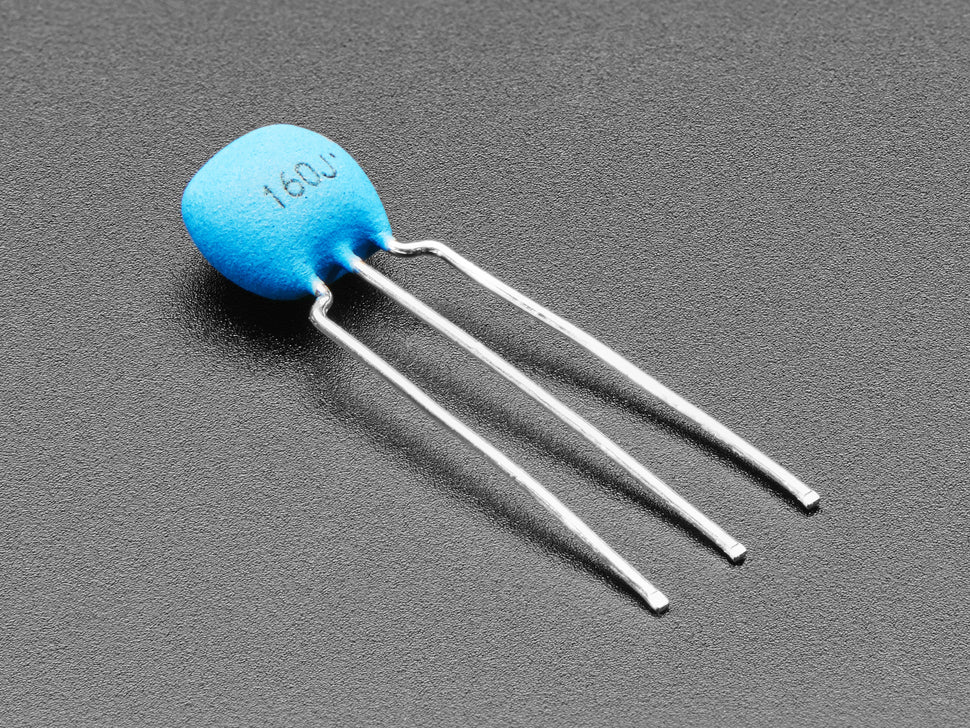

• Available in blue or brown color (functionally identical)

Technical Specifications:

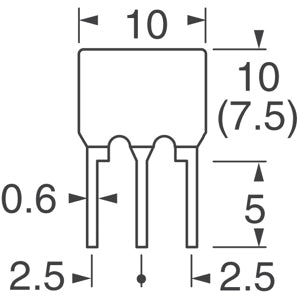

• Dimensions: 15mm x 6mm x 3mm
• Pin Length: 7.3mm
• Package: 3-pin ceramic resonator
• Pin spacing: 0.1"

For detailed technical information, refer to the Blue Ceramic Resonator Datasheet or the Brown Ceramic Resonator Datasheet.
