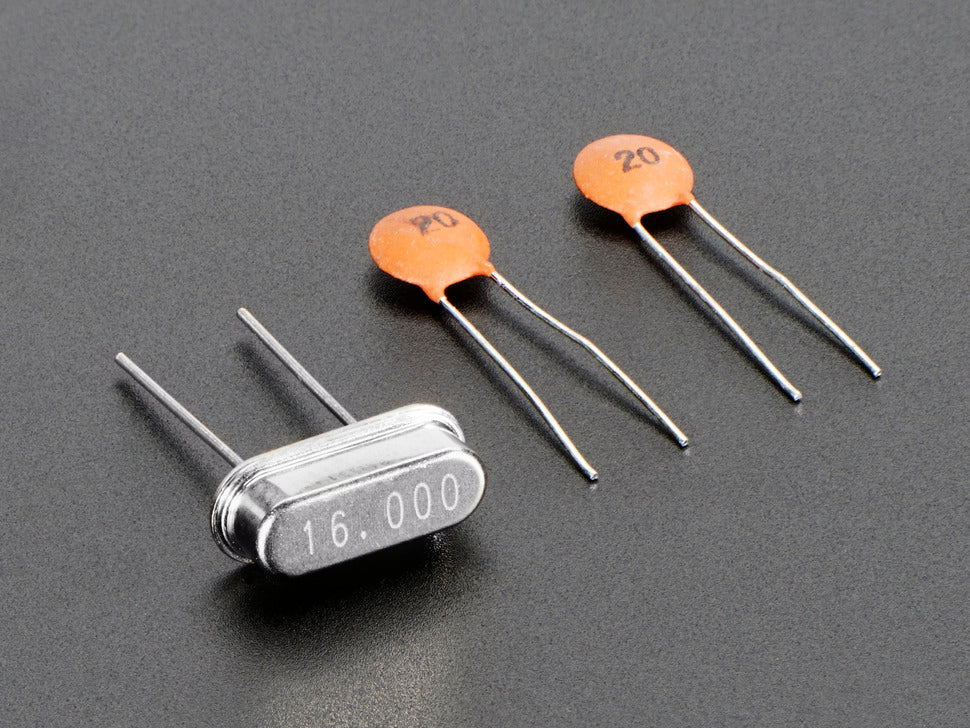

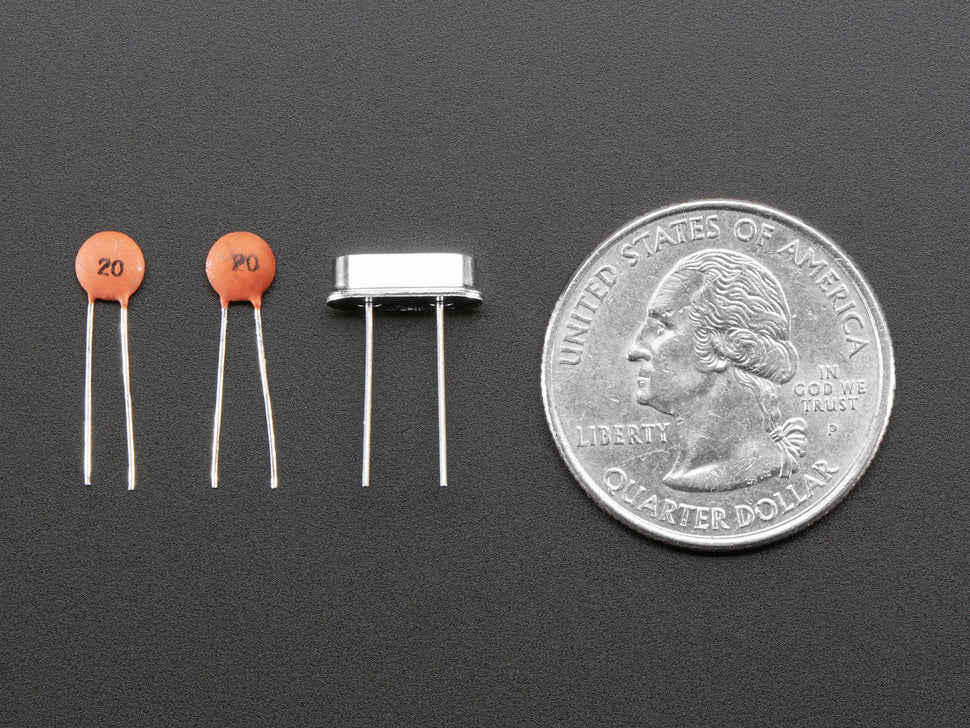

16 MHz Crystal with Two 20pF Capacitors

Keep your microcontroller ticking with a 16.000 MHz timing crystal, packaged in an HC49/US 'short style' standard breadboard-friendly form. This crystal includes two 20pF capacitors for your convenience.

Features:

• 16.000 MHz frequency
• HC49/US 'short style' standard package
• Breadboard friendly
• 30PPM tolerance and 50PPM stability, suitable for high precision needs such as USB timing, long-term time-keeping, RF/PLL/VCO driving
• Includes two 20pF capacitors

Usage: Connect the two crystal pins to XTAL-in and XTAL-out on your circuit (pins are symmetric). Connect one capacitor from each crystal pin to ground. Verify your microcontroller datasheet for any additional components like a 1 Megaohm resistor.

Crystal Datasheet | Crystal Dimensions
