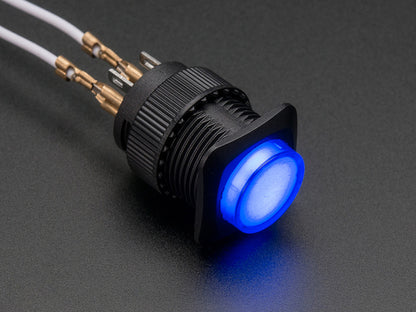

16mm Illuminated Pushbutton - Blue Latching On/Off Switch

This 16mm illuminated pushbutton switch combines a switch and LED in one compact unit, featuring a blue body and blue LED. The pushbutton is latching on/off, meaning the two switch contacts connect or disconnect with each press to act like an on/off switch. The built-in LED, controllable separately from the button action, can be used for indication or just for aesthetics.

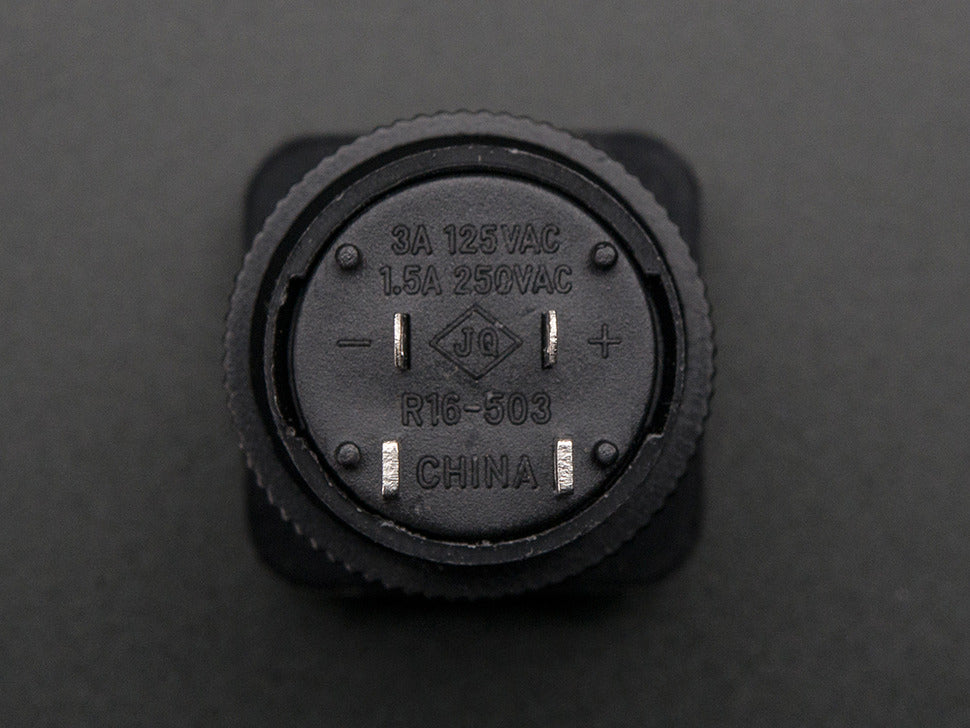

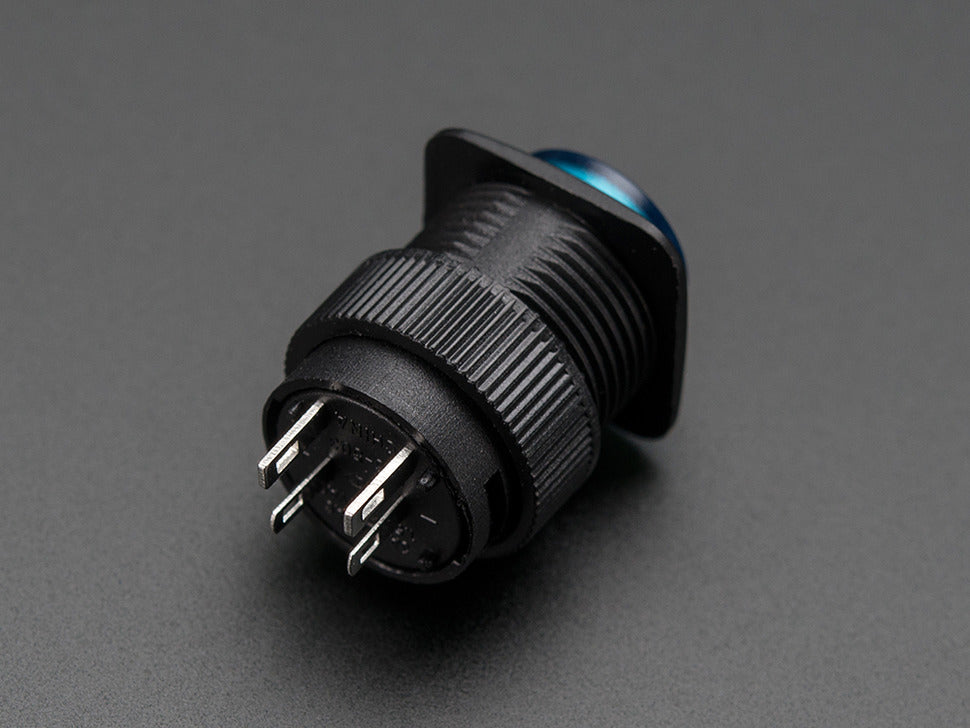

The body is black plastic with two button contacts and two LED contacts (+ and -). The LED's forward voltage is approximately 3V; it should be used with a 220 to 1000 ohm resistor in series, connected to a 3V or higher power supply.

This medium-sized button is easy to press without being too large for your project panel.

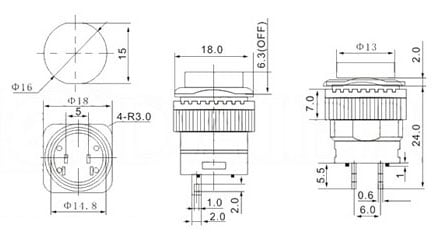

• Dimensions: Max 18.06mm x 18mm x 29.4mm
• Weight: 4.6 grams
• Latching on/off switch action

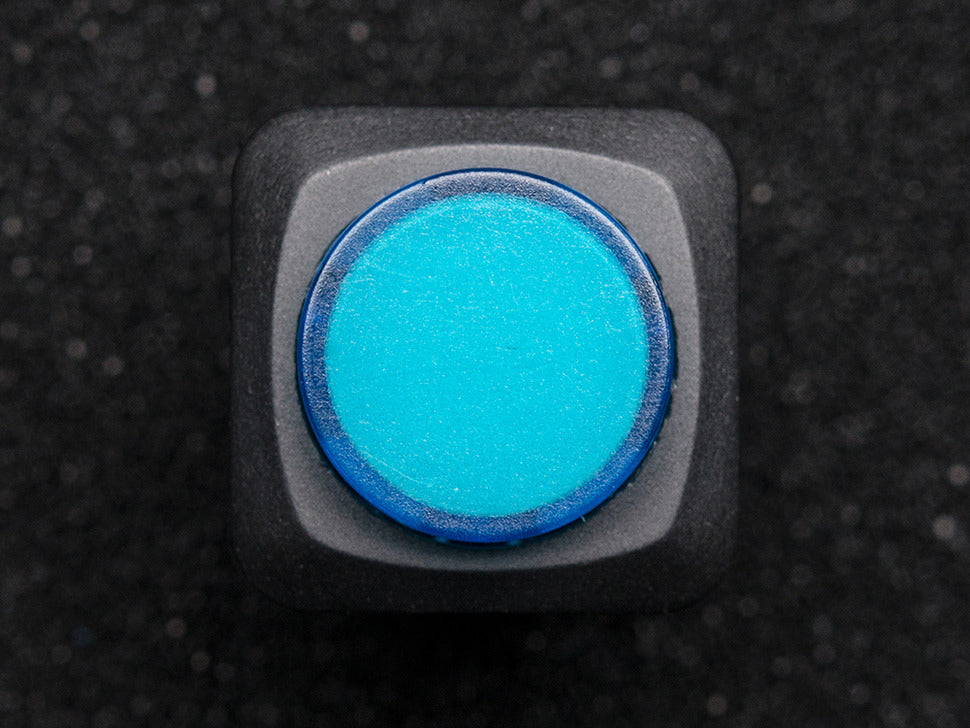

• Blue body and blue LED
• Separate control leads for LED and switch
• Compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack)
