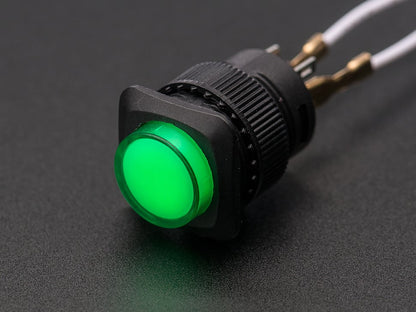

16mm Illuminated Pushbutton - Green Latching On/Off Switch

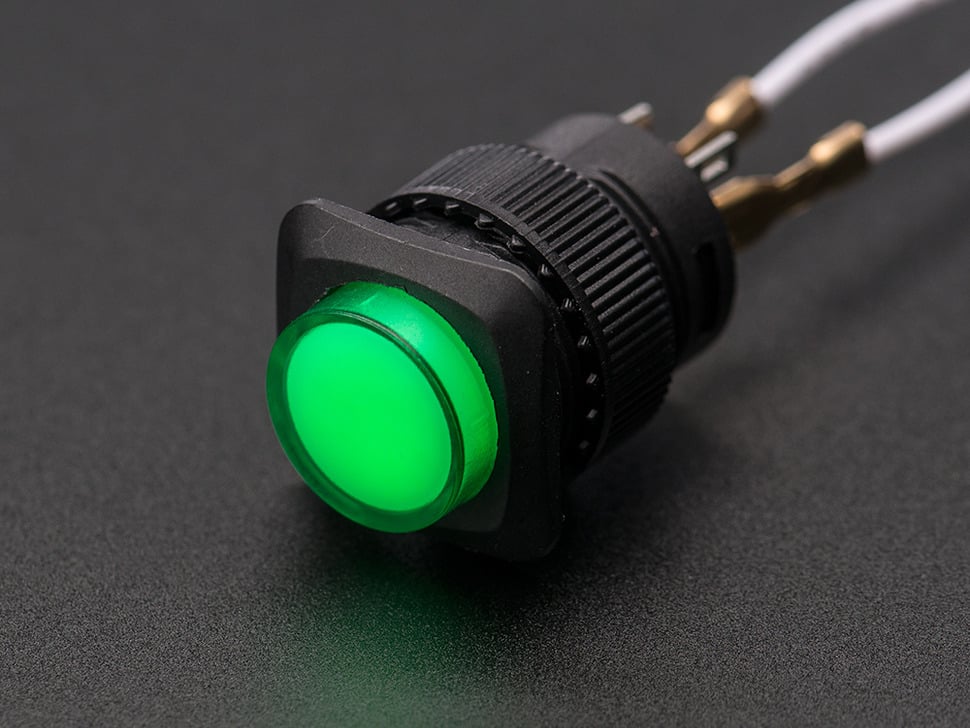

A switch is a switch, and an LED is an LED, but this LED illuminated button is a lovely combination of both! It's a medium sized button, large enough to press easily but not too big that it gets in the way of your project panel. It has a built in LED that can be controlled separately from the switch action - either to indicate or just to look good.

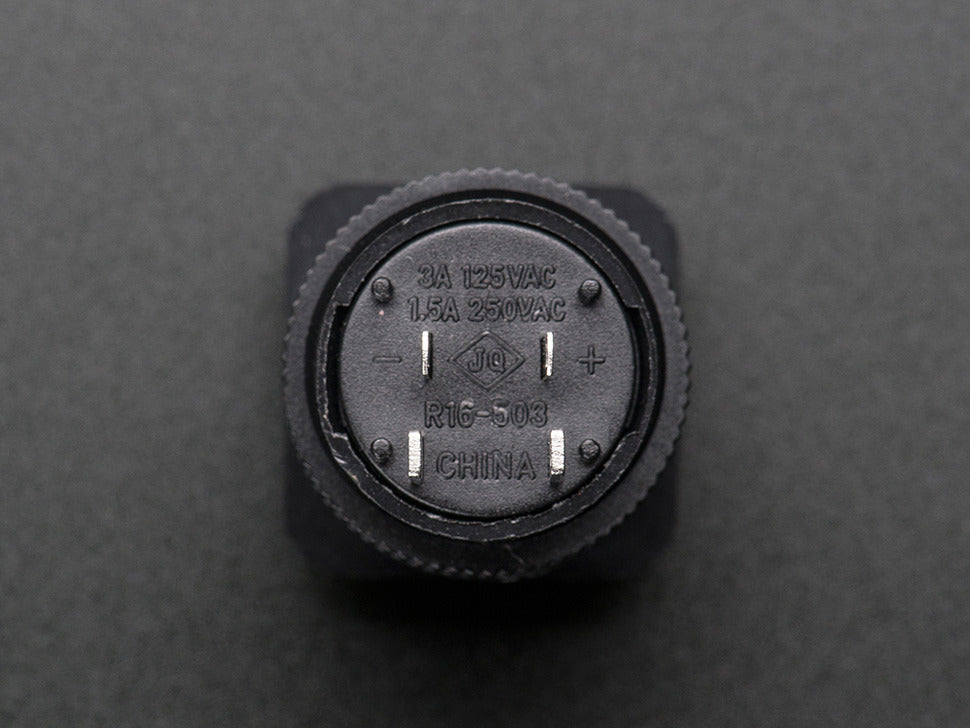

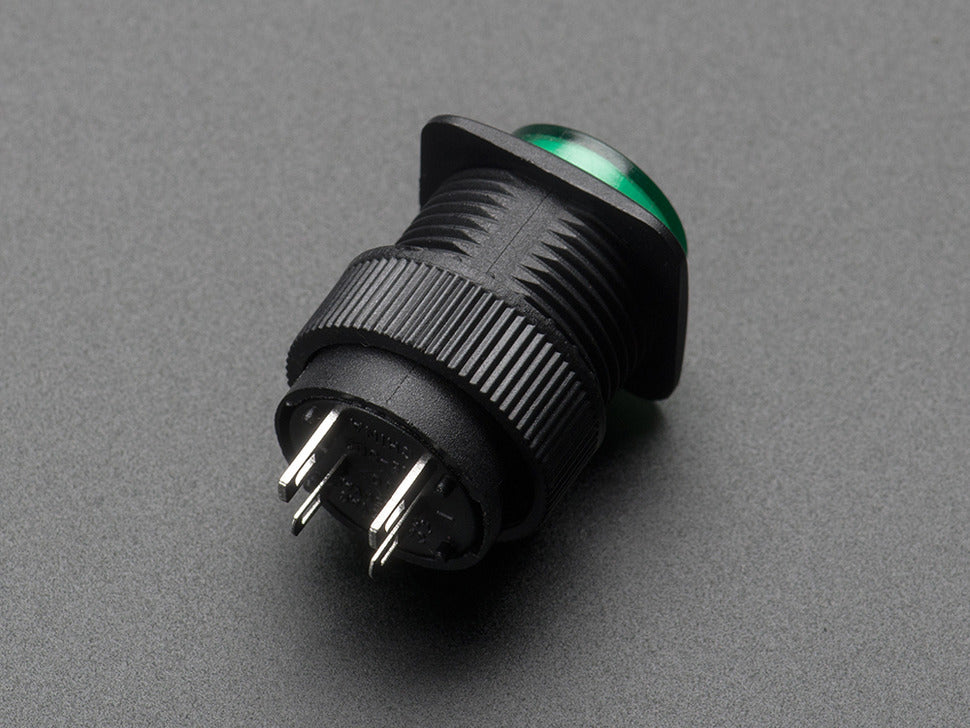

The body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 2.2V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.

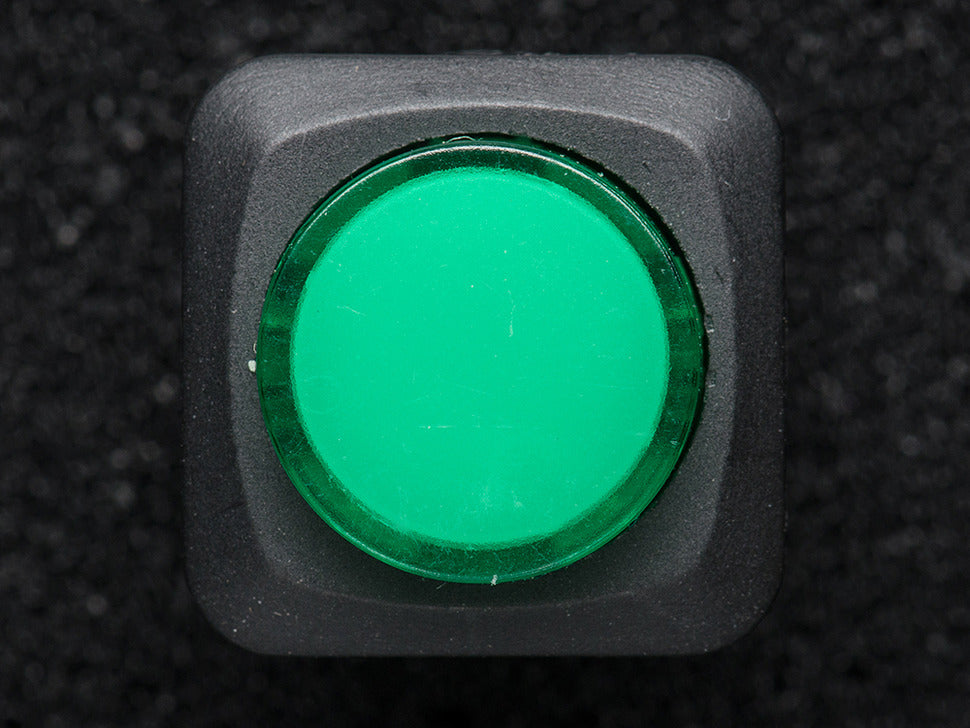

This particular button has a green body and LED and is latching on/off. The two switch contacts are either connected or disconnected. When you push the button they will switch from one to the other, like an on-off switch. The LED is separated from the button, so you can make it light up when on, light up when off, always lit, etc.

Compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack).

Features:

• 16mm diameter illuminated pushbutton with green LED
• Latching on/off switch action
• Separate contacts for switch and LED

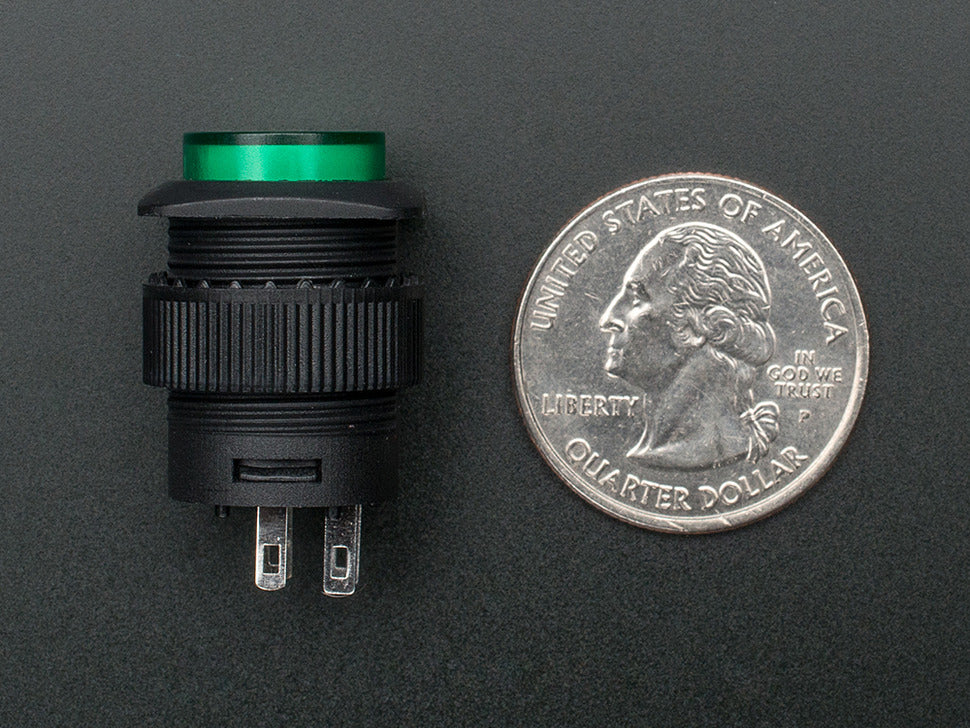

• Medium size for easy pressing
• Black plastic body

Technical Details:

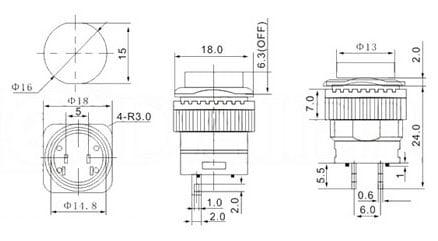

• Max Dimensions: 18.06mm x 18mm x 29.4mm
• Shaft Dimensions: 14.89mm x 15.56mm x 18.7mm
• Button Height: 5mm (depressed 3.5mm)
• Weight: 4.6g
