16mm Illuminated Pushbutton - White Latching On/Off Switch

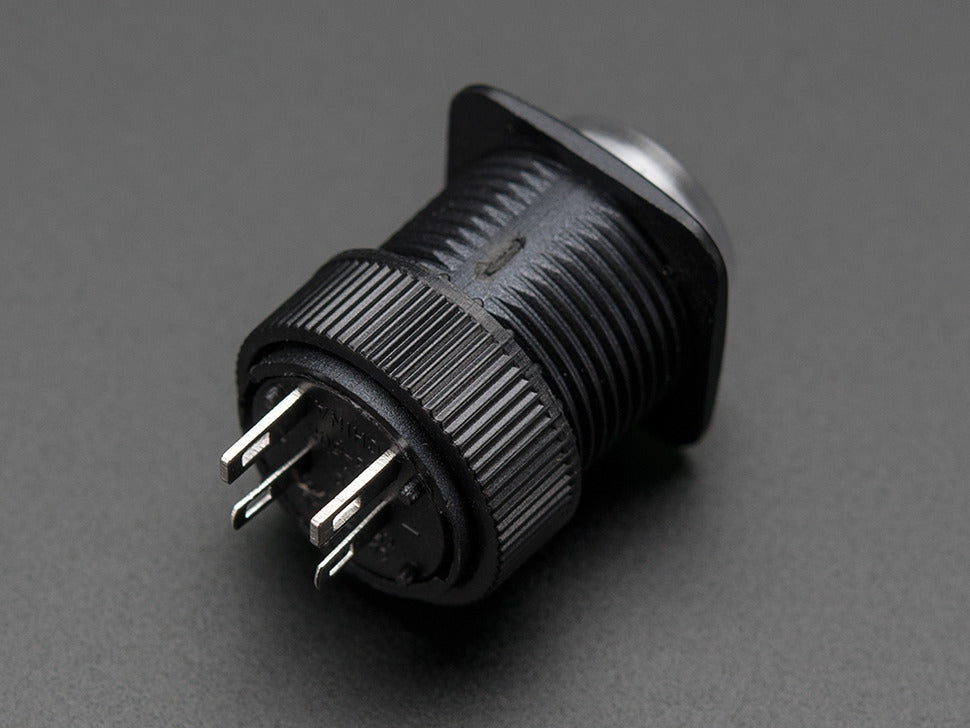

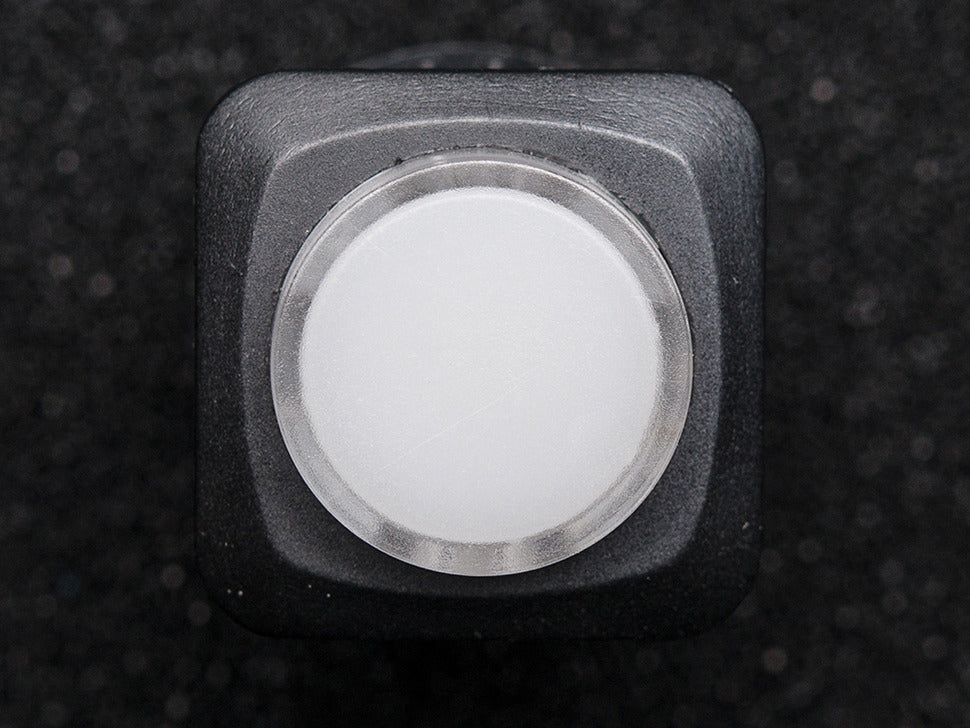

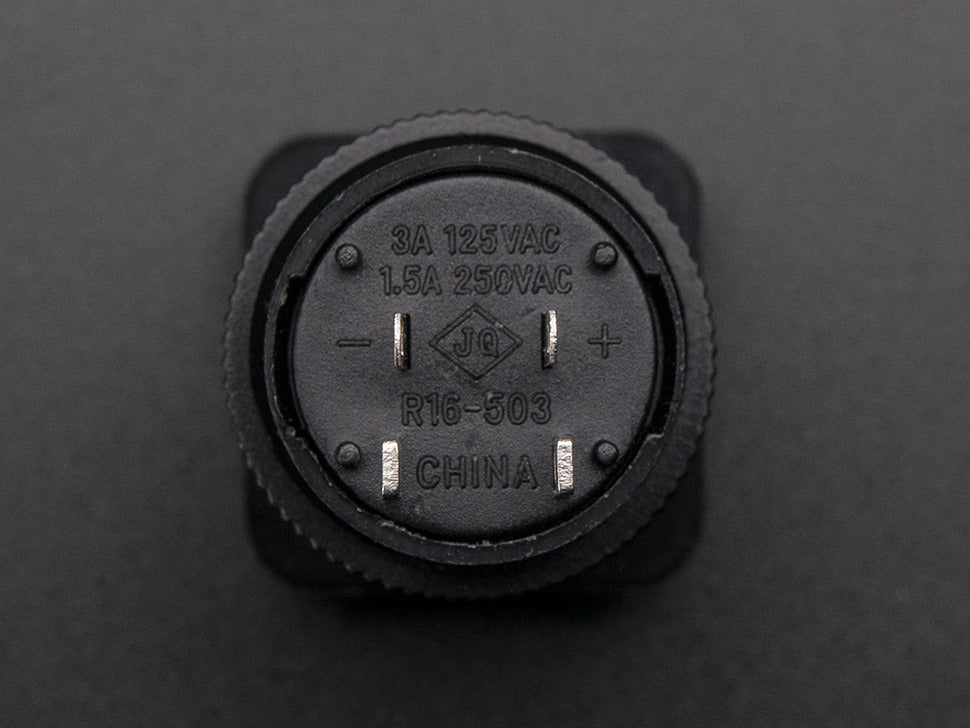

The 16mm Illuminated Pushbutton with a white body is a medium-sized, latching on/off switch with a built-in white LED. The button is large enough for easy pressing yet compact to avoid obstructing your project panel. It features separate contacts for the switch and the LED, giving you control over the LED illumination independently of the switch action.

The switch contacts toggle between connected and disconnected states when pressed, ideal for on/off applications. The LED requires a series resistor (220 to 1000 ohms) for use with a 3V or higher power supply. This button is compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack) for easy wiring.

• Medium-sized white latching on/off pushbutton

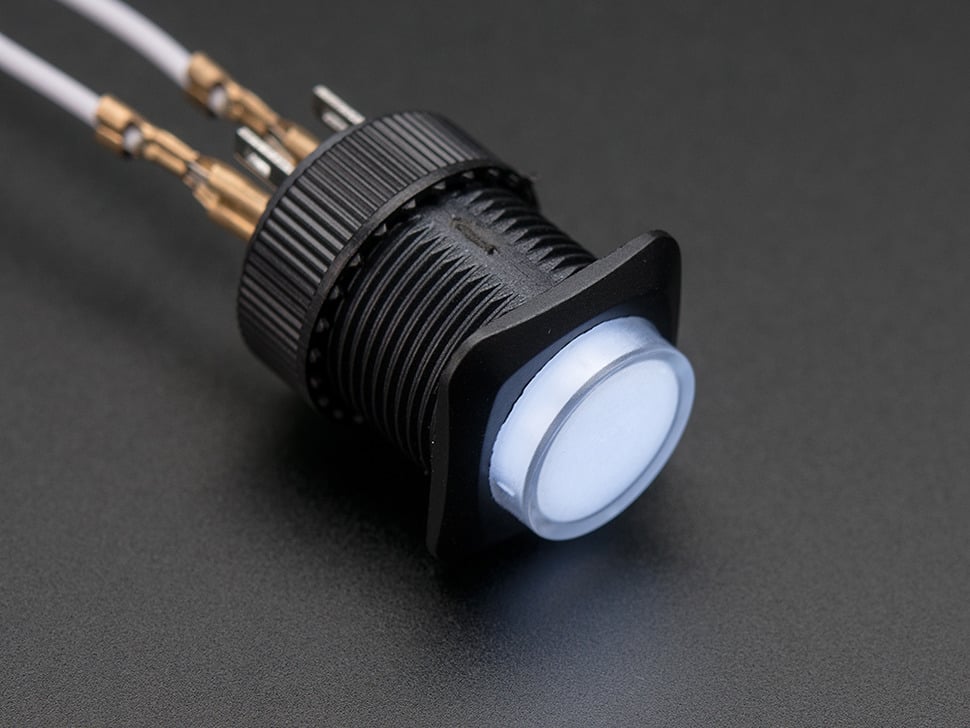

• Built-in white LED, separately controllable
• Switch contacts toggle between on/off states
• LED forward voltage approx. 3V; resistor needed in series

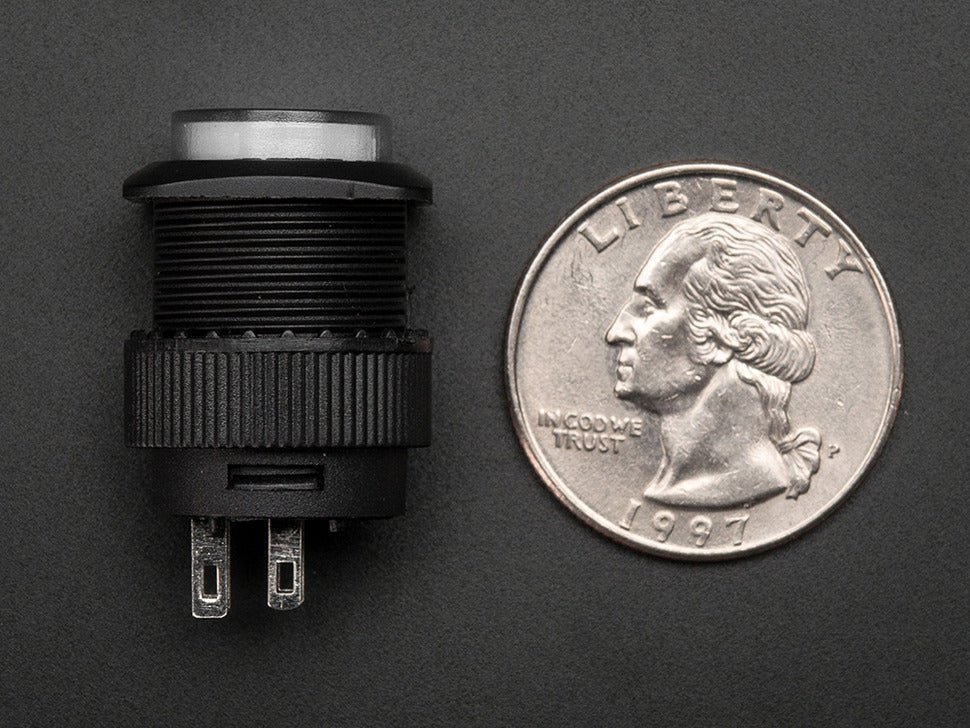

• Compact form factor: 18.06mm x 18mm x 29.4mm overall dimensions
• Button height: 5mm (3.5mm depressed)
• Weight: 4.6 grams
• Compatible with Arcade Button Quick-Connect Wire Pairs
