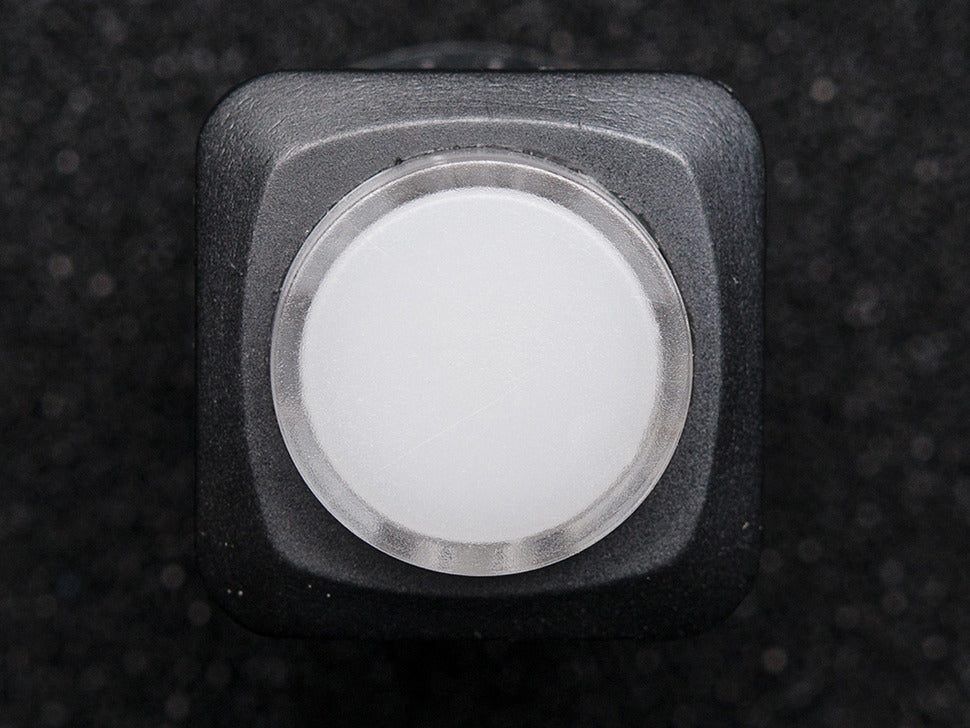

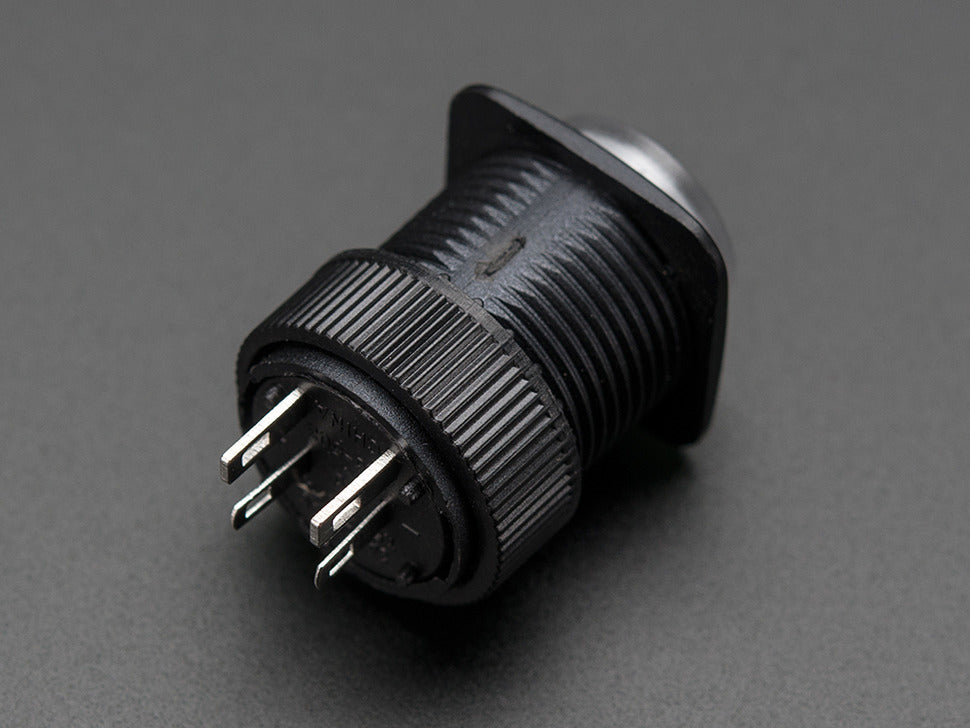

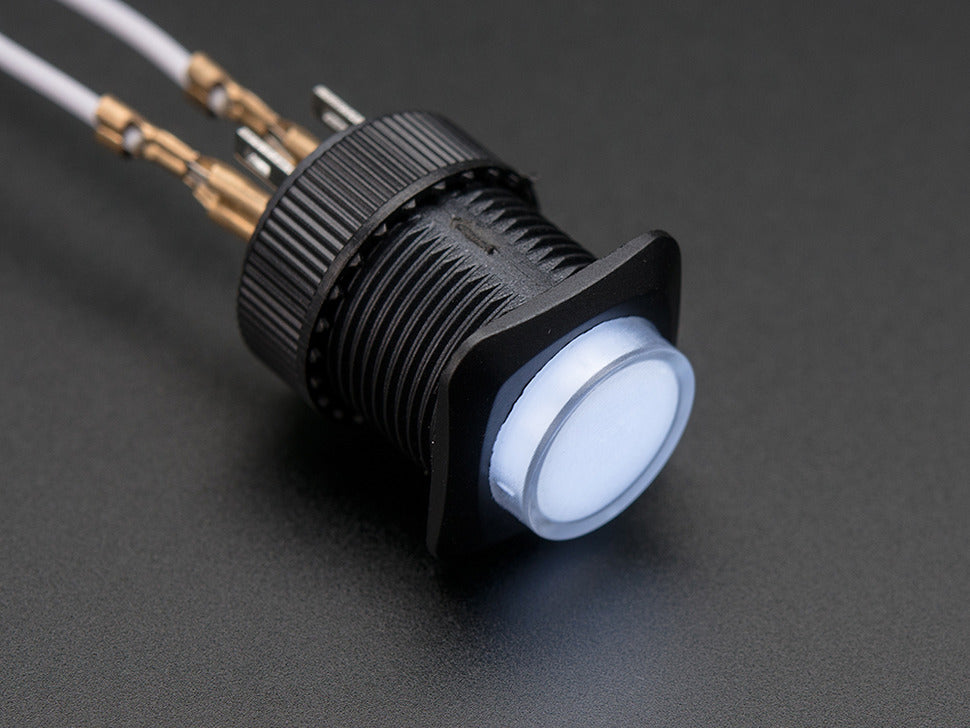

16mm Illuminated Pushbutton - White Momentary

The 16mm Illuminated Pushbutton - White Momentary is a versatile and stylish button featuring a built-in LED that can be controlled independently of the switch. Its medium size makes it easy to press without overpowering your project panel. The button body is black plastic with a white LED inside.

This momentary pushbutton is normally open and connects only when pressed. The two switch contacts are separate from the LED contacts, allowing you to light the LED on demand—whether always on, only when pressed, or according to your custom logic.

Features include:

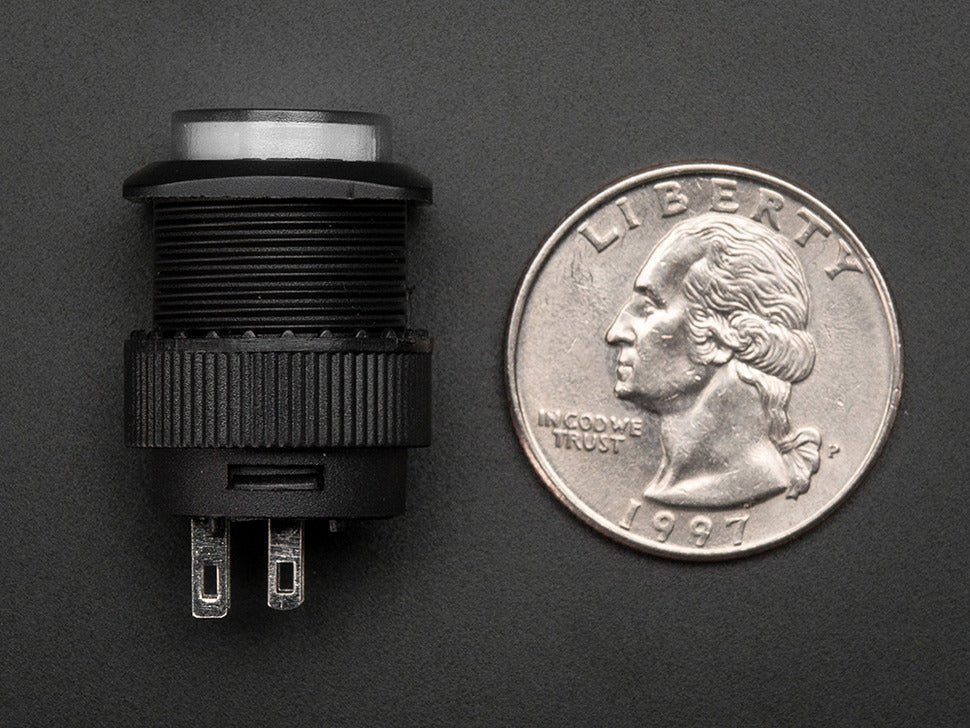

• 16mm diameter button with a total max dimension of 18.06 mm x 18 mm x 29.4 mm
• Momentary (normally open) switch action

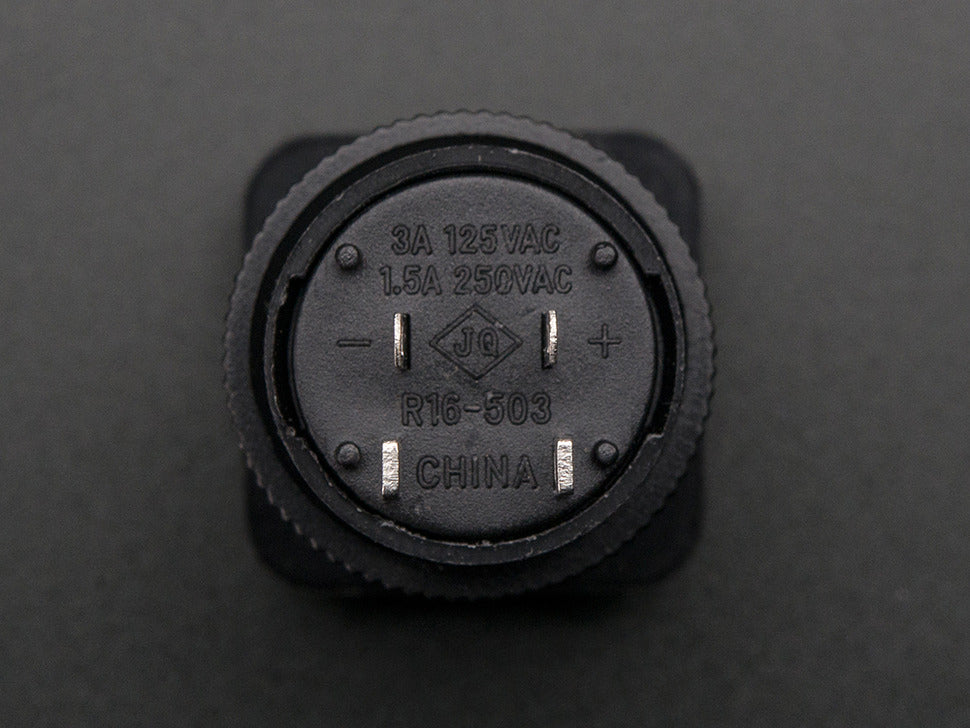

• White LED with separate positive (+) and negative (-) terminals
• Requires 220 to 1000 ohm series resistor for LED when connected to 3V or higher supply
• Black plastic body with white LED
• Weight: 4.6g

This button is compatible with the Arcade Button Quick-Connect Wire Pairs (0.11" pitch).
