1D 2D CMOS DE2120 Barcode Scanner Sensor

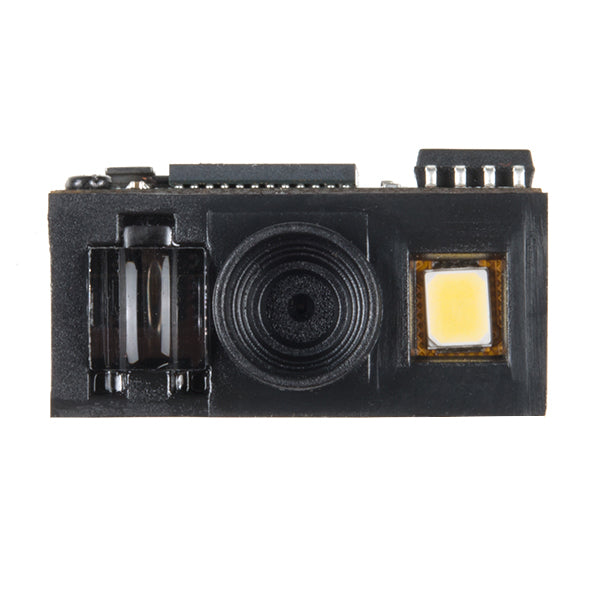

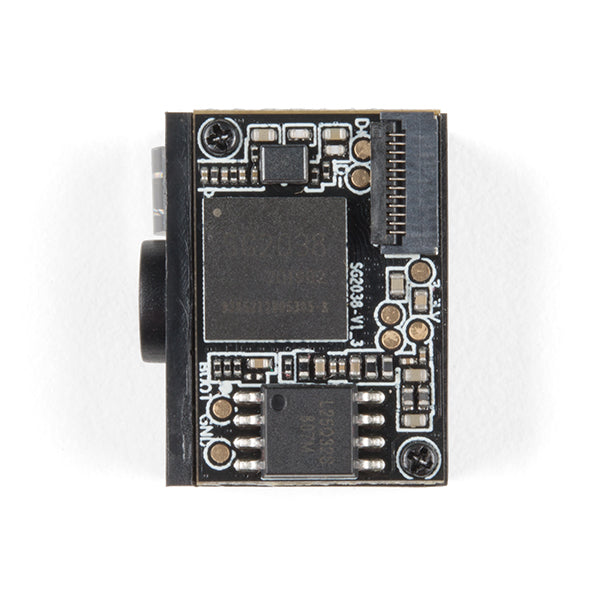

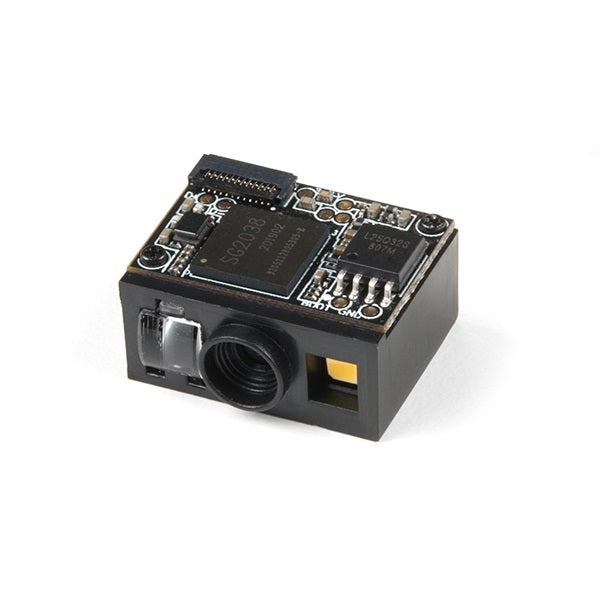

The DE2120 is one of the coolest little barcode scanners we've ever seen. This tiny "scan engine" will read 20 different barcode symbologies — both 1D and 2D! This is achieved by using a camera coupled with onboard image processing to identify and decode everything from UPC codes to QR codes. The module also features two LEDs: one for illumination and one to project the red line that you're used to seeing from laser-based scanners.

This breakout board makes it easy to explore all of the capabilities of the DE2120 without dealing with finicky flat flex cables. The scanner's USB interface is exposed via one of the two onboard USB-C connectors, the other is connected to the TTL interface through a CH340C USB-to-Serial bridge. A buzzer and status LED are connected to the module through appropriate drive circuits and a pushbutton tactile switch is provided on the "trigger" pin. When you're ready to incorporate the module into your embedded project, you can leverage the 5-pin header for direct access to the TTL serial pins, power pins, and trigger input.

Features:

• Scans 1D/2D/QR code/Data matrix/MSI.
• Onboard micro USB connector for USB HID interface, virtual com port, support barcode information.

Transmission read 20 different barcodes symbology:

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matric 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 DataBar, Datalogic 2 of 5, 2D Symbologies, QR Code, Data Matrix & PDF 417

Kit Content:

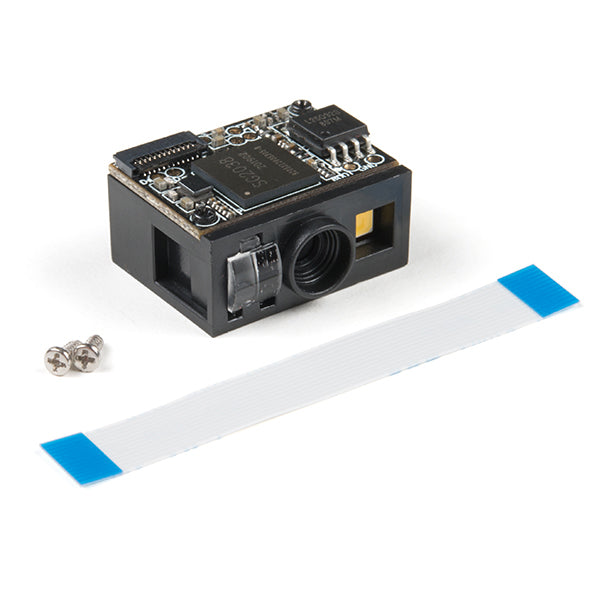

• 1 x DE2120 Barcode Scanner Sensor
