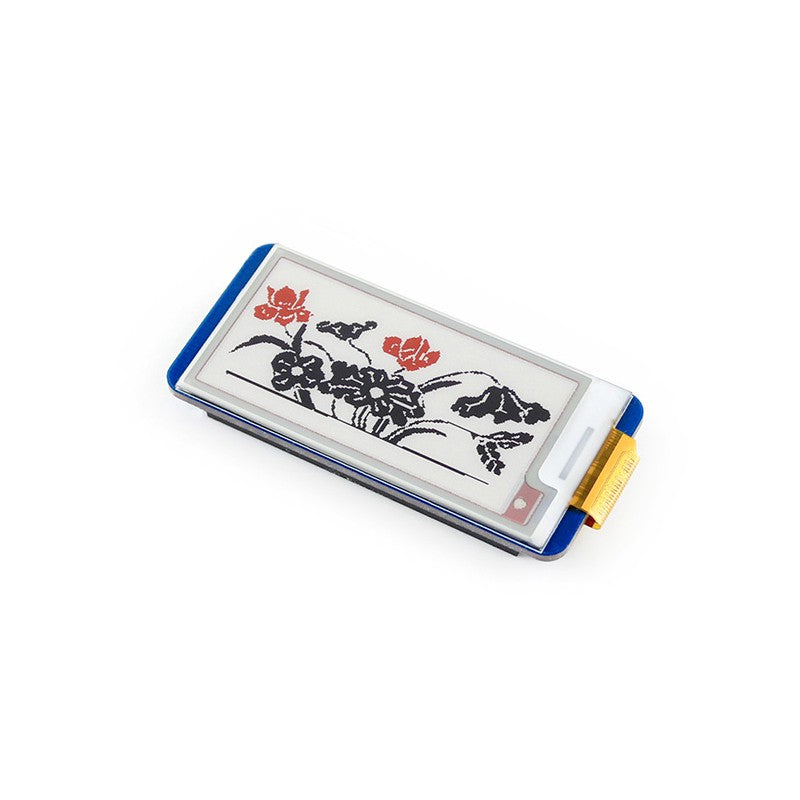

2.13inch 212x104 Resolution E-Ink Display HAT for Raspberry Pi (Red/Black/White Color)

£15.99 GBP

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with an embedded controller, communicating via SPI interface, supports Red, Black, and White three-color display. Due to the advantages like...

Description

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with an embedded controller, communicating via SPI interface, supports Red, Black, and White three-color display.

Due to the advantages like ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.

Features
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing

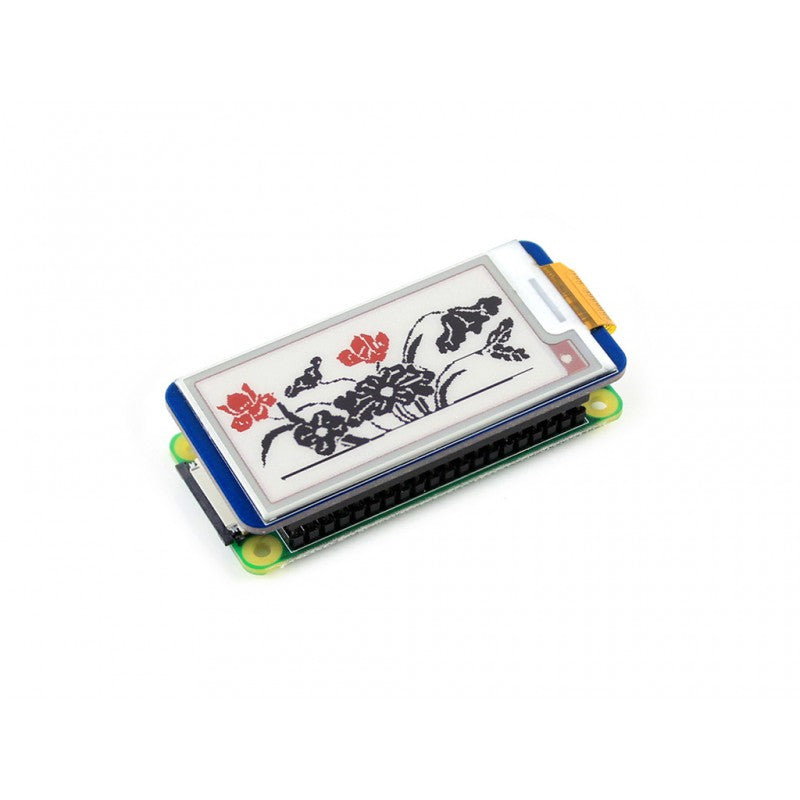

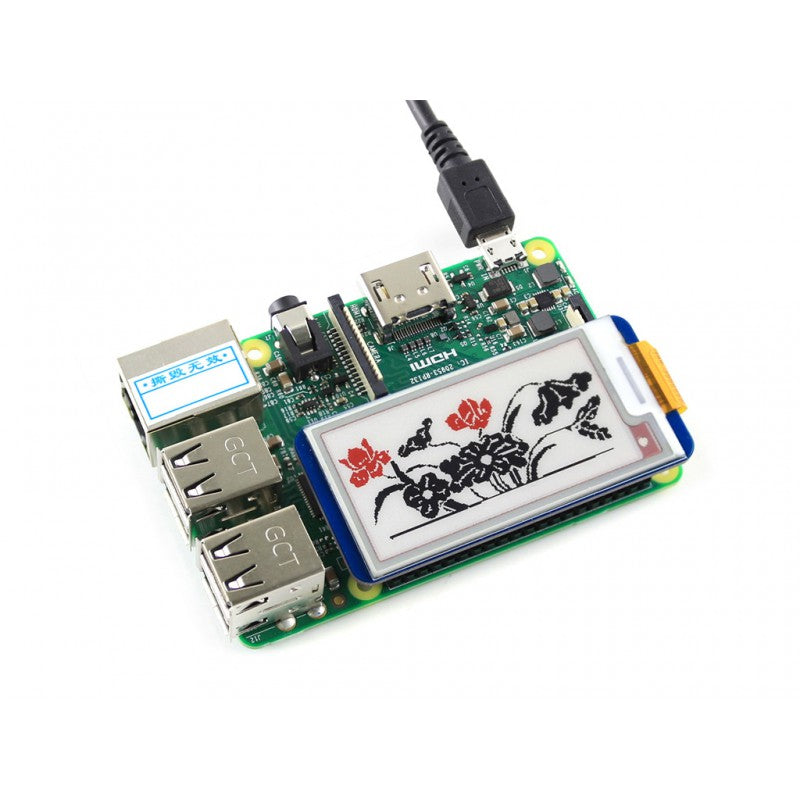

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

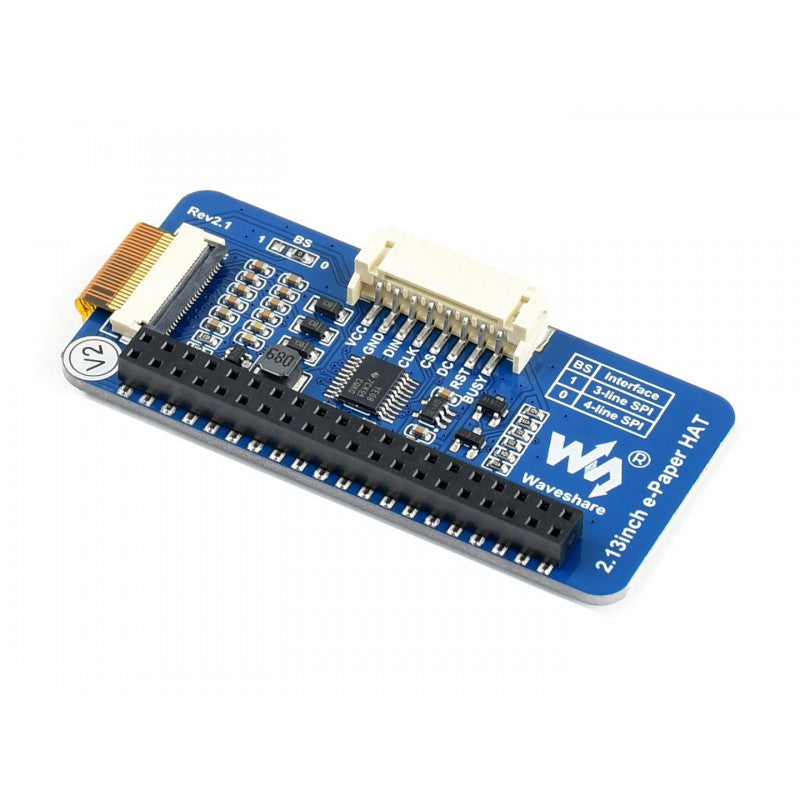

  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.229 × 0.228
  • Resolution: 212 × 104
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
Kit Content
  • 1 x 2.13inch e-Paper HAT (B)
  • 1 x RPi screws pack (2pcs)
  • 1 x PH2.0 20cm 8Pin
