2.1mm DC Power Jack with Slide Switch
Couldn't load pickup availability
Description

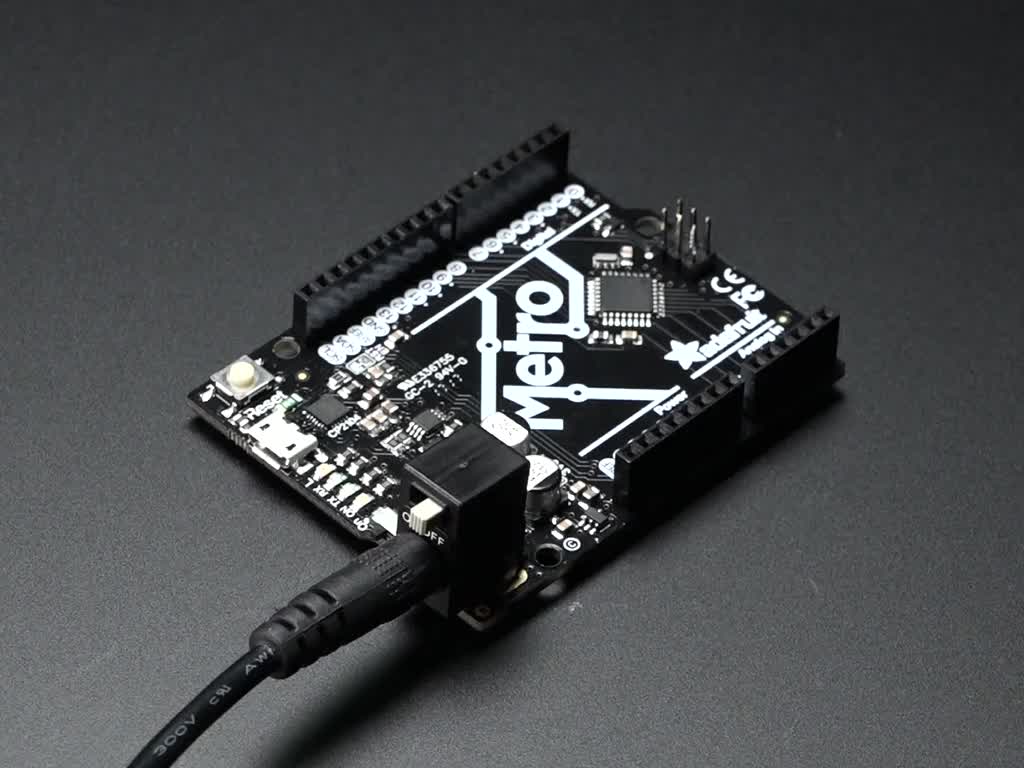

This brilliant invention is a blessing for makers designing or using boards with standard 2.1mm DC barrel jacks. Many devices opt against a proper power switch, for size or cost or other design reasons. So, you're expected to unplug when not in use. But you want something a little fancier!

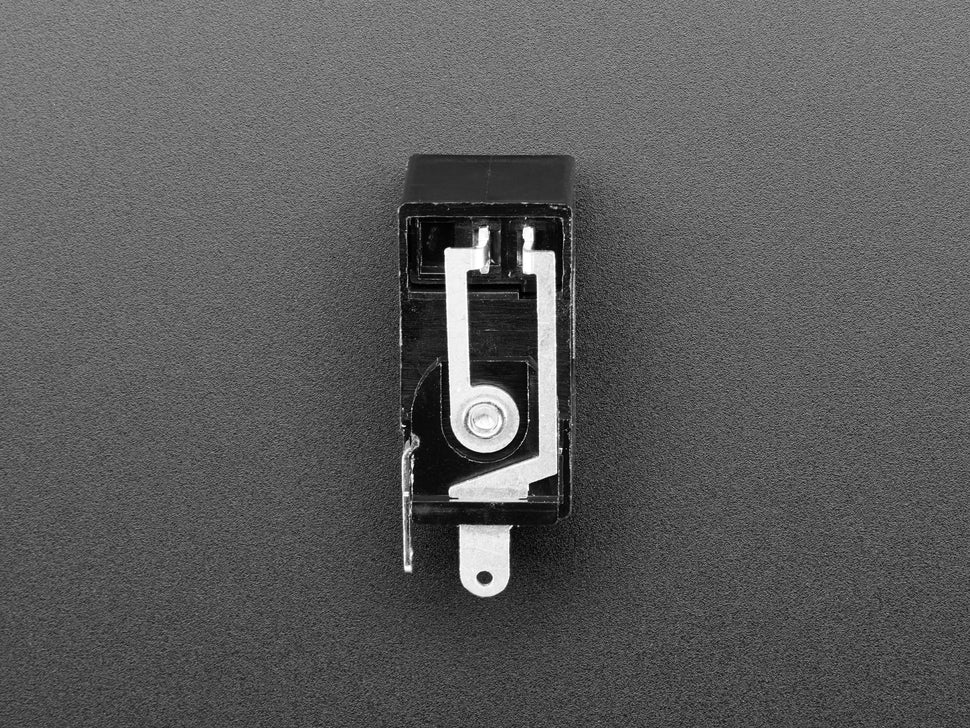

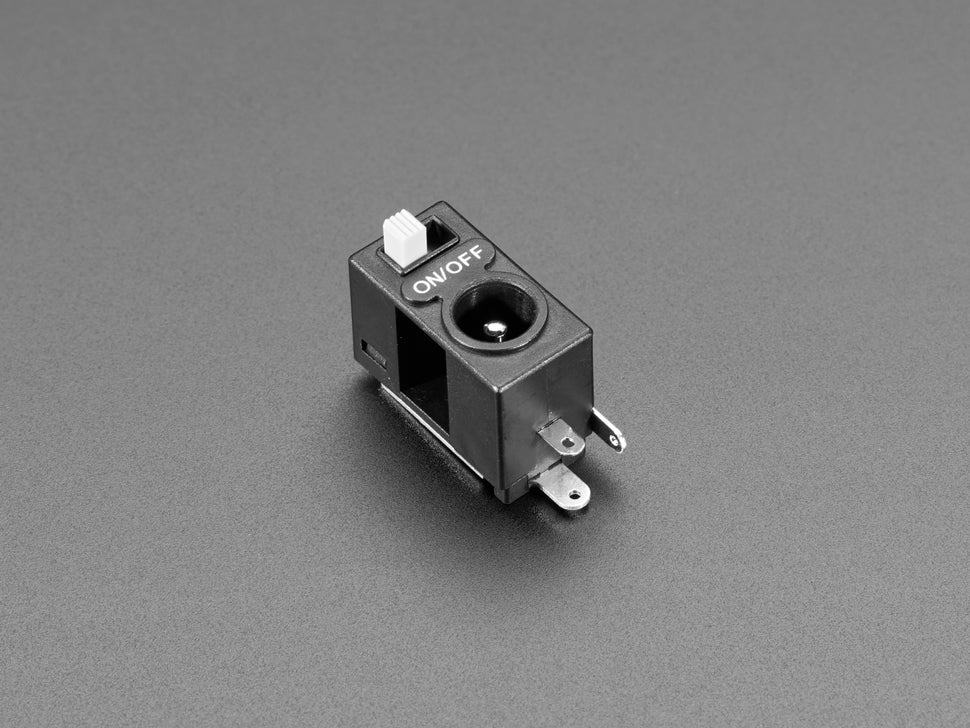

This 2.1mm DC Power Jack with Slide Switch has the same PCB layout as classic non-switched jacks but has a little extra on top - a labeled slide switch!
The slide switch does exactly what you'd expect: plug in your power supply (up to 16 VDC, 3A) and switch power on and off. On and off! On and off all day. You can clicky-clack to your maker heart's delight! This has a seriously satisfying clack.
We also have a version with a rocker switch here
Features:
- Standard 2.1mm DC barrel jack with slide switch
- Supports power supply up to 16V DC, 3A

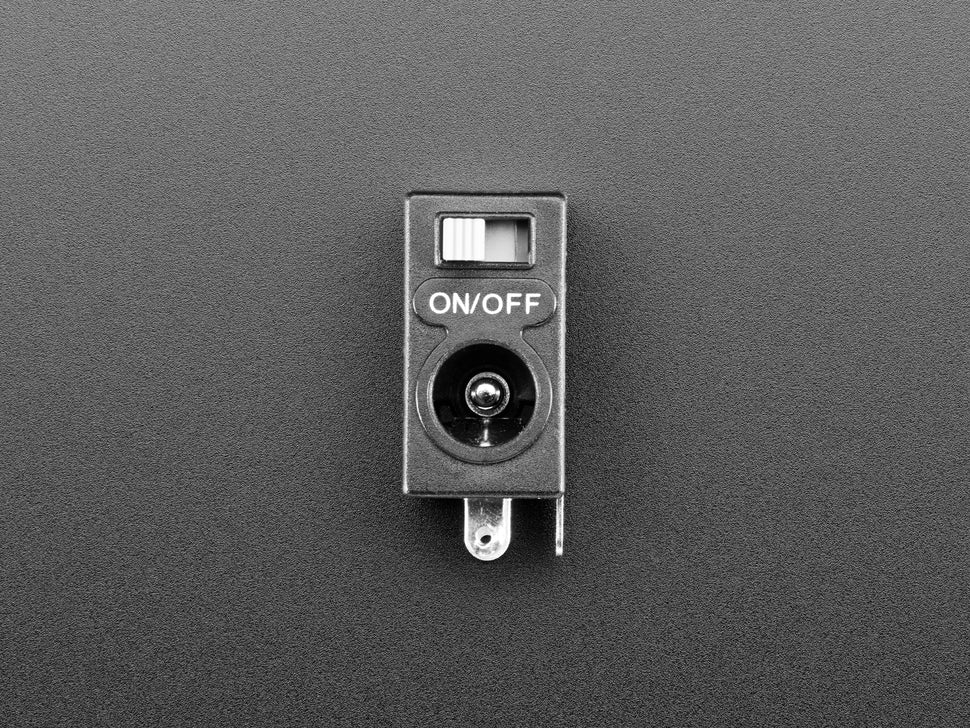

- Labeled slide switch for easy ON/OFF operation
- Same PCB layout as classic non-switched jacks
- Satisfying tactile clack for switch operation
- RoHS compliant
Technical Details:
- Electrical Rating: 16VDC 3A
- Contact Resistance: 30 mΩ max.
- Insulation Resistance: 100 MΩ min.
- Life: 30,000 cycles
- Contact material: Copper alloy with silver plating
- Switch Circuit: SPDT
- RoHS compliant: Yes

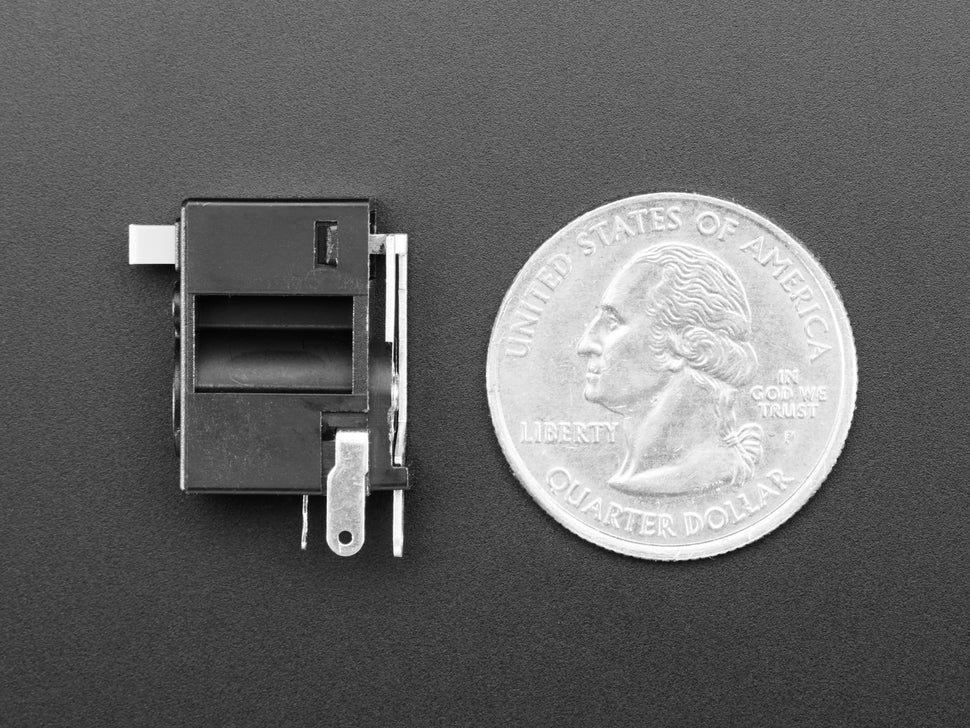

- Product Dimensions: 23.3mm x 17.8mm x 9.9mm (0.9" x 0.7" x 0.4")
- Product Weight: 2.8g / 0.1oz
