20-pin 0.5mm FFC / FPC Extender

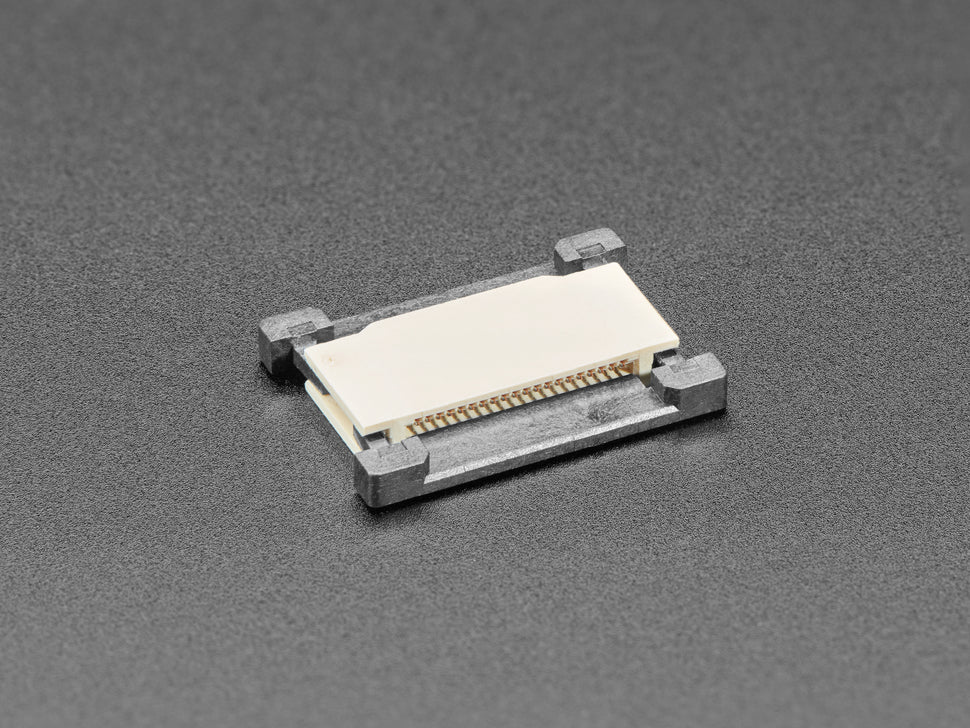

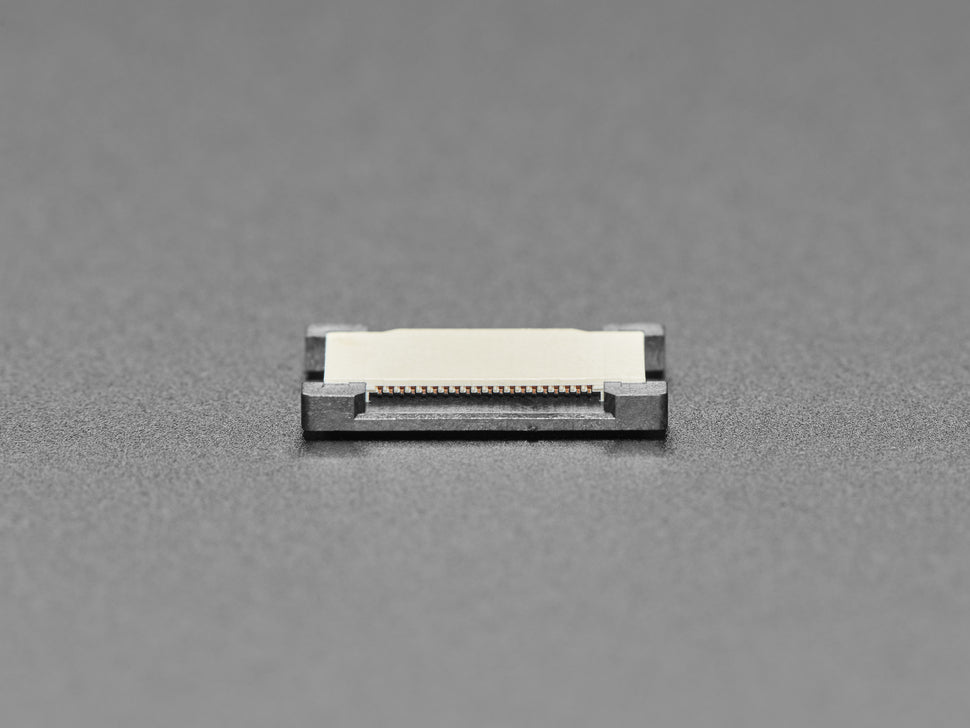

This 20-pin FFC / FPC Extender allows connecting two 20-pin 0.5mm pitch FFC (Flexible Flat Cable) or FPC (Flexible Printed Circuit) cables end-to-end, effectively extending their length. This extender is suitable for 0.3mm thick FPC cables.

Important: Pin 1 of one cable is connected to pin 20 of the other; therefore, use a cable with contacts on the same side (type A-A cable).

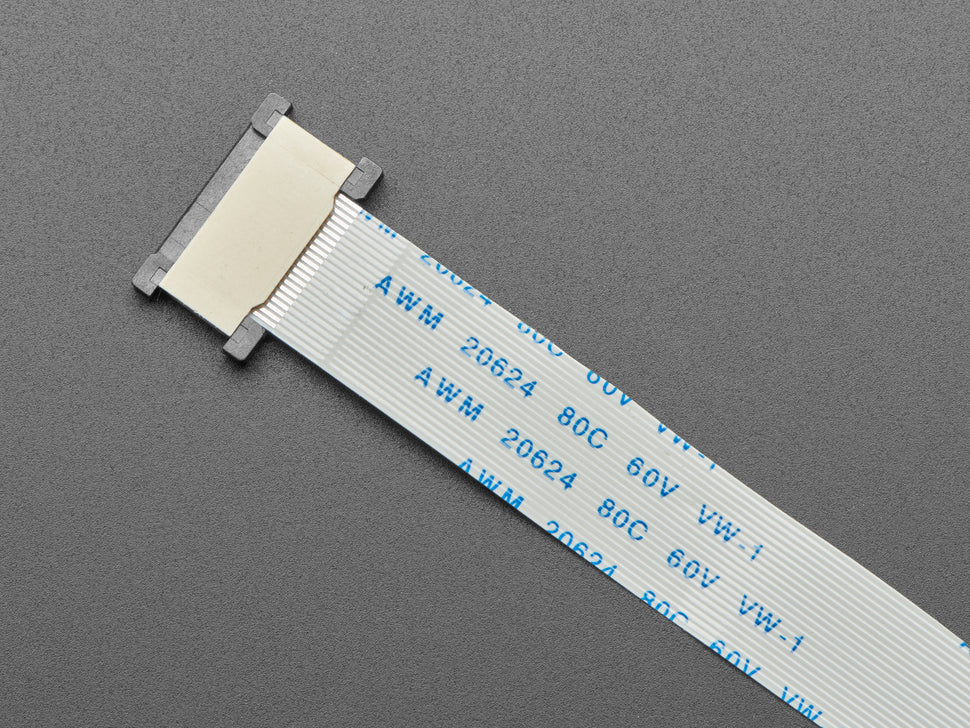

To use, carefully pry the two connector ears, plug the cables with contacts facing up, and push the ears back in for a solid connection.

We also offer various extender options including 60-pin, 50-pin, 30-pin, and 24-pin 0.5mm versions.

• Connects two 20-pin 0.5mm pitch FPC/FFC cables
• Supports 0.3mm thick flexible printed circuit cables
• Contact orientation: pin 1 to pin 20 (type A-A cables required)
• Compact dimensions for space-efficient extension

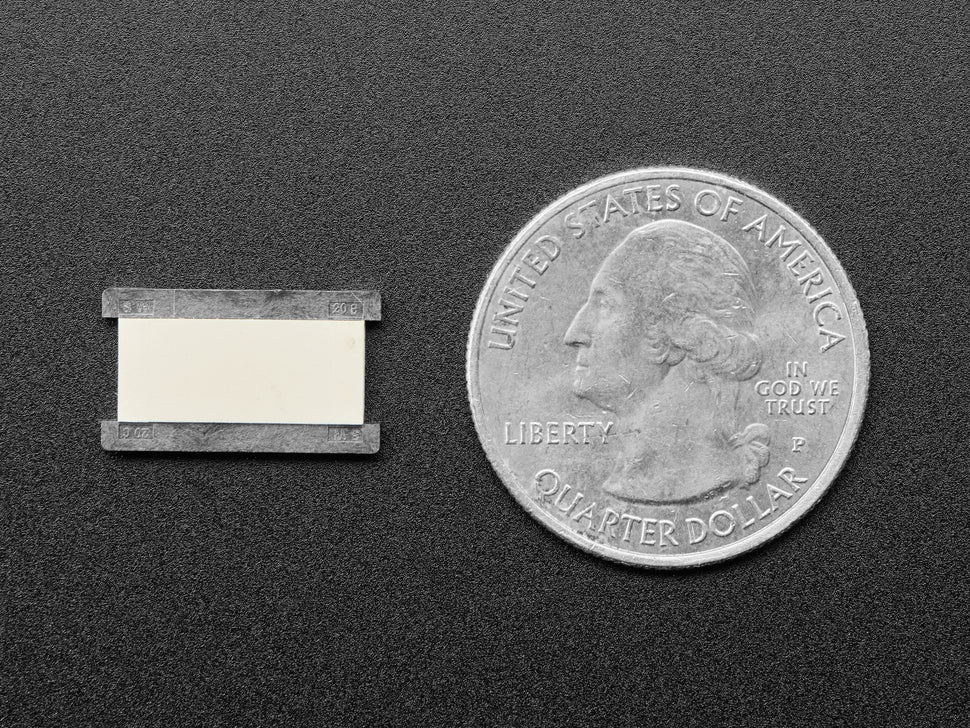

Product Dimensions: 16.6mm x 9.6mm x 2.2mm (0.7" x 0.4" x 0.1")
