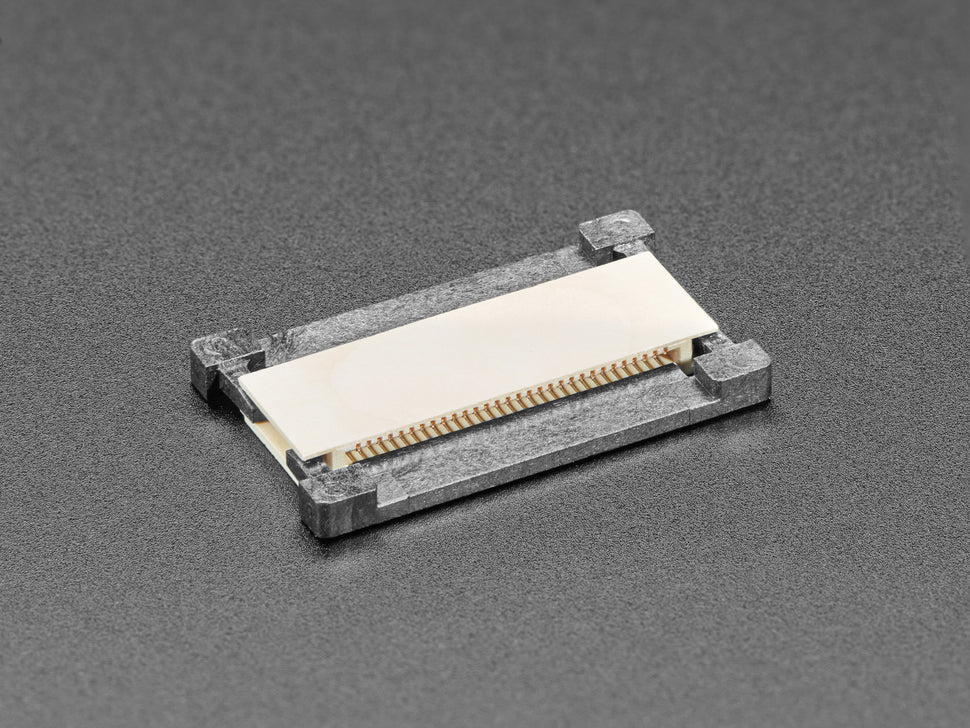

30-pin 0.5mm FFC / FPC Extender

This 30-pin FFC / FPC Extender allows you to connect two 30-pin 0.5mm pitch flexible flat cables (FFC) or flexible printed circuit (FPC) cables end-to-end, extending the length of your cable setup. It is designed for use with 0.3mm thick FPC cables.

Important: Pin 1 of one cable is connected to pin 30 of the other, so use cables with contacts on the same side (type A-A cables).

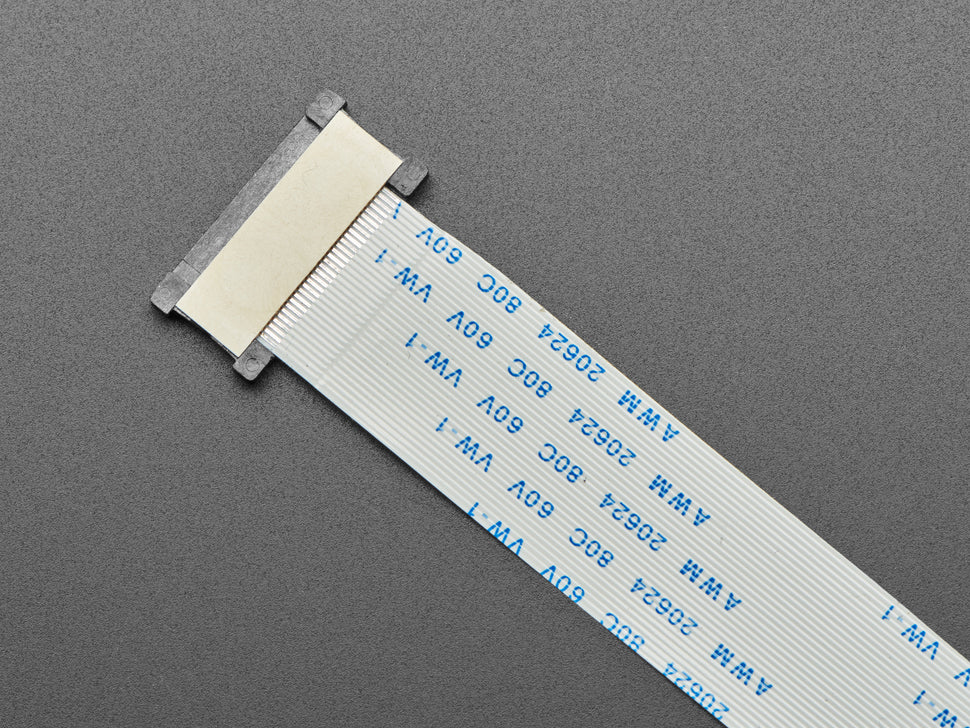

Installation is easy: carefully pry the two ears of the connectors, plug the cables with contacts facing up, then push the ears back in for a secure connection.

We also offer various other extender options, including 60-pin, 50-pin, 24-pin, and 20-pin 0.5mm versions.

• Connect two 30-pin 0.5mm pitch FFC/FPC cables
• Supports 0.3mm thick flexible cables
• Simple plug and secure connection with locking ears
• Extends cable length for flexible wiring solutions
• Compatible with type A-A cable (contacts on same side)

Product Dimensions: 21.4mm x 10.3mm x 2.0mm (0.8" x 0.4" x 0.1")
