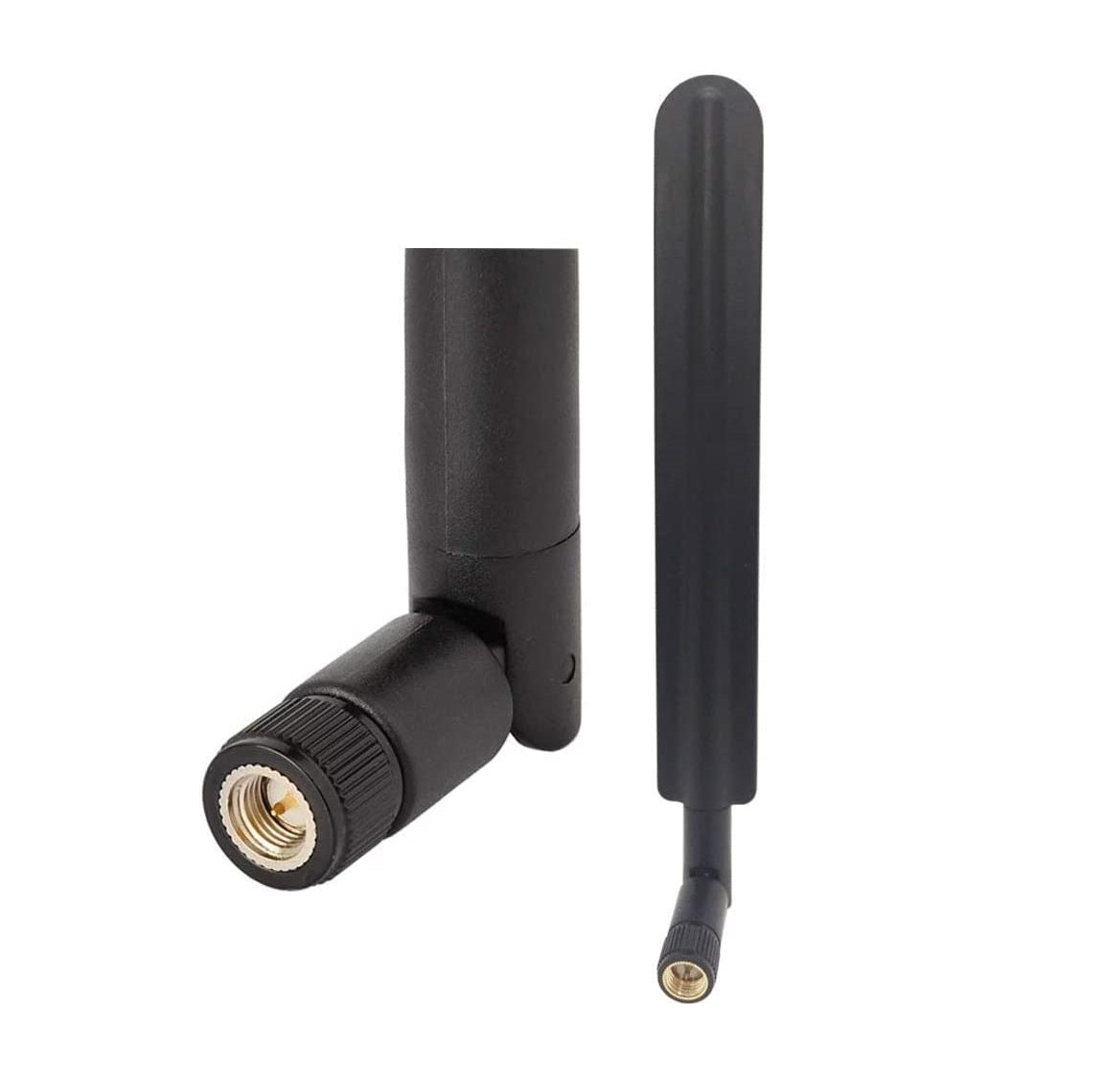

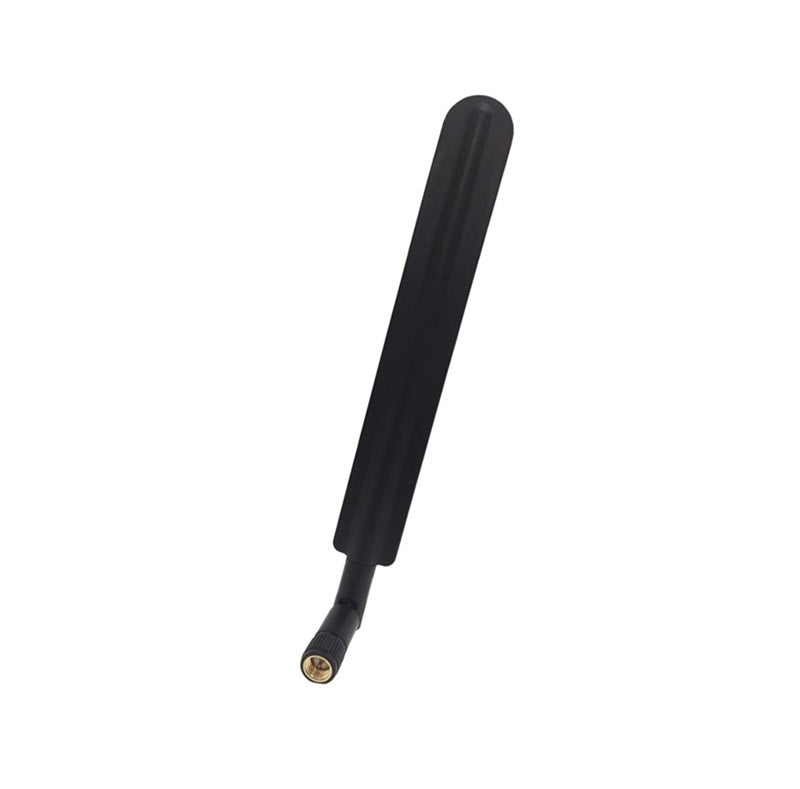

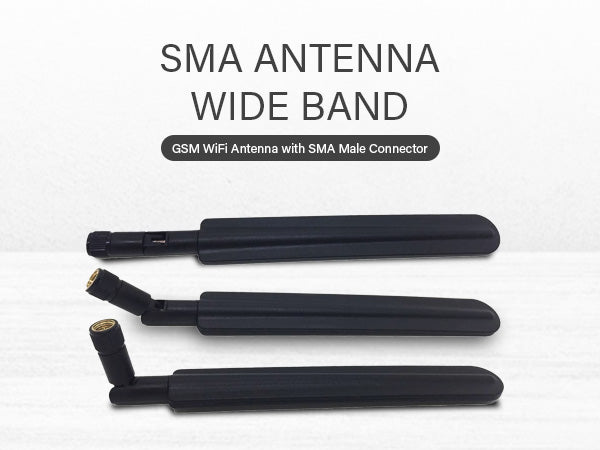

4G GSM SMA Antenna

4G GSM SMA Antenna Wide Band 5dbi 700-2700Mhz Omni Directional GSM WiFi Antenna with SMA Male Connector for Router Access Point Wireless Rang Extender

Features:

• Designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best-in-class throughput on all major cellular band
• The antenna is a ground plane independent antenna with SMA male connector and swivel mechanism that allows the antenna part to be rotated
• It is an omni-directional antenna and the radiation patterns display this and are stable across all bands
• 5dBi antenna with 700-2700 MHz frequency range
• High-gain cellular antenna, long of the antenna: 17cm

Specification:

• Frequency Range (MHz): 700-2700 MHz
• V.S.W.R: 3.0 Max
• Gain (dBi): 5 dBi
• Impedance: 50Ω
• Radiation: Omni-directional
• Antenna Length: 7"
• Connector Interface: SMA Connector
• Interface Gender: Male
• Polarization: linear Vertical
• Admitted power: 1W
• Operating temp: -10C~+60C


Box Content:

• 1 x 4G Antenna (7")
