7 inch IPS Capacitive Touch Monitor Display

£38.99 GBP

This is an excellent mini IPS screen 7-inch HD monitor. It supports HD 1024x600 resolution, and IPS monitors help keep colors consistent at a wide viewing angle. Especially, with dual removable speakers...

Description

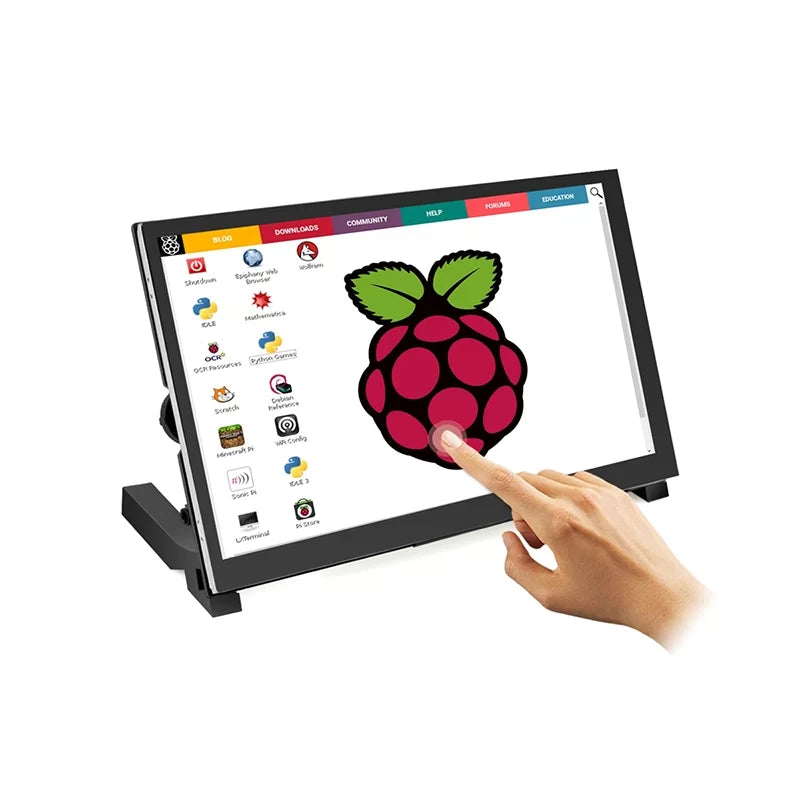

This is an excellent mini IPS screen 7-inch HD monitor. It supports HD 1024x600 resolution, and IPS monitors help keep colors consistent at a wide viewing angle. Especially, with dual removable speakers to enhance your audiovisual experiences.
Four corner holes let you mount the small monitor onto your DIY IoT projects that you’re working on. This Raspberry Pi display also comes with 2 stands, is easy to install and remove, great for on-the-go use.
With a capacitive USB touchscreen, Simply power the USB touch port to achieve touch function, and no need to install the driver, just plug and play!
Signal via HDMI-compatible port, power and touch via micro USB port, drive free. No cable solution to Raspberry Pi 4, just use 2 simple adapters to connect your Raspberry Pi 4 directly.
Broadly you can use it with your Raspberry Pi 4/3/2, Laptop and Windows 7/8/10, TV, video game console like Nintendo Switch/XBOX/PS4, and security camera.










 Features:

  • Easy connection to RPI 4B
  • 170-degree wide view angle
  • 5-point capacitive touch HD display
  • Dual removable audio speakers to add more fun to your life
  • With two pro stand, easily support the monitor

Specifications:

  • Model: RC070S
  • Size: 7 Inch
  • Resolution: 1024*600
  • Display Type: IPS
  • Touch: Capacitive Touchscreen
  • 60FPS
  • Brightness: 260cd/m2
  • Working temperature: -20-60℃
  • Storage temperature: -30-70℃
  • certification: CE
  • Speaker: Support
  • Interface: HD&USB
  • Dimension: 164*99mm
  • Screen Size: 154*86mm
  • Net weight: 235g

    Note:

    When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.



    Box Content

    • 1 x 7-inch monitor
    • 1 x USB to Micro USB Connector
    • 1 x HD to Micro HD Connector
    • 1 x USB to Micro USB Cable
    • 1 x HD to HD Cable
    • 4 x M2.5 Screws
    • 4 x Small Copper Pillars
    • 2 x Pro Stand
    • 2 x M3 Screws
    • 2 x Speakers
    • 1 x User Manual
