Adafruit Feather 32u4 RFM96 LoRa Radio - 433MHz - RadioFruit

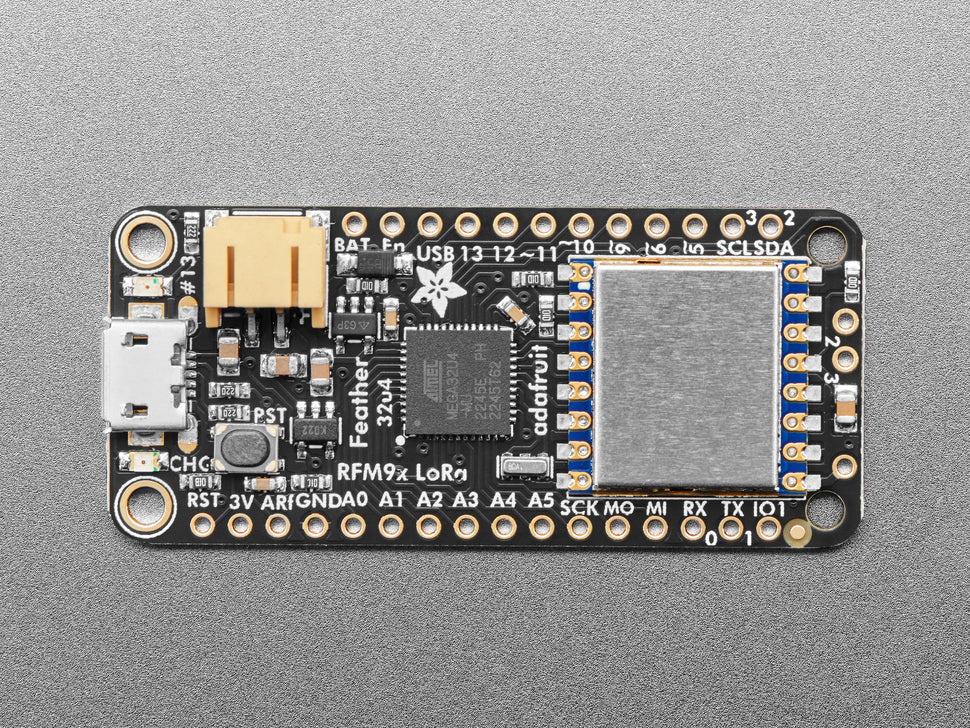

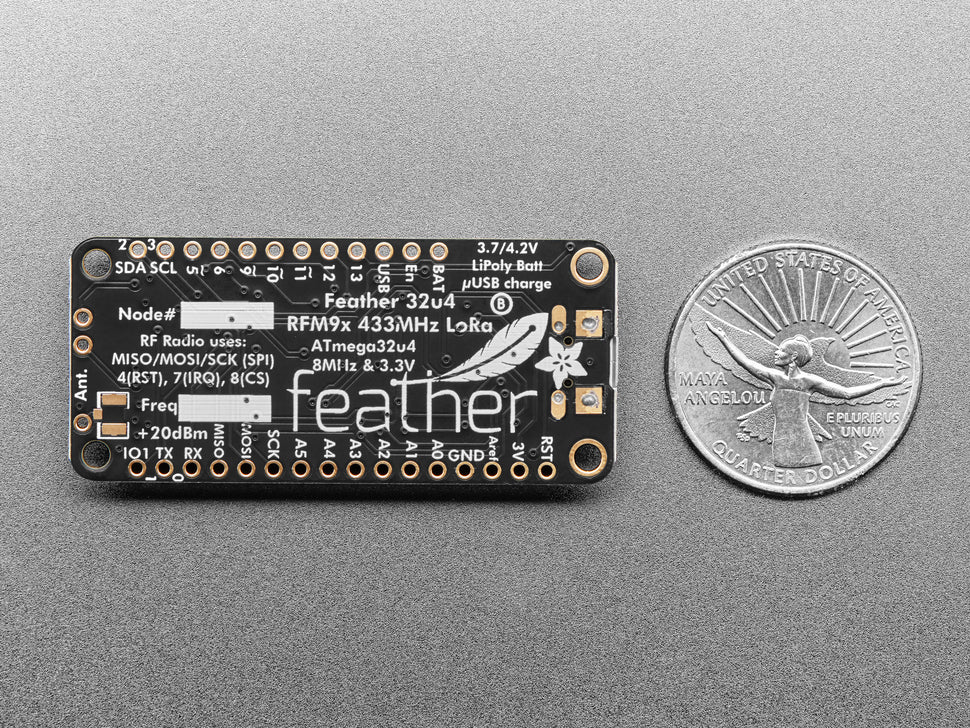

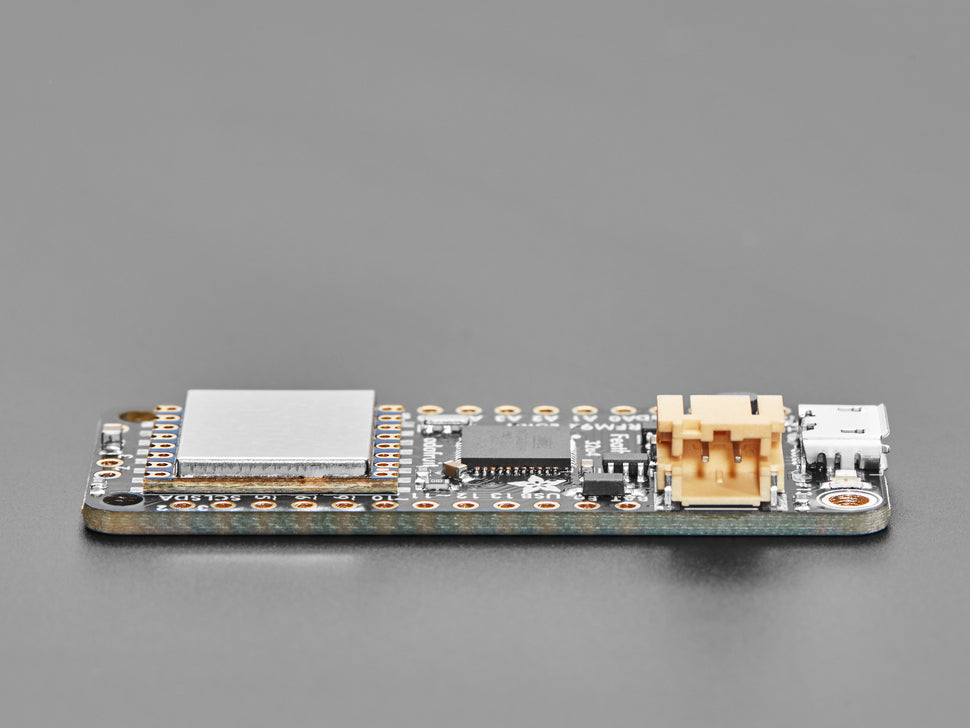

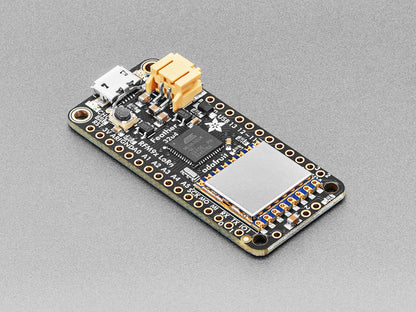

The Adafruit Feather 32u4 LoRa Radio (RFM9x) is a compact, lightweight development board featuring a microcontroller combined with a long range (LoRa) packet radio transceiver. Operating at 433 MHz, this board supports creating wireless networks that exceed the range of traditional 2.4GHz wireless technologies like Bluetooth LE and WiFi while maintaining low power consumption.

Key features include an ATmega32u4 microcontroller clocked at 8 MHz with 3.3V logic, built-in USB programming and debugging capabilities, and battery charging support for 3.7V Lithium Polymer batteries. The Feather measures 51mm x 23mm x 8mm, weighs only 5.5 grams, and offers 20 GPIO pins including PWM and analog inputs, making it versatile for various projects.

The integrated SX1276 LoRa module enables packet radio communication with up to 100 mW power output, operating on the license-free 433 MHz ISM band. It supports a simple wire antenna or uFL connector for flexible antenna options. The board is ideal for long-range, low power IoT and wireless sensor applications.

• ATmega32u4 @ 8MHz with 3.3V logic
• SX1276 LoRa 433 MHz radio module with SPI interface
• Built-in USB bootloader and serial debugging
• 3.3V regulator with up to 500mA output
• Battery charging circuitry for 3.7V LiPo batteries
• 20 GPIO pins including 7 PWM and 10 analog inputs
• Dimensions: 51mm x 23mm x 8mm, Weight: 5.5 grams
• Compatible with Arduino IDE with ready-to-use libraries

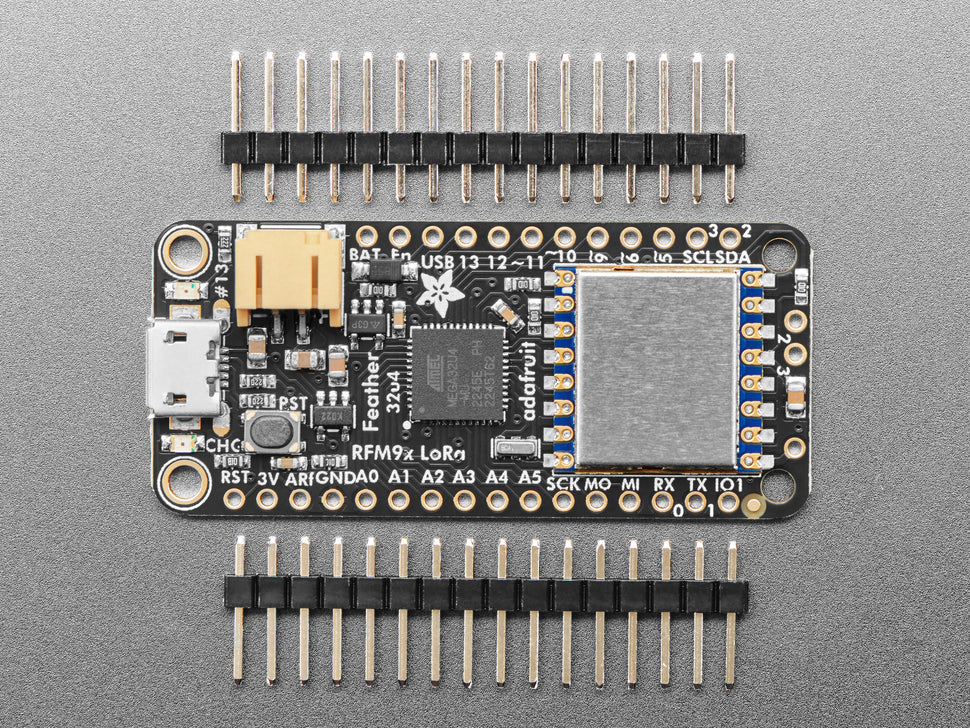

Battery and USB cable are not included but available separately. Headers are included for soldering and breadboard compatibility. For detailed usage instructions, including pinouts and Arduino setup, refer to the Adafruit Feather 32u4 LoRa Radio guide.
