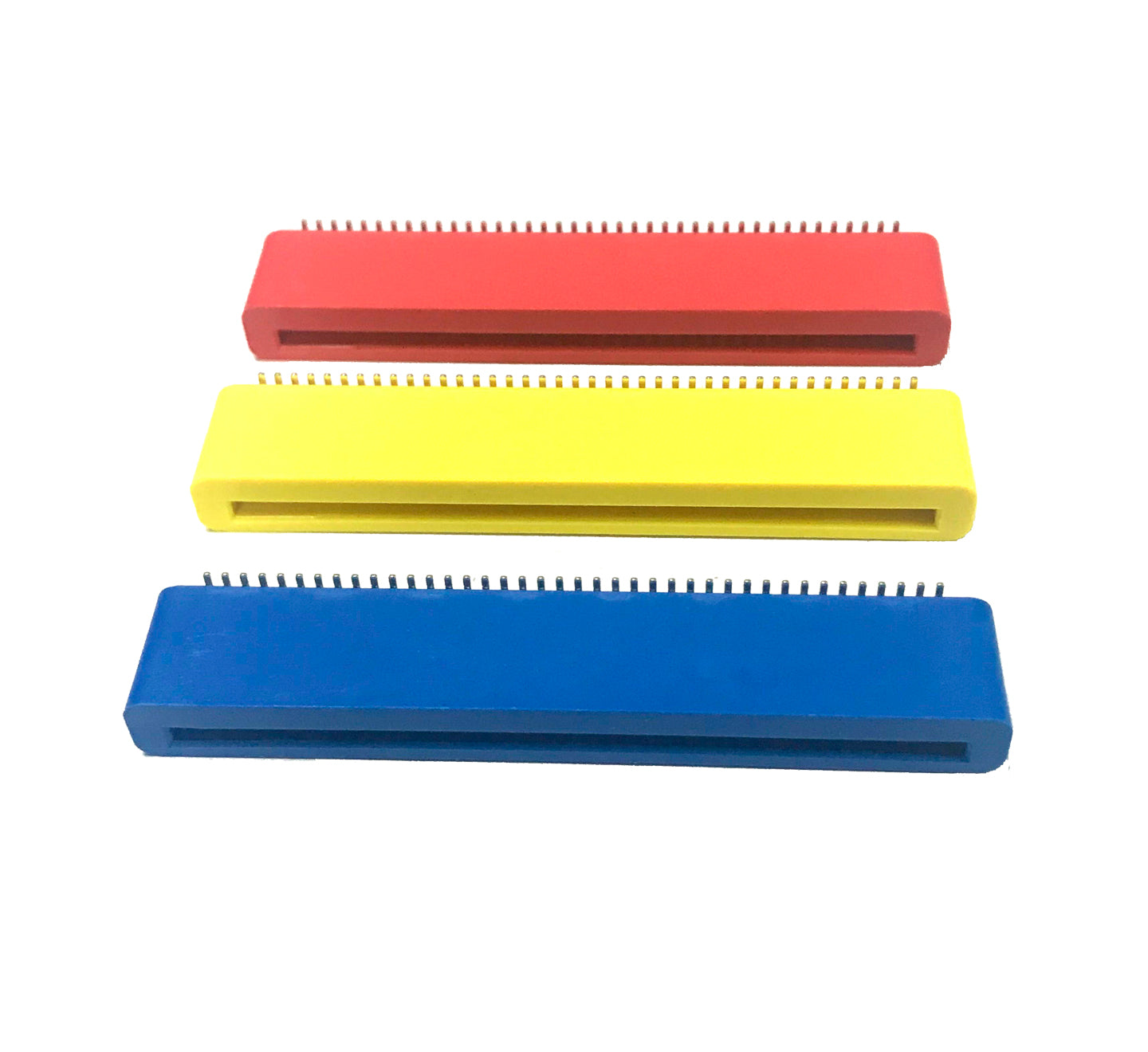

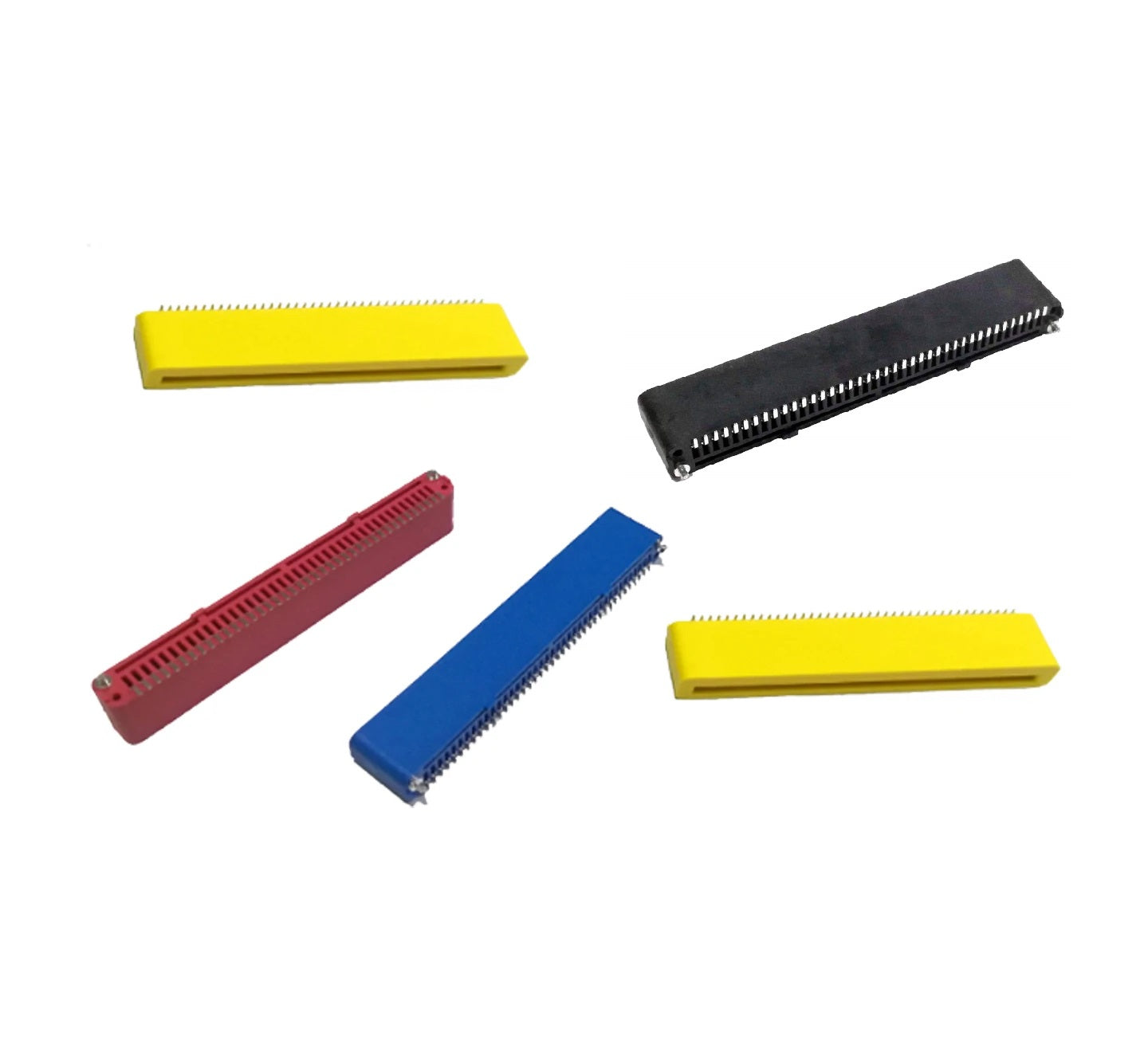

BBC micro:bit Header 40P 180 Degree Angle SMT Edge Connector - Multicolor (Pack of 5 Pcs)

£9.99 GBP

Tax included.

High-quality BBC micro:bit header, 1.27mm 40P 180 degree DIP type SMT edge connector Features Pitch: 1.27mm No. of Pins: 40Pin Type of Row: Double Row Body Orientation: SMT, R/A Gender: 180 Degree...

Vendor: SB ComponentsSKU: SKU13593N/AAvailability : In StockIn StockOut of stock

High-quality BBC micro:bit header, 1.27mm 40P 180 degree DIP type SMT edge connector

Features
  • Pitch: 1.27mm
  • No. of Pins: 40Pin
  • Type of Row: Double Row
  • Body Orientation: SMT, R/A
  • Gender: 180 Degree SMT Connector
Specifications
  • Color: Multicolor
  • Positions: 1x40 Pins
  • Plastics Height: 10.6mm
  • Plastics Width: 12.2 Mm Length 56.8
  • Current Rating: 3A
  • Insulation Resistance: 1000MΩ Min
  • Dielectric Withstanding Voltage: AC 500V
  • Contact Resistance: 30mΩ Max
  • Operating Temperature: -30 To +80°C
  • Insulation Material: PA9T UL94V-0
  • Contact Material: Copper Alloy
  • Plating: Gold + Nickel
Box Content
  • 5 x micro:bit Header

Note: Colors of the headers may vary, will be sent as per the availability.
