Bluetooth 4.0 NRF51822 Eval Kit
Expansion Board

Bluetooth 4.0 NRF51822 Eval Kit

  • Vendor:Waveshare
  • Category: Raspberry Pi Accessories
Availability: In Stock
£21.99
Wishlist Compare

BLE4.0 Bluetooth 2.4GHz Wireless Development/Evaluation Kit for nRF51822

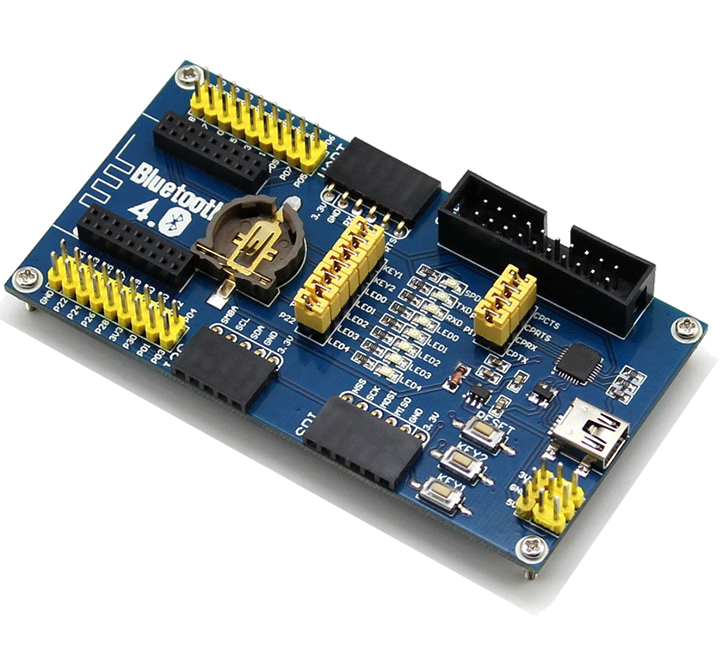

It is a development/evaluation kit designed for nRF51822, consists of the motherboard BLE400 and the wireless module Core51822.

BLE400 Features:

  • Onboard battery holder, multi power supplies are available
  • All the IOs are accessible for easy expansion
  • Integrates CP2102 for debugging
  • LEDs and user keys, compatible with other official boards, easy to use

nRF51822 Features:

  • 2.4 GHz multiprotocol RF transceiver
  • ARM® Cortex™-M0 32 bit processor
  • 128 bit AES HW encryption
  • 256kB flash & 32kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V
  • Onboard chip: nRF51822
  • Communication distance (open outdoor@1M data rate): 30m
  • Frequency range: 2.4GHz
  • Operating voltage: 2.0V ~ 3.6V
  • Operating temperature: -40℃ ~ 85℃
  • Dimension (PCB): 24.5mm x 32.26mm
  • Expansion pin header: all the I/Os except P0.26 and P0.27
  • Pinheader pitch: 2.00mm
  • The spacing between pin headers on the left side and the right side: 18.00mm
  • Antenna: onboard antenna
