FFC/FPC Adapter Board - 40 and 50 pins
The FFC/FPC Adapter Board is valuable for terminating displays and supporting board-to-board connections. The adapter board is available in two variants: 40 pins and 50 pins, both with a 0.50mm pitch that...
The FFC/FPC Adapter Board is valuable for terminating displays and supporting board-to-board connections. The adapter board is available in two variants: 40 pins and 50 pins, both with a 0.50mm pitch that expands to a 2.54mm pitch. The connector is a surface mount type with a slide lock for secure attachment to the FFC/FPC.
The FFC/FPC Adapter Board is an essential tool for anyone working with displays or board-to-board connections. The adapter board provides a secure and stable connection with its surface mount connector, slide lock, and reliable Top/Bottom contact design. Whether you're a hobbyist or a professional, the FFC/FPC Adapter Board is a must-have tool for your electronics toolkit.
Comes in two designs, TOP & Bottom
Features:

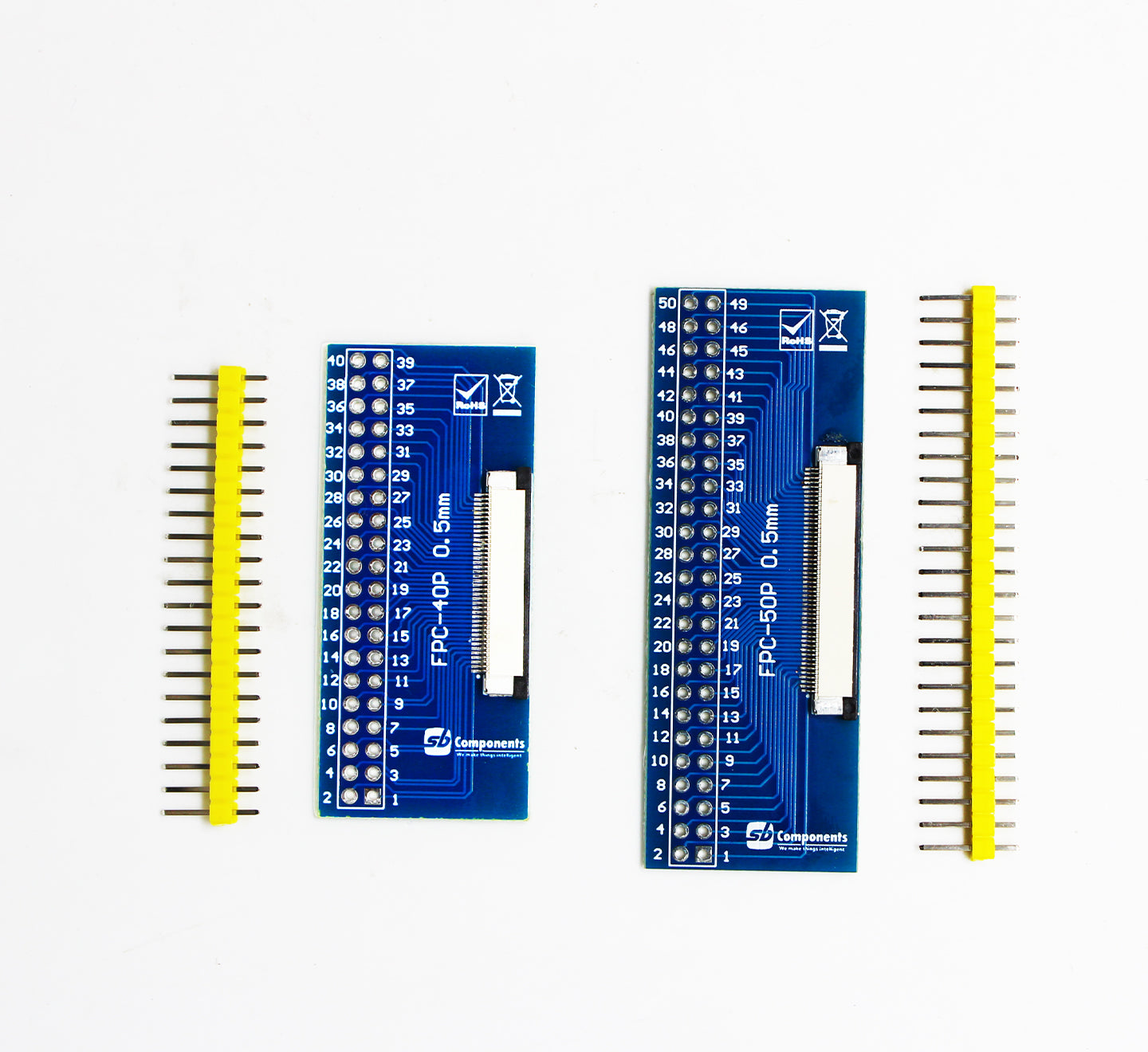

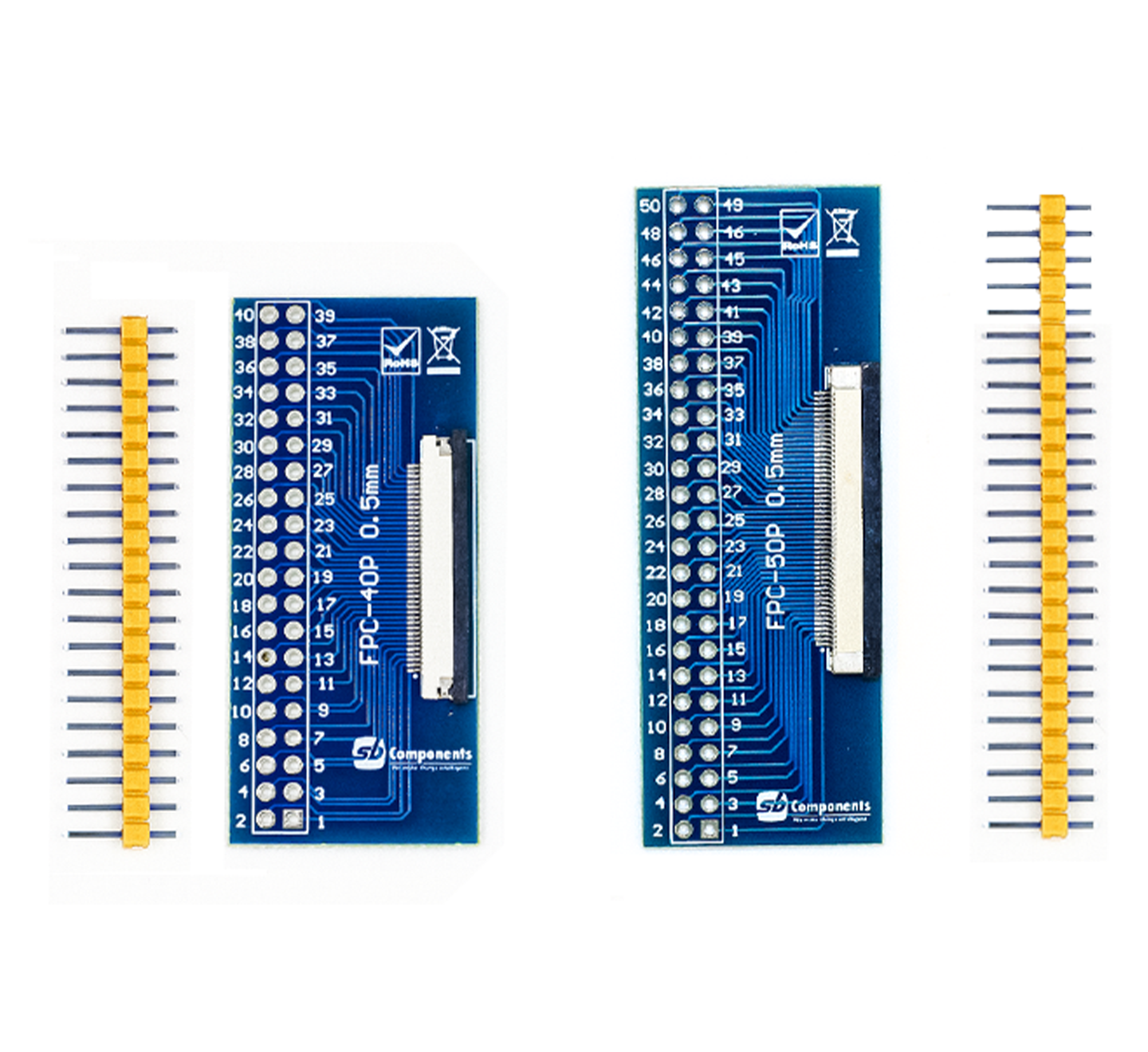

- Two variants available: 40 pins and 50 pins
- 0.50mm pitch expanding to 2.54mm pitch
- Surface mount connector
- Slide lock for secure attachment
- Top/Bottom contact design for reliable connection
Resources:
- Github - These Repos contain Schematic, Datasheet, etc.

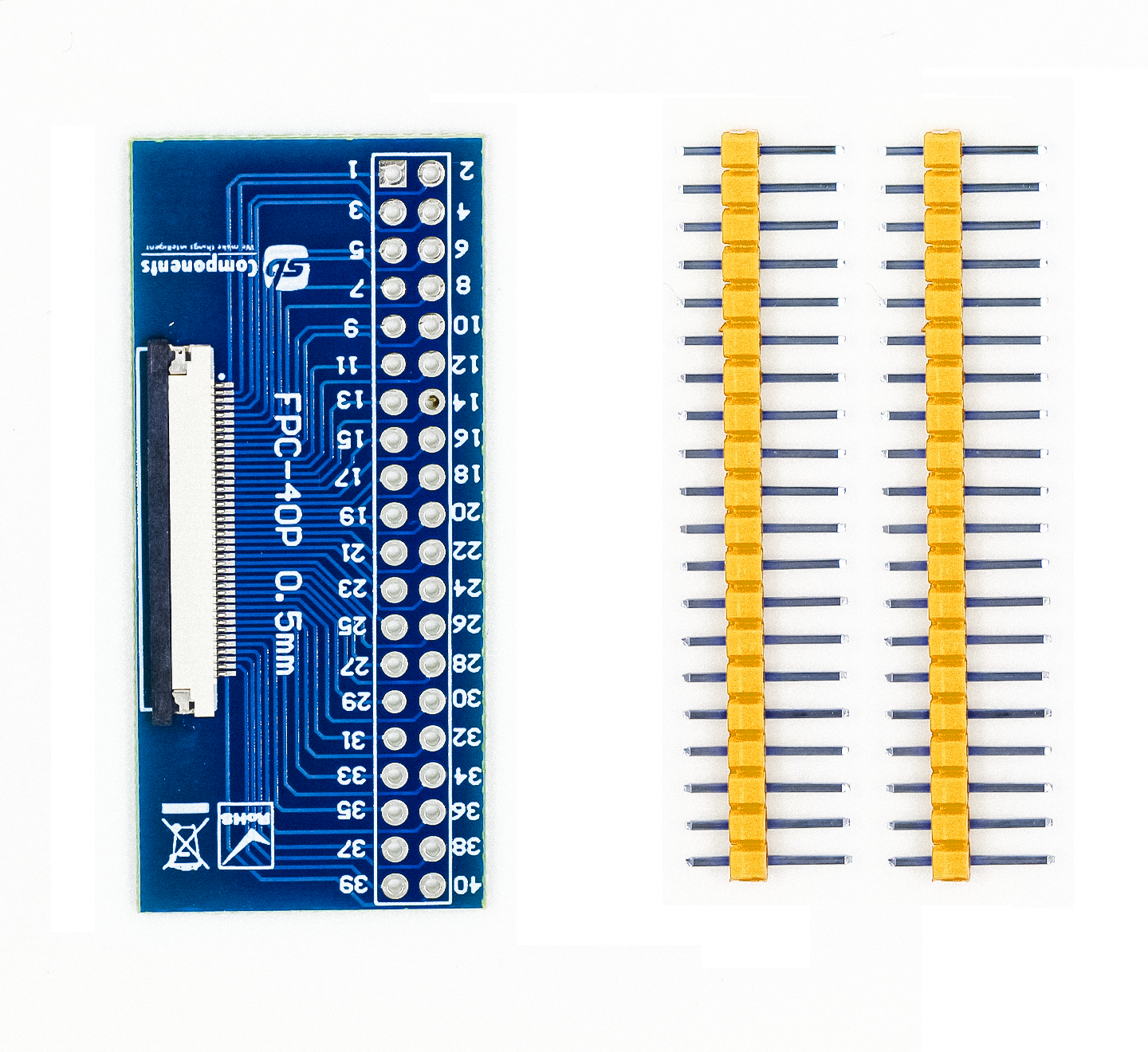

- 1 x 40 Pin Board
- 2 x 20 Pin Male Berg

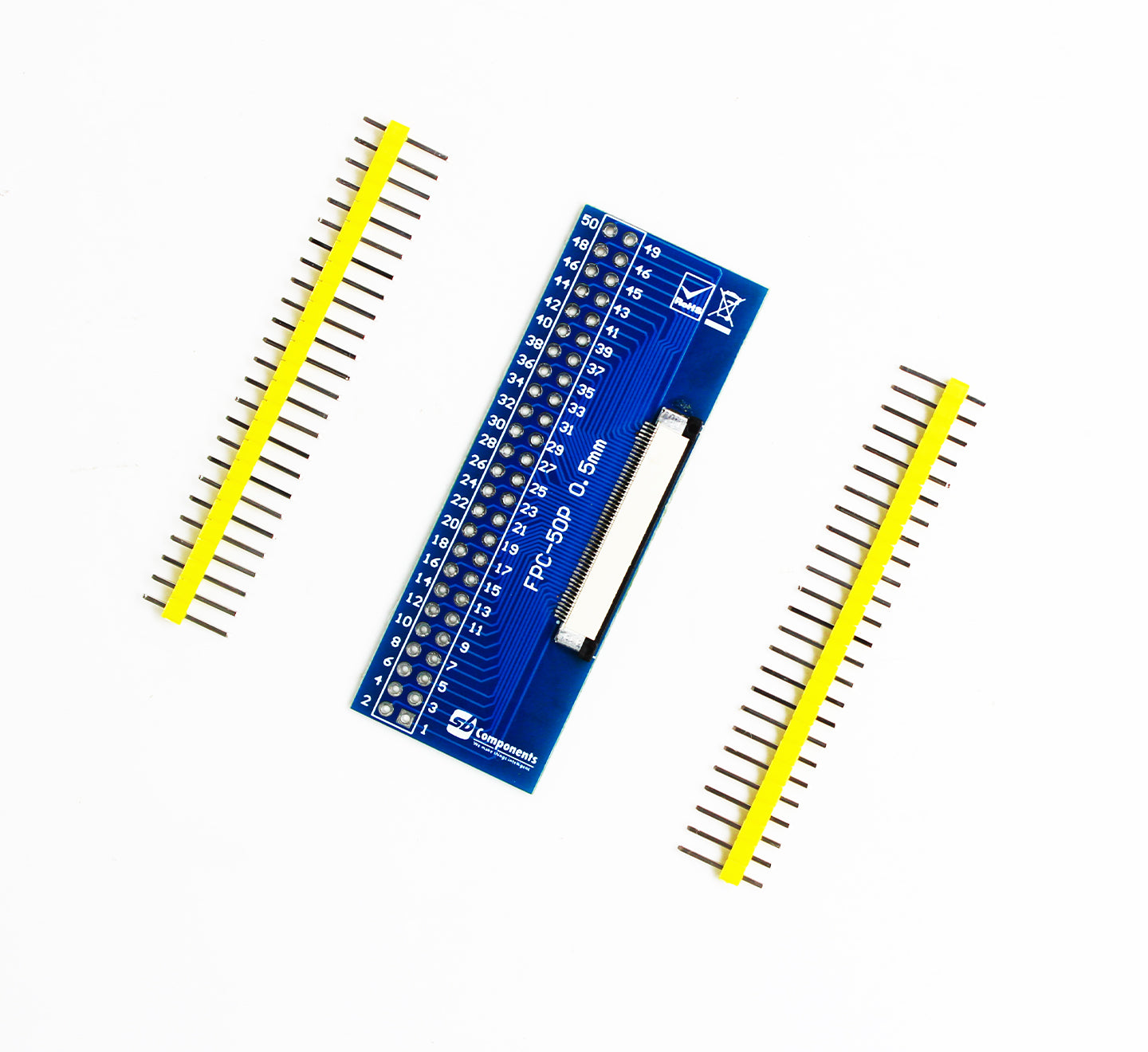

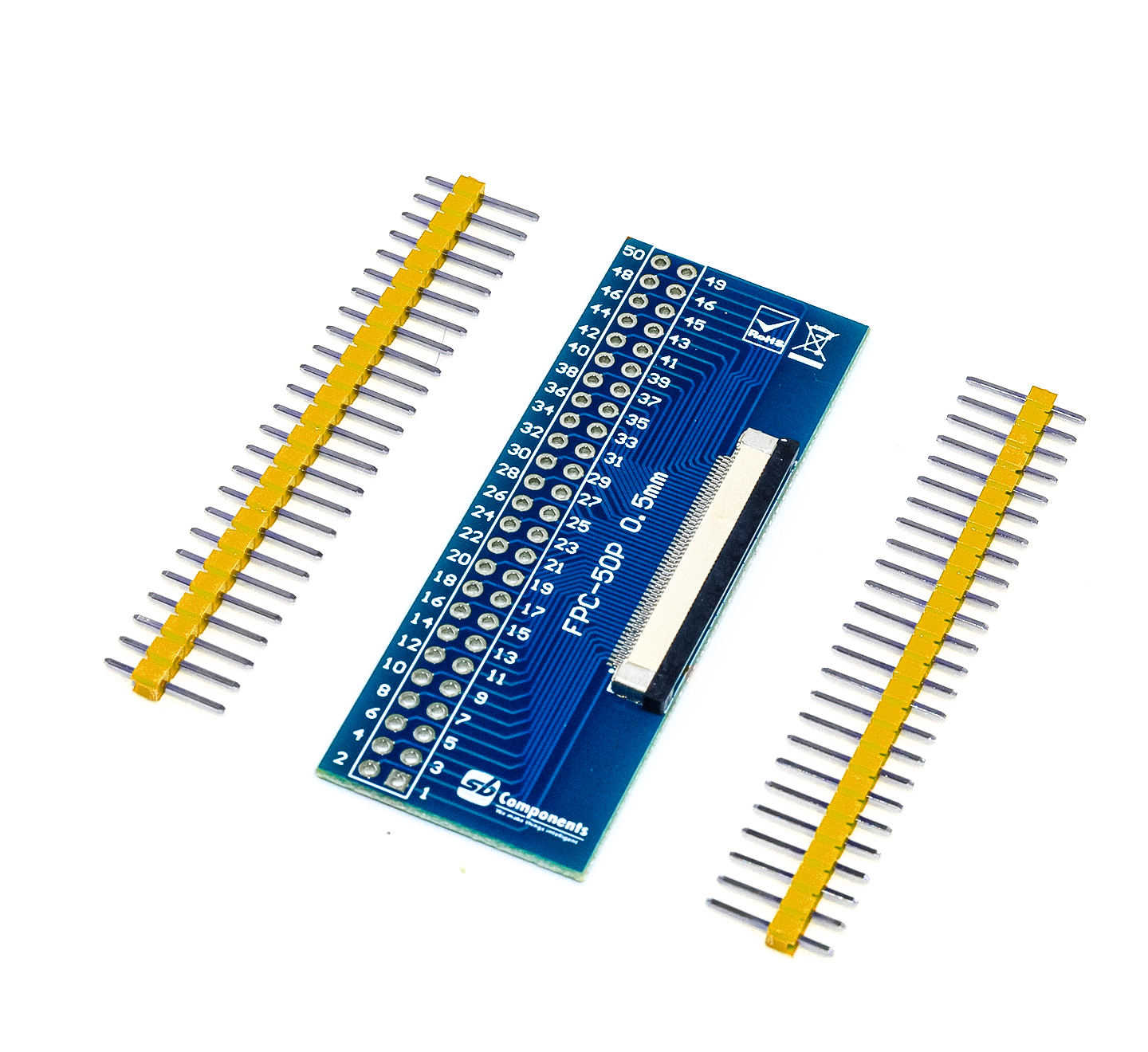

50 Pin FPC Adapter
- 1 x 50 Pin Board
- 2 x 25 Pin Male Berg
