GNSS GPS Ceramic Positioning Antenna
Couldn't load pickup availability

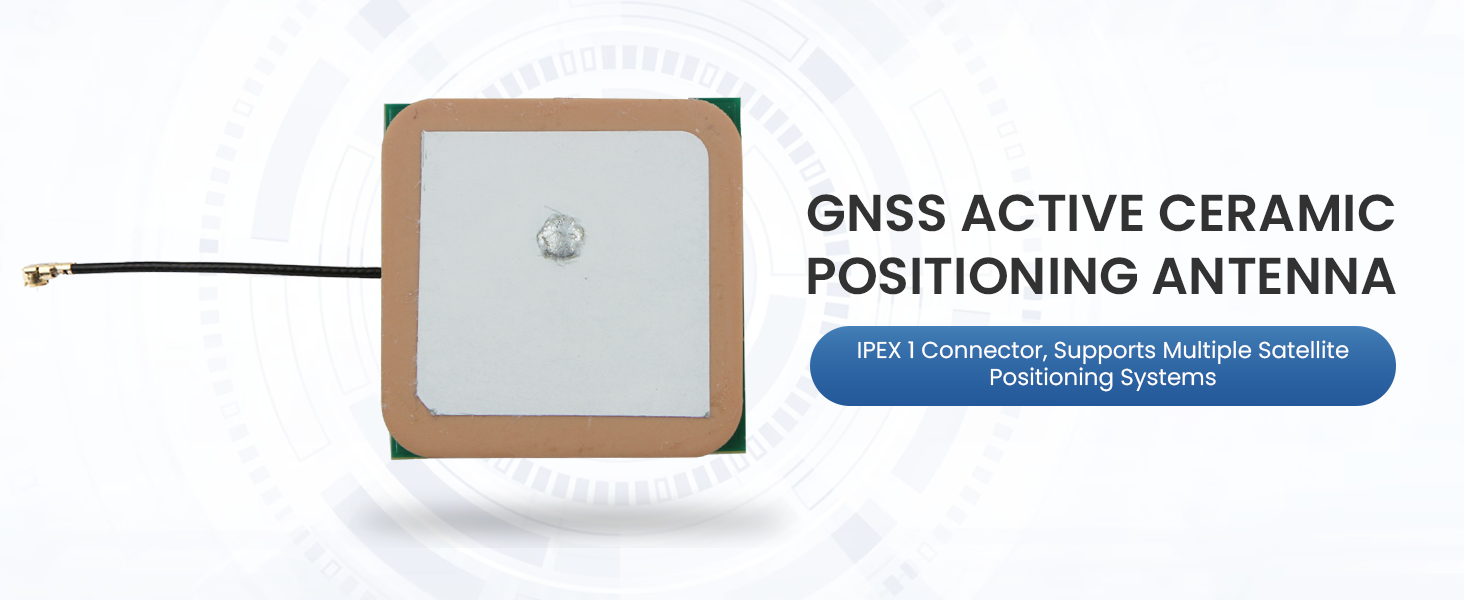

The GNSS Active Ceramic Antenna with IPEX connector is a high-performance positioning antenna that supports multiple satellite systems, including GPS, GLONASS, and BeiDou (BD). Designed for precise and reliable location tracking, this compact antenna features a ceramic build that ensures optimal signal reception. With a center frequency range that covers multiple GNSS bands, it is an ideal choice for a wide array of applications such as navigation, surveying, and geolocation services.
The antenna’s omni-directional radiation pattern and right-hand circular polarization (R.H.C.P) make it suitable for both stationary and mobile devices. The IPEX connector and 35mm cable length provide easy integration into your project, while its low current consumption and high gain ensure efficient and effective performance. Perfect for use in automotive systems, drones, handheld devices, and more, this GNSS Active Ceramic Antenna delivers superior accuracy and reliability.
Technical Specifications:
| CENTER FREQUENCY | 1575.42±2MHz / 1561±2MHz / 1602.56±2MHz |
OUTPUT IMPEDANCE | 50Ω |
| GAIN | 21dBi±2 | CONNECTOR | IPEX 1 |
| CABLE LENGTH | ~ 35mm | CERAMIC DIMENSION | 25 × 25mm |
| CURRENT CONSUMPTION | <10mA | POLARIZATION | R.H.C.P |
| POWER SUPPLY | DC 3.3 ~ 5.0V | NOISE FIGURE | ≤1.5dB |
| AXIAL RATIO | 3dB | INPUT POWER (MAX) | 50W |
| RADIATION DIRECTION | Omni-directional | OPERATING TEMP. | -20 ~ +65˚C |
