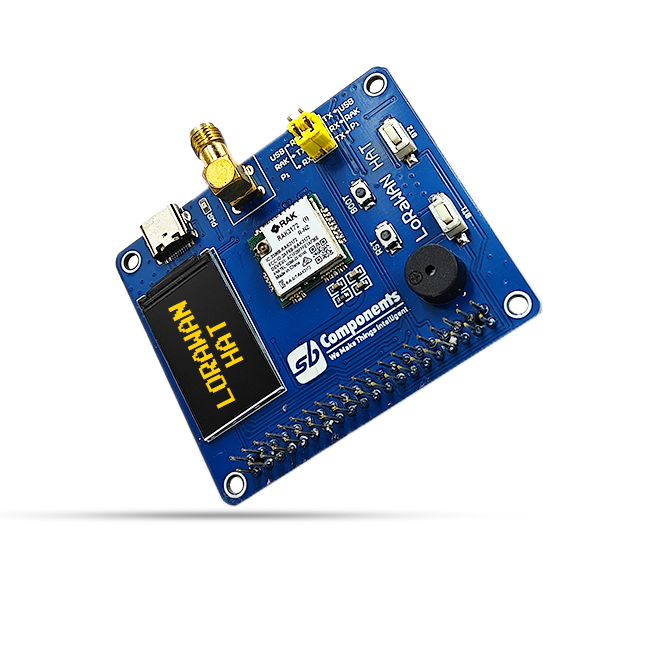

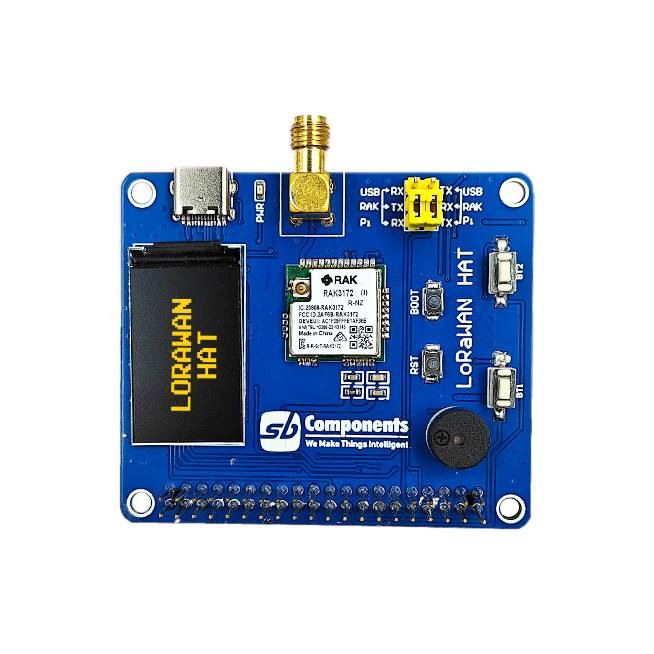

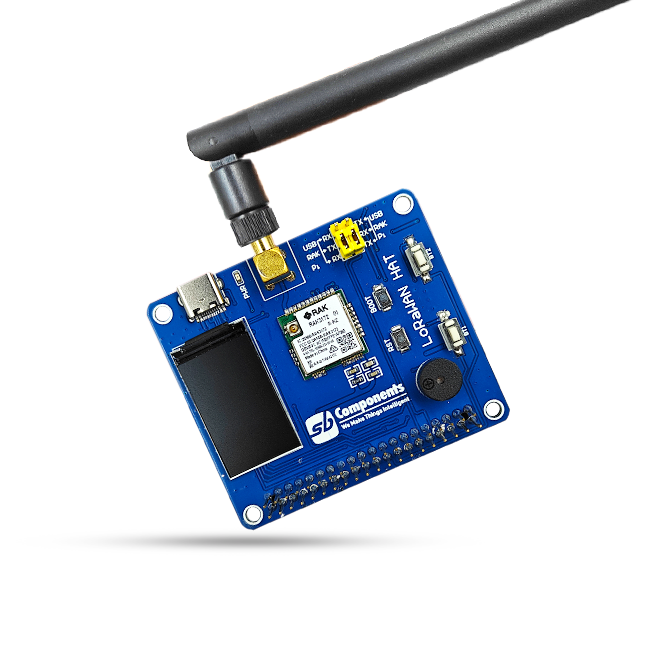

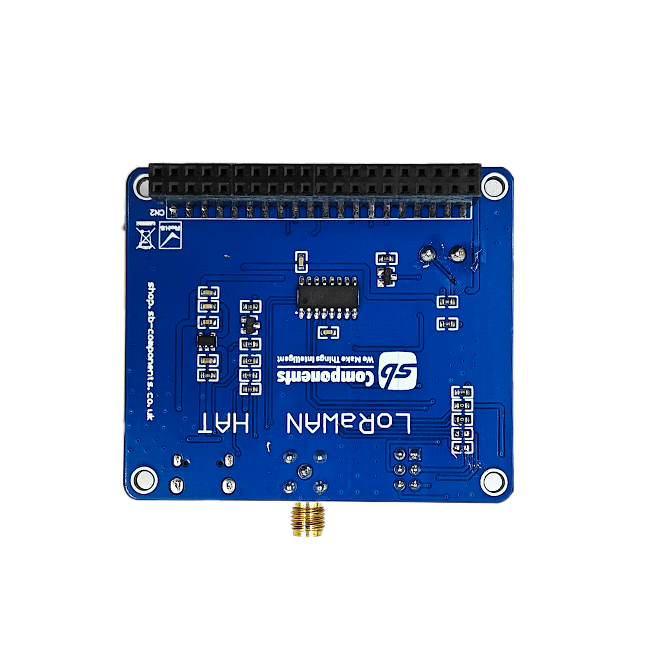

LoRaWAN HAT for Raspberry Pi

Transform your Raspberry Pi into a LoRaWAN Gateway with our versatile HAT. Compatible with the Raspberry Pi series, this Gateway HAT allows for easy communication between your Pi and LoRaWAN devices. With support for multiple channels and global frequency bands, it's the perfect solution for DIY IoT projects and rapid prototyping.

RAK3172 LoRaWAN Module Overview:

• Low-Power Long-Range Transceiver:
  • RAK3172 is a low-power long-range transceiver module for LoRa and LoRaWAN applications based on the STM32WLE5CC chip.
• Versatile Firmware:
  • Its firmware is based on RAK wireless Unified Interface V3 (RUI3), allowing the creation of different functionalities using RUI APIs.
• Easy Integration:
  • Provides an easy-to-use, small-size, low-power solution for long-range wireless data applications, ensuring seamless integration into your projects.
• LoRaWAN Compliance:
  • Complies with Class A, B, & C of LoRaWAN 1.0.3 specifications, ensuring interoperability and compliance with industry standards.
• Server Platform Compatibility:
  • Easily connects to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Helium, etc., ensuring flexibility and compatibility with various network setups.
• Support for LoRa Point-to-Point (P2P) Communication:
  • Supports LoRa Point-to-Point (P2P) communication mode, facilitating the implementation of customized long-range LoRa networks quickly and efficiently.

Features:

• HAT compatible with 40 Pin Header of the Raspberry Pi series
• Serial Interface between Raspberry Pi and LoRaWAN module for communication
• 1.14” TFT display for visual interactions with a resolution of 240x135 pixels
• Display Appearance: RGB, Colors: 65K/262K
• Having ST7789 display driver using SPI interface
• Easy-to-use AT command set via UART interface
• Type C interface for Standalone access to LPWAN module for configuration
• Two programmable Buttons for Additional control features
• Buzzer to add audio alert in projects
