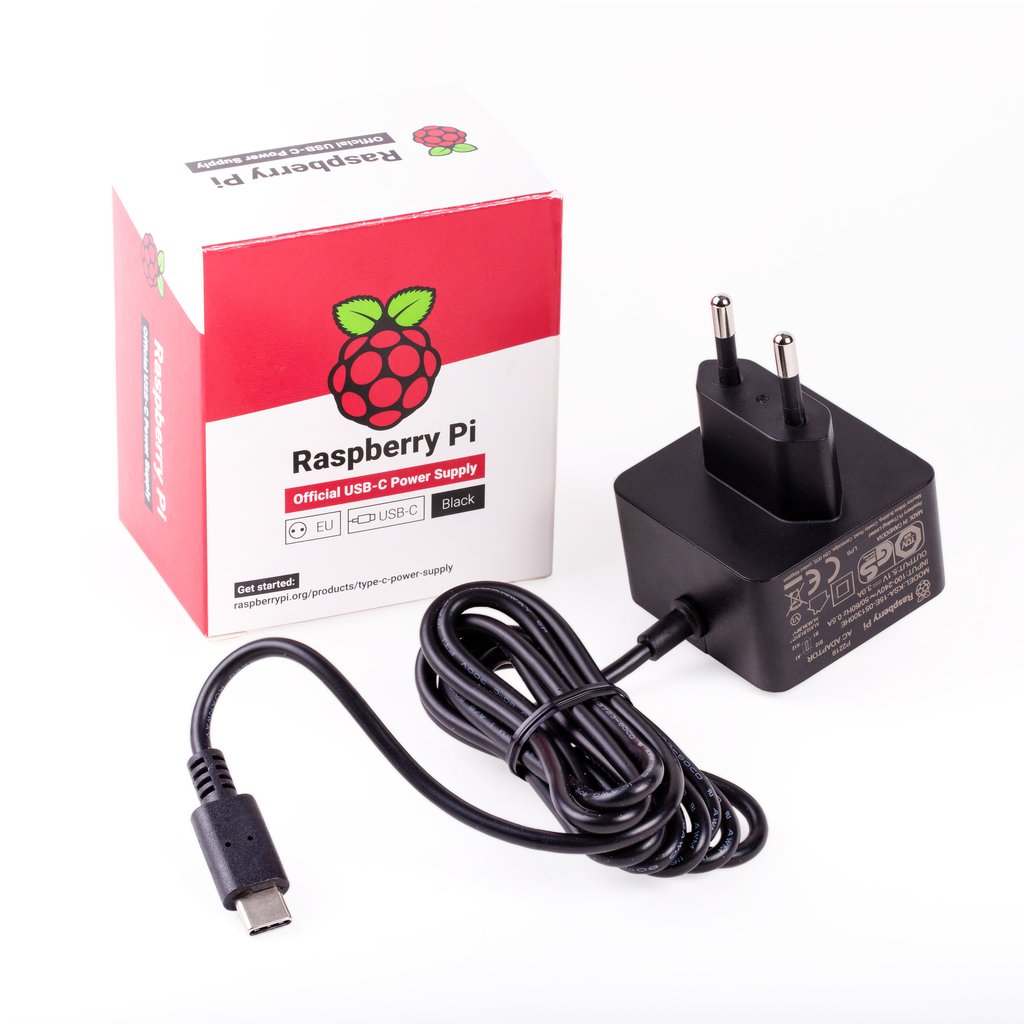

Official Raspberry Pi 4 Type-C Power Supply - EU Plug (Black)
Regular price
£7.49 GBP
Regular price
Sale price
£7.49 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Official EU Raspberry Pi 4 Power Supply (5.1V 3A)
The Raspberry Pi 4 is the latest product in the Raspberry Pi range, boasting an updated 64-bit quad core processor running at 1.4GHz with built-in metal heatsink, USB 3 ports, dual-band 2.4GHz and 5GHz wireless LAN, faster (300 mbps) Ethernet, and PoE capability via a separate PoE HAT.
Due to the higher power requirements, the Raspberry Pi 4 requires a 3.0A USB-C power supply. The Official USB-C power supply is specially designed and tested for the Raspberry Pi 4.
Features
- European 2-Pin plug (Also available in UK format).
- 5.1V 3A output provides all the power your Raspberry Pi 4 Model B will need.
- USB-C connection goes straight into your Raspberry Pi.
- Specially designed for the Raspberry Pi 4 Model B.
- 5 ft. Cable Length.
Specifications
| Output | |
|---|---|
| Output voltage | +5.1 V DC |
| Minimum load current | 0 A |
| Nominal load current | 3.0 A |
| Maximum power | 15.3 W |
| Load regulation | ±5 % |
| Line regulation | ±2 % |
| Ripple & noise | 120 mVp-p |
| Rise time | 100 ms maximum to regulation limits for DC outputs |
| Turn-on delay | 3000 ms maximum at nominal input AC voltage and full load |
| Protection | Short circuit protection, Overcurrent protection, Over temperature protection |
| Efficiency | 81% minimum (output current from 100%, 75%, 50%, 25%) 72% minimum at 10% load |
| Output cable | 1.5 m 18AWG |
| Output connector | USB Type-C |
| Input | |
| Voltage range | 100 - 240 Vac (rated) 96 - 264 Vac (operating) |
| Frequency | 50 / 60 Hz ± 3 Hz |
| Current | 0.5 A maximum |
| Power consumption (no load) | 0.075 W maximum |
| Inrush current | No damage shall occur, and the input fuse shall not blow |
| Operating ambient temperature | 0 - 40 °C |
Kit Content
- 1 x Official Raspberry Pi 4 Power Supply - EU Plug
