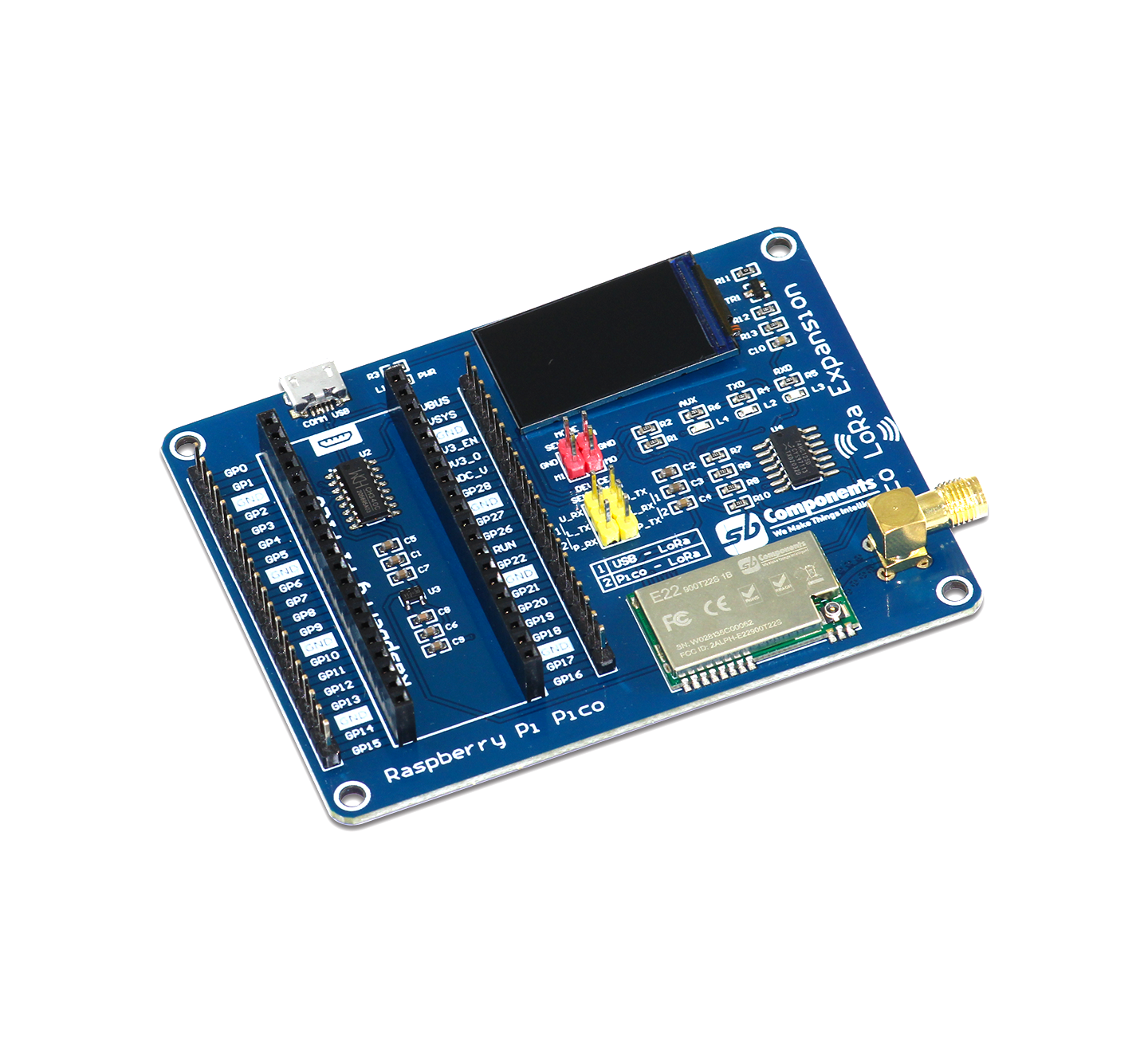

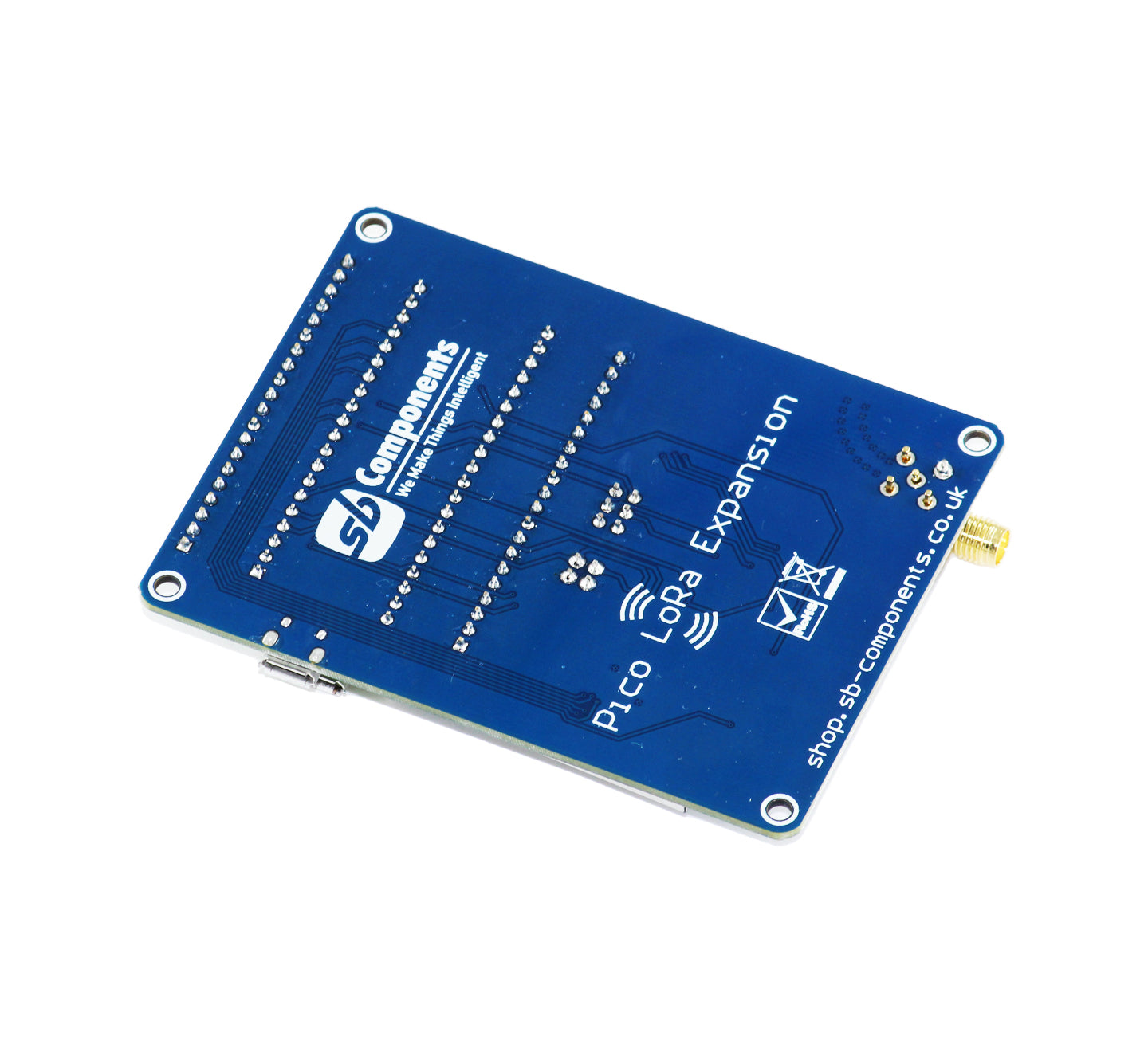

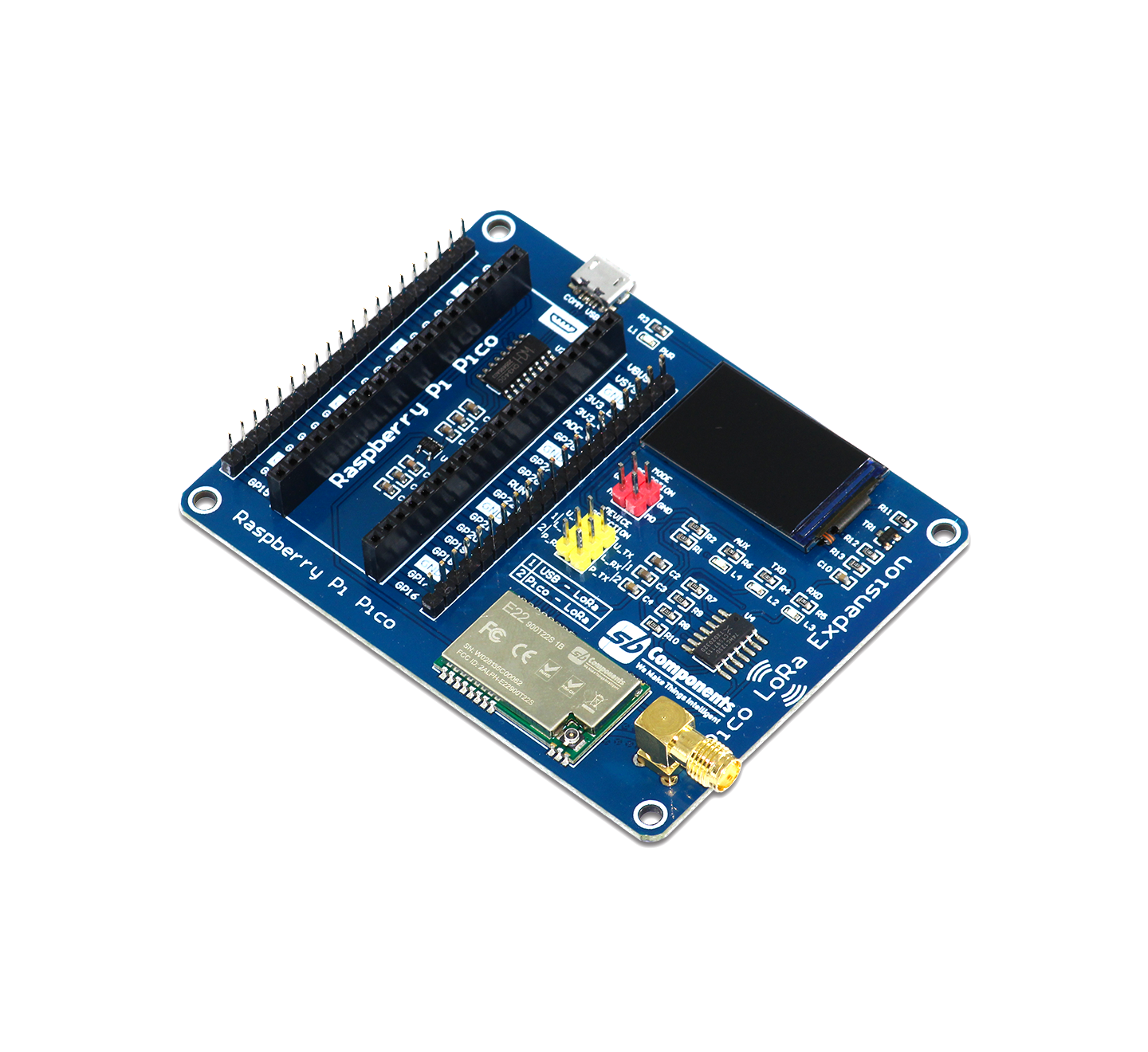

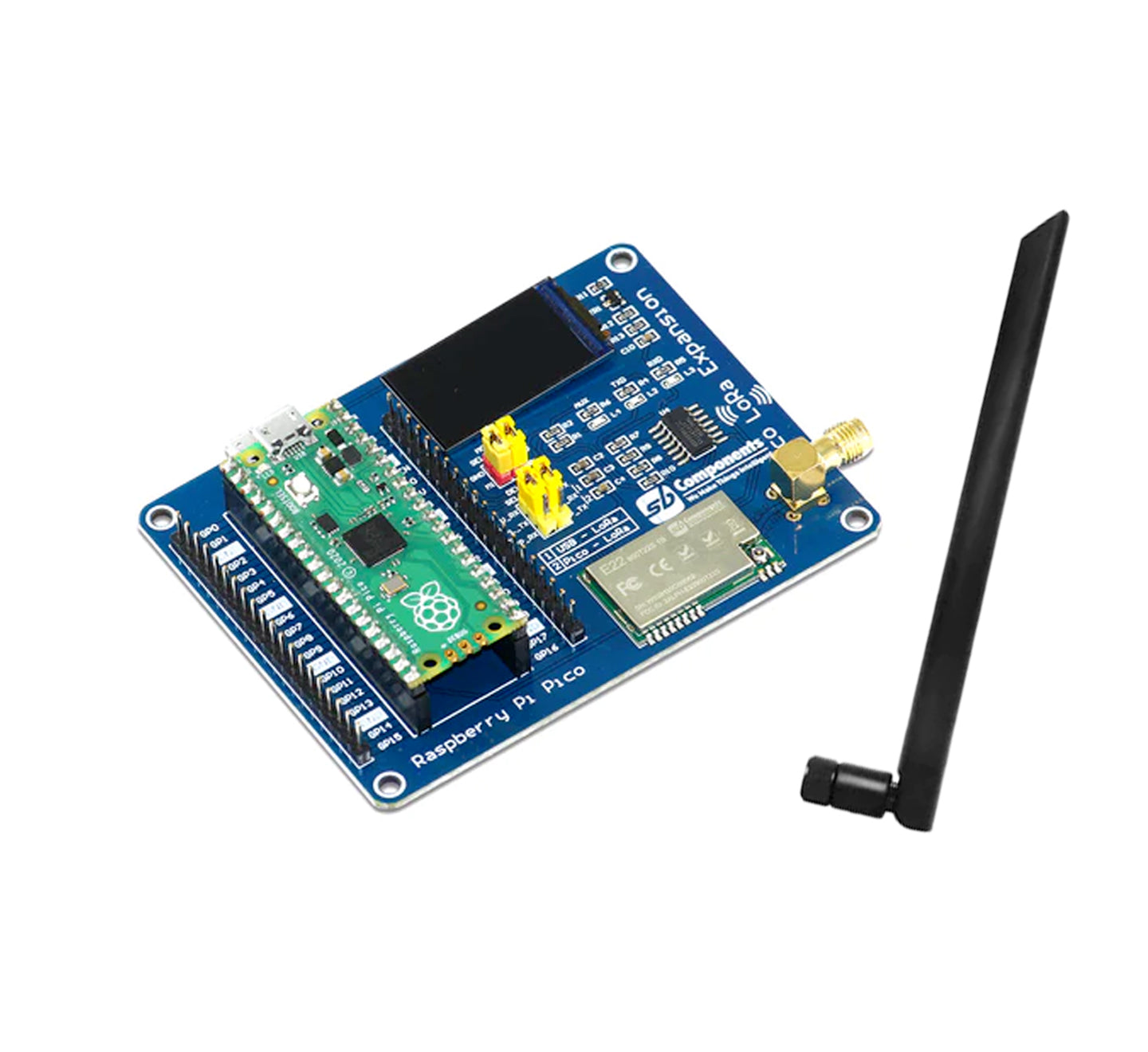

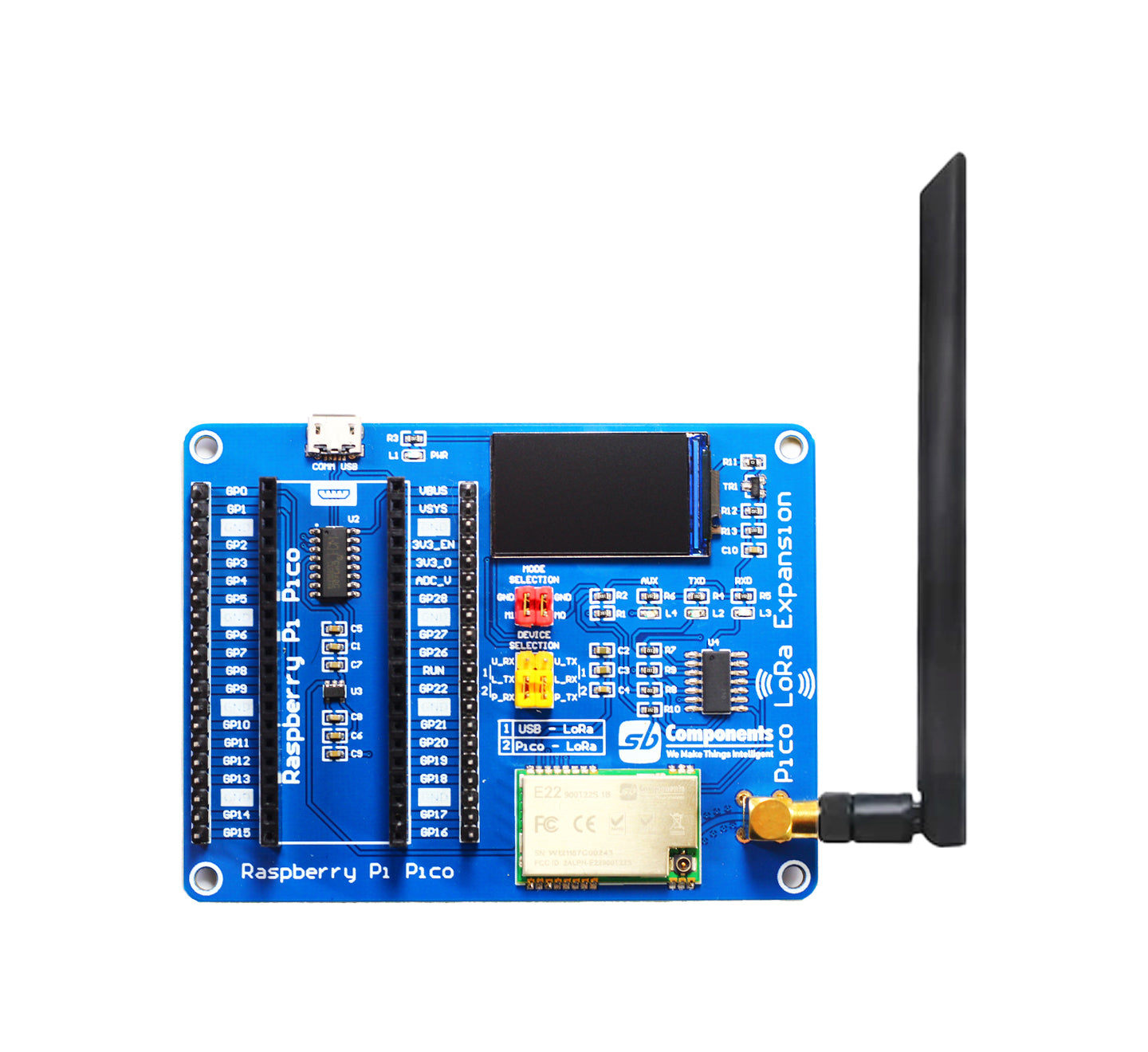

Pico LoRa Expansion

£39.99 GBP

Pico LoRa™ Expansion 433 MHz is a low-power consumption data transmission board, comes with an onboard CH340 USB TO UART converter, Voltage Level Translator (74HC125V),E22-400T22S & E22-900T22S SMA antenna connector that covers...

Frequency: 433 MHz

433 MHz
868 MHz
915 MHz
Description

Pico LoRa™ Expansion 433 MHz is a low-power consumption data transmission board, comes with an onboard CH340 USB TO UART converter, Voltage Level Translator (74HC125V),E22-400T22S & E22-900T22S SMA antenna connector that covers 433, 868 & 915 MHz frequency band , Onboard 1.14" LCD,IPEX antenna connector, LoRa™ Spread Spectrum Modulation technology with auto multi-level repeating. Pico LoRa™ Expansion   is developed to enable data transmission up to 5 KM through serial port.

With the new generation LoRa™ spread spectrum modulation technology, a user can easily transmit the data in low-power consumption. E22-400T22S & E22-900T22S Pico LoRa™ Expansion discrete itself from the normal LoRa™ with its longer communication distance, lower power consumption with better safety and ani-inference system. USB-UART communication of Pico LoRa™ enables the direct communication with a desktop/laptop without using Raspberry Pi Pico.

LoRa™ is the abbreviation of Long-range that runs on a technique called spread-spectrum technique, procured from chirp spread spectrum (CSS) technology, that encodes information by using the wideband linear frequency modulated chirp pulses.

Lora Expention
Specification

Frequency

433, 868, 915 MHz

Power

22dBm

Distance

Up to 5 KM

Interface

UART Communication

Serial Port Module

E22-400T22S / E22-900T22S

Communication
USB-LoRa & Pico to LoRa via UART
OnBoard
74HC125V, CH340
