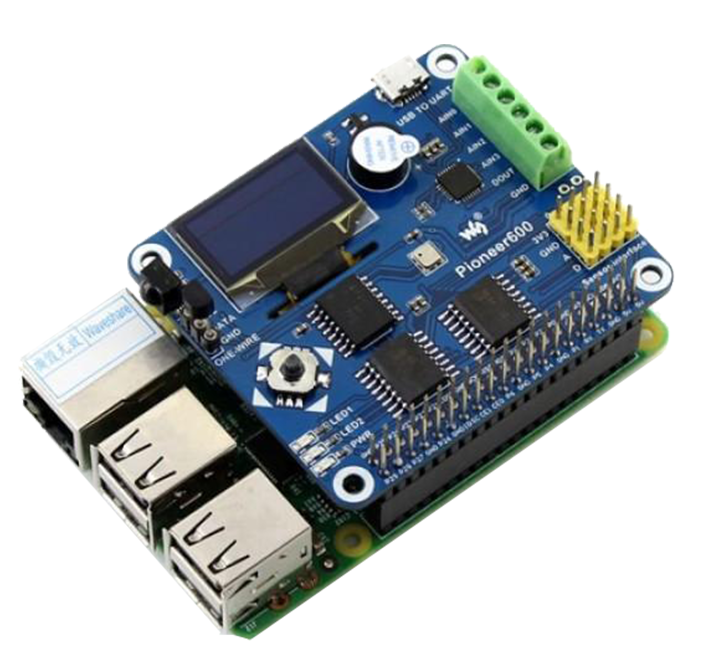

Pioneer600 - Raspberry Pi Expansion Board

SKU: SKU05673

Price:
£20.99 GBP

Description

Pioneer600 is a specially designed HAT for Raspberry Pi single-board computer. It is a very comprehensive HAT for learning a different types of components and for prototyping. With this HAT, you can interface with different types of sensor, there are A/D and D/A converter, OLED for display text and graphic, USB to Serial/UART converter, Active buzzer for audio output, read environmental pressure, expand IO, real-time clock, there is also joystick and IR receiver for remote control.

Features
  • Supports all Raspberry Pi board that has 40-pin GPIO, such as Raspberry Pi Zero/Zero W/Zero WH/A+/3B/3B+
  • Standard I/O:
    • Dual Programmable LEDs
    • Joystick
    • Active buzzer
  • USB TO UART: CP2102, enable the user to communicate and further configure Raspberry Pi via serial terminal
  • Display: 0.96inch OLED, big world in the little screen

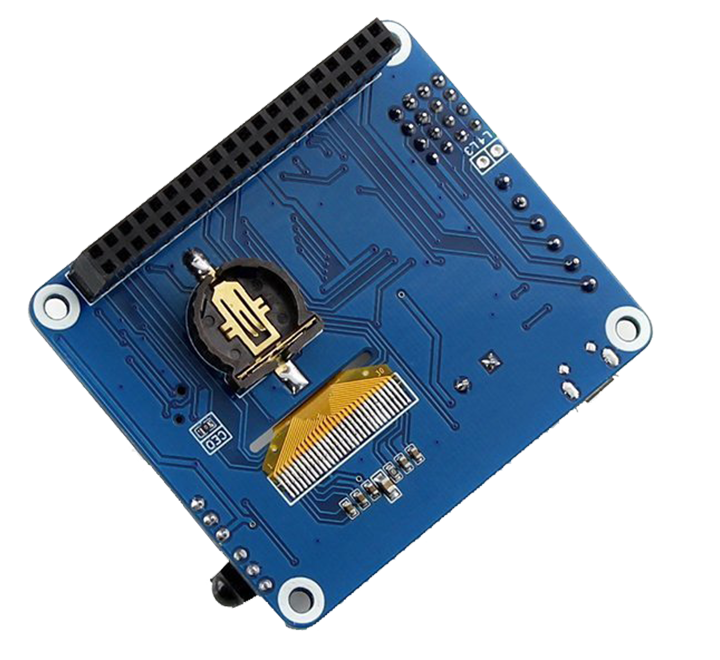

  • RTC(Real Time Clock): DS3231, high precision, backup battery holder is also available, but battery is not included
  • AD/DA: PCF8591, 8-bit resolution, screw terminal IO interface
  • GPIO Expansion: PCF8574, more GPIO, more possibility
  • IR Control: LFN0038K, Raspberry Pi remote control comes true
  • Pressure Sensor: BMP280, measuring air pressure and temperature
  • 1-WIRE: for connecting 1-WIRE devices, DS18B20 is included
  • Sensor Interface: for connecting various sensors
Specifications

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB TO UART: control the Pi through serial terminal
  3. AD/DA IO interface: screw terminal
  4. 1-WIRE interface: for connecting 1-WIRE devices like DS18B20
  5. Sensor interface: for connecting various sensors
  6. 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
  7. Buzzer
  8. CP2102: USB TO UART converter
  9. PCF8591 : 8-bit AD/DA converter, I2C interface
  10. BMP280: pressure sensor, I2C interface
  11. PCF8574: I/O expansion chip, I2C interface
  12. DS3231: high precision RTC chip, I2C interface
  13. Power indicator
  14. User LED
  15. Joystick
  16. LFN0038K IR receiver
Kit Content
  • 1 x Pioneer600 HAT board
  • 1 x USB microB cable
  • 1 x DS18B20 temperature sensor (for 1-wire interface)
  • 2 x 15mm spacer with screws and nuts
