Raspberry Pi Active Cooler for Raspberry Pi 5

Raspberry Pi Active Cooler – Efficient Thermal Management for Raspberry Pi 5

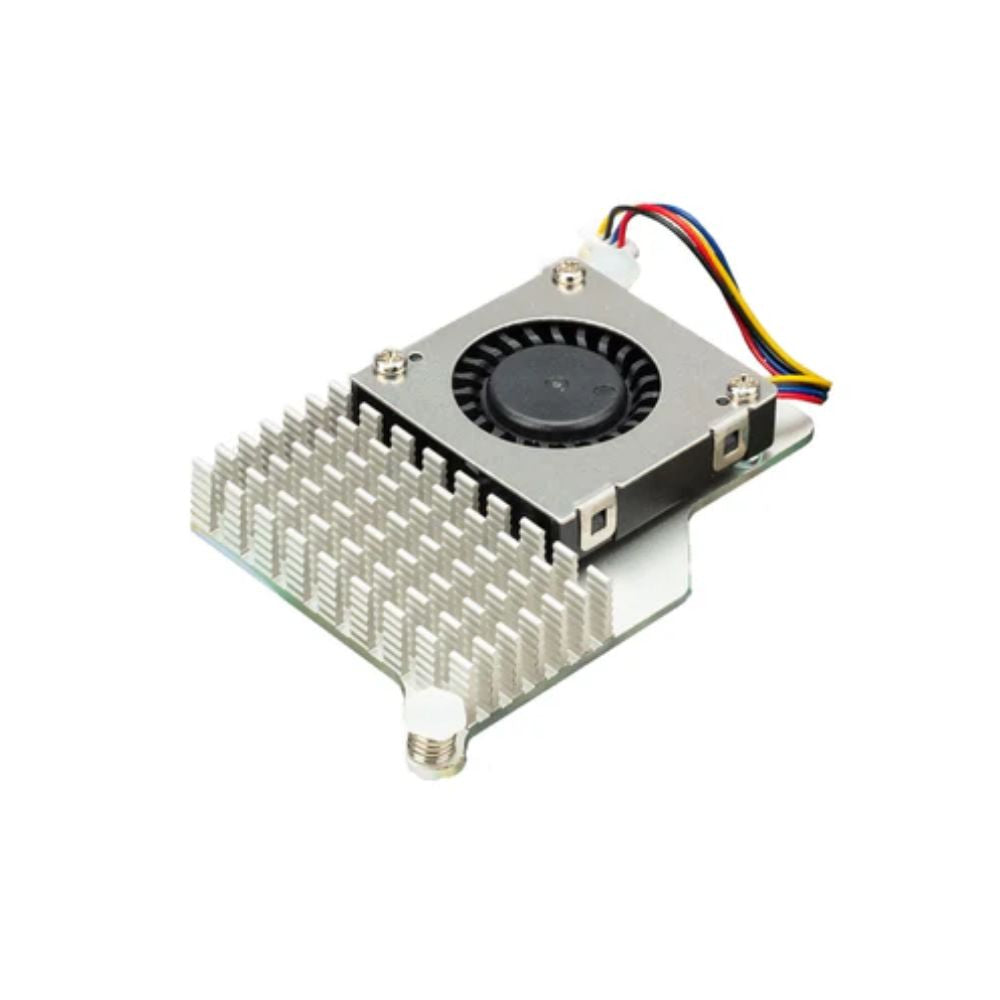

Keep your Raspberry Pi 5 running cool and stable with the Raspberry Pi Active Cooler — a purpose-built, clip-on thermal solution engineered for high performance. This cooler features a precision-crafted anodised aluminium heatsink paired with a smart, temperature-responsive blower fan, ensuring optimal cooling even under demanding workloads.

Key Features:

• Integrated Cooling Solution: Combines a solid anodised aluminium heatsink with a compact blower fan for efficient heat dissipation.

• Smart Temperature Control: The fan adjusts its speed automatically based on the board’s temperature using PWM (Pulse Width Modulation), delivering efficient airflow only when needed.

• Secure Mounting System: Spring-loaded push pins make installation quick and secure, providing strong contact with pre-applied thermal pads.

• No Hassle Setup: Pre-installed thermal interface material simplifies installation while maximizing thermal conductivity.

Technical Specifications:

• Input Voltage: 5V DC (via Raspberry Pi 5’s 4-pin fan connector)

• Cooling Method: PWM-controlled blower fan with tachometer feedback

• Airflow: Up to 1.09 CFM

• Fan Speed: Maximum 8000 RPM (±15%)

• Construction: Durable anodised aluminium body

Important Notice:

Once installed, the cooler should remain in place to prevent degradation of the push pins and thermal pads. Avoid reuse if the pins become bent or damaged, as this could affect performance and safety.

Package Contents:

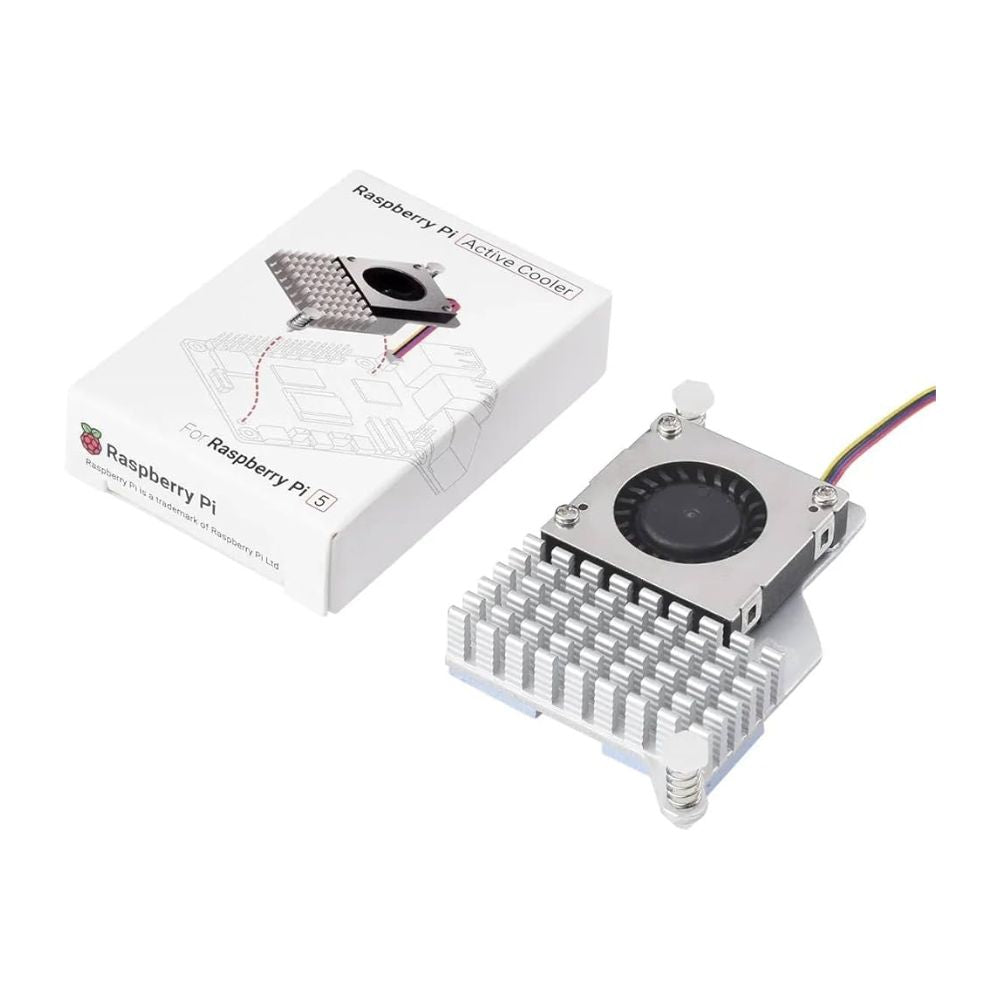

• 1x Raspberry Pi Active Cooler for Raspberry Pi 5
  (Includes blower fan and pre-fitted thermal pads)

• Note: Raspberry Pi 5 not included
