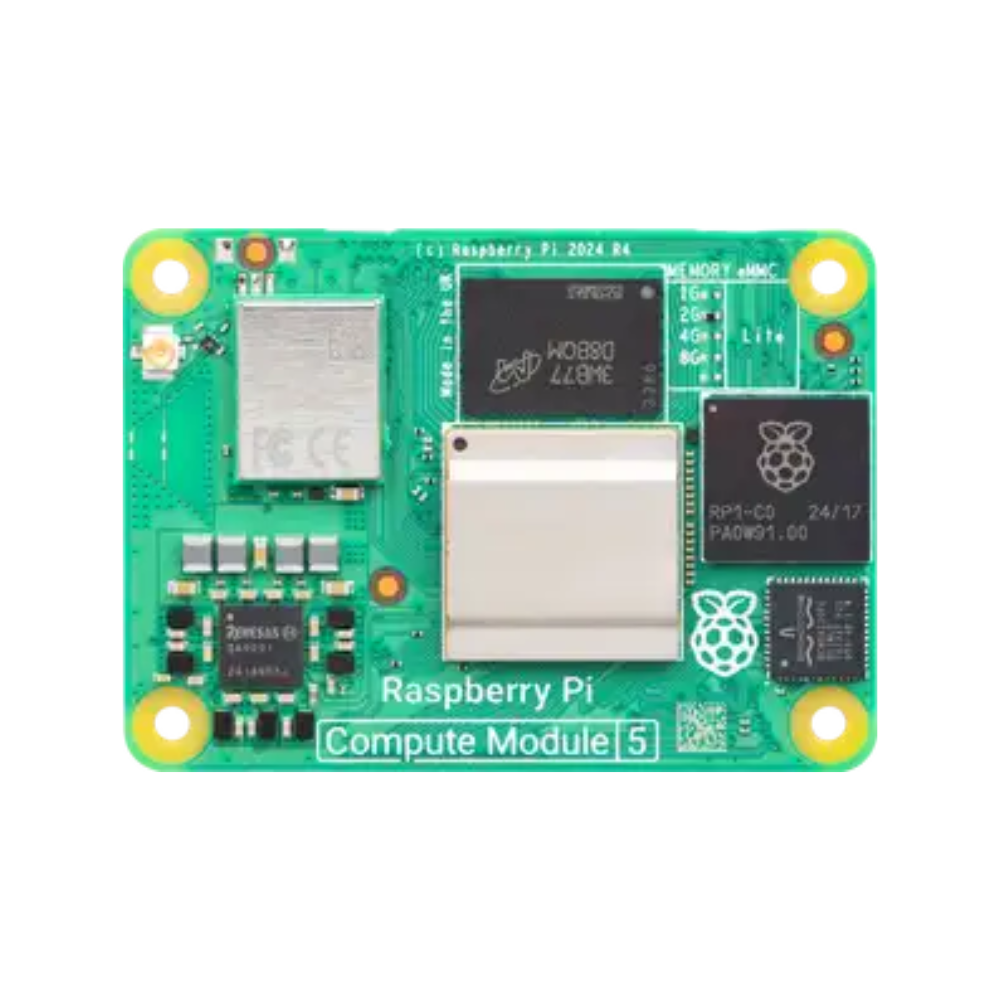

Raspberry Pi Compute Module 5 (CM5) – High-Performance SoM for Embedded Systems
Bring the power and versatility of the Raspberry Pi 5 to your embedded projects with the Raspberry Pi Compute Module 5 (CM5). Designed in a compact system-on-module (SoM) form factor, CM5 is ideal for industrial, commercial, and custom-designed solutions.
Built around a quad-core Arm Cortex-A76 processor, CM5 offers optional dual-band wireless, up to 16GB RAM, and up to 64GB eMMC storage, providing designers the flexibility to scale across a wide range of applications — from industrial automation to digital signage, smart devices, and more.
CM5 is compatible with the CM4 form factor, using the same dual 100-pin high-density connectors — making upgrades easier for existing designs.
Key Features:
-
Compact Design: 55mm x 40mm SoM with four M2.5 mounting holes
-
High-Speed Processing: Broadcom BCM2712 quad-core Cortex-A76 @ 2.4GHz
-
Memory Options: Choose from 2GB, 4GB, 8GB, or 16GB LPDDR4-4267 SDRAM (with ECC)
-
Storage Options: Available in 0GB (Lite), 16GB, 32GB, and 64GB eMMC flash variants
-
Wireless Connectivity (Optional):
-
Dual-band Wi-Fi (2.4GHz / 5GHz)
-
Bluetooth 5.0, BLE
-
Selectable onboard PCB or external antenna via integrated switch
-
-
Interfaces & I/O:
-
Gigabit Ethernet PHY (IEEE 1588 support)
-
PCIe Gen 2 (x1), USB 3.0 x2, USB 2.0 x1
-
Up to 30 configurable GPIOs
-
UART, I2C, SPI, PWM, SDIO, I2S, GPCLK support
-
-
Multimedia:
-
Dual HDMI 2.0 (4Kp60)
-
Dual 4-lane MIPI for camera/display (CSI-2/DSI)
-
HEVC 4Kp60 decoding, Vulkan 1.2 & OpenGL ES 3.1 graphics
-
-
Power & Reliability:
-
+5V input (USB PD, up to 5A)
-
Industrial temp range: -20°C to +85°C
-
MTBF: 143,000 hrs (CM5) / 168,000 hrs (CM5 Lite)
-
Long-term availability until at least January 2036
-
Package Contents:
-
1x Raspberry Pi Compute Module 5 board
(Select your preferred variant before adding to cart)
💡 Note: Development accessories such as the IO board, IO case, antenna kit, and cooler are available separately.
