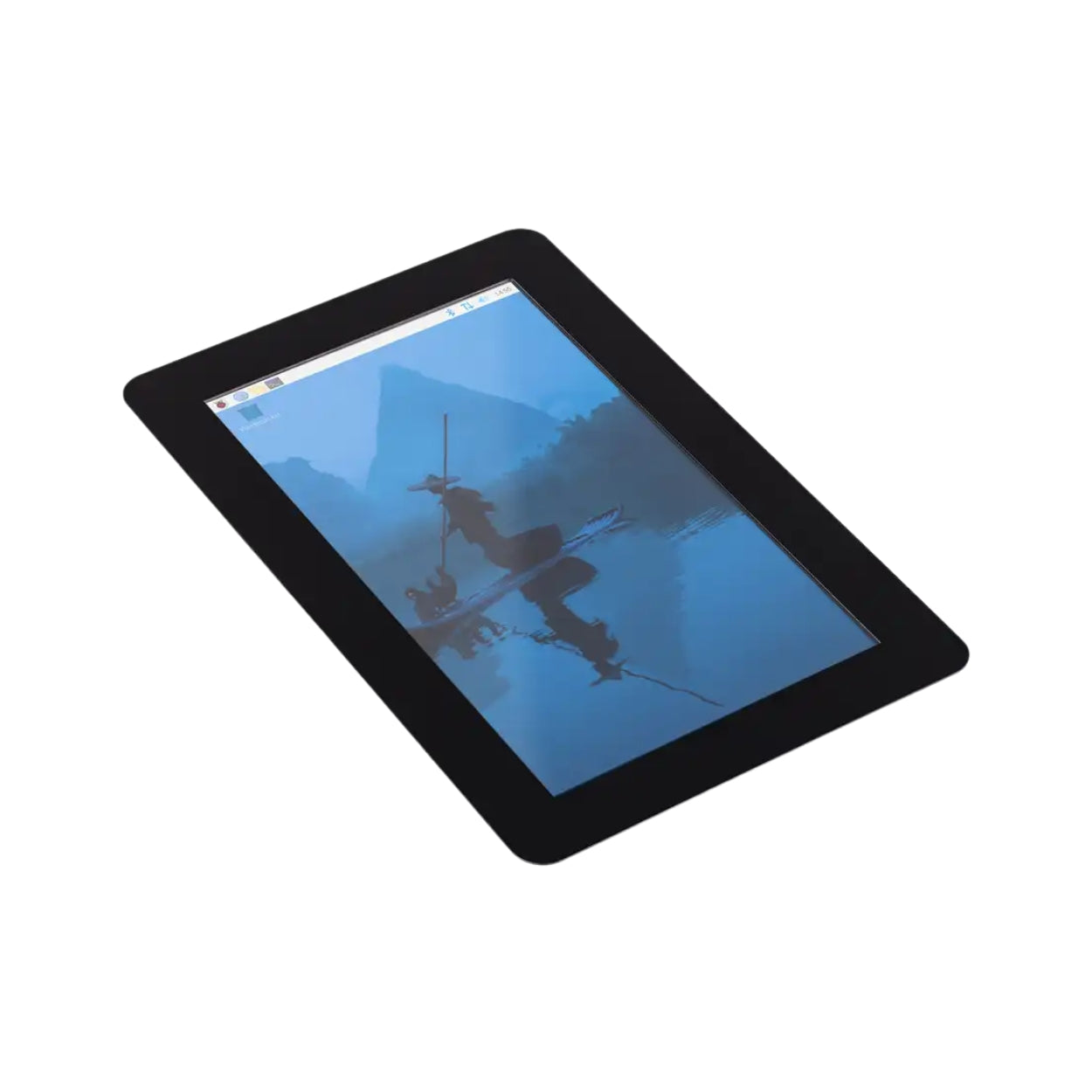

Raspberry Pi Touch Display 2

Enhance your Raspberry Pi projects with the Raspberry Pi Touch Display 2, a high-resolution 7-inch capacitive touchscreen designed for interactivity, convenience, and sleek integration. With a crisp 720x1280 resolution, five-finger multi-touch support, and portrait orientation (landscape optional via software), it’s the perfect interface for smart home dashboards, media centers, kiosks, and more.

This display connects seamlessly to any Raspberry Pi with a DSI port (excluding Raspberry Pi Zero and Pi 400), requiring just two connections: a ribbon cable for display data and a GPIO cable for power. No additional power supply is needed—your Raspberry Pi powers the display directly.

Built with an anti-glare surface, robust TFT LCD panel, and LED backlight, the Touch Display 2 delivers excellent visibility and durability. Rear mounting points allow easy integration with your Raspberry Pi board using the included fixings.

Please Note: The Raspberry Pi Touch Display 2 has different dimensions than the original 7" touchscreen and is not compatible with earlier display enclosures.

Key Features:

• 7-inch touchscreen display for Raspberry Pi

• 720x1280 resolution in portrait mode (switchable to landscape)

• Five-finger capacitive multi-touch support

• Anti-glare surface for better visibility

• Powered directly from the Raspberry Pi—no external power supply required

• Compatible with all Raspberry Pi boards with a DSI port (except Zero and Pi 400)

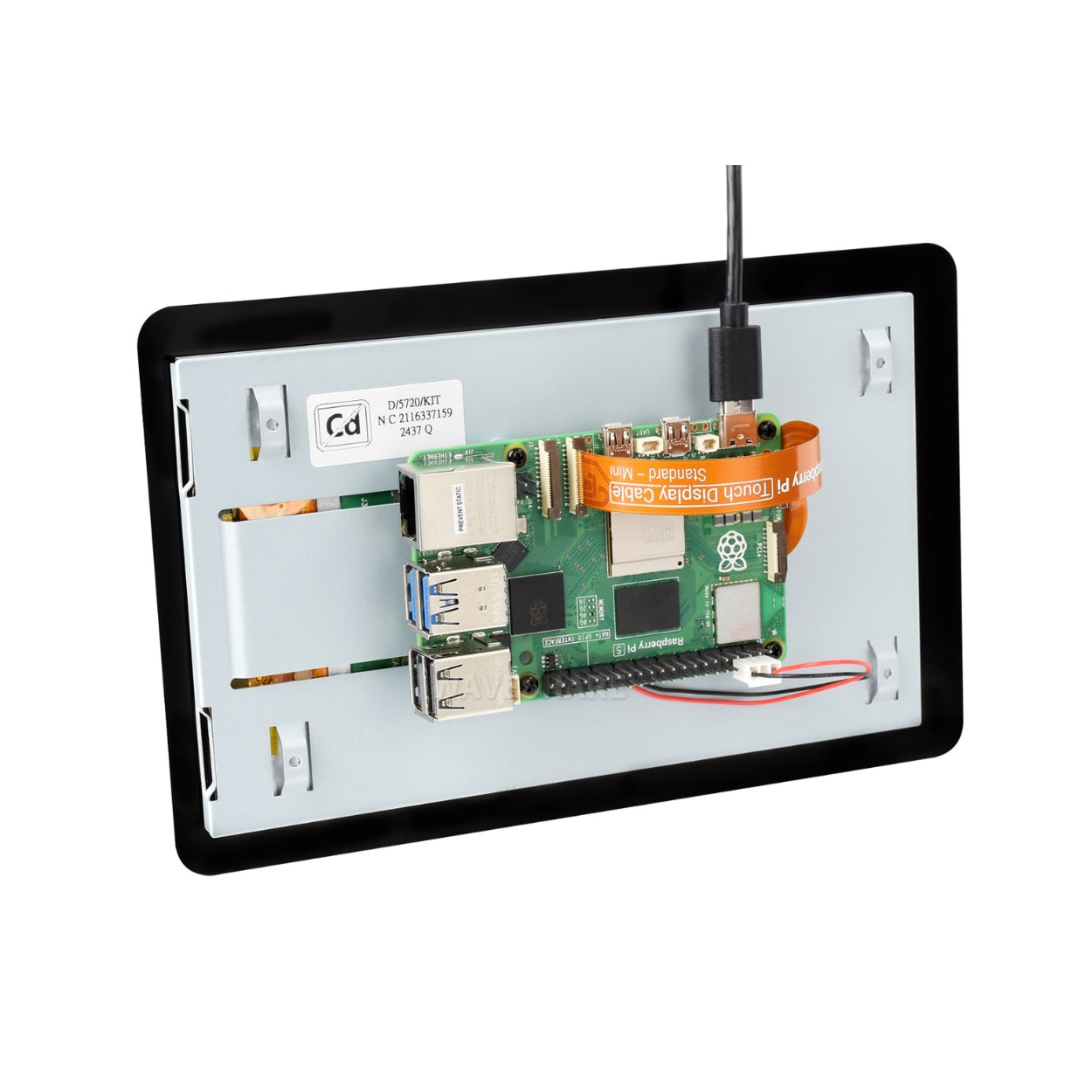

• Rear mounting points and fixings for easy Raspberry Pi attachment

• Long-term availability: Supported through at least January 2030

Technical Specifications:

• Display Size (Diagonal): 7”

• Resolution: 720 × 1280 pixels (RGB)

• Active Area: 88mm x 155mm

• Display Type: TFT LCD, normally white, transmissive

• Backlight: LED

• Color Format: RGB-stripe

• Overall Size: 189.32mm x 120.24mm

• Touch: Capacitive, five-point multi-touch

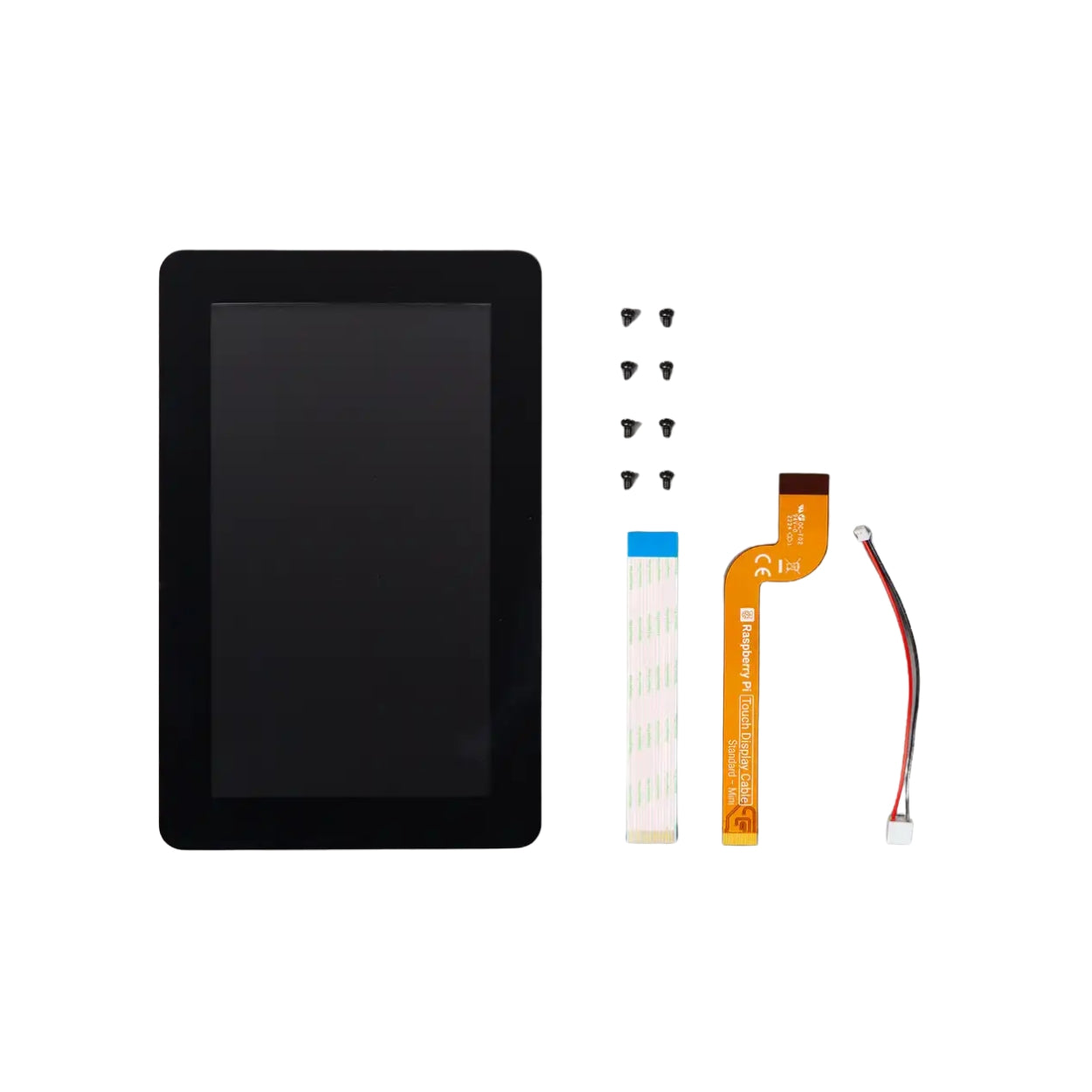

Package Includes:

• 1× Raspberry Pi Touch Display 2

• 1× 22-to-15 way DSI Ribbon Cable (for Raspberry Pi 5)

• 1× 15-to-15 way DSI Ribbon Cable (for Raspberry Pi 4B/3B+/3A+/2/B+)

• 1× GPIO Power Cable

• 8× M2.5 Mounting Screws

Raspberry Pi board is not included.
