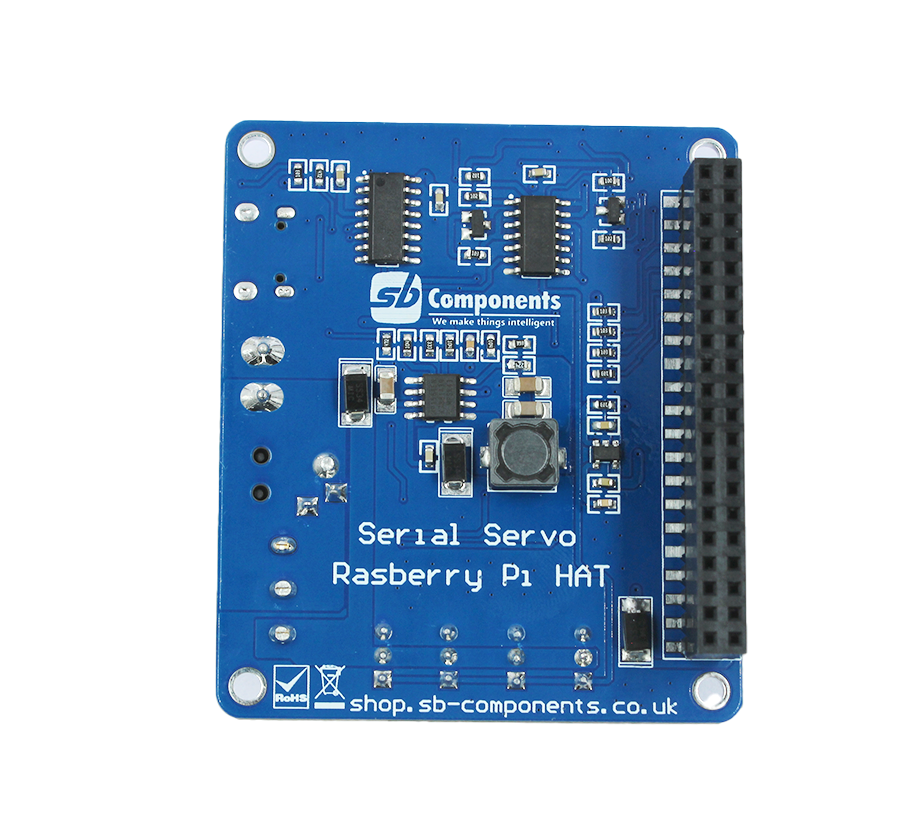

SB Serial Servo Raspberry PI HAT

£26.00 GBP

The Serial Servo Raspberry Pi HAT is equipped with a range of versatile features. It offers multiple powering options, including a Type C power input for breakout use, as well as two...

Description

The Serial Servo Raspberry Pi HAT is equipped with a range of versatile features. It offers multiple powering options, including a Type C power input for breakout use, as well as two alternative power sources through screw terminals and a DC jack, providing flexibility to suit your specific requirements.

Additionally, it boasts four Serial Servo connectors, each accompanied by four programmable buttons, enhancing its functionality. For added safety and convenience, an on/off switch is incorporated into the design. Furthermore, the HAT features a 1.14” TFT Display to provide clear status indicators, ensuring a user-friendly experience.

Features:

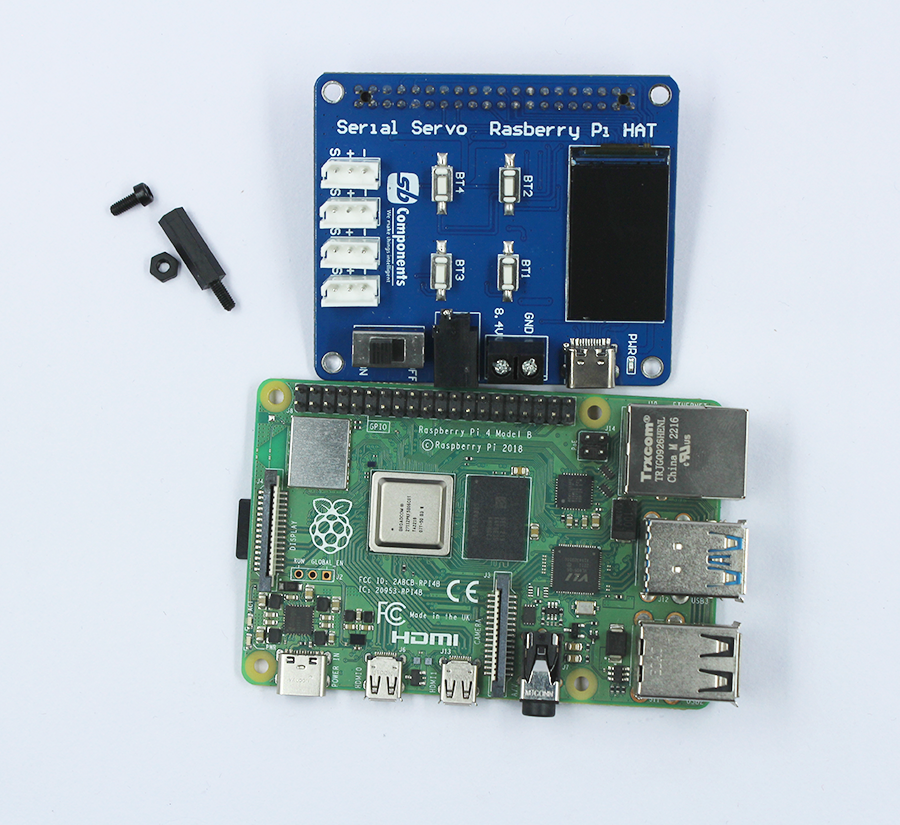

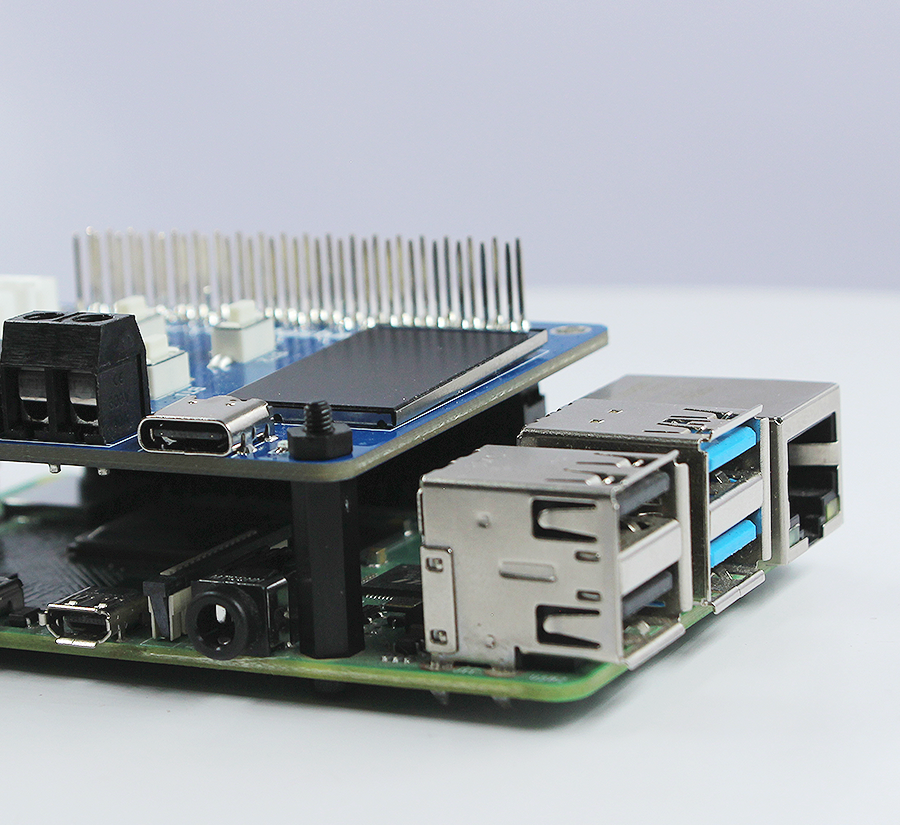

  • Pi HAT with standard 40 pin Headers to connect various Raspberry Pi boards and compatible SBC’s
  • TFT 1.14” display for user interactions

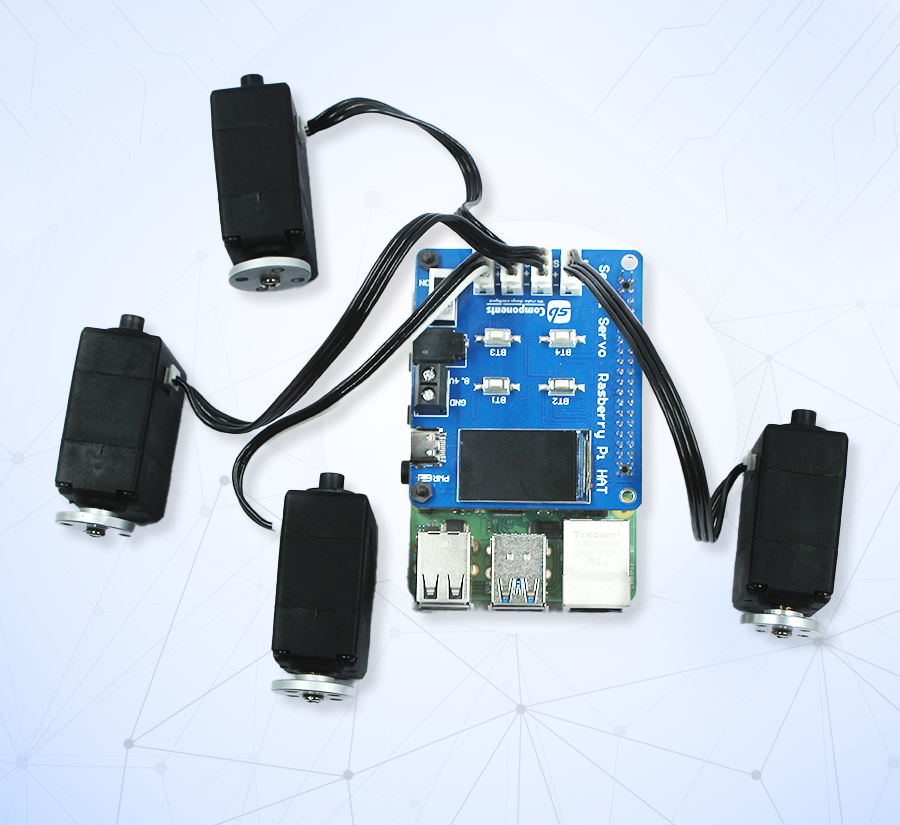

  • Four slot to connect Serial Servo Motors, and easily cascade servo to connect more number of motor*
  • Four Programmable Buttons to add additional control features to your project
  • Screw terminal and DC jack options to connect 6-8.4V adapter with onboard regulator
  • Power status LED to indicate board power
  • Type C interface for direct use with PC/laptop using standalone GUI software

Servo Motor Key Features:

  • Real-Time Position, Load, Temperature, Speed, and Voltage feedback.
  • Servo/Motor Mode Switchable
  • High Precision And Large Torque
  • ID Range 1~253
  • 38400 bps ~ 1Mbps (1Mbps by default)

*NOTE:  Avoid Connecting More Than 6 Servos At A Time, Not Recommended Due To High Current Demand By Servos.

Specification:

  • Microcontroller: Raspberry Pi boards and compatible SBC’s
  • Board Supply Voltage: 5V
  • Operating Pin Voltage: 3.3V
  • Operating Servo voltage: 6~8.4V
  • Display Size: 1.14”
  • Display Resolution : 240x320 pixels
  • Display Driver: ST7789
  • Display Appearance: RGB, 65K/262K
  • Temperature Range: -20°C ~ +70°C
  • Compatible Servo Motors =>
    SB-SS023 - For Lightweight Projects                                                                      SB-SS15 - For Heavier Applications

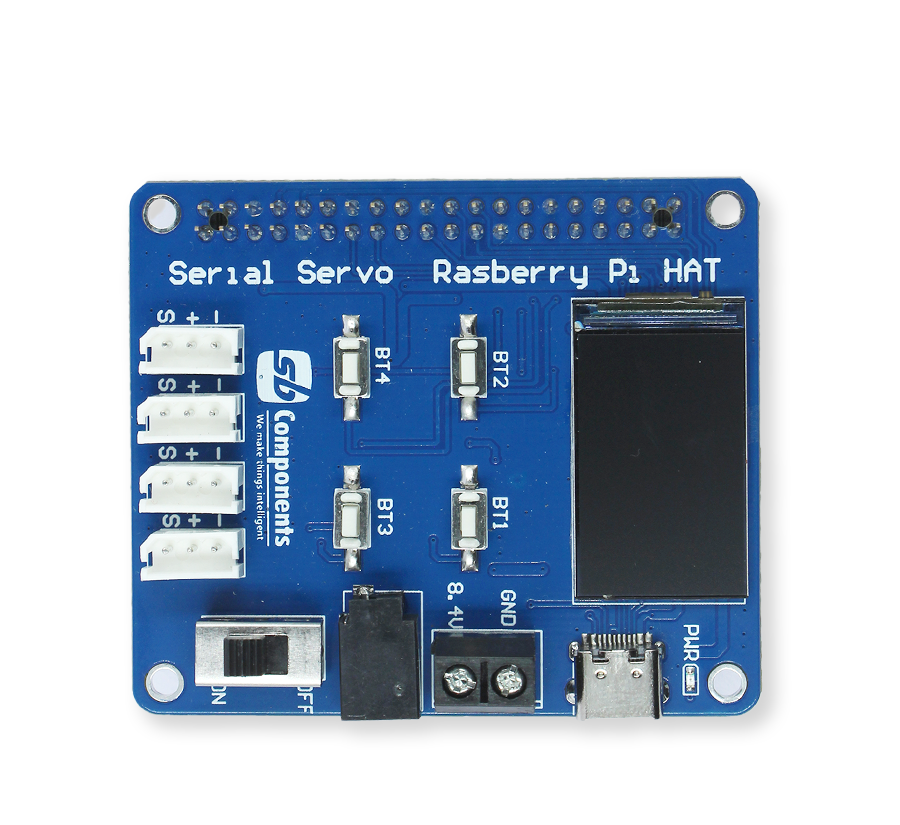

Pinout:



  • (1), (3), (9), (11) Programmable Buttons
  • (2) Serial Servo connector
  • (4) ON/OFF Motor Supply
  • (5) DC Jack Input (6~8.4V DC)
  • (6) Screw Terminal input (6~8.4V)
  • (7) Type C
  • (8) Power Status LED
  • (10) TFT 1.14” Display
  • (12) Standard 40 pin Raspberry Pi Header

Dimension:

Applications:

  • Robotic Arm Control
  • Camera Gimbal Stabilization
  • Automated Surveillance Systems
  • 3D Printer Axis Control
  • Automated Window Blinds
  • CNC Machine Positioning
  • Animatronics and Puppetry
  • Laboratory Automation
  • Remote-Controlled Vehicles
  • Industrial Automation

Resources:

Software Github: Getting Started Guide and Example Codes.

Hardware Github: Hardware Design files like Schematic, 3D File, PCB, Step File, etc.
