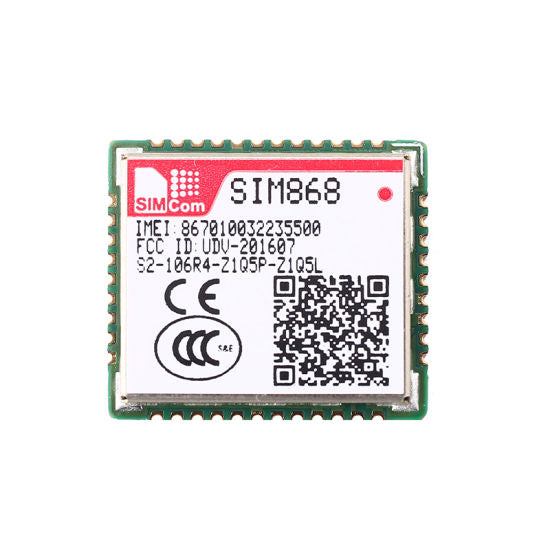

Simcom SIM868 GNSS Module

£12.40 GBP

SIM868 module is a complete Quad-Band GSM/GPRS module that combines GNSS technology for satellite navigation. The compact design which integrated GPRS and GPS/Glonass in an SMT package will significantly save both time...

Description

SIM868 module is a complete Quad-Band GSM/GPRS module that combines GNSS technology for satellite navigation. The compact design which integrated GPRS and GPS/Glonass in an SMT package will significantly save both time and costs for customers to develop GNSS-enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

Features:

  • Quad-band 850/900/1800/1900MHz
  • GPRS multi-slot class 12/10
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
  • Class 4 (2 W @ 850/900MHz)
  • Class 1 (1 W @ 1800/1900MHz)
  • Dimensions: 17.6*15.7*2.3mm
  • Weight: 1.5g
  • Control via AT commands (3GPP TS 27.007,
  • 27.005 and SIMCom enhanced AT Commands)
  • Supply voltage range 3.4 ~ 4.4V
  • Low power consumption
  • Operation temperature: -40ºC ~85ºC

Kit Content:

  • 1 x SIM868 Module
