Simple USB C Socket Breakout

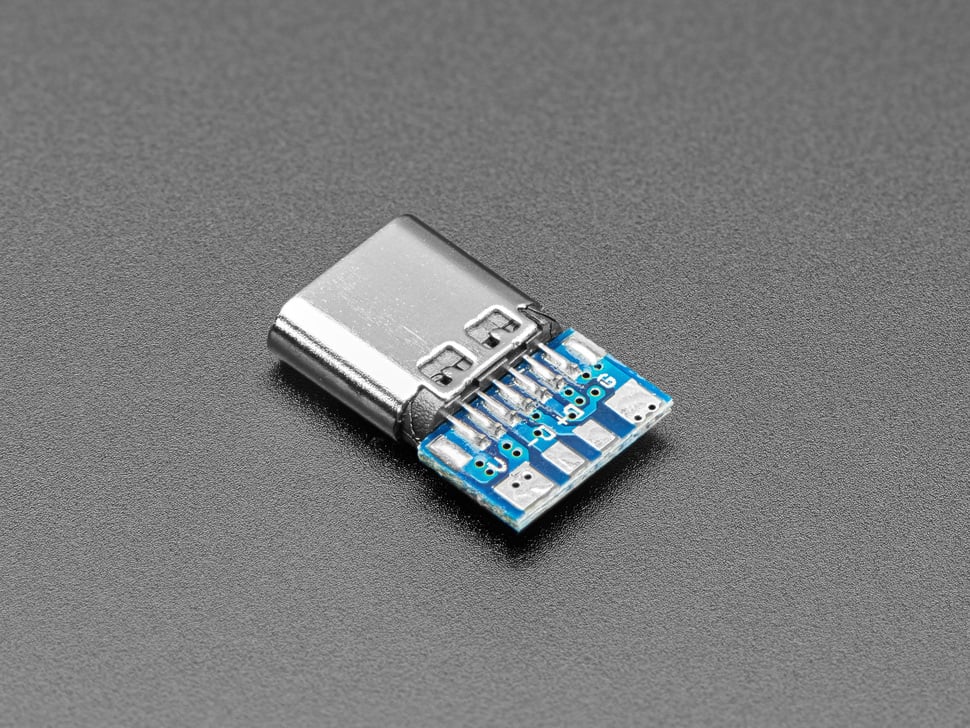

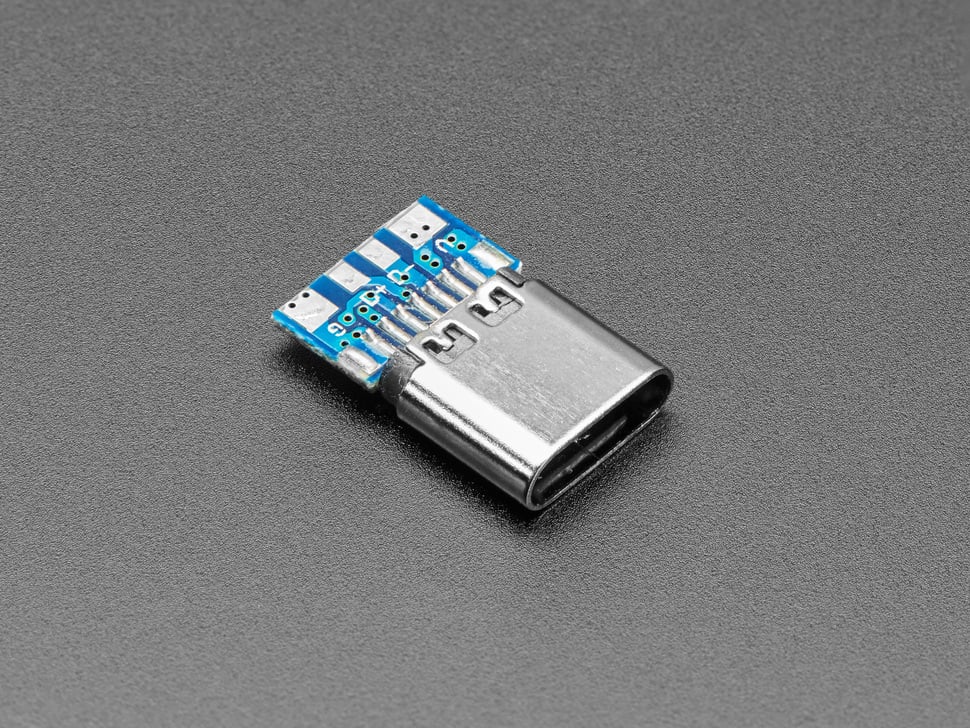

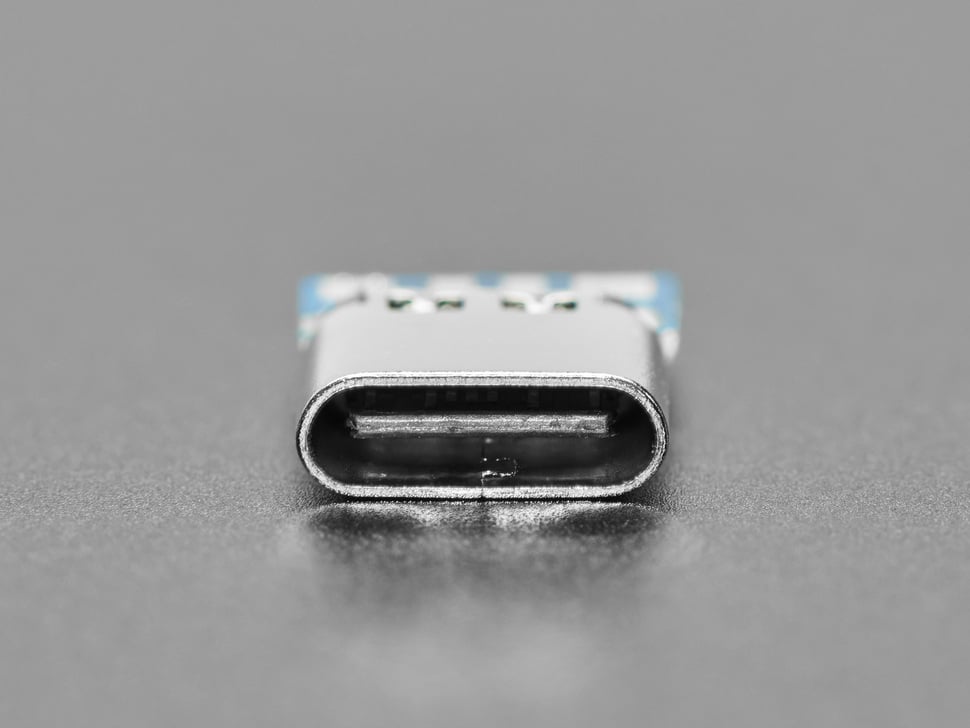

This Simple USB Type C breakout is an inline style breakout board with pads for soldering to the common USB 1.1/2.0 connections, perfect for custom electronics projects like keyboards.

Features include:

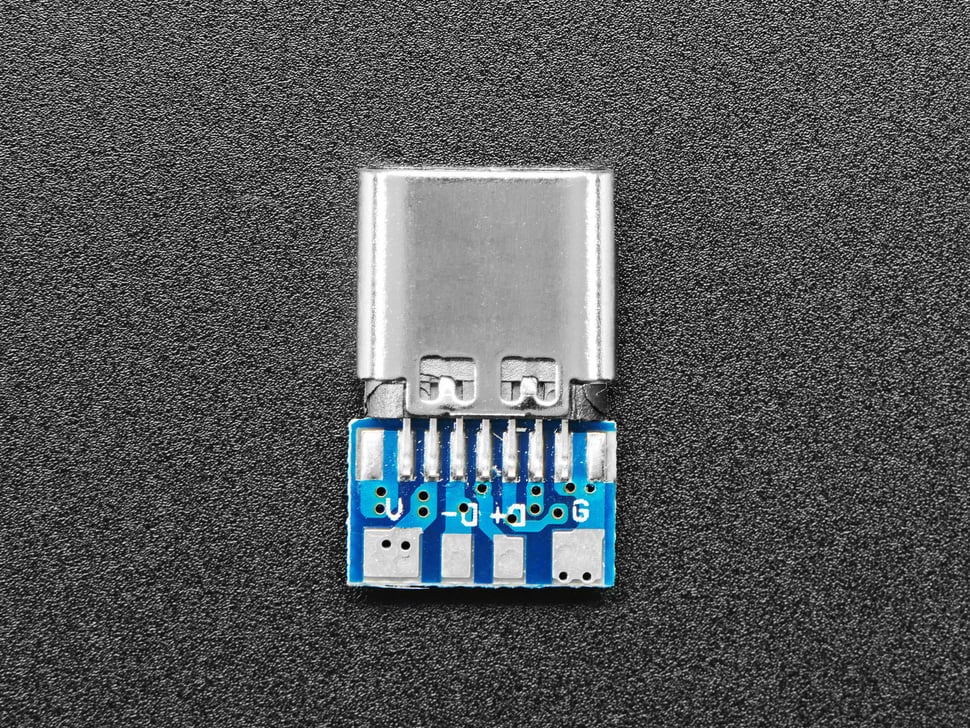

• Classic 4 USB pins breakout compatible with USB microcontrollers or devices

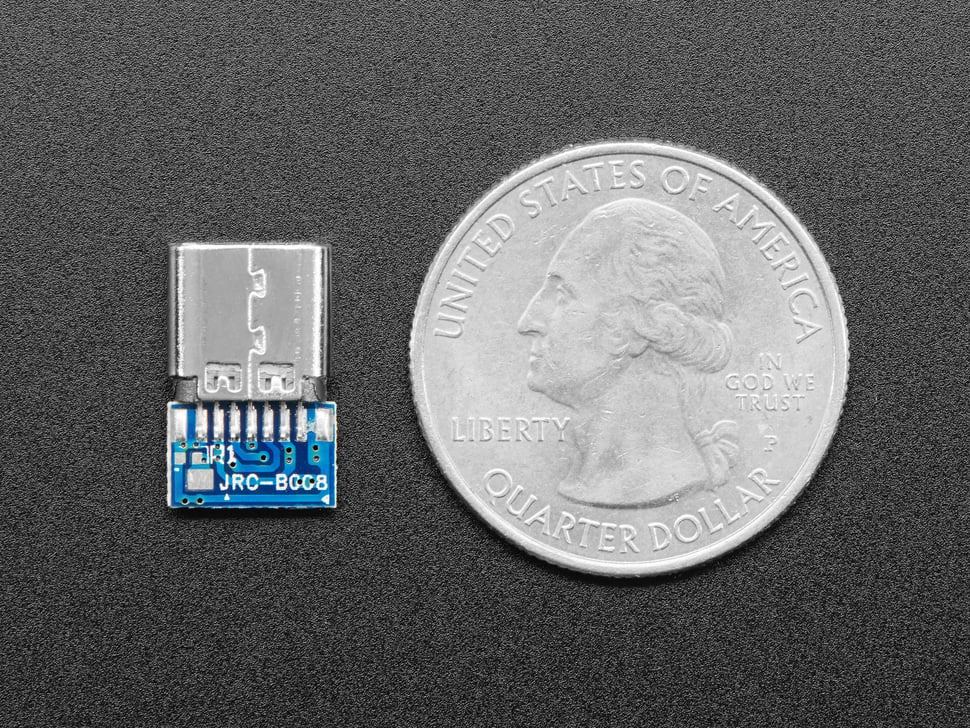

• Compact dimensions of 14.5mm x 9.2mm x 3.2mm (0.6" x 0.4" x 0.1")
• Does not include resistors for direction or current setting, suitable for direct computer connection but may not support power supplies or ports requiring CC resistor negotiation

Refer to the Introduction to USB C app note for additional technical information.

This breakout is commonly used in custom keyboard builds, typically secured inside enclosures.
