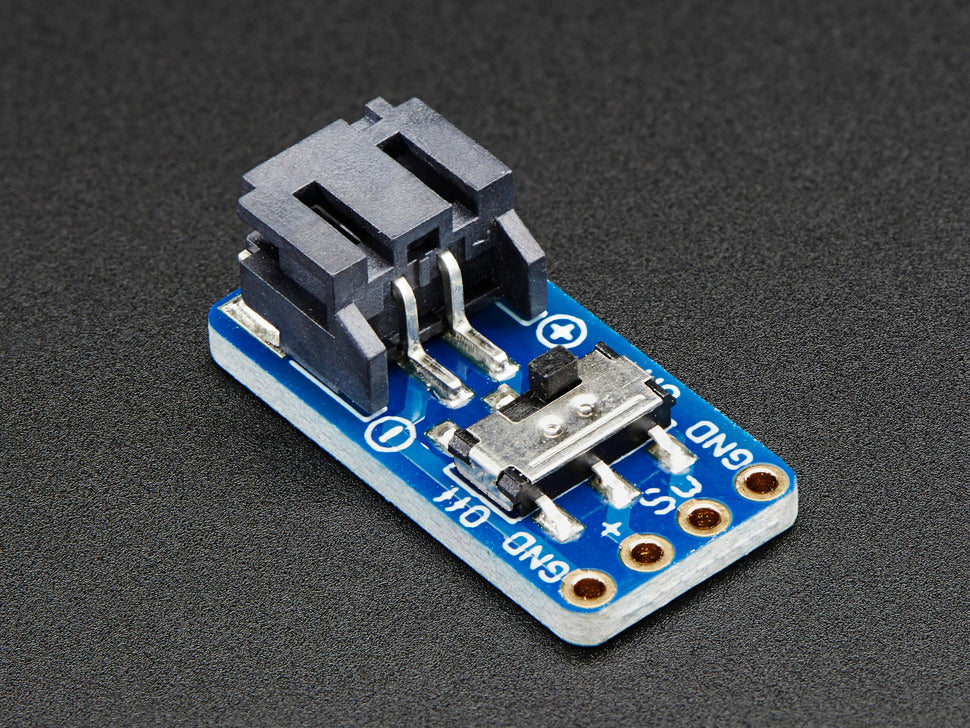

Switched JST-PH 2-Pin SMT Right Angle Breakout Board

This switched JST connector is the ideal solution for quickly prototyping with our LiPoly batteries. It features a genuine JST connector paired with a slide switch capable of handling up to 600mA. Both components are soldered onto a breadboard-friendly breakout. The breakout includes two ground pins, one "switched" power pin, and one pin that is always on, providing versatile power options.

This connector is compatible with the "JST PH 2-pin" connectors used in our battery packs, and it mates perfectly with our 1-cell LiPoly and LiIon batteries, as well as our 6V coin cell holder and 3xAAA battery pack. We also offer simple JST pigtails that are compatible with this connector.

Note: You may receive either an off-white or black JST connector.

Technical Details:

• Dimensions: 21mm x 10mm x 2mm (0.8" x 0.4" x 0.08")
• Height with JST connector: 7.3mm
• Weight: 1g
• Revision History: As of September 16, 2022, this breakout board may come with either a black or tan JST-PH connector.
